Funhouse

Manufacturer: Williams Electronics Games, Incorporated, a subsidiary of WMS Ind., Incorporated (1985-1999) [Trade Name: Williams]
Year: 1990
Date: November 08, 1990
Type: Solid State Electronic (SS)
Players: 4
Production: 10,751 units (approximate)

About This Machine

Funhouse, designed by Pat Lawlor and Larry DeMar for Williams Electronics Games in 1990, is a standout title in pinball history. This solid-state machine, built on the Williams WPC (Alpha Numeric) platform and produced in a run of approximately 10,751 units, embodies the spirit of a classic carnival funhouse. Its centerpiece is Rudy, a talking, ventriloquist-style head (voiced by Ed Boon) who taunts players, tracks the action with his eyes, and even addresses each player by an assigned nickname. Artwork by John Youssi, music by Chris Granner, and sound by Jon Hey round out one of the most characterful packages of the era.

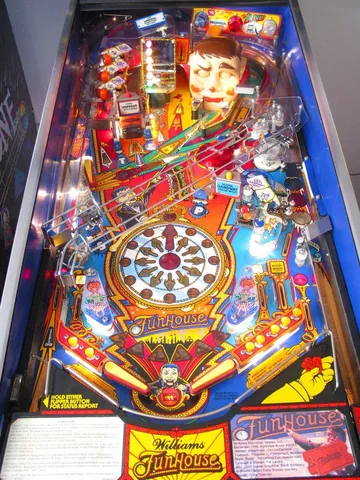

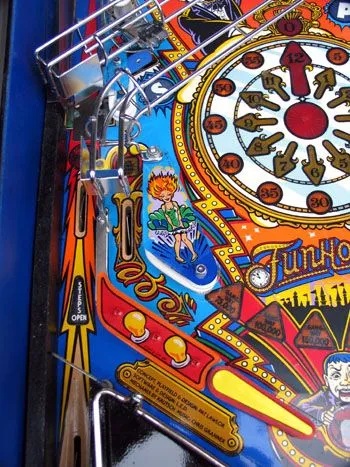

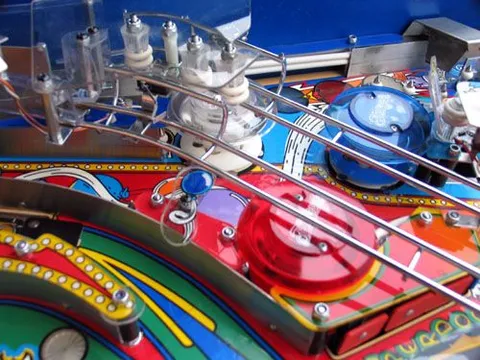

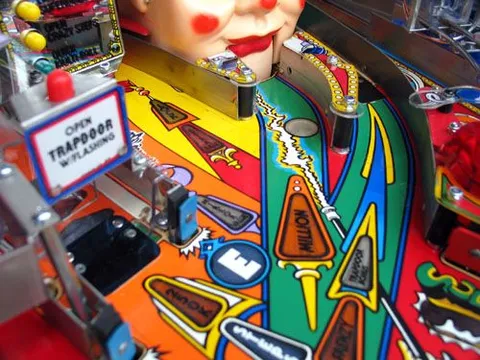

The gameplay is ingenious. Three flippers, three pop bumpers, and two manual plungers give players an unusual range of control, while a ramp, standup targets, a 3-bank of standup targets, three cellar holes, and dual right inlanes fill out the playfield. The ramp features a diverter that guides the ball either to the left inlane or the left outlane for a left-plunger skill shot attempt, and the upper loop hides a trapdoor that opens briefly when an upper loop shot is made. The game builds toward a memorable climax: when the playfield clock reaches midnight, Rudy falls asleep with his mouth open, and shooting a ball into his mouth scores 1,000,000 points and starts Midnight Multiball, a thrilling two- or three-ball frenzy.

The design and art bring the carnival atmosphere vividly to life, and the game's blend of humor, mechanical showmanship, and satisfying rules has made Funhouse a beloved classic among pinball enthusiasts. Williams had used the theme once before, on 1956's 'Fun House,' and would revisit the talking-head idea with two heads on 1994's 'Red & Ted's Road Show' — but Rudy's original stage remains one of the most fondly remembered machines of the 1990s.

Images (69)

Technical Details

Theme:
Happiness - Circus/Carnival
Model Number:
50003
MPU:
Williams WPC (Alpha Numeric)
Toys:

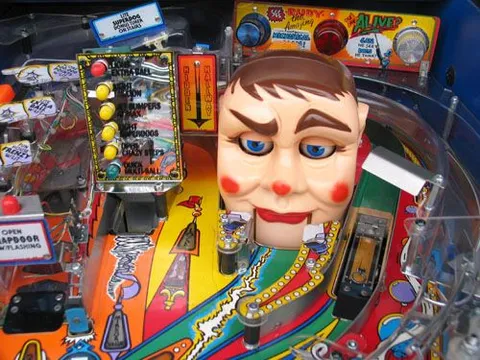

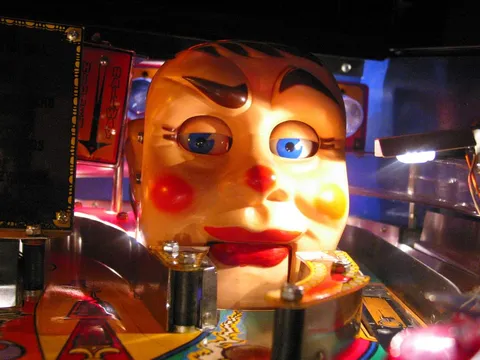

A talking head named "Rudy".
Notable Features:
Flippers (3), Pop bumpers (3), Manual plungers (2), Ramp (1), Standup targets (4), 3-bank standup targets (1), Cellar holes (3), Dual right inlanes, 2- or 3-ball Multiball. The ramp has a diverter that guides the ball either to the left inlane or the left outlane for a left plunger skill shot attempt. Upper loop has a "trapdoor" that opens briefly when an upper loop shot is made. A talking he ad opens mouth when clock reaches midnight. Then, the player must shoot a ball into the mouth to earn 1,000,000 points and start 'Midnight Multiball '. Actual measured weight: 256 lbs (includes legs).

Credits

Designer:
Pat Lawlor, Larry DeMar
Artist:
John Youssi
Software:
Larry DeMar, Brian Eddy
Music:
Chris Granner
Sound:
Jon Hey
Mechanics:
John Krutsch

ROM Files

  • Complete set L-2 Sound ROMs
    376 KB
    Download
  • Revision L-2 Sound ROMs [U14,U15,U18]
    379 KB
    Download
  • Revision L-3 Game ROMs
    127 KB
    Download
  • Revision L-4 Game ROMs
    128 KB
    Download
  • Revision L-5 Game ROMs
    129 KB
    Download
  • Revision L-9 Game ROM
    143 KB
    Download
  • Revision L-9 Game ROM - Corrected German Text
    136 KB
    Download
  • Revision L9.05H CPU and L3 sound ROM
    301 KB
    Download
  • Special Sound ROM L-2 [U18]
    152 KB
    Download

Documentation

  • Operations Manual (November 1990, includes schematics, OCR searchable)
    12 MB
    Download
  • Operator's Handbook (November 1990, OCR searchable)
    750 KB
    Download
  • Parts List
    204 KB
    Download
  • Prototype Manual Addendum
    169 KB
    Download
  • Prototype Sound Board Schematics And Part Numbers
    230 KB
    Download
  • Setting and Operating Instructions (German, undated, OCR searchable, pages 1&2 state this is add'l info to original manual)
    3 MB
    Download

Service Bulletins

Other Files

  • Operations Manual (November 1990, high-res schematics only, pages 3-10 to 3-12)
    46 MB
    Download
  • Operations Manual (November 1990, high-res schematics only, pages 3-13 to 3-15)
    40 MB
    Download
  • Operations Manual (November 1990, High-res schematics only, pages 3-2 to 3-6)
    50 MB
    Download
  • Operations Manual (November 1990, high-res schematics only, pages 3-7 to 3-9)
    43 MB
    Download
  • Prototype Service Update - Changes For Manufacturing
    179 KB
    Download
