Flying Colors

Manufacturer: Genco Manufacturing Company, of Chicago, Illinois, USA (1931-1958)
Year: 1935
Date: September, 1935
Type: Pure Mechanical (PM)
Players: 1

About This Machine

Flying Colors is a fascinating purely mechanical pin game from Genco Manufacturing Company, released in September 1935. What sets Flying Colors apart is its distinctive design, in which five colored balls are shot at once and the order in which they land in the outhole trough determines the payout, which was paid by the location.

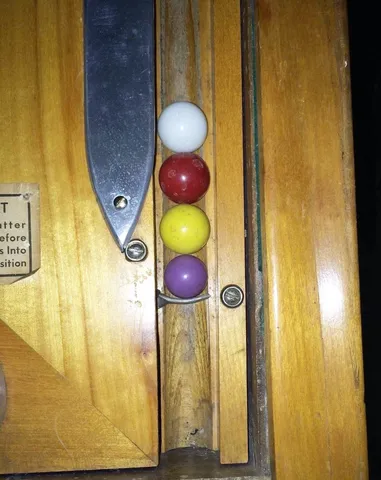

The gameplay is simple yet intriguing. Slightly pulling the plunger knob releases a spring-loaded device that propels all five balls at the same time - the feature Genco's September 1935 Billboard ad touted as "the only game with the new automatic plunger." The payouts range from 2 free plays for the red ball landing first up to 20 free plays for the full red, white, black, yellow, and green sequence. The game was available with a 5-cent coin chute or a combination 5-10-25 cent coin chute, and a "Junior" model followed in October 1935.

Notably, Flying Colors features a mirrored backboard, which the ad explains let the merchant check the rewards through the mirror - convenient for a barkeeper behind the bar who couldn't easily walk over to the game. As an entirely mechanical payout game from the mid-1930s, Flying Colors is an evocative artifact of pinball's pre-electric era and a treat for any serious enthusiast.

Images (14)

Technical Details

Notable Features:

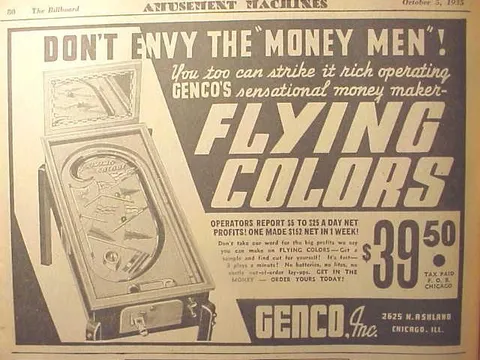

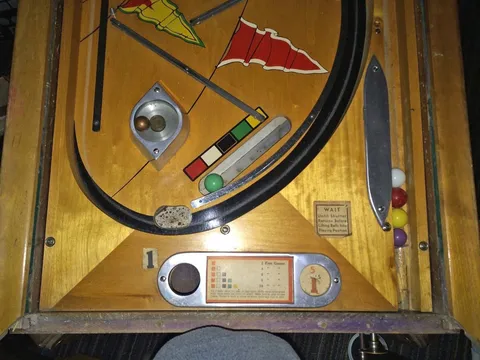

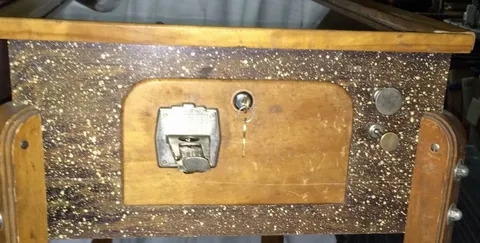

Game was available with a 5-cent coin chute, or a combination 5-10-25 cent coin chute. Mirrored backboard. Five colored balls are shot at one time. The order in which they landed in the outhole trough determined the payout, which was paid by the location. Red ball first = 2 free plays Red ball then white ball = 4 free plays Red, white, and black = 10 free plays Red, white, black, and yellow = 15 free plays Red, white, black, yellow, and green = 20 free plays The September 1935 Billboard ad shown here states, "The only game with the new automatic plunger ". An owner confirms the game is entirely mechanical and slightly pulling the plunger knob releases a spring-loaded device to propel all five balls. We presume the spring is set by the action of pushing in the coin slide or the ball lift knob. The ad also states, "The merchant checks the rewards through the mirror backboard". That might be intended for instances when it is inconvenient for the merchant on location to walk up to the game (barkeeper behind the bar, for instance.)
