Flight 2000

Manufacturer: Stern Electronics, Incorporated, of Chicago, Illinois, USA (1977-1984) [Trade Name: Stern]
Year: 1980
Date: August, 1980
Type: Solid State Electronic (SS)
Players: 4
Production: 6,301 units (confirmed)

About This Machine

Flight 2000, designed by pinball legend Harry Williams and manufactured by Stern Electronics in August 1980, is a four-player widebody solid-state game with an Outer Space theme, featuring artwork by Gerry Simkus and Doug Watson and software by Bill Pfutzenreuter. It holds a genuine distinction in Stern history: it was the company's first talking game, using the VSU-100 speech board.

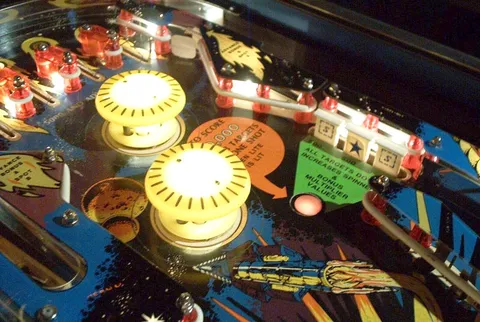

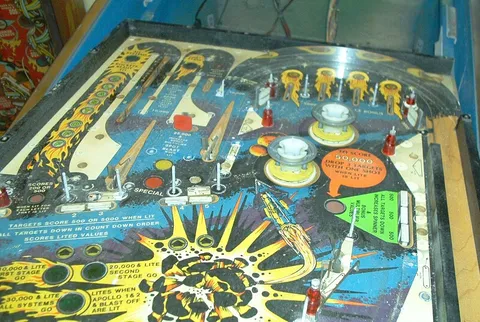

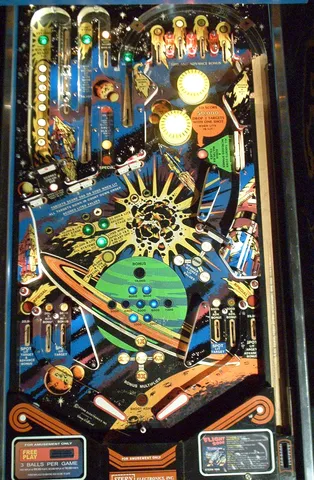

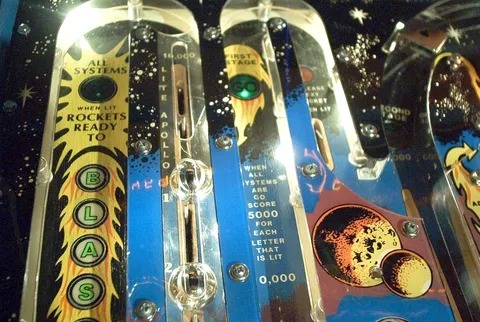

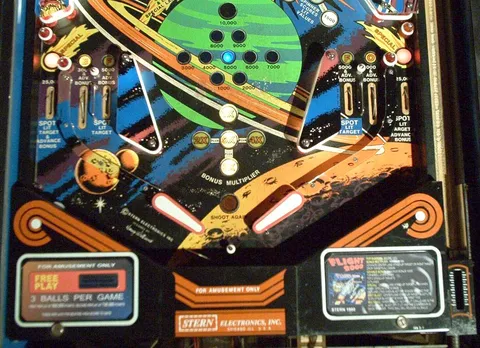

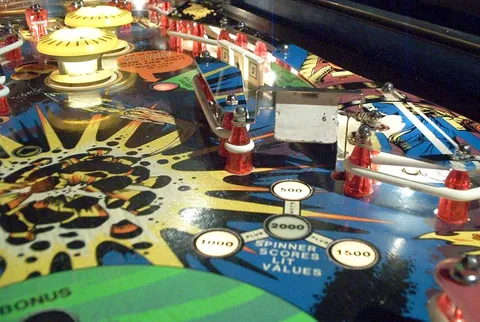

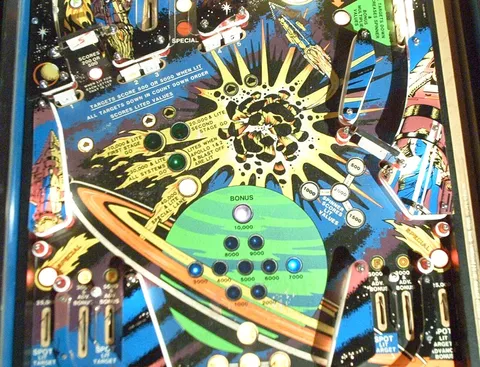

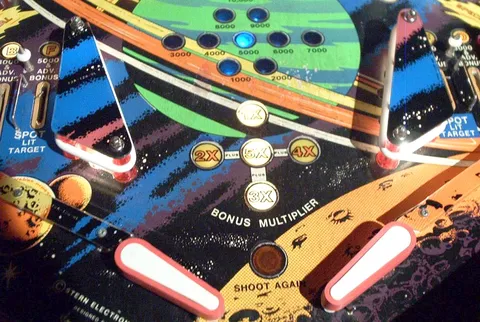

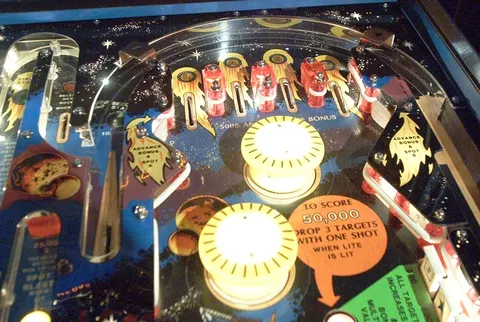

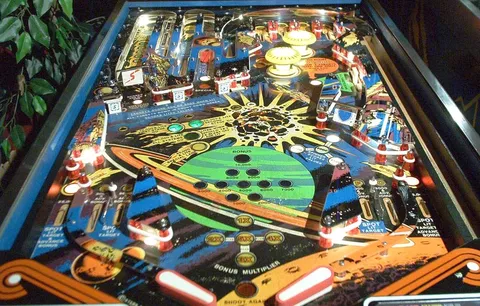

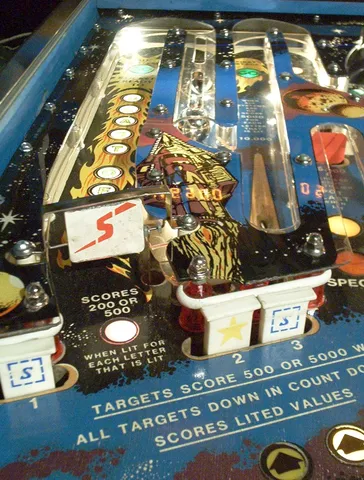

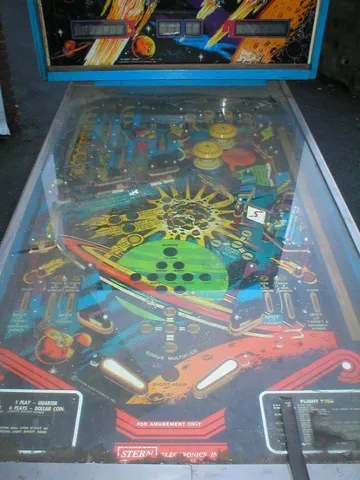

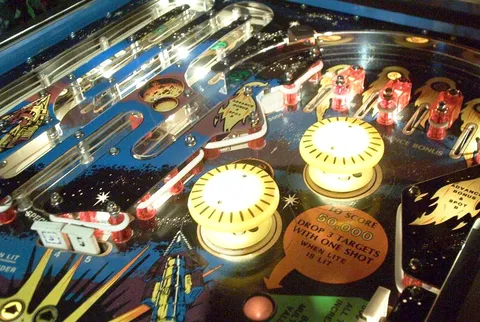

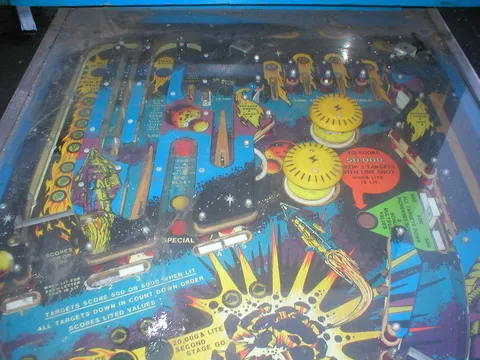

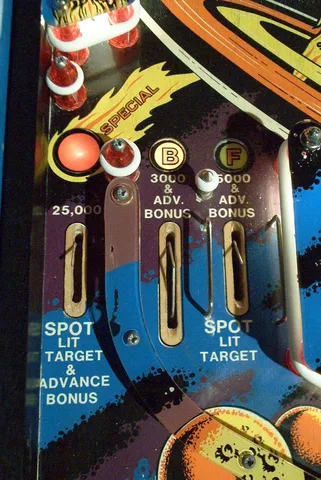

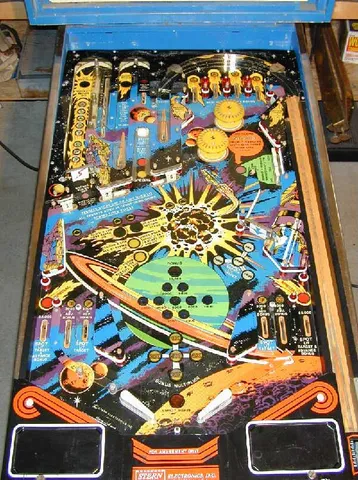

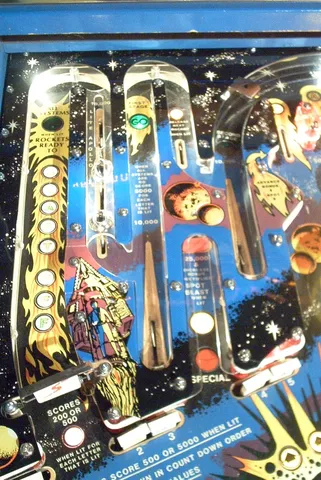

The playfield is packed with features: two flippers, two pop bumpers, four slingshots, five memory drop targets, a 3-bank of drop targets, three standup targets, two kickers, two spinning targets, dual inlanes, and a mini-post between the flippers. The centerpiece is a 3-ball multiball in which each ball is launched through three separate "lift-off" stages - a maze-like ball lock arrangement at the upper left of the playfield where a captive ball walker delivers the ball to kickers that finally propel it to the top arch.

With 6,301 units confirmed produced between August and December 1980, Flight 2000 was a substantial hit for Stern. Its combination of an inventive multiball mechanism, speech, and a spacious widebody layout makes it a milestone of the early solid-state era that continues to captivate enthusiasts today.

Images (39)

Technical Details

Theme:
Outer Space
Model Number:
128

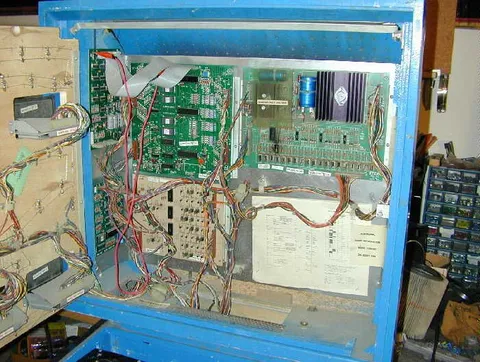

MPU:
Stern M-200 MPU
Notable Features:
Flippers (2), Pop bumpers (2), Slingshots (4), Memory drop targets (5), Standup targets (3), Kickers (2), Spinning targets (2), 3-bank drop targets (1), Captive ball walker, Dual inlanes, Mini-post between flippers. 3 or 5 ball play. Has voice. 3-ball multiball where each ball is launched through 3 separate "lift-off" stages. This takes place at the upper left of the playfield inside a unique maze-like ball lock arrangement where a captive ball walker delivers the ball to kickers to finally propel the ball to the top arch.

Credits

Designer:
Harry Williams
Artist:
Gerry Simkus, Doug Watson
Software:
Bill Pfutzenreuter

ROM Files

Documentation

  • English Manual
    4 MB
    Download
  • Schematic Diagram (paginated)
    5 MB
    Download
  • VSU-100 Voice Synthesizer Module Schematic
    300 KB
    Download

Other Files

  • Graphic Cabinet Measurements (includes playfield and playfield glass)
    3 MB
    Download
