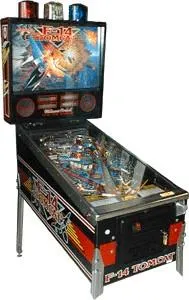

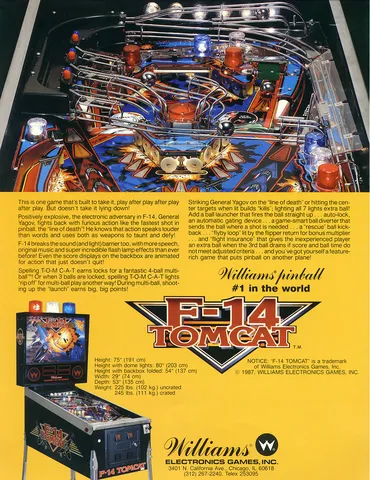

F-14 Tomcat

Manufacturer: Williams Electronics Games, Incorporated, a subsidiary of WMS Ind., Incorporated (1985-1999) [Trade Name: Williams]
Year: 1987
Date: March 23, 1987
Type: Solid State Electronic (SS)
Players: 4
Production: 14,502 units (confirmed)

About This Machine

F-14 Tomcat, designed by Steve Ritchie and released by Williams in March 1987 on the System 11A platform, is one of the best-known combat-themed games of the solid-state era, with a substantial confirmed production run of 14,502 units. Ritchie also conceived the game and contributed to its music, with art by Doug Watson, software by Eugene Jarvis and Ed Boon, and sound work by Bill Parod and Chris Granner. According to Ritchie, he and his brother Mark Ritchie provided the game's voice work.

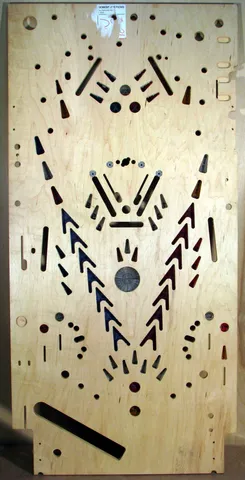

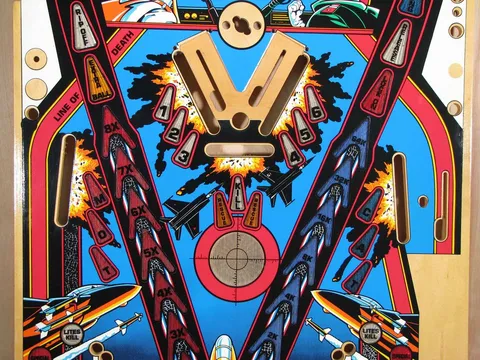

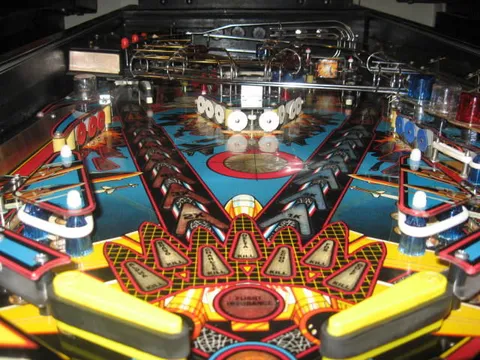

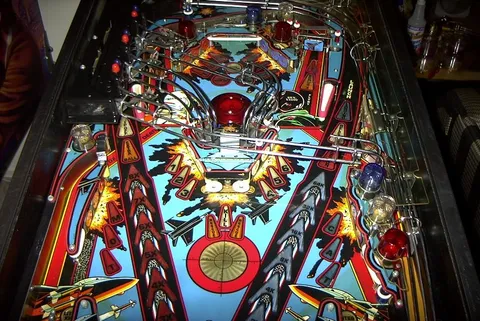

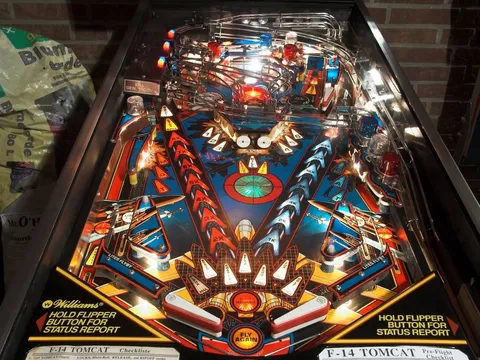

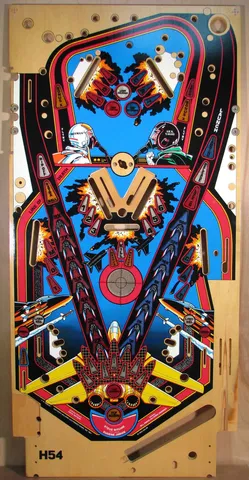

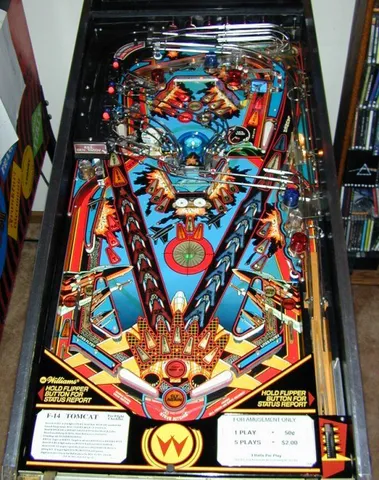

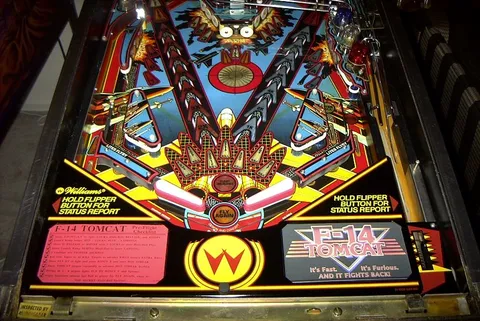

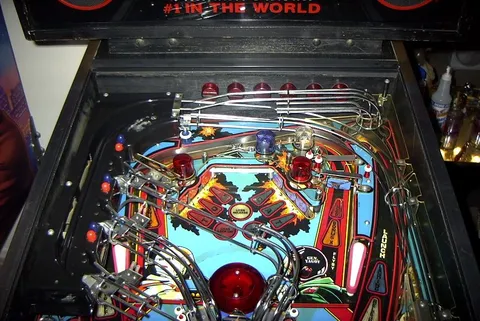

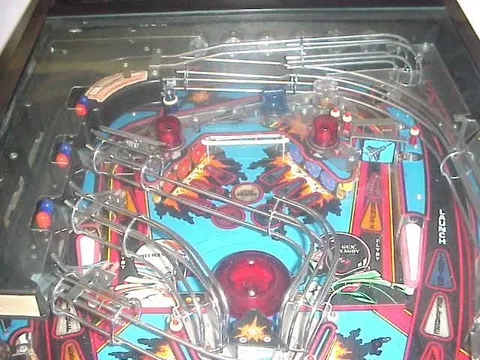

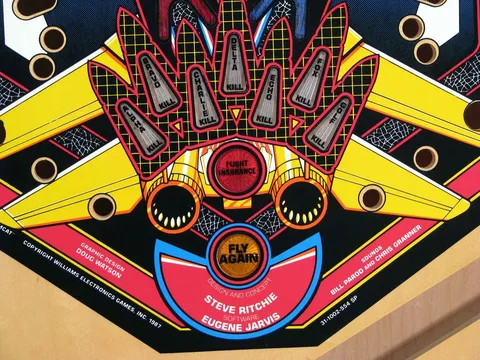

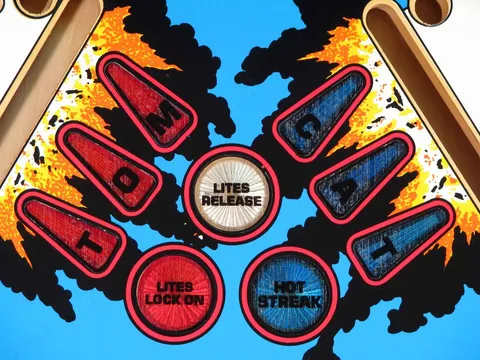

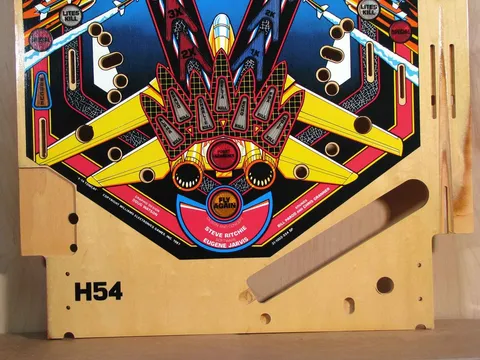

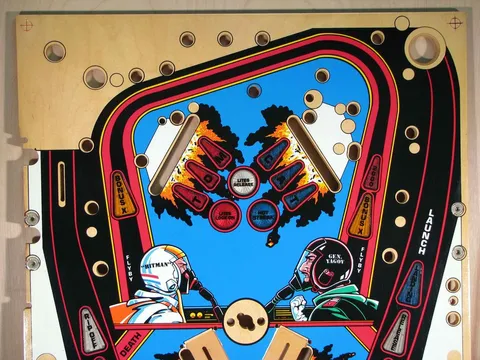

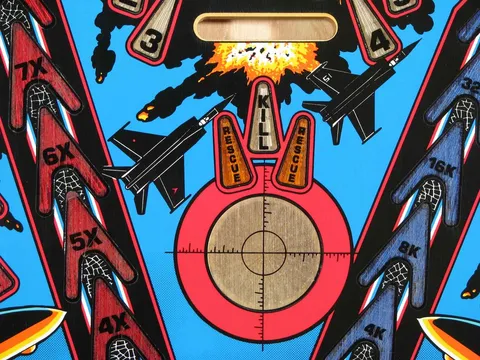

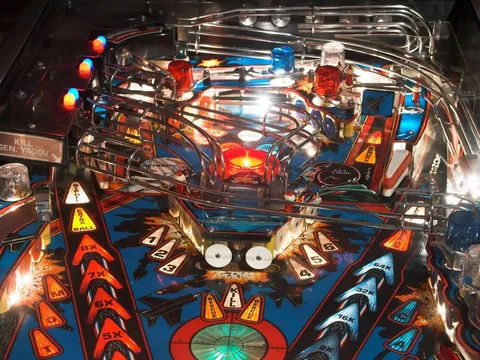

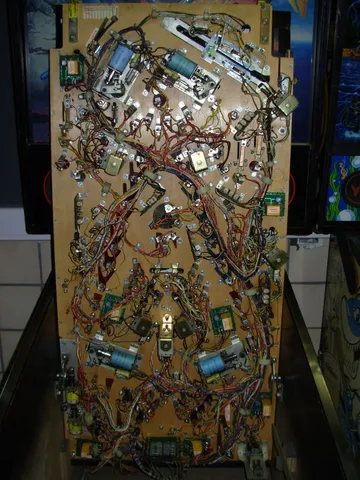

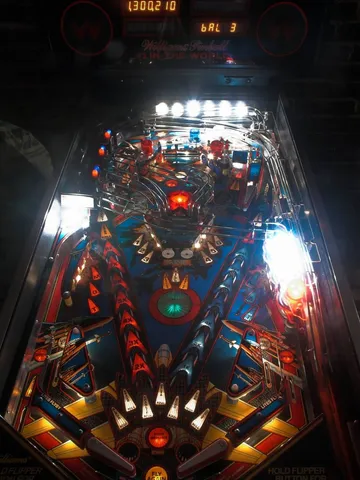

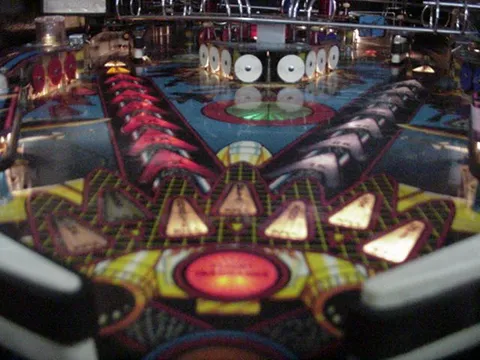

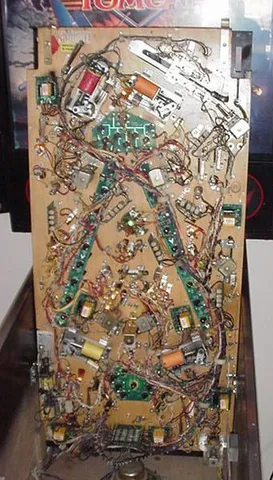

Gameplay is fast and intense: four flippers, a pop bumper, two slingshots, twenty standup targets, three ball kicker lanes, a spinning target, a vertical upkicker, and a 4-ball multiball. The game's signature device is the 'Jagov Kicker', which Ritchie describes as a first-ever kickback that fires the ball straight back at the flippers at very high speed; he also credits F-14 as the first game with 'Autosave', returning the ball to the player after premature drains. Speech features prominently, reinforcing the fighter-jet theme.

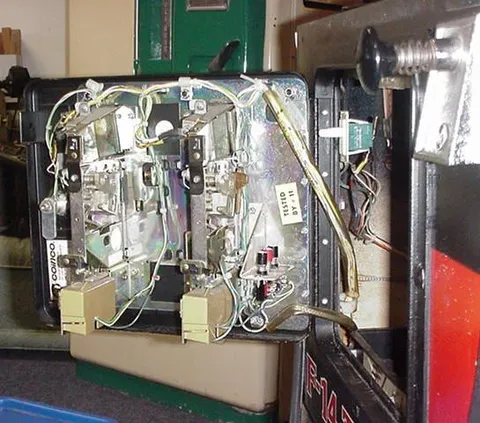

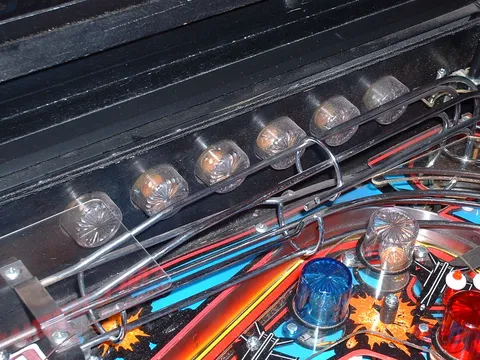

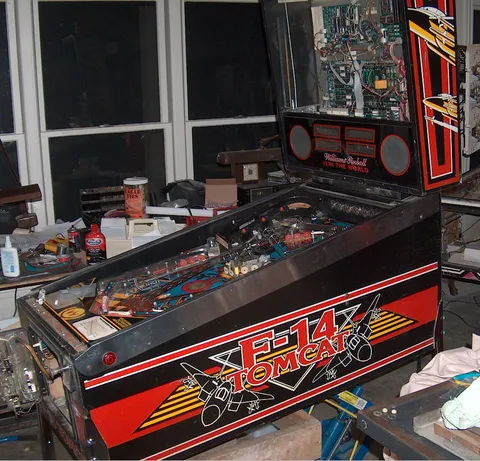

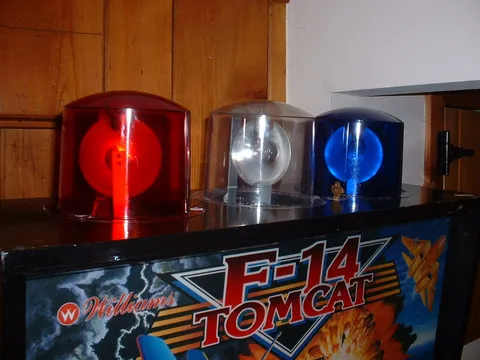

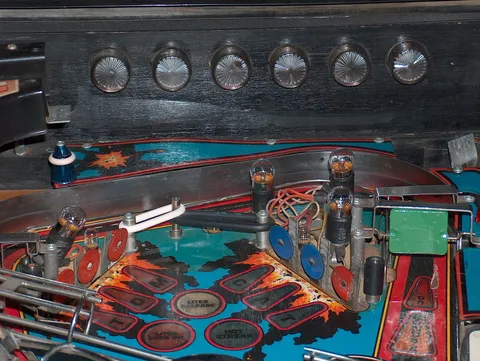

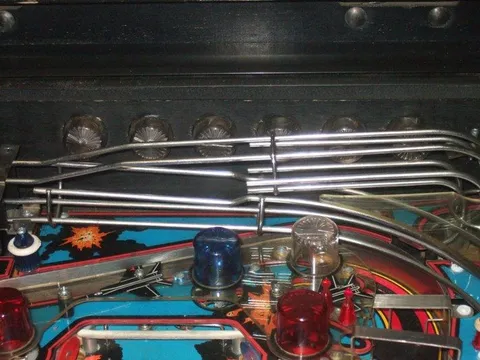

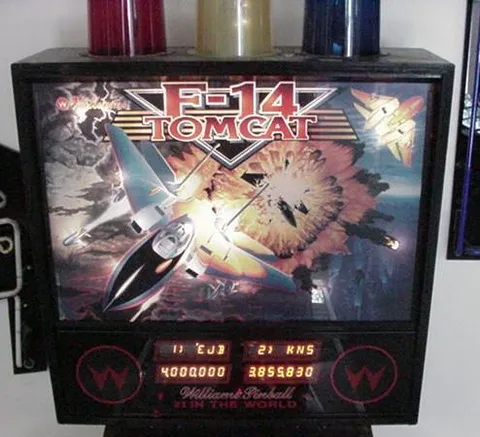

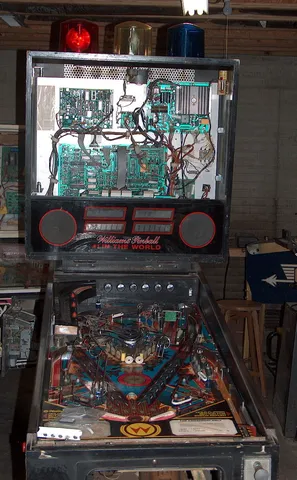

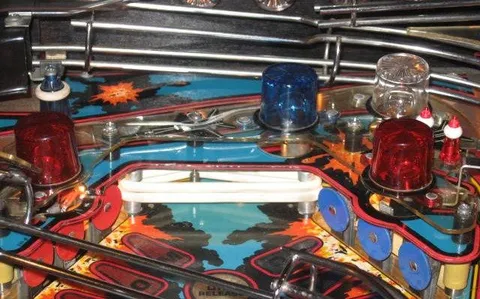

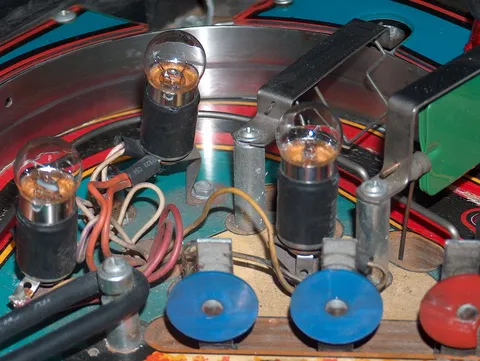

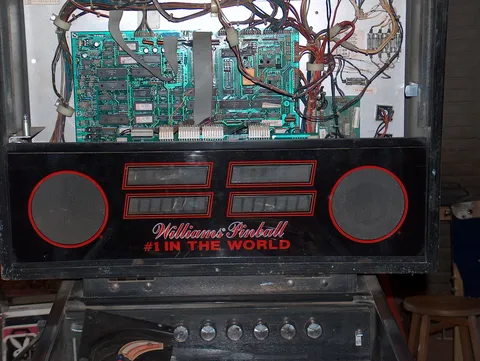

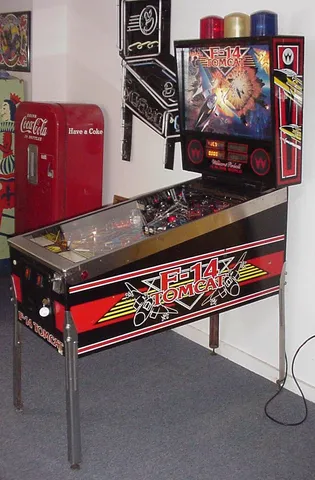

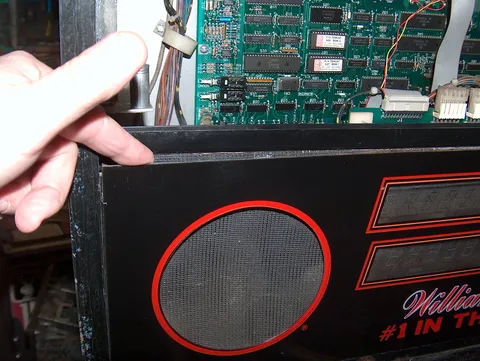

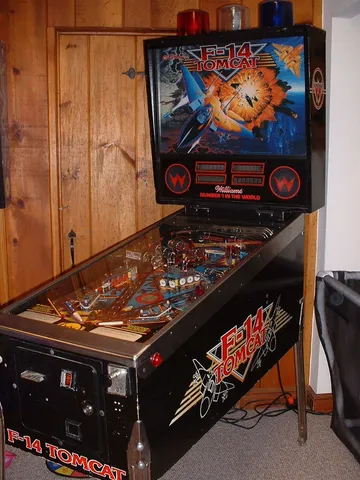

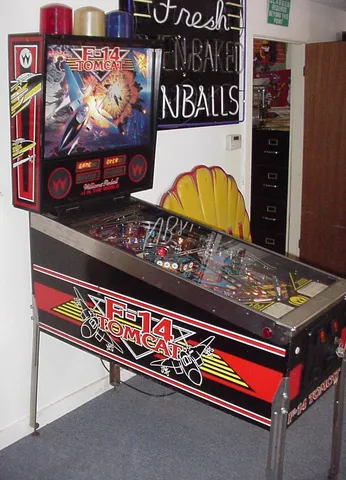

Visually, the game is topped by three rotating beacon lights on the backbox - so bright on early examples that their domes, along with the clear flash lamp domes on the playfield, were changed to red during production. With its speed, its firsts, and its unmistakable presence, F-14 Tomcat remains a favorite among System 11 collectors.

Images (50)

Technical Details

Theme:
Adventure - Combat
Model Number:
554

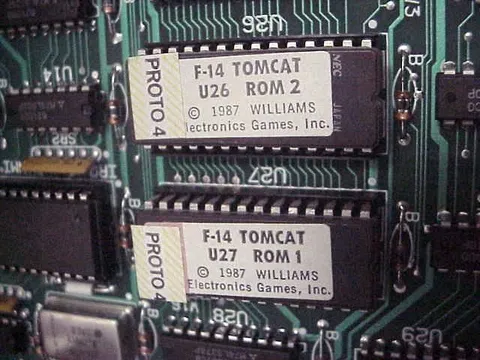

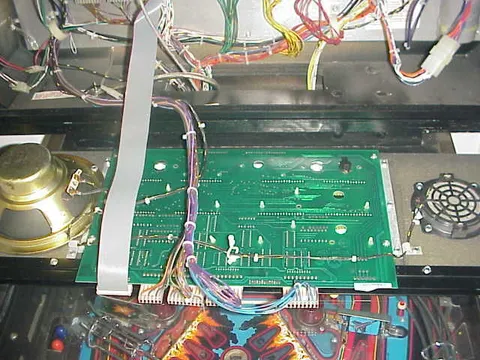

MPU:

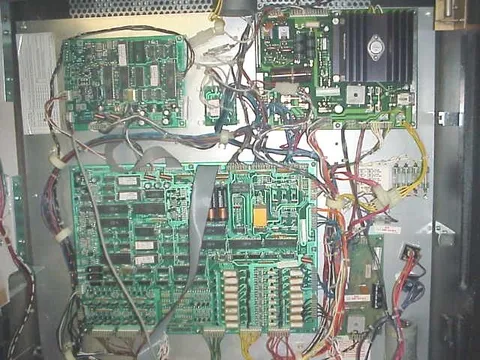

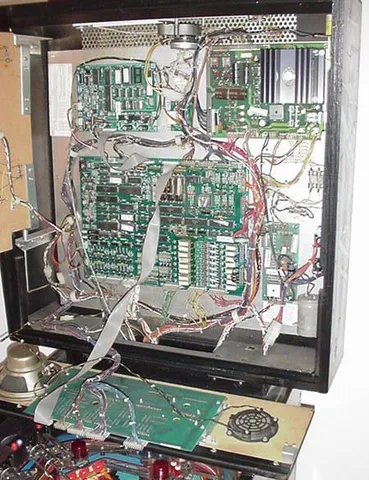

Williams System 11A
Notable Features:
Flippers (4), Pop bumper (1), Slingshots (2), Standup targets (20), Ball kicker lanes (3), Jagov kicker (kicks ball towards flippers at high speed). Multiball (4 ball), Spinning target (1), Vertical upkicker (1), Left outlane kicker. Three rotating beacon lights on the top of the backbox. Has speech.

Credits

Designer:
Steve Ritchie
Artist:
Doug Watson
Software:
Eugene Jarvis, Ed Boon
Music:
Steve Ritchie, Chris Granner
Sound:

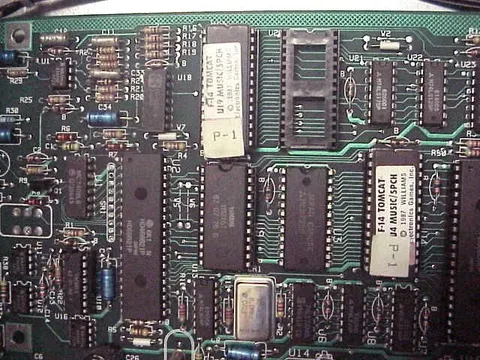

Bill Parod, Chris Granner
Mechanics:
Craig Fitpold

ROM Files

Documentation

  • Instruction Manual (May 1987, schematics pages 51a to 60a are cut in half)
    7 MB
    Download

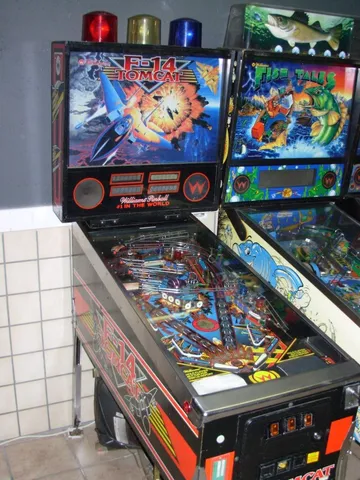

  • Preliminary manual for prototype machines
    634 KB
    Download
  • Schematic Diagrams (manual pages 51a to 60a)
    37 MB
    Download

Service Bulletins

  • Service Bulletin #41
    64 KB
    Download
  • Service Bulletin (no number, undated, to resolve binding diverter gate assembly)
    690 KB
    Download

Other Files

  • F-14 TOMCAT Typical A/C Solenoid Circuit (undated)
    528 KB
    Download

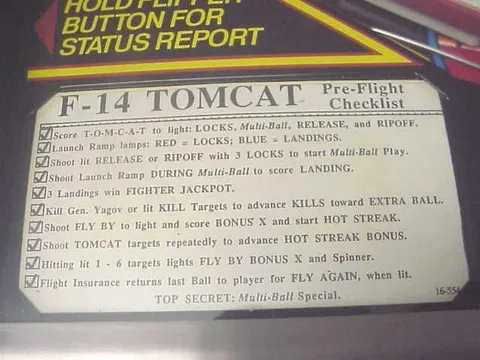

  • Instruction card
    332 KB
    Download
  • Instruction Card 16-554-1 (bleached copy)
    157 KB
    Download
  • Price Cards - 3 ball and 5 ball
    20 KB
    Download
