Elektra

Manufacturer: Bally Manufacturing Corporation (1931-1983) [Trade Name: Bally]
Year: 1981
Date: December, 1981
Type: Solid State Electronic (SS)
Players: 4
Production: 2,950 units (confirmed)

About This Machine

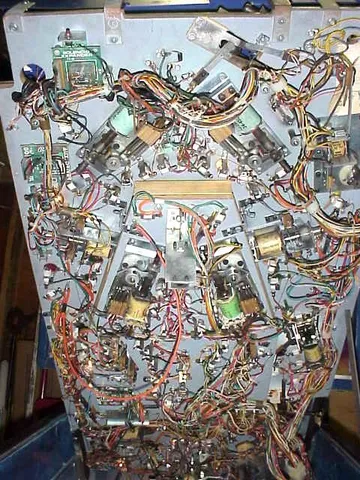

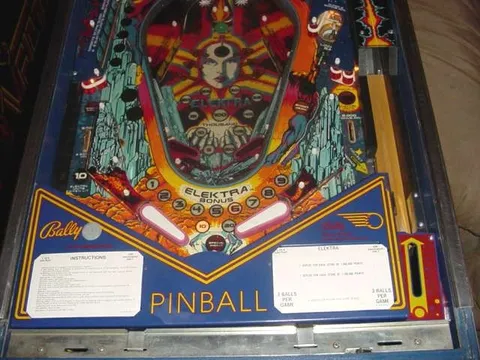

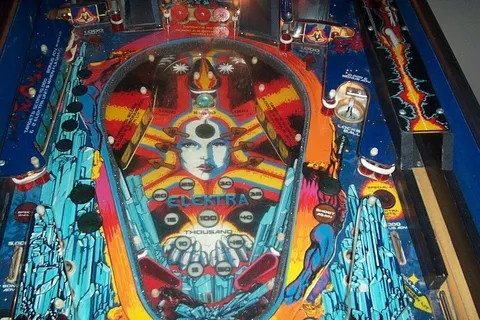

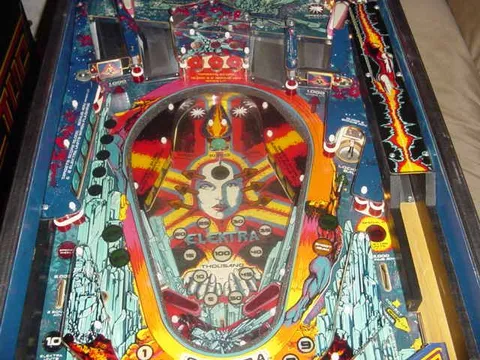

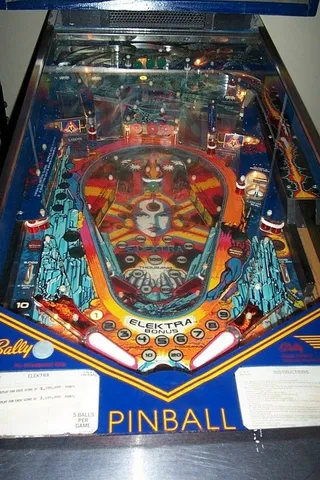

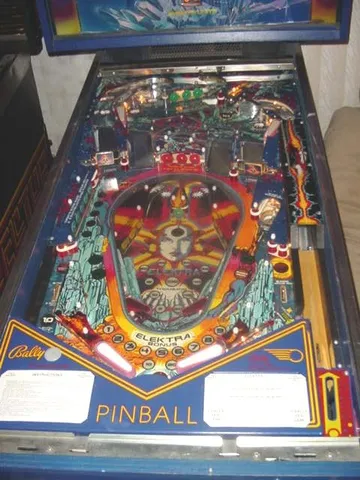

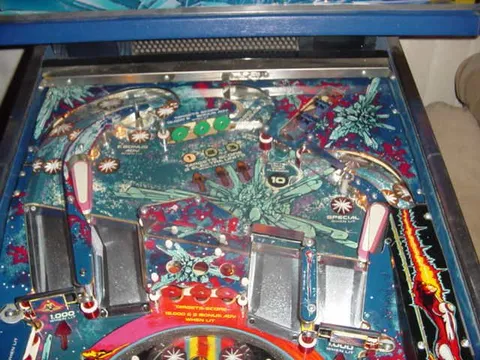

Elektra is a notable entry in Bally's catalog of solid-state electronic games, released in December 1981. Designed by Claude Fernandez with artwork by Tony Ramunni, its standout feature is a three-level playfield; per IPDB, Elektra was the first solid-state game with three levels. The lower level is accessed by accumulating "Elektra Units" on the main playfield and then draining the current ball in play, at which point the player engages with a fourth, separate ball housed beneath a Plexiglas-covered main playfield.

The game's design features include six flippers, two kick-out holes, two rollunder spinners, a captive ball, and 2-in-line drop targets, along with 2-ball multiball and speech. Unusually, the game has no pop bumpers at all, giving it a distinctive flow.

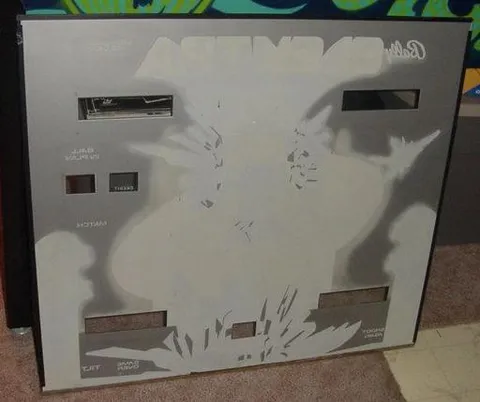

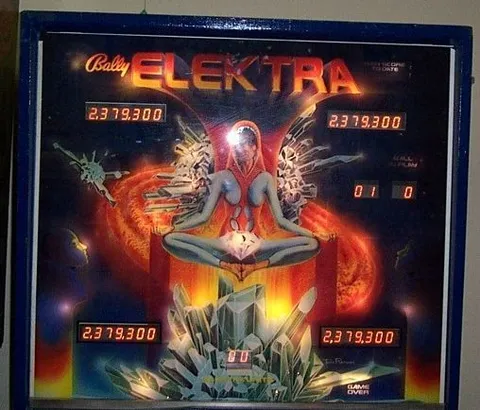

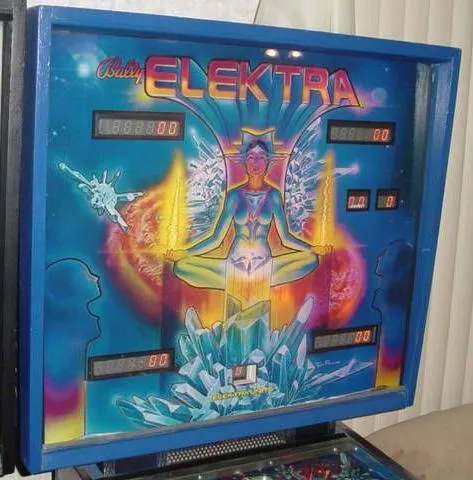

Elektra's fantasy theme is represented through a striking color scheme and distinctive artwork centered on the "Elektra Girl." An early-production version of the backglass more closely resembled Ramunni's original painting; according to collector accounts, Bally executives had the figure redrawn for the main production run. Bally produced a confirmed 2,950 units, and its cabinets have their own footnote in history: leftover Elektra cabinets were reportedly repainted for use on Bally's next game, Vector.

Images (42)

Technical Details

Theme:
Fantasy
Model Number:
1248

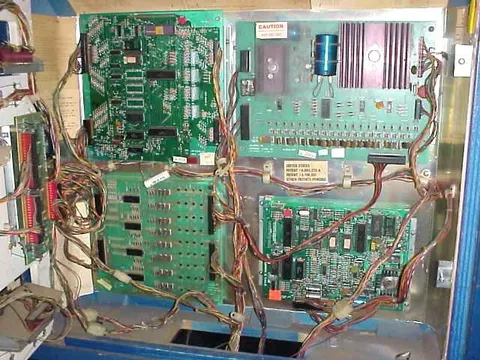

MPU:
Bally MPU AS-2518-35
Notable Features:
Flippers (6), Kick-out holes (2), Rollunder spinners (2). Multiball (2-ball), Captive ball (1), 2-in-line drop targets, Three-level playfield, Speech, Plexiglas main playfield covering. No pop bumpers on this game. The lower level is accessed by accummulating "Elektra Units" on the main playfield, and then draining the current ball in play. The lower level contains a 4th, separate ball.

Credits

Designer:
Claude Fernandez
Artist:
Tony Ramunni

ROM Files

Documentation

  • German Manual
    2 MB
    Download
  • Installation And General Game Operation Instructions (with schematics, OCR searchable)
    4 MB
    Download
