Eight Ball Deluxe Limited Edition

Manufacturer: Bally Manufacturing Corporation (1931-1983) [Trade Name: Bally]
Type: Solid State Electronic (SS)
Players: 4
Production: 2,388 units (confirmed)

About This Machine

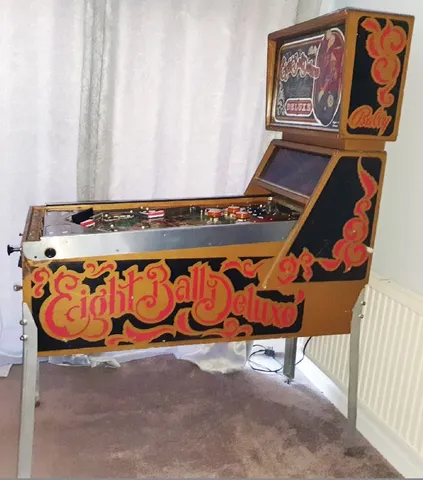

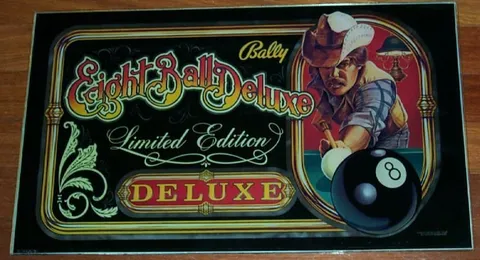

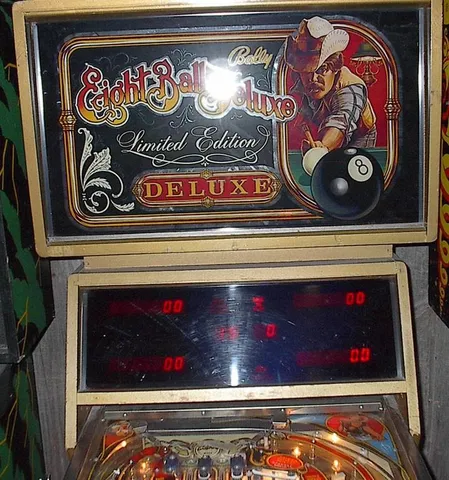

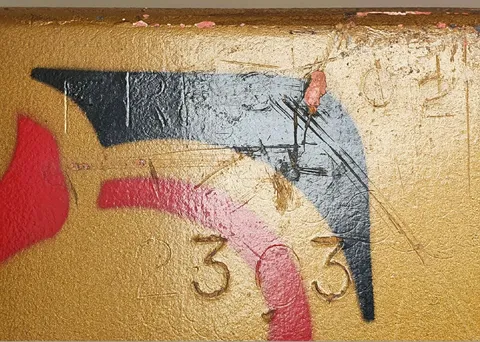

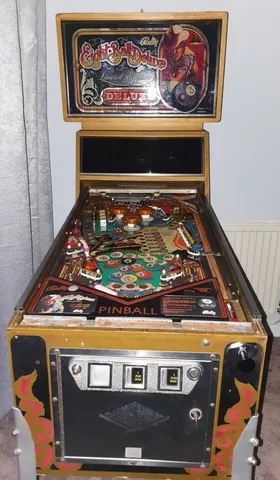

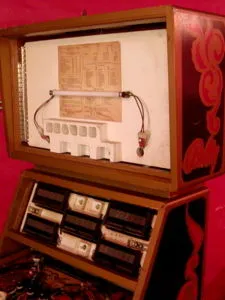

The Eight Ball Deluxe Limited Edition is a sought-after variant of the iconic 1981 Bally game Eight Ball Deluxe, one of the most popular pinball machines of its time. Designed by George Christian with artwork by Margaret Hudson, this version uses the same playfield as the 1981 original but packages it in a distinctive new cabinet. Notably, it was one of three games to use the unique smaller backboxes left over from the production of Bally's 1982 Rapid Fire, with the score displays mounted separately.

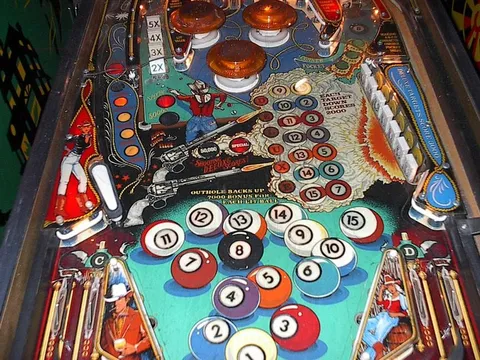

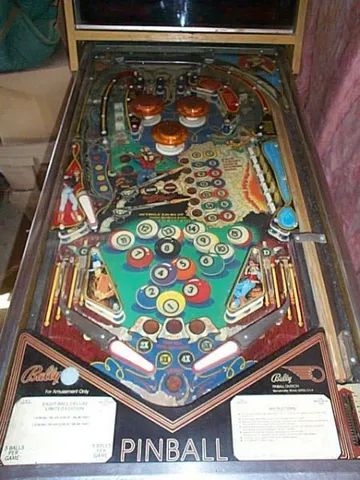

Gameplay-wise, the Eight Ball Deluxe Limited Edition boasts the same challenging billiards-themed layout that made the original a hit. With three flippers, three pop bumpers, and a kick-out hole, the machine demands precision and strategy from its players, while the 7-bank of drop targets, the 4-in-line drop targets, and a stand-alone drop target reward careful shot planning and timing.

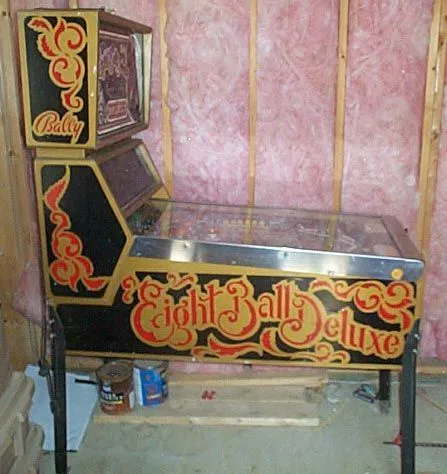

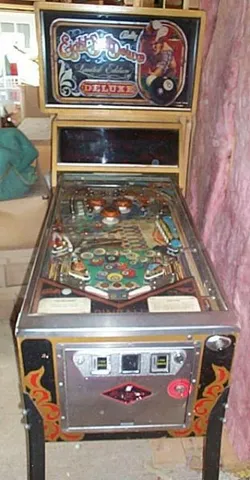

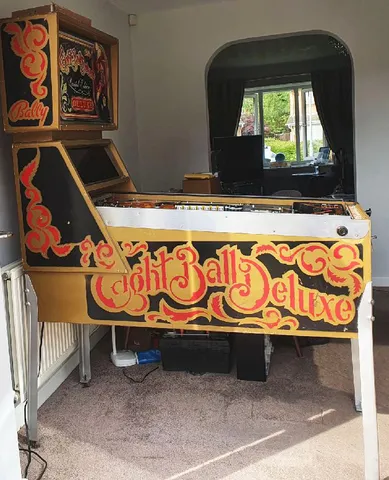

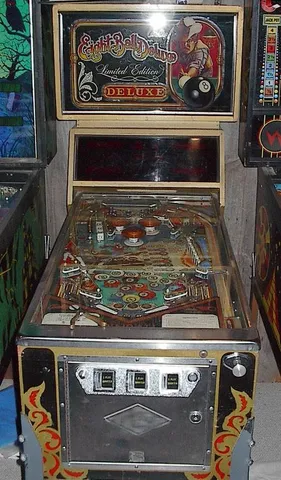

What sets this edition apart visually is its distinct cabinet art in a bold gold, black, and red color scheme, along with a black apron showing the Bally name and a coin door sticker indicating Bally Midway rather than just Bally. With a confirmed production run of 2,388 units — far fewer than the original's 8,250 — the Limited Edition remains a coveted addition to any serious pinball collector's lineup.

Images (22)

Technical Details

Theme:
Billiards - Games - Western
Model Number:
1300
MPU:
Bally MPU AS-2518-35
Notable Features:

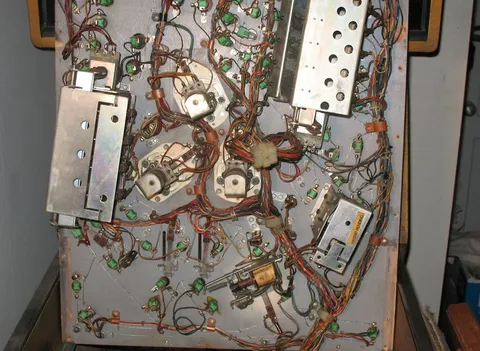

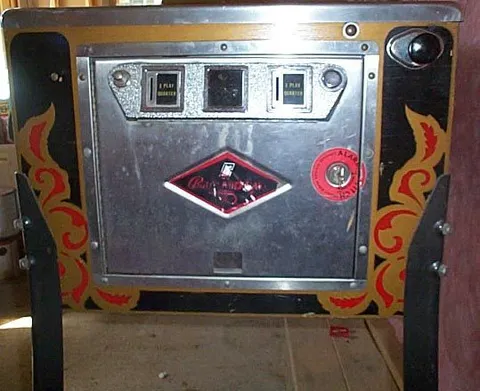

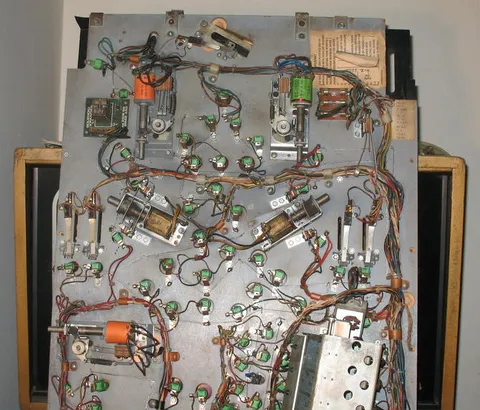

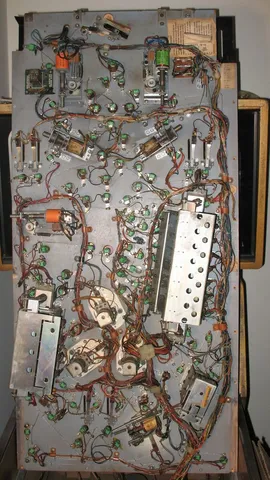

Flippers (3), Pop bumpers (3), Kick-out hole (1), 7-bank drop targets (1), 4-in-line drop targets, Stand-alone drop target (1). This Limited Edition version EBD differs from the original 1981 version as follows: 1) Apron (cardholder) is black and shows Bally. 2) Cabinet art is different and uses gold, black and red. 3) Backbox is much smaller, with scoring displayed separately. 4) Some games have their playfield lamps mounted on PCB boards; some games entirely use individual lamp sockets. 5) Coin door sticker indicates Bally Midway, not just Bally.

Credits

Designer:
George Christian
Artist:
Margaret Hudson

ROM Files

  • ROMs
    19 KB
    Download
  • Romset that ONLY fixes the bonus bug for players 2 and 4
    7 KB
    Download

Documentation

  • Installation And General Game Operation Instructions (with schematics, OCR searchable)
    3 MB
    Download

Service Bulletins

  • Service Bulletin - Fluorescent Light Ballast (May 26, 1983)
    1 MB
    Download
