Earthshaker

Manufacturer: Williams Electronics Games, Incorporated, a subsidiary of WMS Ind., Incorporated (1985-1999) [Trade Name: Williams]
Year: 1989
Date: February 21, 1989
Type: Solid State Electronic (SS)
Players: 4
Production: 5,257 units (confirmed)

About This Machine

The Earthshaker, designed by Pat Lawlor and released in 1989 by Williams Electronics Games, is a seminal title that showcases the innovative spirit of late 80s pinball design. As one of the first games to feature a shaker motor, the Earthshaker simulated an earthquake during certain points in the game, adding a thrilling element of unpredictability to the player's experience. This mechanical innovation, combined with its unique theme and gameplay mechanics, cemented the Earthshaker as a landmark title in pinball history.

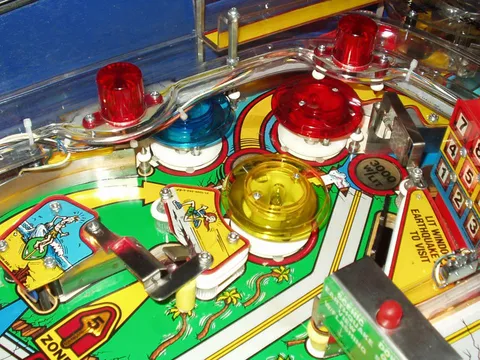

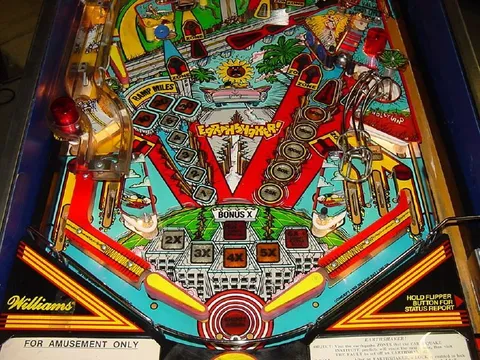

At its core, the Earthshaker is a high-energy machine that demands skill and strategy from its players. The game features three flippers, three pop bumpers, and two vertical upkickers, which work together to create a fast-paced and dynamic gameplay experience. The inclusion of a 3-bank drop target, kick-out hole, spinning target, and messenger ball adds an extra layer of complexity and challenge to the game. The diverter feature is particularly noteworthy, as it creates a pathway between California and Nevada, simulating a faultline that players must navigate.

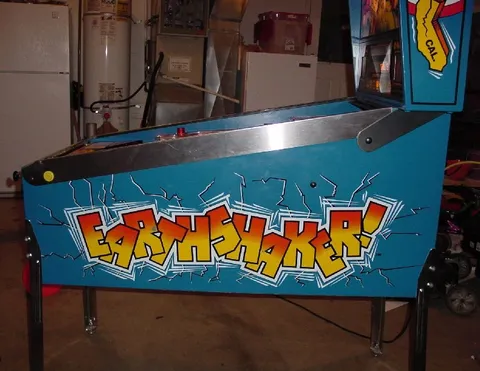

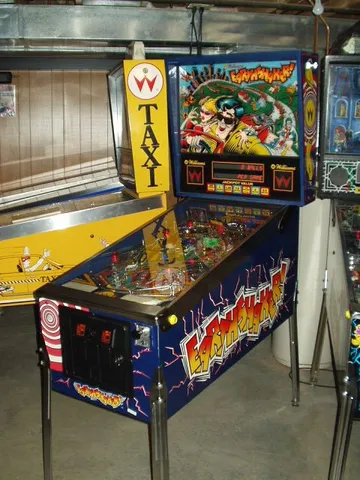

From a design and art perspective, the Earthshaker boasts a striking theme that captures the essence of seismic activity. The colorful artwork and playfield elements are visually appealing, with the game's cabinet featuring a bold, earthquake-themed design. Interestingly, the Earthshaker was one of Pat Lawlor's first major designs for Williams, marking the beginning of a successful collaboration between the designer and the manufacturer. As a result, the Earthshaker remains a highly sought-after title among pinball enthusiasts and collectors, who appreciate its innovative mechanics and nostalgic charm.

Images (46)

Technical Details

Theme:
Earthquake
Model Number:
568
MPU:

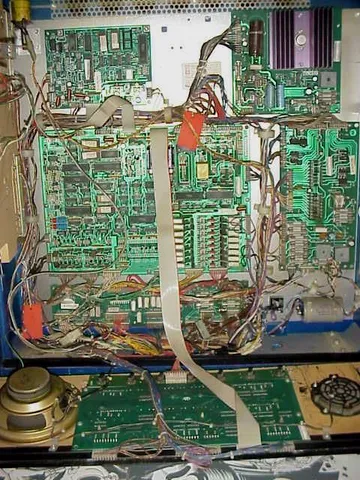

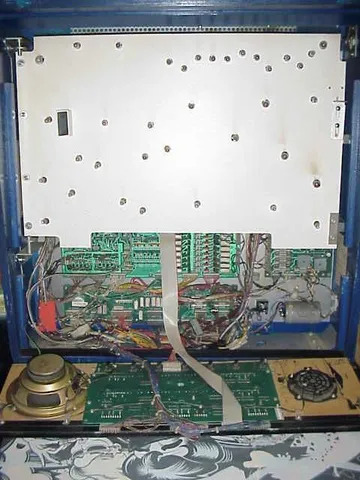

Williams System 11B
Notable Features:

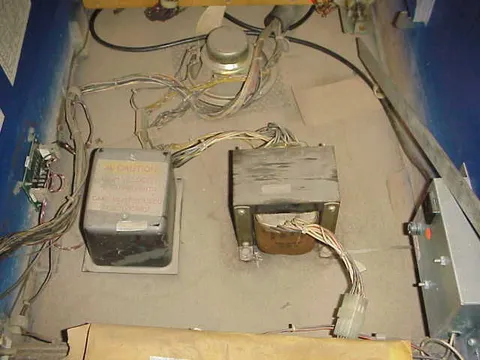

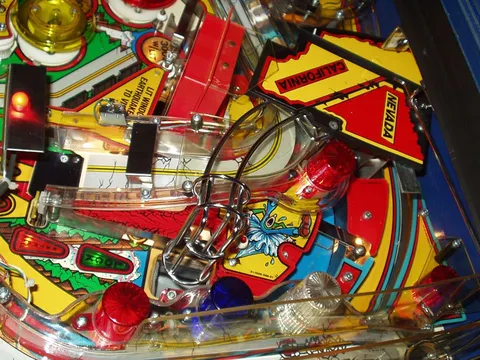

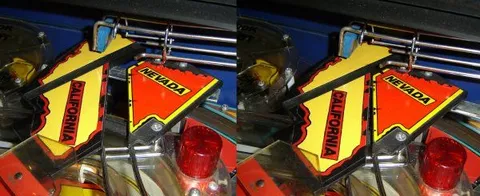

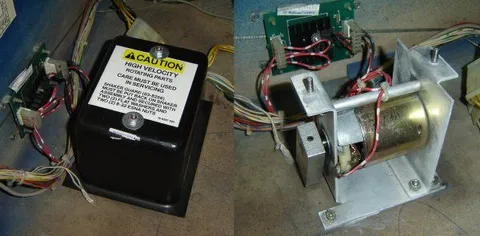

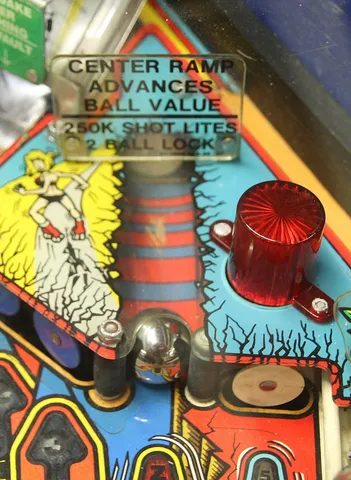

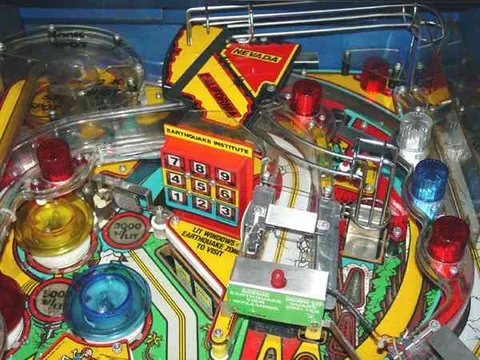

Flippers (3), Pop bumpers (3), Vertical upkickers (2), 3-bank drop targets (1), Kick-out hole (1), Spinning target (1), Messenger ball (1), Shaker motor. Machine shakes at certain times during a game to simulate an earthquake. Diverter opens a pathway between California and Nevada to simulate a faultline.

Credits

Designer:
Pat Lawlor
Artist:
Tim Elliott
Software:
Mark Penacho
Music:
Jon Hey, Chris Granner
Sound:
Chris Granner
Mechanics:
John Krutsch

ROM Files

  • Game ROM F-1 (Family Version)
    180 KB
    Download
  • Game ROM L-3
    180 KB
    Download
  • Game ROM P-4 (from prototype game with serial number 568 210075)
    34 KB
    Download
  • German Game ROM L-1
    177 KB
    Download
  • L-1 ROMS
    176 KB
    Download

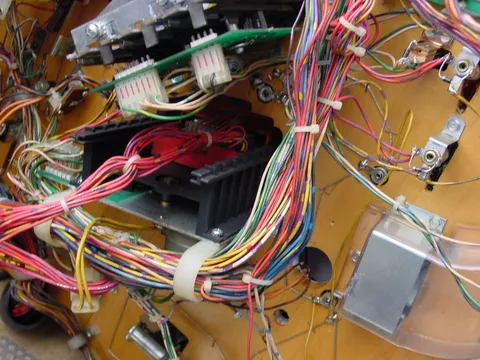

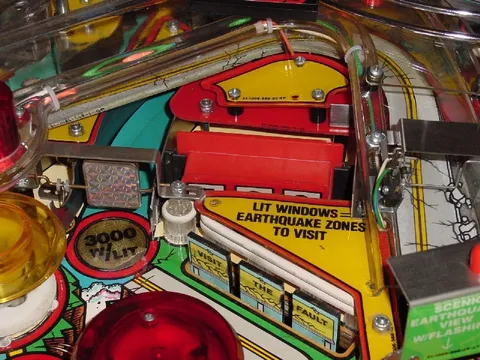

  • Sample Game ROMs (w/Sinking Building)
    175 KB
    Download

Documentation

  • English Manual
    9 MB
    Download

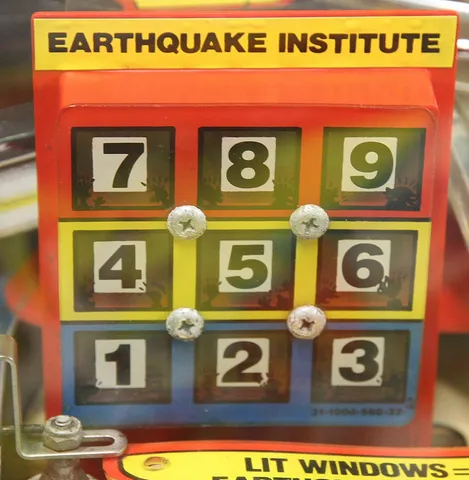

  • Sample Game Sinking "Earthquake Institute" Manual Pages
    79 KB
    Download

Service Bulletins

  • Service Bulletin Book 1989 (includes Earthshaker SS57)
    1 MB
    Download

Other Files

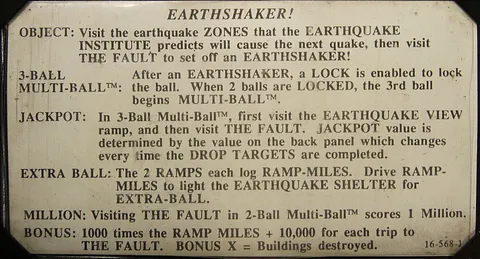

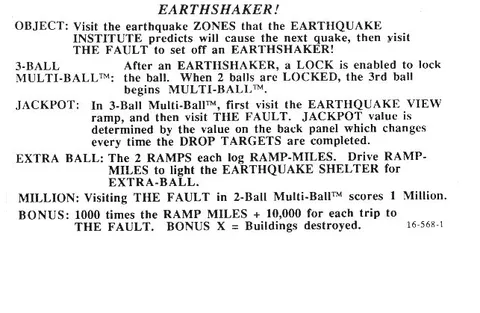

  • Instruction Card - French Translation
    71 KB
    Download
