Dyn O' Mite

Manufacturer: Allied Leisure Industries, Incorporated, of Hialeah, Florida (1972-1979)
Year: 1975
Date: November, 1975
Type: Solid State Electronic (SS)
Players: 2

About This Machine

The Dyn O, released by Allied Leisure Industries of Hialeah, Florida in November 1975, is an early solid-state electronic pinball machine, arriving before the major manufacturers made the leap from electromechanical technology. Allied Leisure was among the pioneers of solid-state pinball, and Dyn O captures that transitional moment in the industry's history.

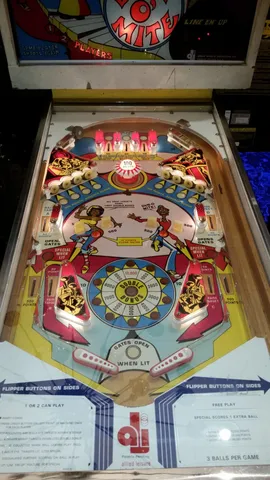

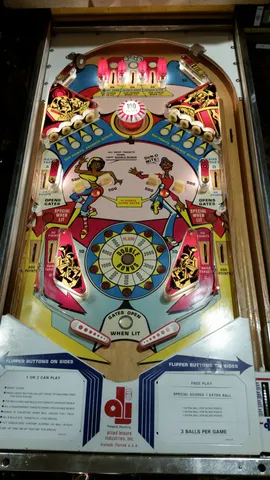

Gameplay-wise, Dyn O offers a variety of engaging features. Players use two flippers to control the ball, while a pop bumper, two slingshots, and eight standup targets provide multiple scoring opportunities, complemented by four solitary drop targets. The game includes left and right outlane detour gates, and its special can be set by the operator to award either a replay or add-a-ball. Despite its solid-state electronics, the sound package is old-school: three chimes and a knocker.

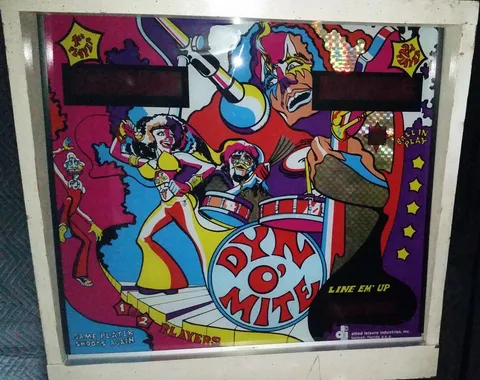

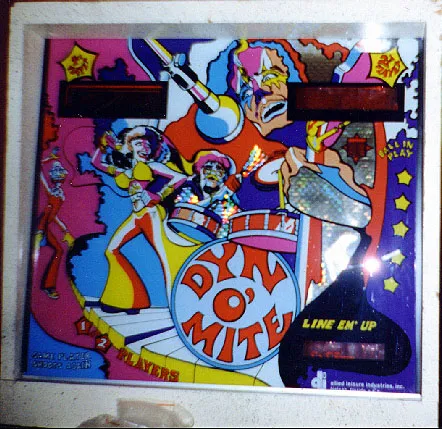

The game was designed by Jack Pearson with art by Roland Berrios, and its licensed music/dancing theme has a distinctly 1970s hook: the playfield art features a likeness of American television actor Jimmie Walker delivering his famous catchphrase 'Dyn-o-mite!'. Collectors may also note that the 4-player version of this game is Allied Leisure's 1975 'Rock On', which was re-released as 'T.N.T.' and again as 'Boogie' in 1976.

Images (49)

Technical Details

Theme:
Licensed Theme - Music – Singing - Dancing
Model Number:
264
Notable Features:

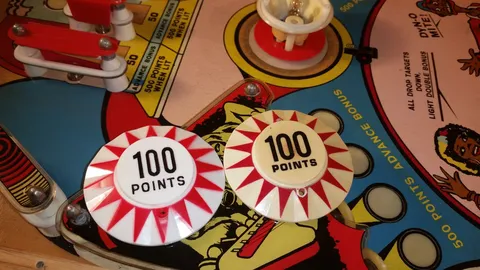

Flippers (2), Pop bumper (1), Slingshots (2), Standup targets (8), Solitary drop targets (4), Left and right outlane detour gates. The special can be set to replay or add-a-ball. 3 or 5 ball play. Sound: 3 chimes, knocker.

Credits

Designer:
Jack Pearson
Artist:
Roland Berrios

Documentation

  • Electronics Operation Manual
    15 MB
    Download
  • Parts Catalog (April 1976)
    5 MB
    Download
  • Parts Catalog (June 1976, missing cover page)
    13 MB
    Download
  • Schematic Diagrams (paginated)
    24 MB
    Download

Service Bulletins

  • Service Bulletin - 180V Power Supply & 5V Regulator Modifications (undated)
    188 KB
    Download
  • Service Bulletin – Bridge Rectifier Update (March 10, 1976, missing diagram)
    459 KB
    Download
  • Service Bulletin – Diodes on Coils and Relays (March 9, 1976)
    547 KB
    Download

Other Files

  • Pinball Trouble Shooting Guide
    11 MB
    Download
  • Reproduction Flipper Decals
    208 KB
    Download
