Doctor Who

Manufacturer: Midway Manufacturing Company, a subsidiary of WMS Industries, Incorporated, of Chicago, Illinois, USA (1988-1999) [Trade Name: Bally]
Year: 1992
Date: September, 1992
Type: Solid State Electronic (SS)
Players: 4
Production: 7,752 units (confirmed)

About This Machine

The Doctor Who pinball machine, released under the Bally trade name by Midway Manufacturing in September 1992, brought the long-running British science-fiction series to the pinball world. Designed by Barry Oursler and Bill Pfutzenreuter, with artwork by Linda Deal, it runs on the Williams WPC platform with Fliptronics 2, and 7,752 units were confirmed produced.

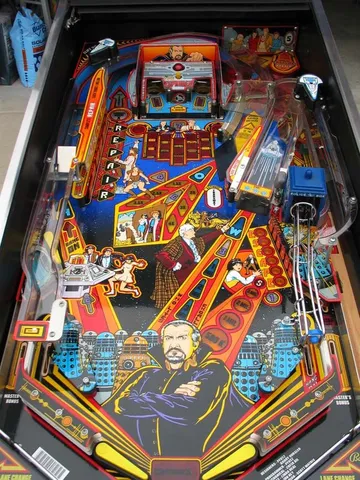

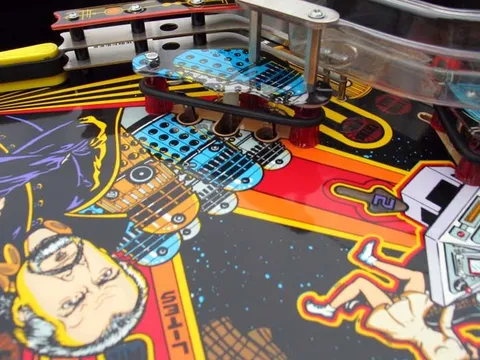

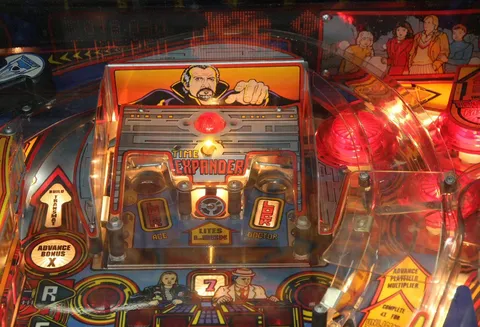

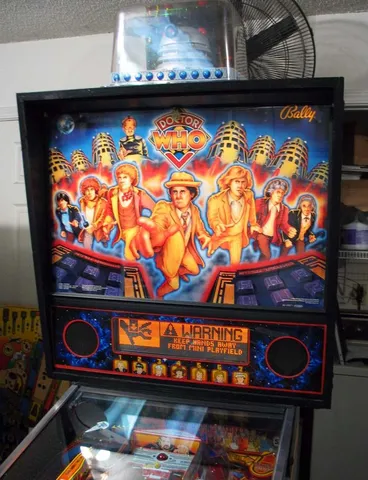

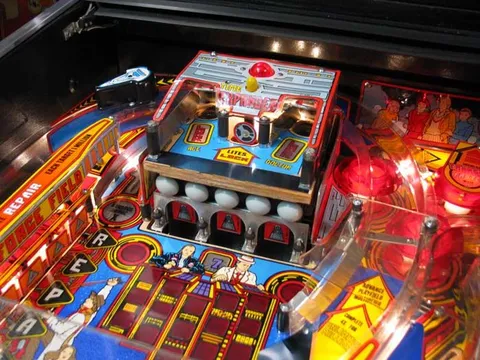

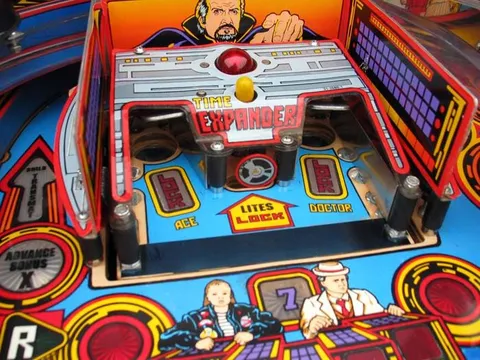

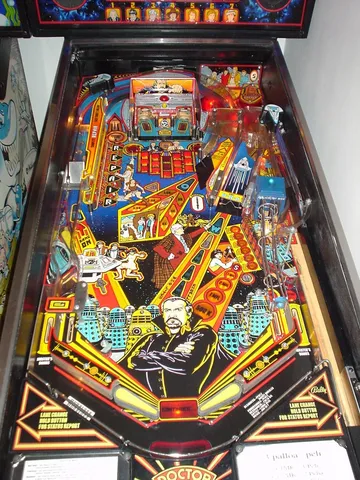

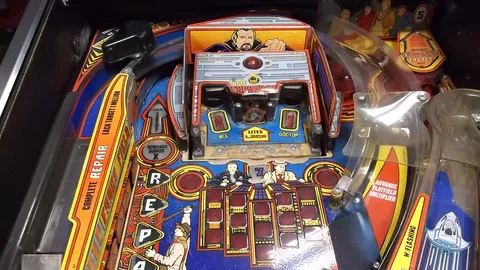

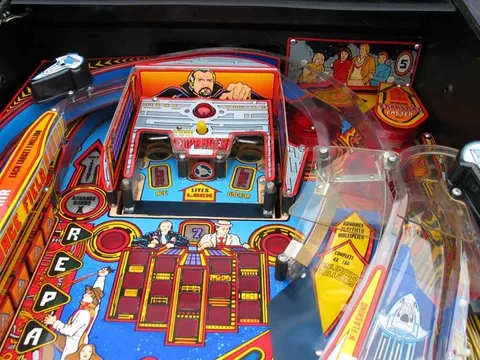

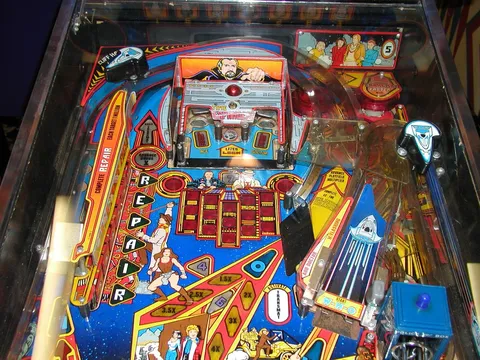

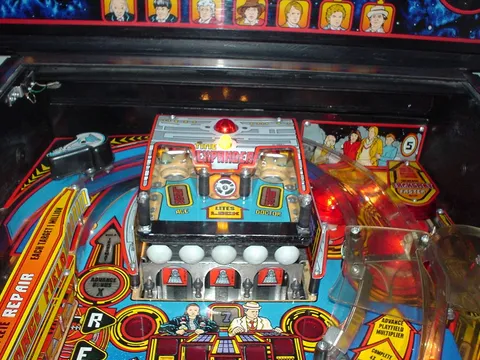

The game's standout feature is the Time Expander mini-playfield, which raises and lowers during play to offer three distinct levels: kick-out holes at Level 1, five round white standup targets at Level 2, and three flyaway targets at Level 3. This dynamic element forces players to adapt their strategy to the current configuration. The game also features three flippers, three pop bumpers, two ramps, a 6-bank of drop targets, and multiball. A Dalek backbox topper lights up; on the roughly 100 prototype games its head also moved from side to side, but the motor was removed as a cost-saving measure before regular production, so production Daleks are stationary (aftermarket kits let owners restore the movement).

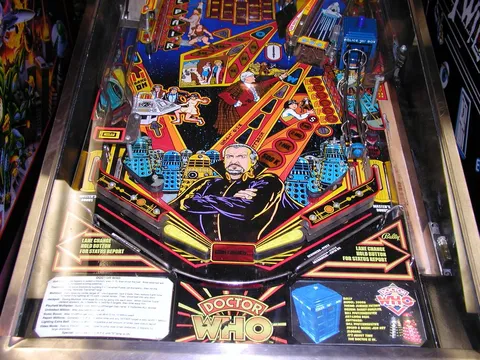

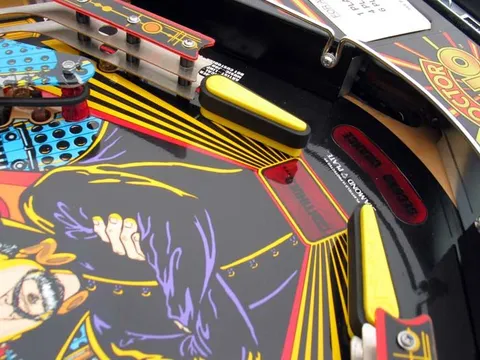

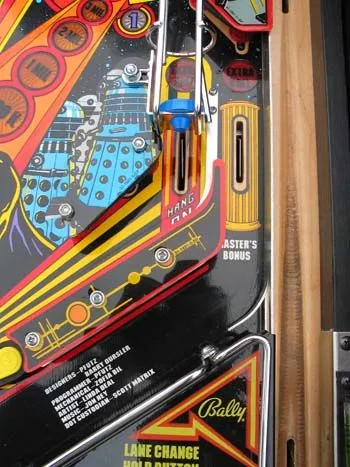

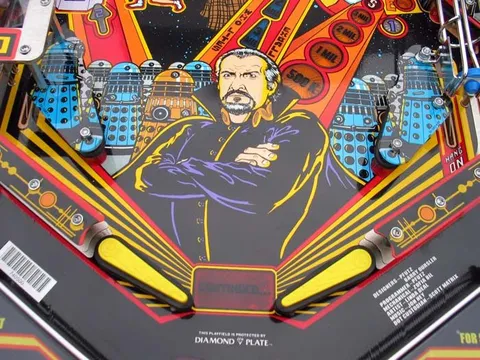

Doctor Who is also notable for its slightly shorter-than-standard bottom flippers, embossed with a lightning bolt design. This was a change implemented by Williams management in hopes of shortening game times and increasing earnings. For fans, the machine offers an immersive trip through the show's universe, Daleks and all, wrapped in one of the more mechanically inventive playfields of the early WPC era.

Images (46)

Technical Details

Theme:
Celebrities - Fictional - Licensed Theme
Model Number:

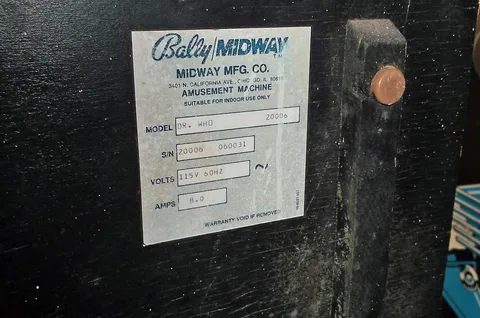

20006
MPU:
Williams WPC (Fliptronics 2)
Notable Features:

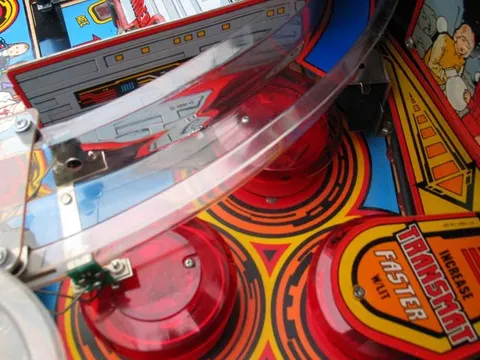

Flippers (3), Pop bumpers (3), Slingshots (2), Standup targets (13), Flyaway targets (3), Kick-out holes (2), 6-bank drop targets (1), Ramps (2), Multiball. The Time Expander mini-playfield raises and lowers during play: It its lowest position (Level 1), the kick-out holes are accessible. In its middle-position (Level 2), five round white standup targets are accessible, and when in its upper position (Level 3), three flyaway targets are accessible. Dalek backbox topper lights up (and its he ad moves from side to side on some games. See Notes below). The two flippers at the bottom of the playfield are slightly shorter than Williams' standard-size flippers. This was a change implemented by Williams management to hopefully shorten game time and increase earnings. These shorter flippers have a lightning bolt design embossed on the top of them.

Credits

Designer:
Barry Oursler, Bill Pfutzenreuter
Artist:
Linda Deal (aka Doane)
Software:
Bill Pfutzenreuter
Music:
Jon Hey
Sound:
Jon Hey
Mechanics:
Zofia Bil
Dots/Animation:
Scott Slomiany

ROM Files

Documentation

  • Dalek Topper Assembly Parts List (from a prototype instruction manual)
    164 KB
    Download
  • English Manual (dated October 1992, no schematics)
    8 MB
    Download
  • Manual Amendment Dated November 4, 1992
    192 KB
    Download
  • Parts List
    207 KB
    Download
  • WPC Schematic Manual (Revised May 17, 1993)
    2 MB
    Download

Other Files

  • Handy Technician's Chart (includes Fuse List)
    272 KB
    Download
  • Instruction Sheet for Roller Kit (dated January 20, 1993)
    2 MB
    Download
  • Mini-Playfield Opto-Bank Paper Cover Template
    27 KB
    Download
  • Mylar Mini Playfield Cutout 140mm Version Fusion 360 and DXF
    53 KB
    Download
