Criss Cross Hockey
About This Machine
Criss Cross Hockey was announced by the Chicago Coin Machine Manufacturing Company in September 1958. Despite its electro-mechanical construction, it is explicitly not a pinball machine -- it is a two-goal arcade hockey game in which the player controls a goalie at the near end of the playfield, firing metal balls (released intermittently) past a continuously swinging goalie at the far end to score.

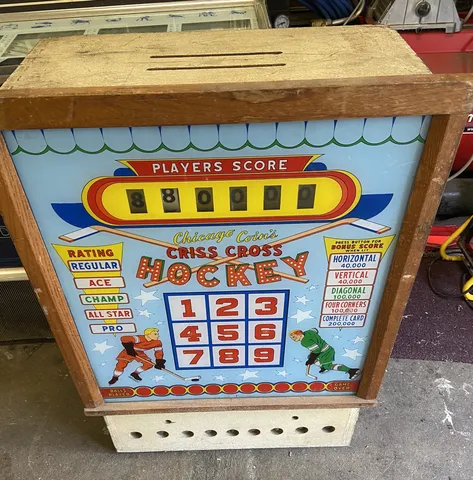

Play cost 10 cents for either 10 or 15 balls, an operator-adjustable option. Beyond scoring goals directly, players could earn bonus points by completing all nine numbers on a backglass card, completing a row of three numbers horizontally, vertically, or diagonally, or filling all four corners of the card; bonus points were collected via a button press at game's end. The maximum displayed score was 890,000 points. The game was offered in a Regular (novelty play) version and a Replay version, the latter adding match play and a light-a-name carryover feature, distinguishable by a square replay window on the backglass.
While little is documented about the game's designer, its inventive dual-goalie mechanic and layered bonus-scoring system make Criss Cross Hockey a distinctive example of Chicago Coin's sports-themed electro-mechanical amusements from the late 1950s.
Images (2)
Technical Details
- Theme:
- Sports - Ice Hockey
- Notable Features:
- 10 balls for 10 cents, or 15 balls for 10 cents (operator adjustable). The player operates a goalie at the near end of the playfield to propel the metal balls (shot intermittently out onto the playfield) past the goalie at the far end which is continuously swinging back and forth throughout the game. Points are scored for each goal made. Bonus points are earned by completing all nine numbers on the backglass card, or rows of three numbers either horizontally, vertically, or diagonally, and/or completing all four corners of card. At the end of the game, the player presses a button to collect the bonus score earned. Maximum displayed point score is 890,000 points.
Credits
Documentation
- DownloadSchematic Diagram (Replay Model, continuous)6 MB
