Disco Fever

Manufacturer: Williams Electronics, Incorporated (1967-1985) [Trade Name: Williams]
Year: 1978
Date: June 15, 1978
Type: Solid State Electronic (SS)
Players: 4
Production: 6,006 units (approximate)

About This Machine

Disco Fever, designed by Tony Kraemer with artwork by Christian Marche, was manufactured by Williams Electronics in 1978 during the company's earliest solid-state era - it was only the fourth solid-state game Williams produced, and just the second to feature electronic sound (by Randy Pfeiffer, who also wrote the software). Riding the disco craze of the late 1970s, roughly 6,006 units were built on the Williams System 3 platform.

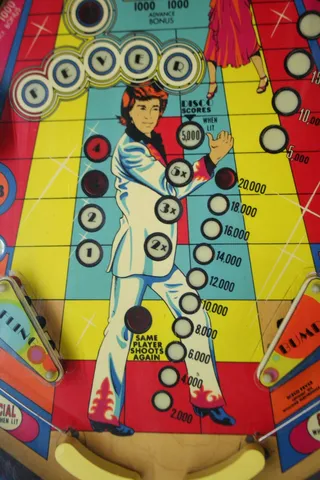

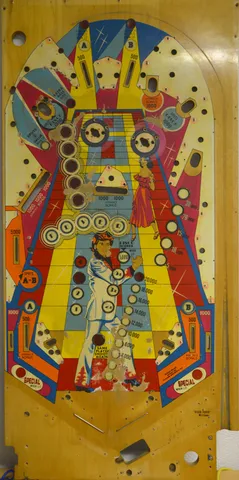

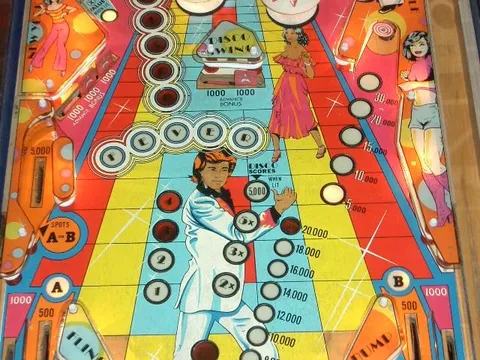

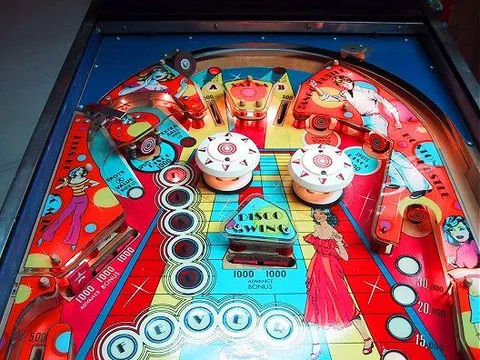

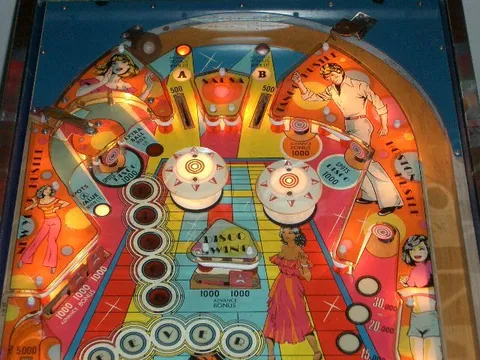

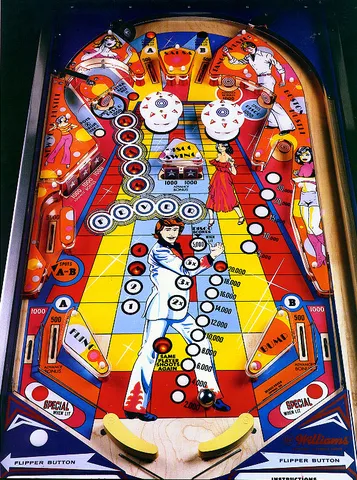

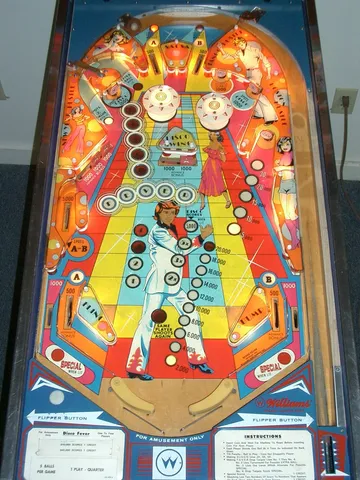

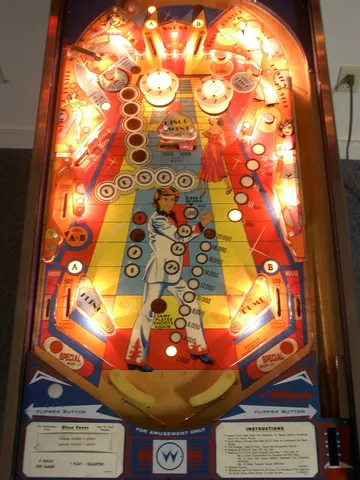

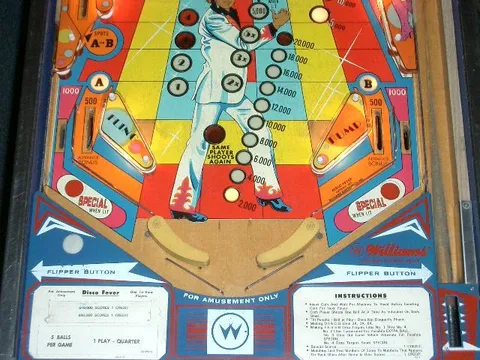

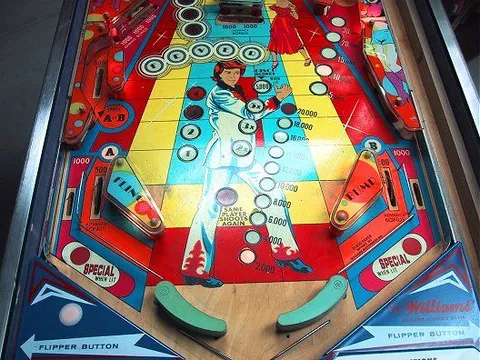

The gameplay experience is characterized by a dynamic combination of targets, flippers, and slingshots. The game's most distinctive physical feature is its curved "banana" flippers, which require different timing than conventional flippers to control the ball's trajectory - Williams' 1979 'Time Warp' is the only other production game to use them. Four standup targets, a 3-bank and a 2-bank of drop targets, a horseshoe lane, and a rollunder round out the playfield.

Disco Fever also carries some fascinating history. According to Tom Cahill, former Williams service manager, it was the first game Williams engineered to have speech: a talking prototype was shown at the Chicago AMOA show, though production games shipped without it. Williams production logs also reveal that the game began life as a banana-flippered title called 'Super Jai Alai' before being re-themed to disco prior to production. These quirks make Disco Fever a genuinely interesting artifact of Williams' transition into the solid-state age.

Images (48)

Technical Details

Theme:
Happiness - Dancing
Model Number:
483
MPU:

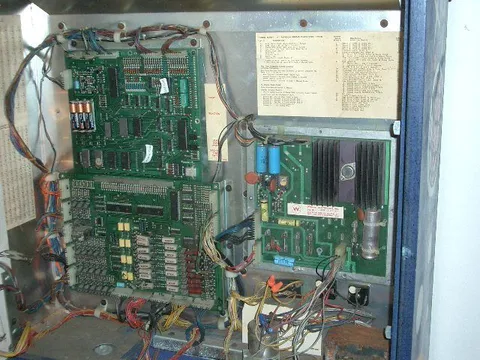

Williams System 3
Notable Features:
Flippers (2), Pop bumpers (2), Slingshots (2), Standup targets (4), 3-bank drop targets (1), 2-bank drop targets (1), Horseshoe lane (1), Rollunder (1). The flippers are the curved "banana" flippers. Actual measured weight: 224 lbs (includes legs).

Credits

Designer:
Tony Kraemer
Artist:
Christian Marche
Software:
Randy Pfeiffer
Sound:
Randy Pfeiffer

ROM Files

Documentation

  • English Manual (August 1978)
    4 MB
    Download
  • Instruction Cards and Score Cards
    2 MB
    Download
  • Manual Amendment (16P-482-110, September 1978, CPU Board changes)
    3 MB
    Download
  • Schematics (paginated)
    4 MB
    Download
