Dipsy Doodle

Manufacturer: Williams Electronics, Incorporated (1967-1985) [Trade Name: Williams]
Year: 1970
Date: December 05, 1970
Type: Electro-mechanical (EM)
Players: 4
Production: 4,703 units (confirmed)

About This Machine

Dipsy Doodle, manufactured by Williams Electronics in December 1970, is a four-player electro-mechanical game designed by Norm Clark with artwork by Christian Marche. With a confirmed production run of 4,703 units, it was a solid seller for Williams, and the same design was also released in 1971 as the single-player 'Doodle Bug'.

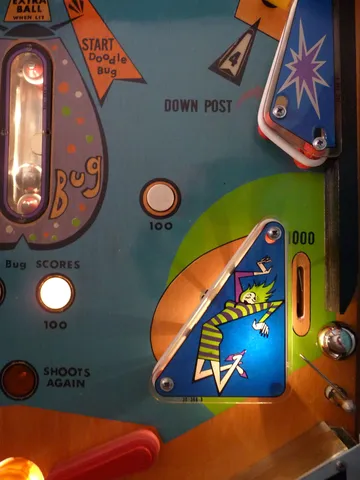

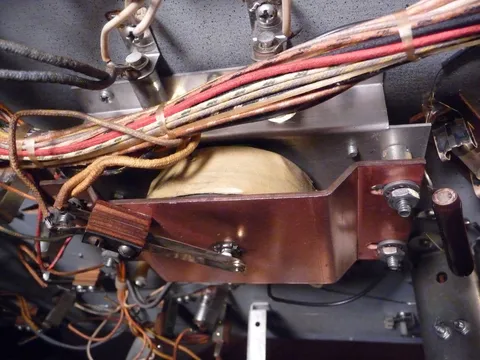

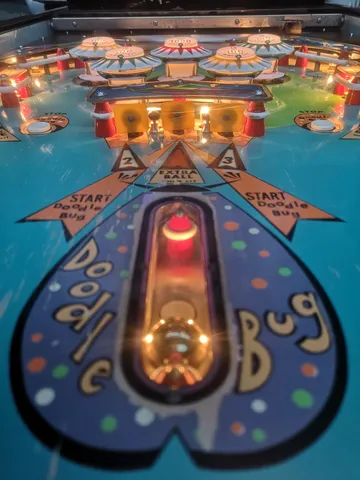

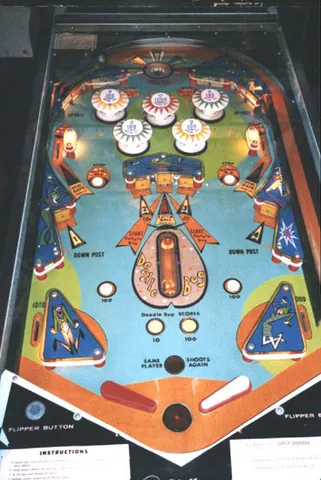

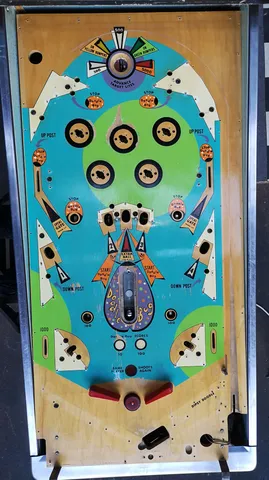

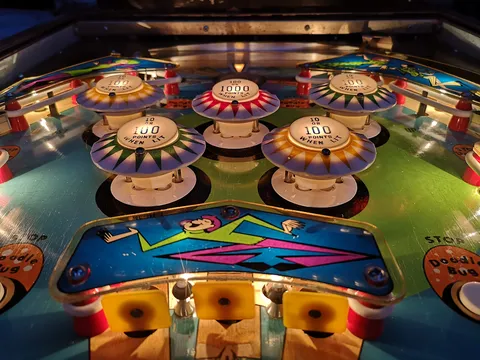

At its core, Dipsy Doodle offers a lively blend of classic pinball elements. The two flippers, five pop bumpers, and two slingshots create an engaging play experience, while five standup targets and four rollover buttons provide scoring opportunities, alongside a kick-out hole, a right outlane free-ball gate, and an up-post between the flippers. The standout feature is the Doodle Bug animation unit beneath the playfield, which uses an electromagnet to move a captive ball repeatedly across a point-scoring rollover button - a mechanism with roots reaching back to Bally's 1938 'Paramount' and later revisited in Williams' 1981 'Solar Fire'.

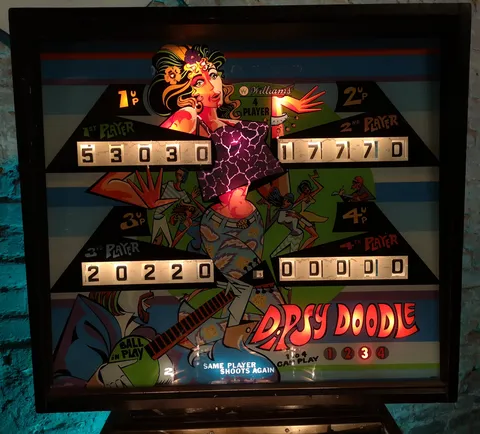

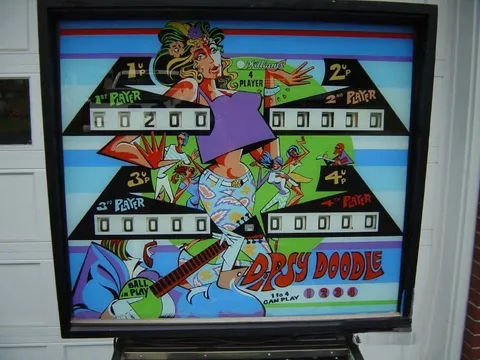

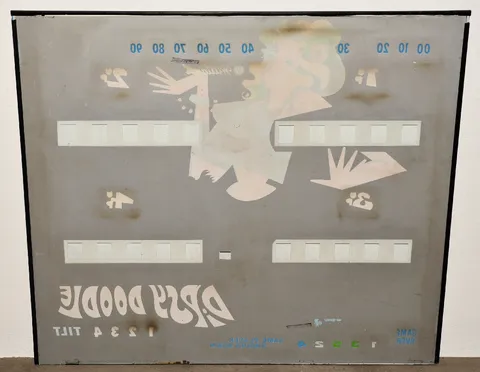

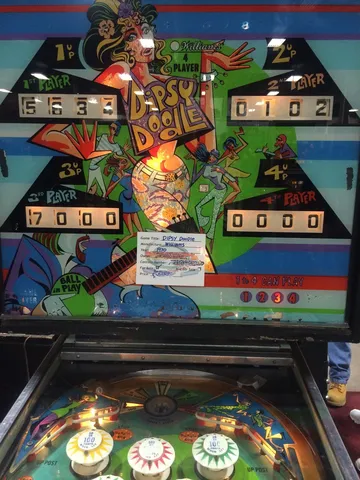

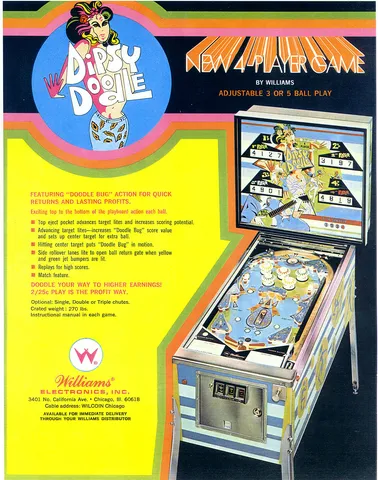

The machine's dancing-themed artwork radiates 1970s charm. Collectors may also enjoy the game's documented production quirks: early flyer and promotional materials show 4-digit scoring, while production games moved to 5-digit scoring, forcing the game's name to be relocated to the lower right corner of the backglass. Some early 4-digit backglasses are known to exist, making variant-spotting part of the fun for enthusiasts of this Williams classic.

Images (19)

Technical Details

Theme:
Happiness - Dancing
Model Number:
386
Notable Features:

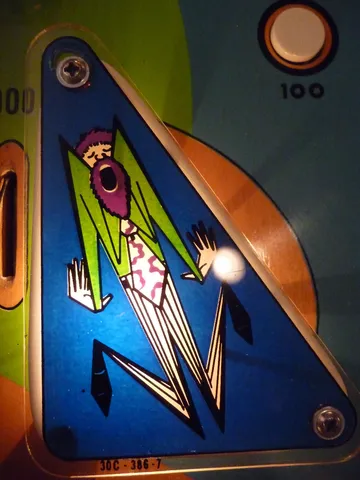

Flippers (2), Pop bumpers (5), Slingshots (2), Standup targets (5), Rollover buttons (4), Kick-out hole (1), Right outlane free ball gate, Up-post between flippers. Doodle Bug animation unit below playfield uses an electromagnet to move a captive ball repeatedly across a point-scoring rollover button. 3 or 5 ball play.

Credits

Designer:
Norm Clark
Artist:
Christian Marche

Documentation

  • Catalog Supplement "Y" New Parts & Units
    88 KB
    Download
  • Instruction Manual
    907 KB
    Download
  • Schematic Diagram (continuous)
    8 MB
    Download
  • Schematic Diagram - 10 or 12 Plays for 1 Coin
    20 KB
    Download

Other Files

  • 15B-6782 Power Transformer Chart
    19 KB
    Download
  • Printed Material Check Off List
    18 KB
    Download

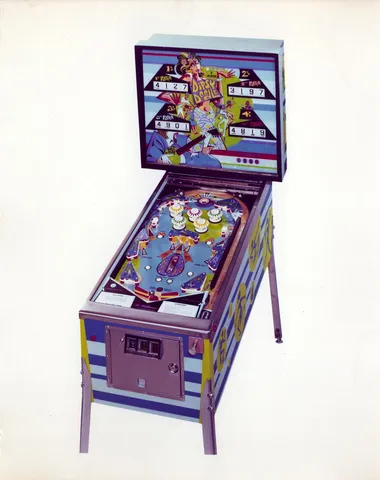

  • Promotional Photo - 4-digit Scoring - Large Size
    1 MB
    Download

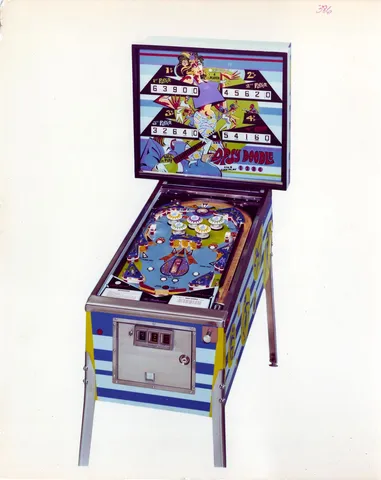

  • Promotional Photo - 5-digit Scoring - Large Size
    1 MB
    Download
