Cisco

Manufacturer: Cisco Company Incorporated, of Kansas City, Missouri, USA (1932)
Type: Pure Mechanical (PM)
Players: 1

About This Machine

The Cisco pinball machine is a rare and enigmatic artifact from the early days of pinball's development. Manufactured by the Cisco Company Incorporated of Kansas City, Missouri in 1932, it represents an early example of pure-mechanical pinball, from the years just after the format's introduction. As such, the Cisco holds real importance in the history of the game, serving as a precursor to the modern electromechanical and electronic pinballs that followed.

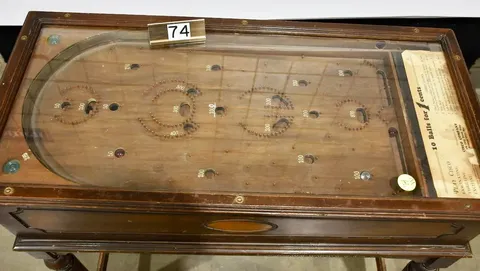

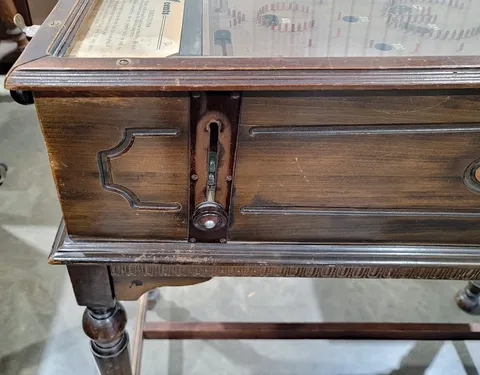

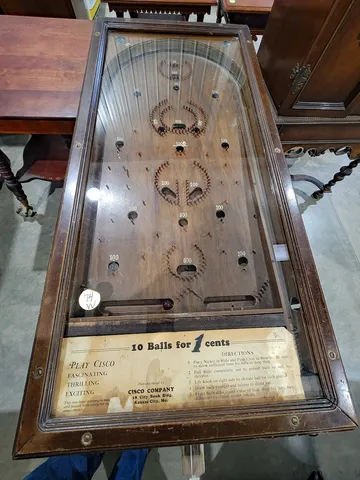

The gameplay features of the Cisco are straightforward yet intriguing. Players can play with up to 10 balls for just five cents, which was a remarkably affordable price point during this era. The machine boasts an impressive 19 trap holes, two outhole troughs, and a ball lift knob located on the right side of the cabinet. One unique aspect is that eight of the balls are colored similarly, while two are distinctly different, counting double towards the player's score. This subtle variation in gameplay adds a layer of strategy to the experience. It is a non-payout "whiffle-style" pin table; the manufacturer also produced a payout version called Cisco Jackpot.

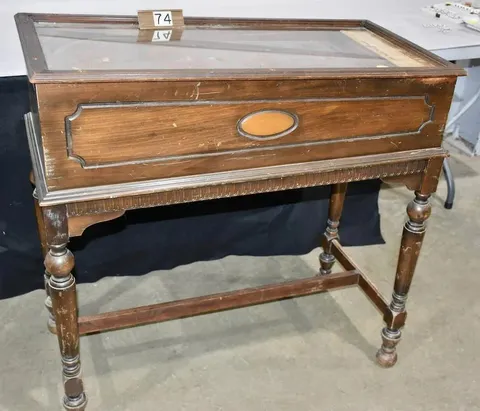

Unfortunately, little is known about the design, art, or theme of the Cisco, which only adds to its mystique. The cabinet measures 37 1/2 inches long, 18 inches wide, and 35 inches high, making it a compact yet substantial presence in any game room. While more research would undoubtedly uncover additional details, the Cisco's rarity and age have preserved much of its original charm, making it a highly sought-after find for pinball collectors and enthusiasts.

Images (6)

Technical Details

Notable Features:
10 balls for 5 cents. Trap holes (19). Two outhole troughs. Ball lift knob on right side of cabinet. Eight balls are one color, two balls are differently colored and count double. Cabinet measures 37 1/2 inches long, 18 inches wide, and 35 inches high.
