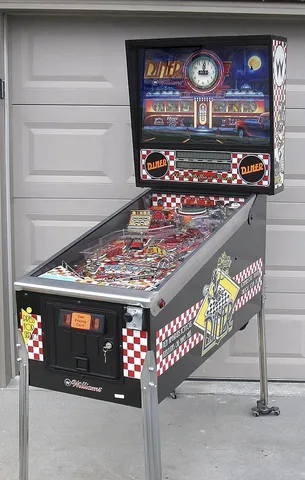

Diner

Manufacturer: Williams Electronics Games, Incorporated, a subsidiary of WMS Ind., Incorporated (1985-1999) [Trade Name: Williams]
Year: 1990
Date: June 11, 1990
Type: Solid State Electronic (SS)
Players: 4
Production: 3,552 units (approximate)

About This Machine

Diner, designed by Mark Ritchie and released by Williams in June 1990, is a fondly remembered System 11C game built around a cheerful food-service theme. Approximately 3,552 units were produced, with art by Mark Sprenger, music and sound by Chris Granner, and software by Jim Strompolis - notably his first game as a programmer. The game even reuses the match effect routine from Midway's 1989 'Mousin' Around!'.

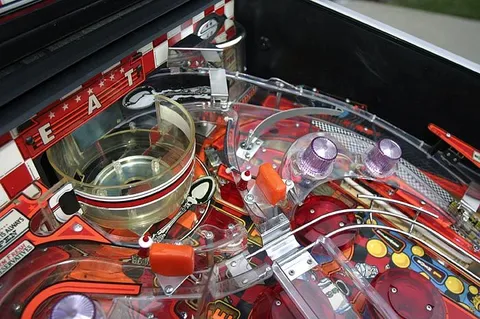

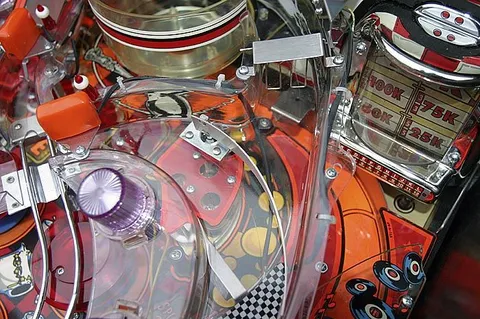

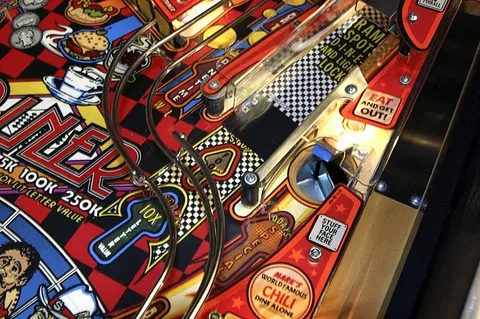

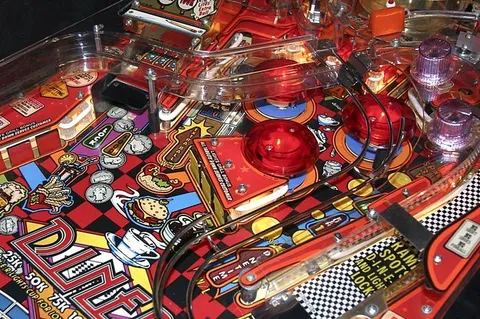

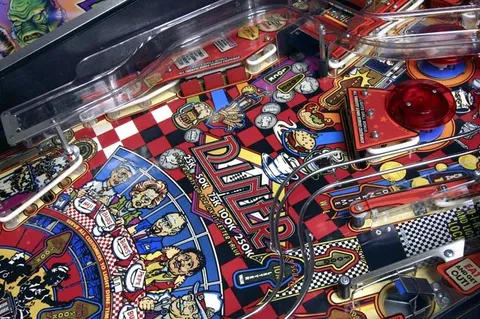

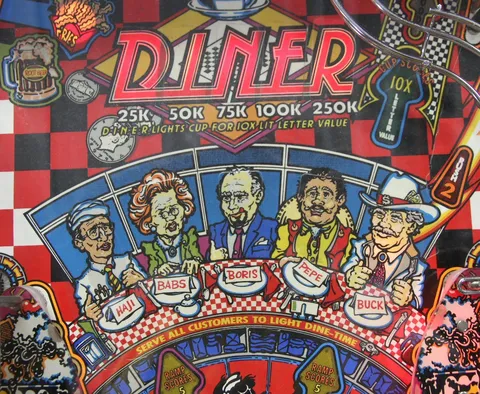

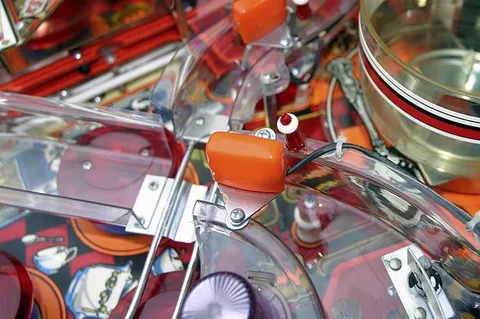

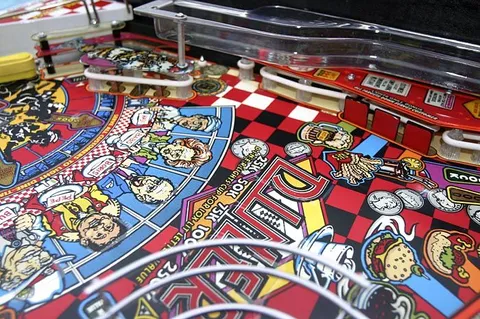

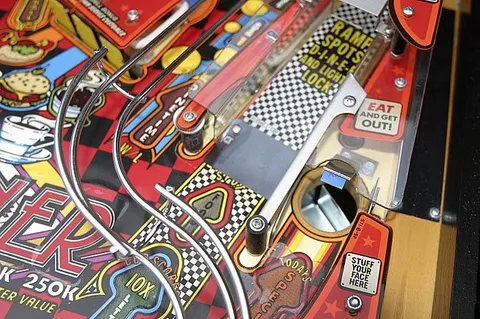

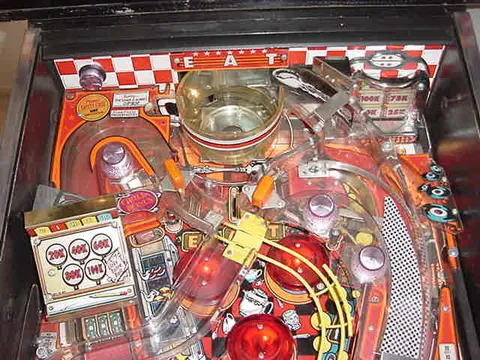

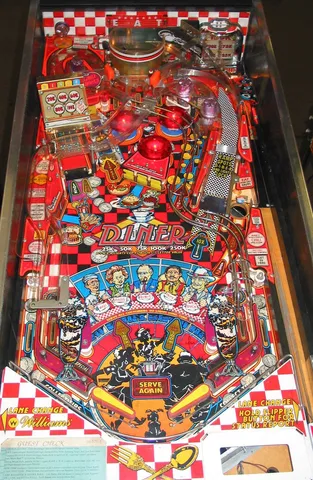

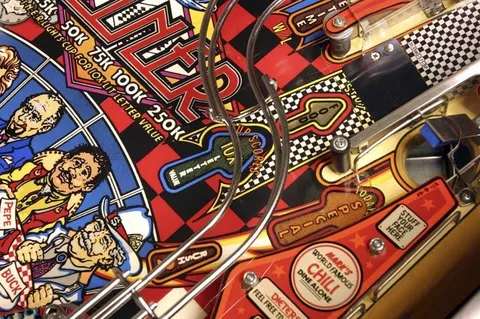

Gameplay on Diner is engaging, thanks to two flippers, three pop bumpers, and two ramps that guide players through a variety of challenges. Two 3-bank drop targets add an element of strategy, while the cellar hole serves as both a feature and a challenge for players seeking to maximize their scores. The addition of two-ball multiball action adds an extra layer of excitement, making Diner an entertaining experience for both casual players and enthusiasts.

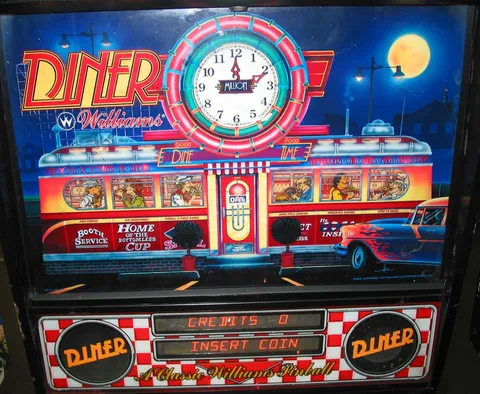

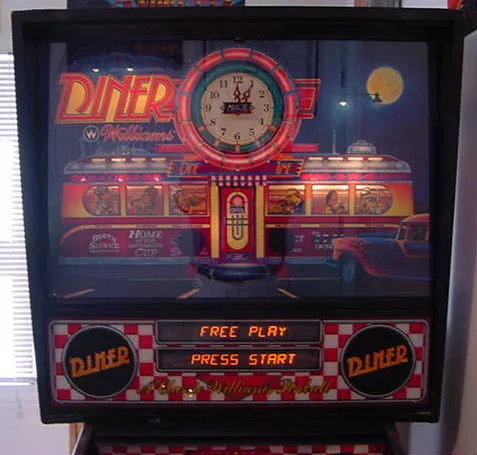

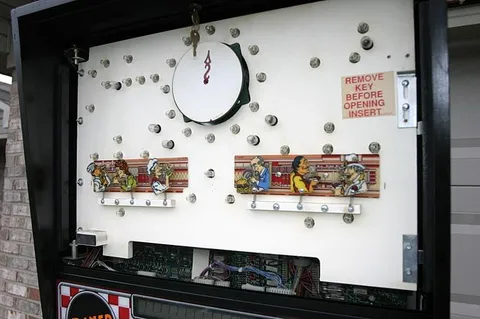

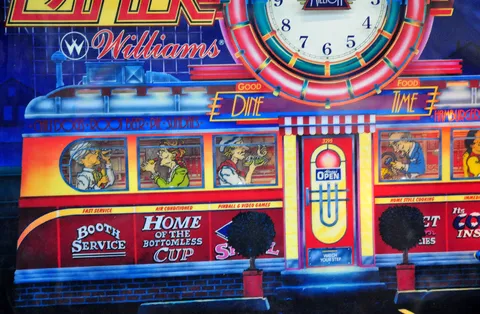

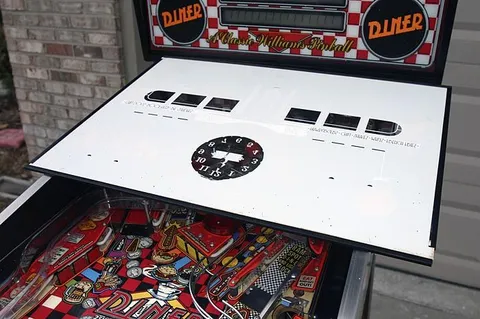

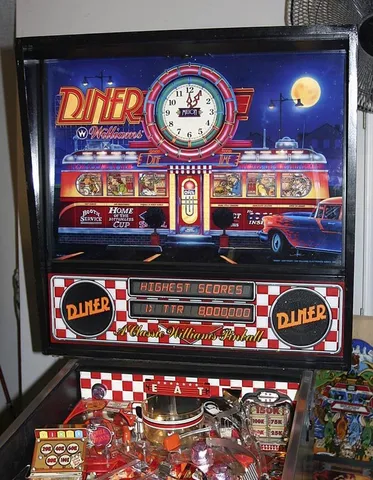

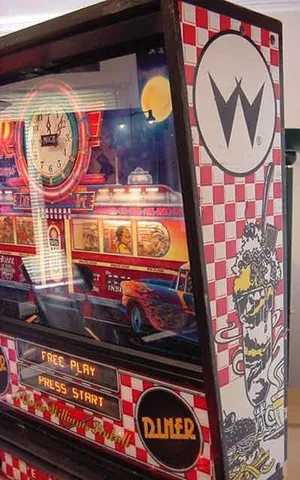

One of the most distinctive aspects of Diner's design is its pair of mechanical backbox animations. Clock hands count time on the backglass, while spring-mounted diner patrons bobble when the game is shaken, creating a dynamic visual effect that enhances the overall experience. This blend of playful mechanical touches, engaging gameplay, and an iconic theme makes Diner an attractive addition to any pinball collection.

Images (57)

Technical Details

Theme:
Happiness - Food
Model Number:
571

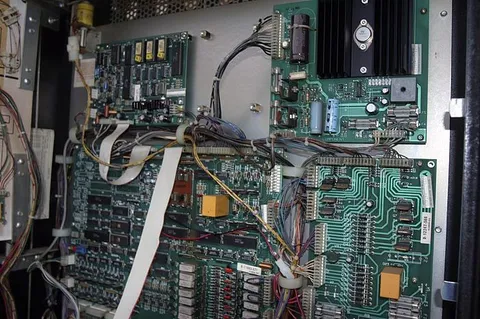

MPU:
Williams System 11C
Notable Features:
Flippers (2), Pop bumpers (3), 3-bank drop targets (2), Ramps (2), Cellar hole (1), 2-ball multiball. Two backbox animations (clock hands count time, and spring-mounted diners bobble when game is shaken).

Credits

Designer:
Mark Ritchie
Artist:
Mark Sprenger
Software:
Jim Strompolis
Music:
Chris Granner
Sound:
Chris Granner

ROM Files

Documentation

  • Operations Manual (June 1990, includes schematics, OCR searchable)
    35 MB
    Download
  • Operations Manual Amendment #1 (pp 15-16 from 1990 Service Bulletin Book)
    611 KB
    Download
  • Operator Handbook
    1021 KB
    Download
