Thunderbirds

Manufacturer: Homepin Ltd, of Shenzhen, China (2018)
Year: 2018
Date: January, 2018
Type: Solid State Electronic (SS)
Players: 4

About This Machine

Thunderbirds, released by Homepin Ltd of Shenzhen, China in January 2018, brought an adventure/aviation/science-fiction television theme to the modern pinball landscape, licensing the original Thunderbirds TV series music.

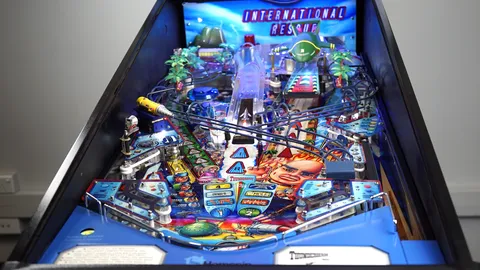

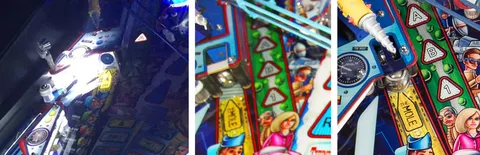

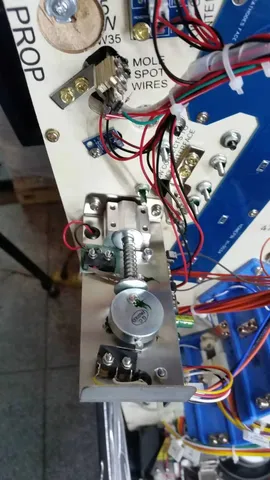

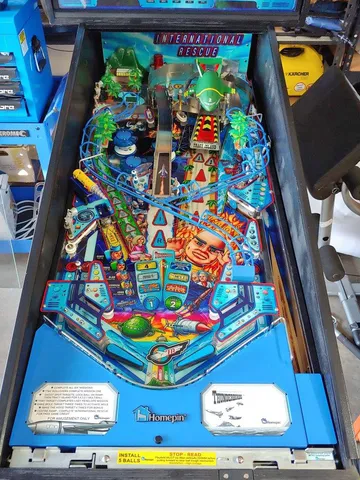

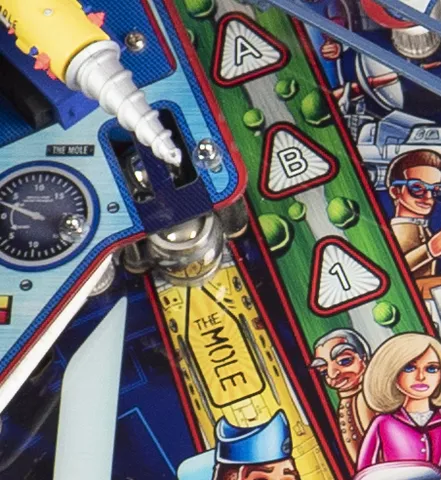

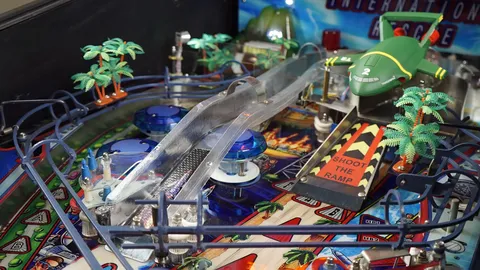

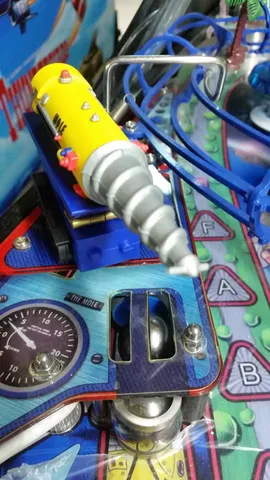

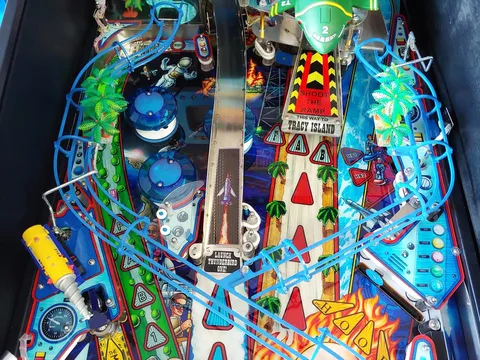

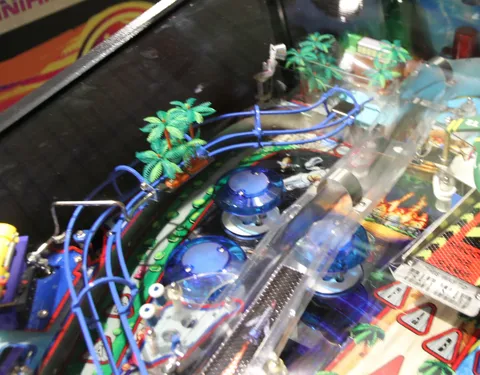

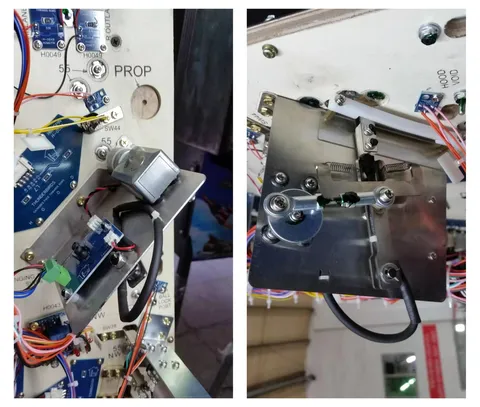

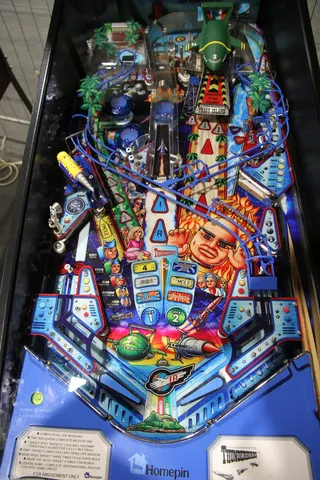

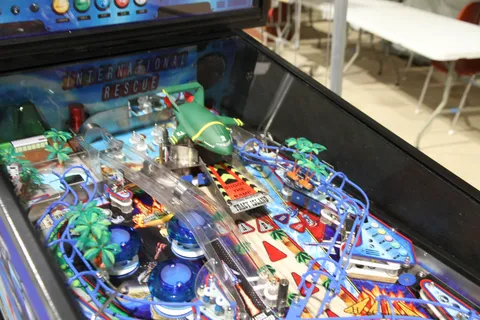

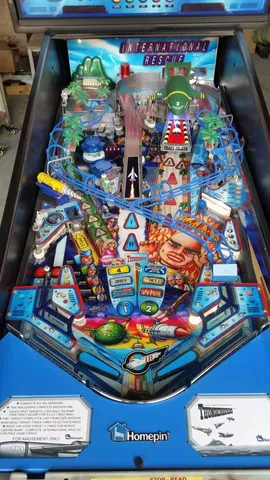

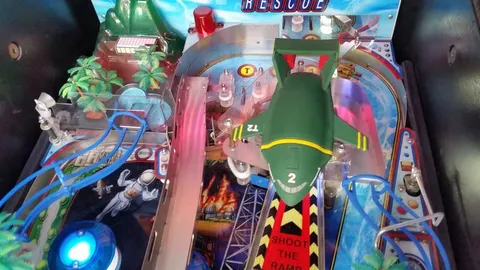

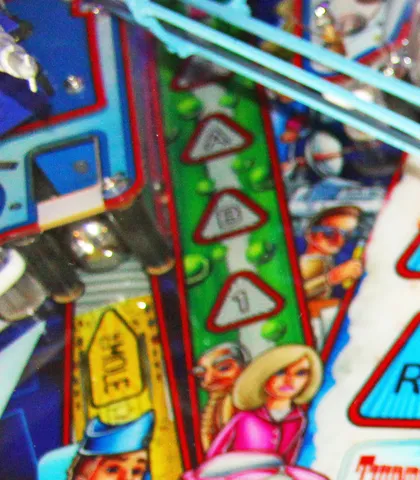

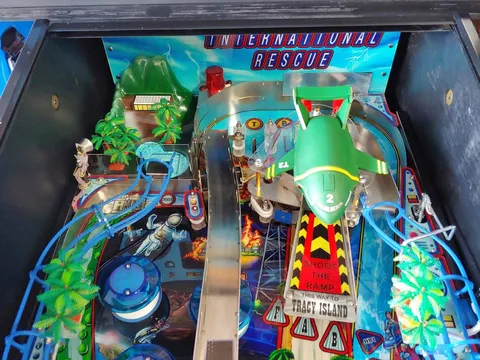

The gameplay experience is rich and immersive, with a unique blend of features that set it apart from other machines. The presence of two slingshots, three pop bumpers, and a swinging target creates an engaging and dynamic playing field. A captive ball and Newton ball mechanism are used as part of the game's "Mole" target, one of the toys featuring a tunneling mole vehicle alongside a Thunderbird 2 pod vehicle. Additionally, the machine's use of a diverter, ball elevator, and elevating ramp creates a sense of fluid movement that keeps players engaged.

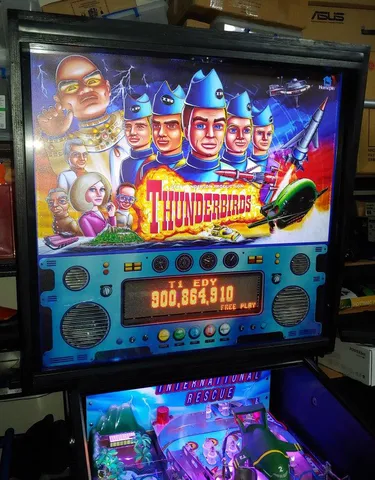

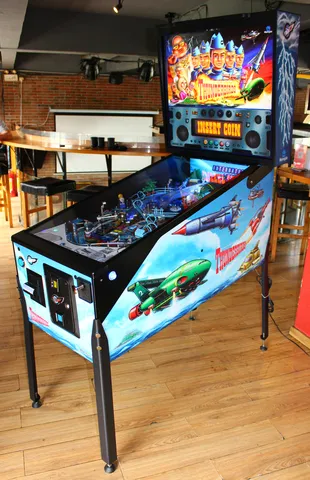

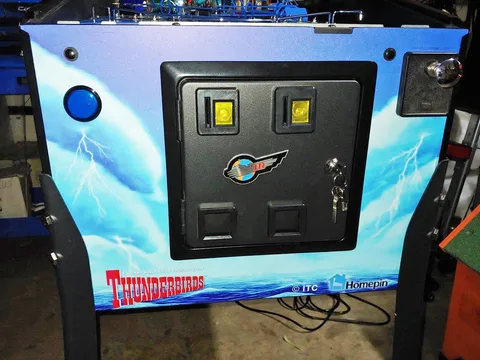

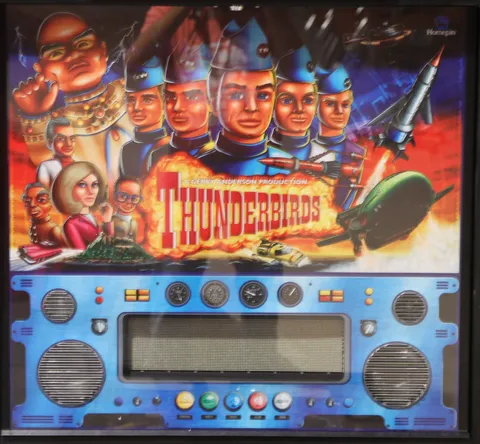

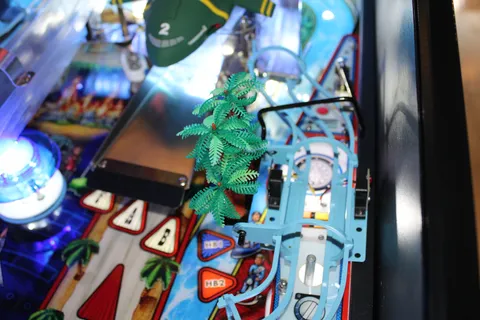

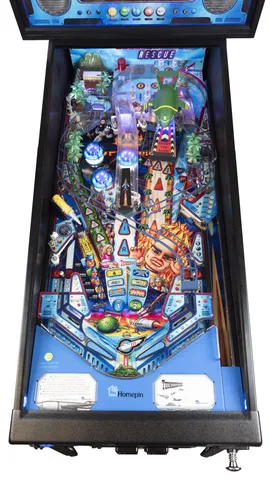

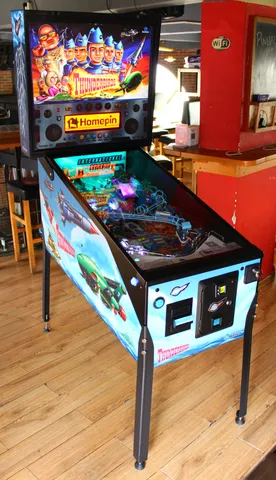

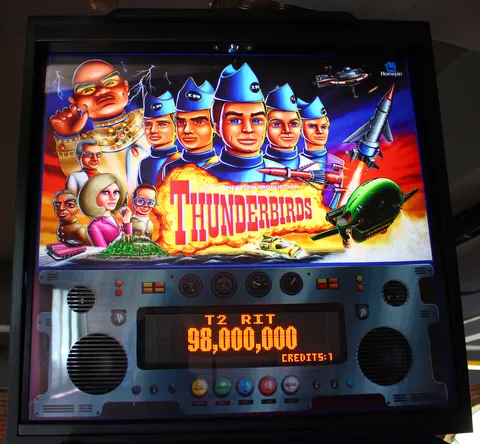

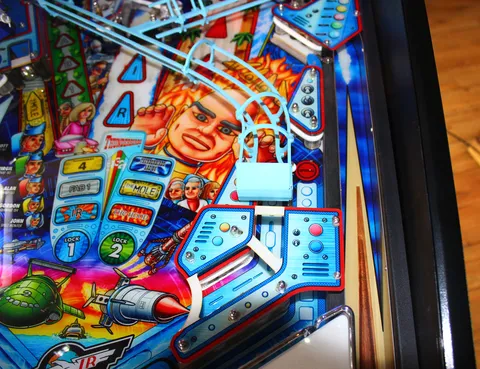

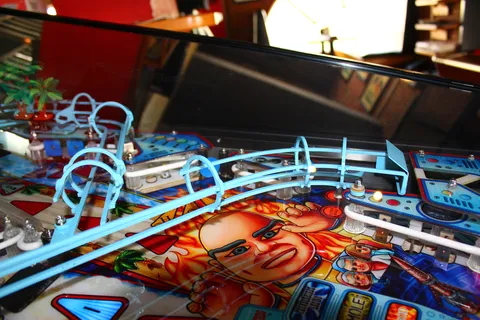

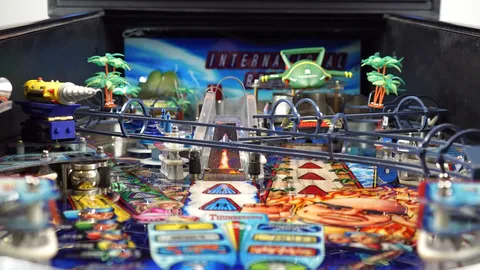

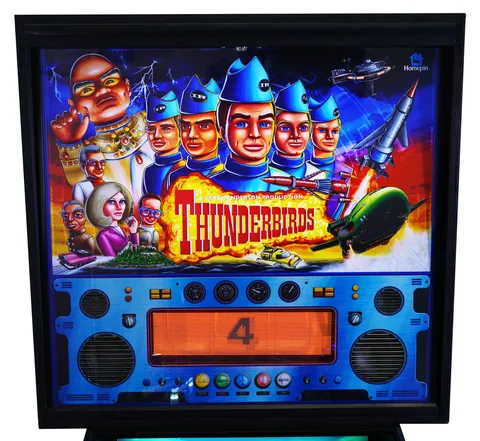

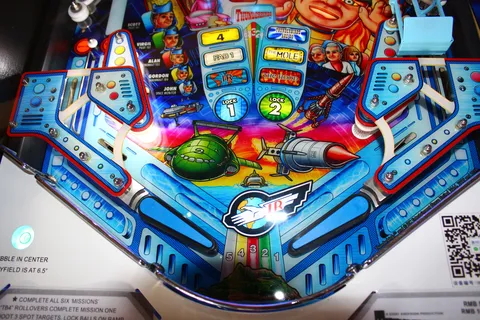

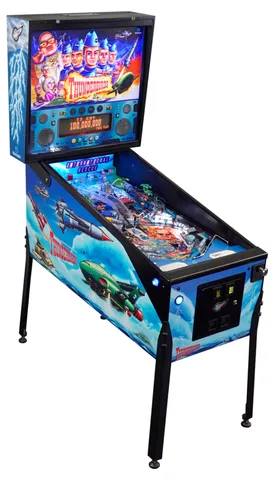

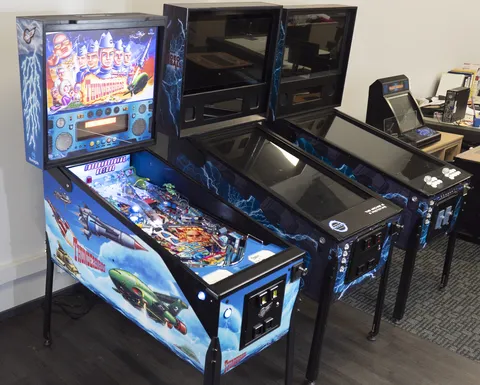

From a design and art perspective, Thunderbirds boasts striking visuals, with vibrant colors and intricate details that bring its science-fiction theme to life. The machine's use of a translite instead of a backglass is a notable aspect, offering a modern twist on traditional pinball design. The game was produced in both a Domestic (Chinese) Model and an Export Model aimed at Australia, Europe, and Canada, markets where the TV series is well known. No designer is credited for the machine, but for pinball enthusiasts, Thunderbirds' unique blend of gameplay and design elements makes it a notable addition to any collection.

Images (113)

Technical Details

Theme:
Adventure - Aviation - Science Fiction - Television Show
Model Number:
TAG
MPU:

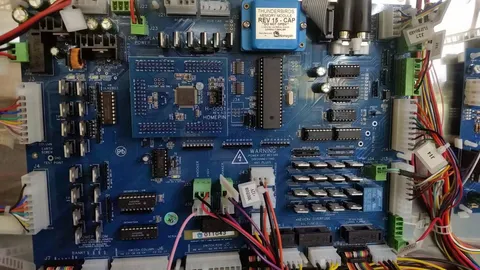

Homepin H-0012
Toys:

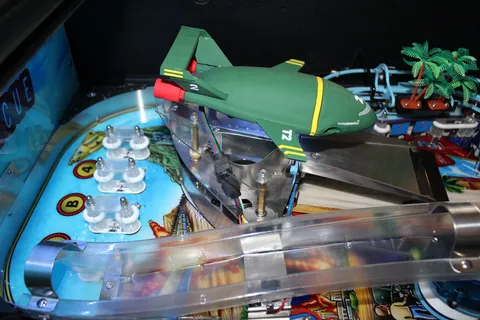

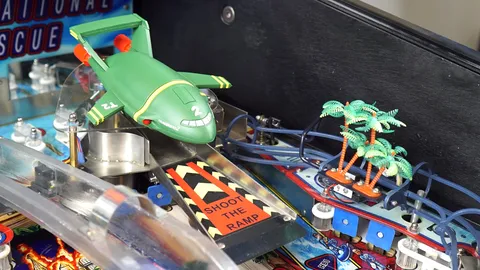

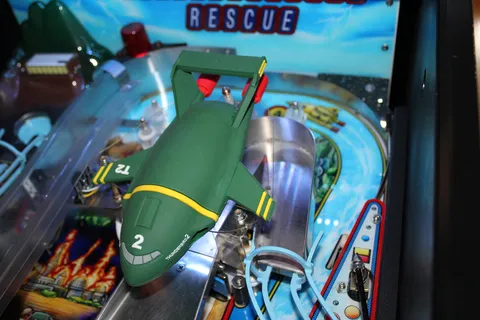

Mole tunneling vehicle "Thunderbird 2" pod vehicle
Notable Features:

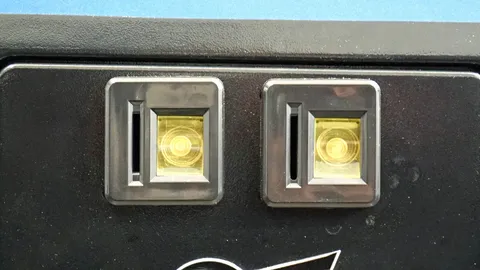

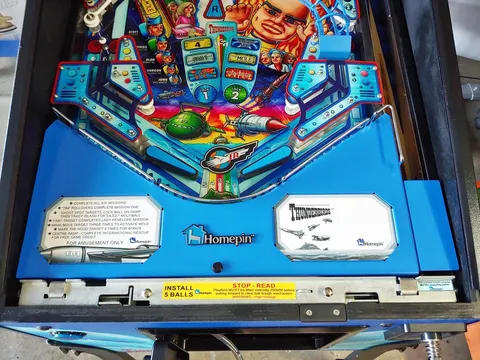

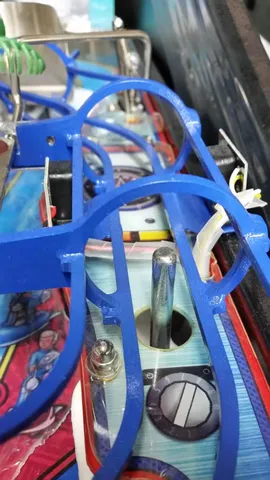

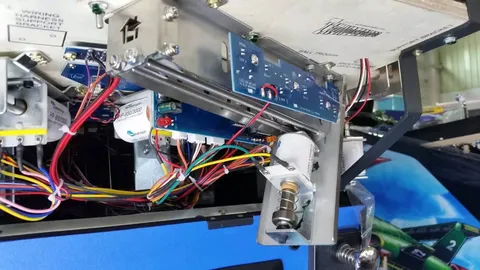

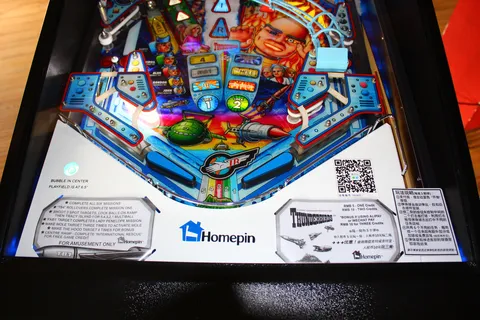

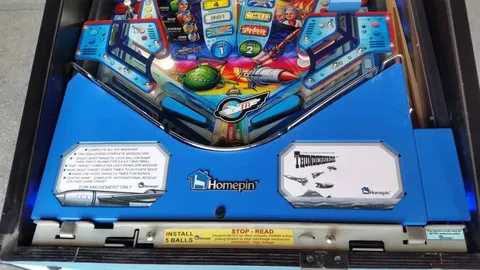

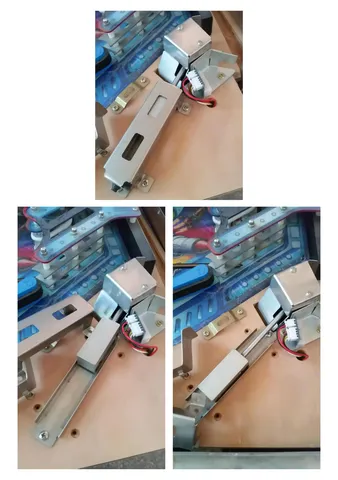

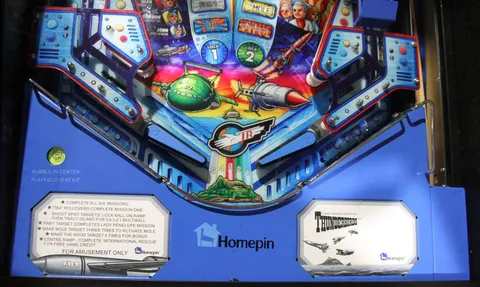

Flippers (2), Pop bumpers (3), Slingshots (2), Captive ball (1), Newton ball (1), Swinging target (1), Diverter (1), Ball elevator (1), Elevating ramp, Up-post, Illuminated flipper buttons, Shaker motor, Electromechanical knocker, Bubble level on lower apron. Game is equipped with five pinballs in the trough. A "passive ball stop" allows the playfield to be lifted high without the balls leaving the trough and falling. A translite is used instead of a backglass.

Credits

Designer:
(Undisclosed)
Artist:
Federico Barbato, Grant Higgins
Software:
Edy Wang
Music:
Edy Wang
Sound:
Edy Wang
Mechanics:
Mike Kalinowski, Sid Younger
Dots/Animation:
Glen Lewis, Alexander Xu, Roger Burgin

Documentation

  • Pinball Service Manual (dated 22 May 2018)
    35 MB
    Download

Service Bulletins

  • Service Bulletin #1 (Apr-26-2019, random events)
    189 KB
    Download
  • Service Bulletin #10 (Nov-4-2019, shooter lane opto)
    113 KB
    Download
  • Service Bulletin #11 (Nov-16-2019, memory module corrupt)
    158 KB
    Download
  • Service Bulletin #2 (undated, replace plastic ramp with new stainless steel one)
    2 MB
    Download
  • Service Bulletin #3 (undated, playfield hanger bracket upgrade)
    539 KB
    Download
  • Service Bulletin #4 (undated, trough upgrade)
    1 MB
    Download
  • Service Bulletin #5 (November 2018, subway adjustment)
    613 KB
    Download
  • Service Bulletin #6 (November 2018, flipper buttons stick)
    250 KB
    Download
  • Service Bulletin #7 (January 2019, balls keep launching)
    97 KB
    Download
  • Service Bulletin #8 (May-25-2019, install sleeves in flipper bushes)
    277 KB
    Download
  • Service Bulletin #9 (Jun-28-2019, shorted flipper driver transistor)
    273 KB
    Download

Other Files

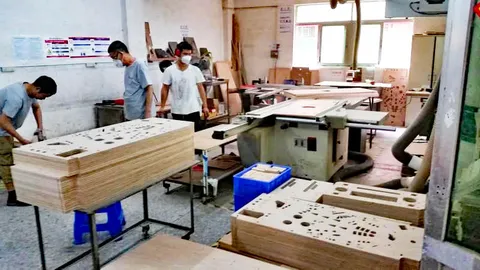

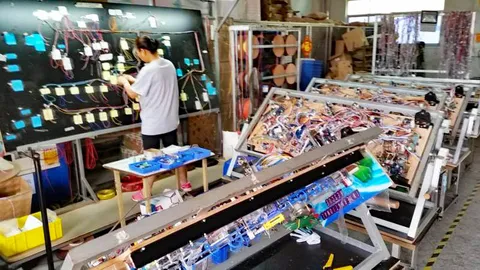

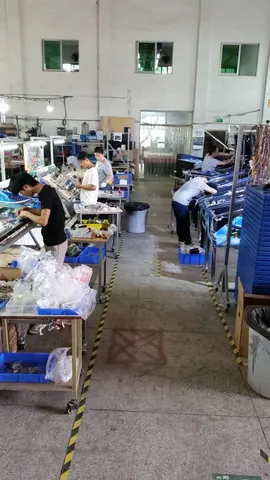

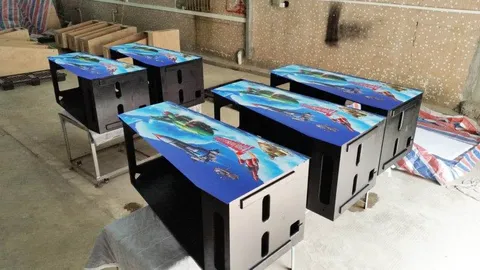

  • Factory Photos
    46 MB
    Download
  • Unpack & Setup Instructions (August 2019)
    1 MB
    Download
  • Warranty Certificate (August 2019)
    506 KB
    Download
