Black Knight Sword of Rage (Limited Edition)

Manufacturer: Stern Pinball, Incorporated, of Chicago, Illinois, USA (1999-now) [Trade Name: Stern]
Year: 2019
Date: May, 2019
Type: Solid State Electronic (SS)
Players: 4
Production: 600 units (confirmed)

About This Machine

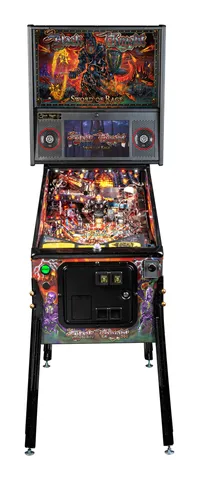

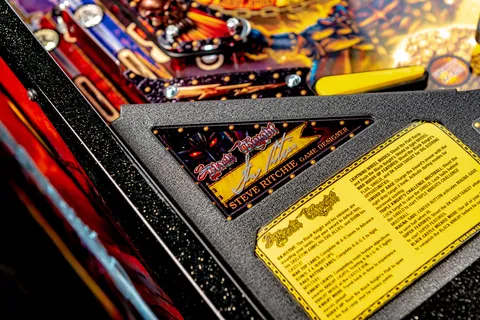

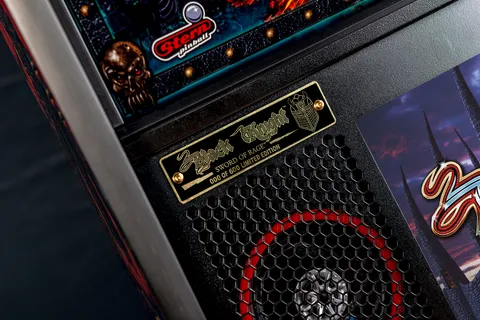

The Black Knight Sword of Rage Limited Edition pinball machine, designed by Steve Ritchie and manufactured by Stern Pinball, is a thrilling tribute to the iconic knight theme. Released in 2019, this game is a limited production run of 600 units, each including a serialized number plate, a Certificate of Authenticity signed by Gary Stern, and a playfield apron autographed by designer Steve Ritchie — making it a highly sought-after collector's item.

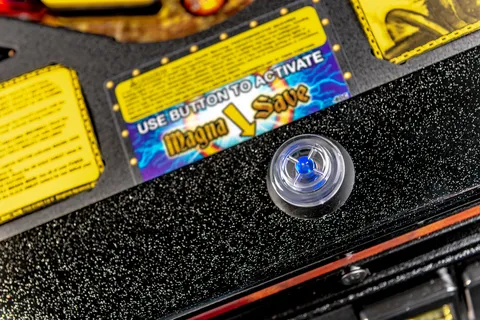

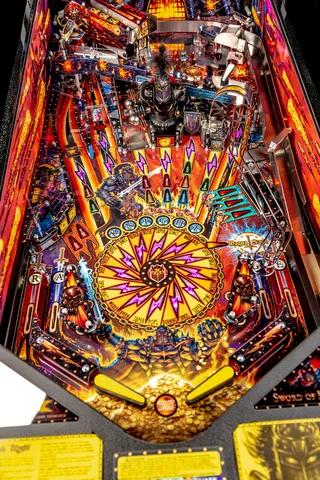

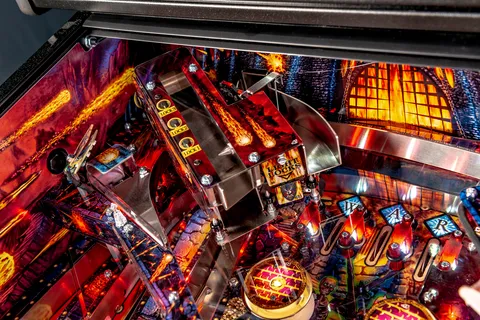

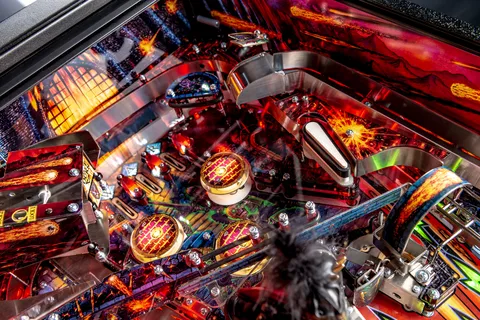

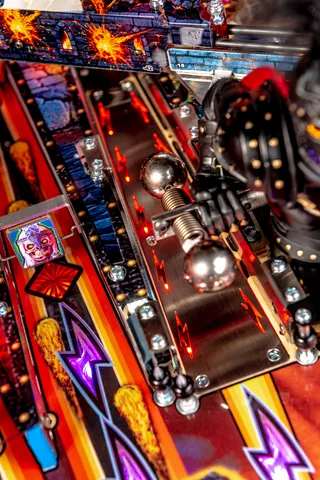

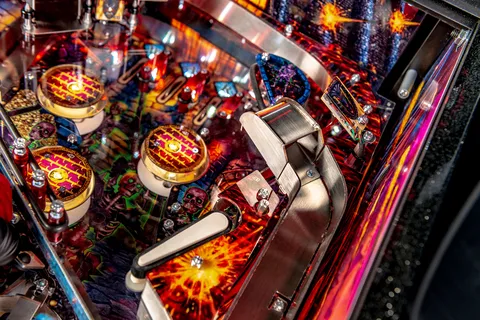

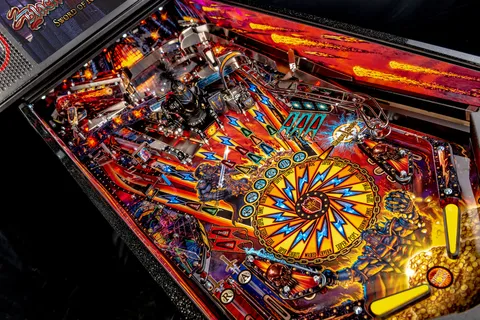

Gameplay is where Black Knight Sword of Rage truly shines. Players can control three flippers, three pop bumpers, two slingshots, and three vertical up-kickers as they navigate the challenging playfield. A spinning target and drop targets add an extra layer of strategy, while the Magna-Save magnet gives players a chance to rescue an otherwise drained ball. The six-ball multiball mode is a highlight, featuring a dynamic upper playfield with a transparent 3-ball lock mechanism. The game's design also boasts a unique bi-directional motorized ball gate shaped like a knight's flail, a nearby gate shaped like the Black Knight's fighting shield, and a button on the lockdown bar for added interactivity.

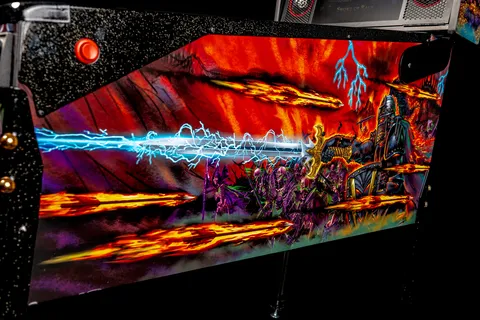

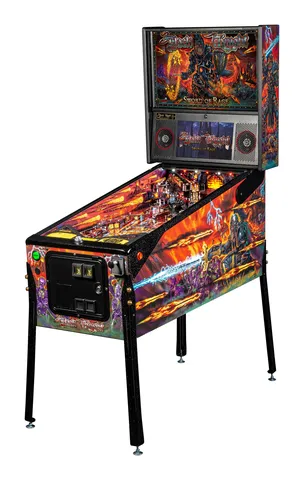

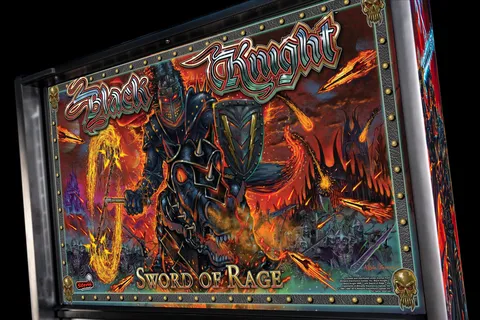

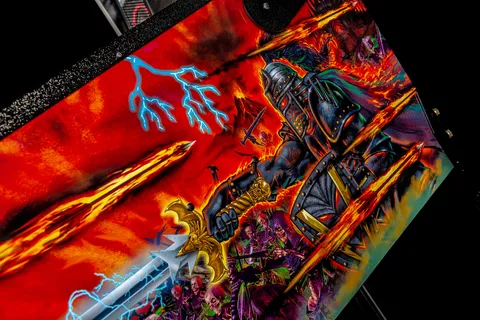

The machine's visual presentation is equally impressive, with gloss black and gold metal flake accents adorning the side armor, legs, backbox hinges, and leg bolts. A mirrored backglass replaces traditional translite artwork, adding an extra touch of sophistication to the overall design. Playfield art blades evoke the mythical sword and shield of the Black Knight. The use of anti-reflection pinball glass and a powder-coated steel bottom arch further enhance the machine's aesthetic appeal. With its unique blend of challenging gameplay and stunning visuals, the Black Knight Sword of Rage Limited Edition is a must-play for any serious pinball enthusiast.

Images (35)

Technical Details

Theme:
Historical - Knights
MPU:
Stern SPIKE™ 2 System
Toys:

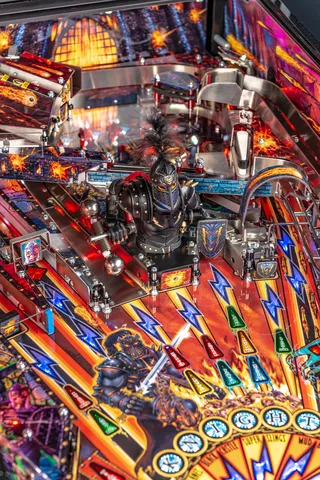

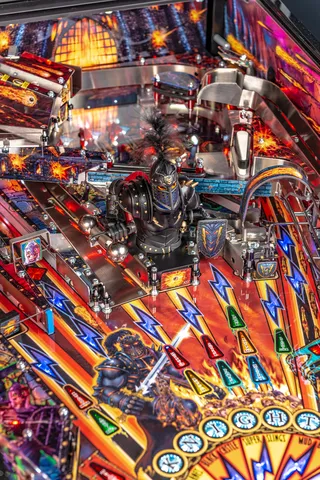

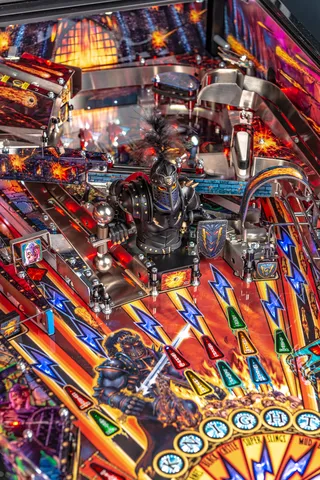

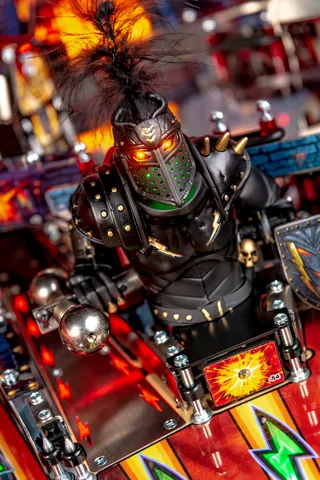

Black Knight upper torso
Notable Features:

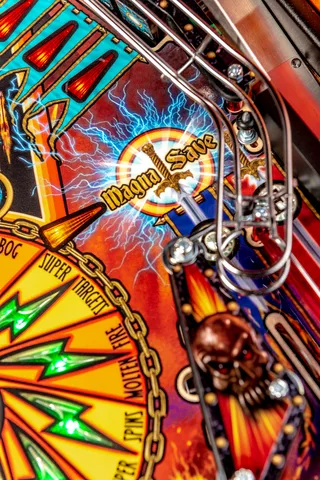

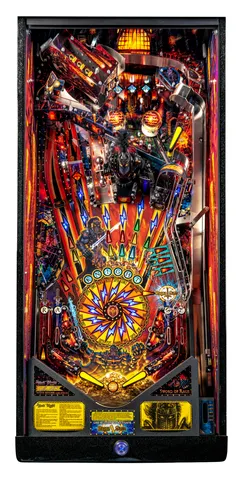

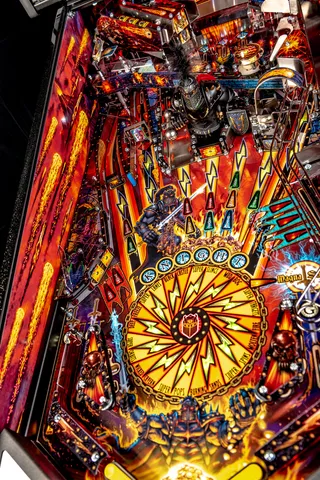

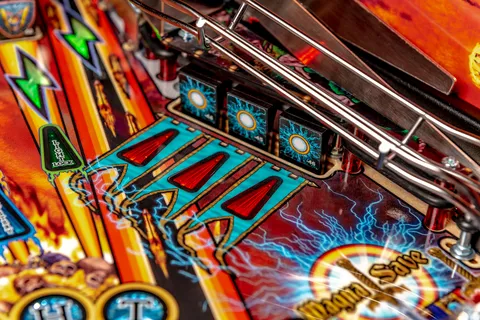

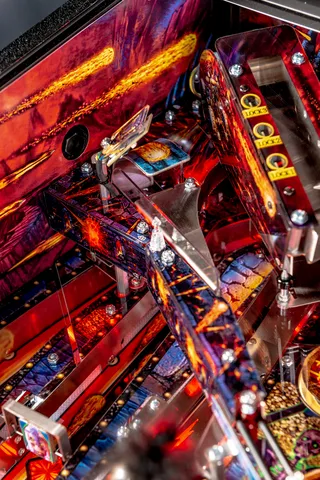

Flippers (3), Pop bumpers (3), Slingshots (2), Vertical Up-kickers (3), Spinning target (1), 3-bank drop targets (1), Solitary drop target (1), Magna-Save magnet (1), 6-ball multiball. Entrance of center ramp has a bi-directional motorized ball gate designed to represent a knight's flail. Another gate nearby is shaped like the Black Knight's fighting shield. Button on lockdown bar. Shaker motor. Player can choose to shoot ball into play to upper playfield or lower playfield. Transparent upper playfield has 3-ball lock mechanism. Gloss black/gold metal flake side armor, legs, backbox hinges, and gold leg bolts. Powder-coated Steel bottom arch. Playfield art blades. Anti-reflection pinball glass. A mirrored backglass is used instead of a translite. Decal cabinet art. Actual measured weight: 247 lbs (includes legs).

Credits

Designer:
Steve Ritchie
Artist:
Kevin O'Connor, Dave Link, Harrison Drake, Danai Kittivathana, George Gomez
Software:
Tim Sexton, Corey Stup, Brett Rubin, Mike Kyzivat, Waison Cheng, Mark Guidarelli, Tanio Klyce, Lyman F. Sheats Jr.
Music:
Scott Ian, Brendon Small
Sound:
Jerry Thompson, Ken Hale
Mechanics:
John Rotharmel, Harrison Drake, Elliot Eismin
Dots/Animation:
Josh Clay, Chuck Ernst, Danai Kittivathana, Alex Borre, Zac Stark, Tom Kyzivat, Mark Galvez

Documentation

  • Service and Operation Manual
    9 MB
    Download

Other Files

  • Game Features Comparison Chart by Model
    3 MB
    Download

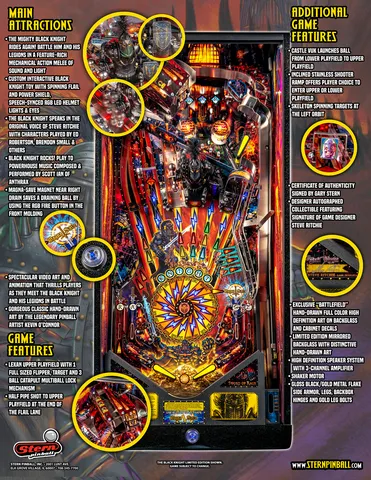

  • Game Flyer
    19 MB
    Download
  • Optional Factory Accessories
    229 KB
    Download
  • Plastic Assembly #43 Replacement Instruction Sheet (dated June 24, 2019)
    340 KB
    Download
  • Press Release - New Game Announcement
    204 KB
    Download
