Star Wars Limited Edition
About This Machine

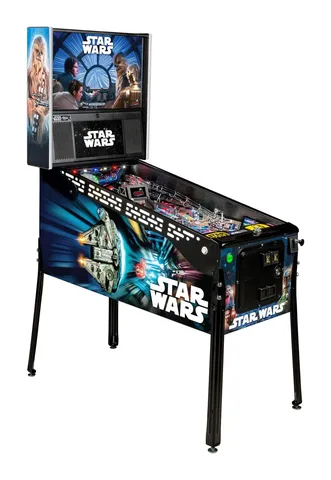

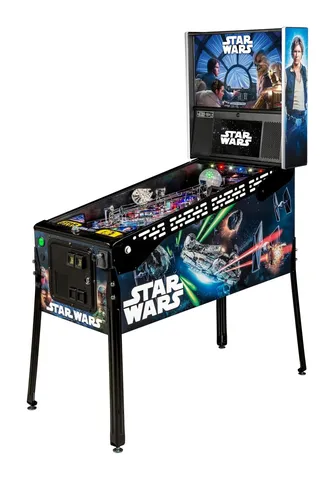

The Star Wars Limited Edition pinball machine, designed by Steve Ritchie and released by Stern Pinball in August 2017, is a highly sought-after collector's item for fans of the iconic franchise. Limited to a confirmed production run of 800 units, each game came with a serialized number plate, a Certificate of Authenticity signed by Gary Stern, an autographed collectible signed by Ritchie, and two extra translites from the Pro and Premium models.

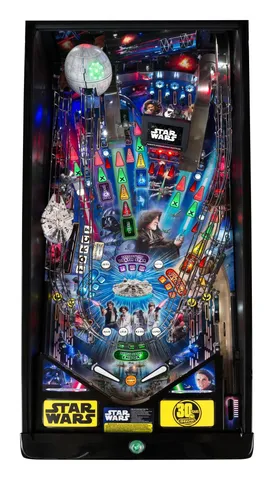

Key gameplay features include a range of innovative mechanics, such as the "jumpramp" that loads balls into the Death Star for multiball action, with one of the machine's three slingshots used to interact with the two pop bumpers. With up to six balls in simultaneous play and nine multiball modes plus a Wizard Mode, players can experience the intense excitement of battling the Empire like never before. The machine's design features include a miniature LCD screen on the playfield, chrome metal ramps, and wire habitrails, all set against striking translite artwork depicting the Rebellion's forces.
Notably, this machine boasts an impressive array of lighting effects, courtesy of RGB LEDs throughout the cabinet and backbox, as well as specialized reflector flash lamps illuminating the playfield, and green and RGB LEDs on the Exploding Death Star. Gloss black powder-coated hinges, lockdown bar, and laser-cut side armor complete its distinct look. As a true standout in modern pinball design, the Star Wars Limited Edition machine is sure to delight enthusiasts of both the franchise and the hobby itself.
Images (5)
Technical Details
- Theme:
- Licensed Theme - Fantasy - Outer Space - Science Fiction
- Model Number:
- PINBALL I-00J6 * STRWR LE
- MPU:
- Stern SPIKE™ 2 System
- Toys:
- Illuminating Death Star explodes. Illuminating Millennium Falcon model on left habitrail. Interactive Tie Fighter bash toy.
- Notable Features:
- Flippers (2), Pop bumpers (2), Slingshots (3), Standup targets (9), 5-bank drop targets (1), Horseshoe lane (1), Scoop (1), Diverter (1), Right outlane ball return gate. Miniature LCD screen on playfield. A slingshot is used to interact with the two pop bumpers. Chrome metal ramps and wire habitrails. A "jump ramp " raises from under the playfield to load balls into the Death Star for multiball, shooting them into a looping aerial habitrail. Nine Multiball Modes and one Wizard Mode. Action button on lockdown bar. Up to 6 balls in simultaneous play. Has speech. Color LCD backbox display. Stereo sound. Powder-coated gloss black hinges, lockdown bar, and laser-cut side armor. Powder-coated steel and plywood backbox. Powder-coated steel bottom arch. A translite is used instead of a backglass. Decal cabinet artwork. Factory-installed illumination: Backbox - White LEDs on main CPU board illuminate translite. Playfield - Reflector flash lamps. Zoned red, white, and blue general illumination LEDs under plastics. Green LEDs and RGB LEDs on/in Exploding Death Star. RGB LEDs everywhere else. Cabinet - RGB LED for button on front lockdown bar. Regular LEDs for Start button and coin door. Actual measured weight: 242 lbs (includes legs).
Credits
- Designer:
- Steve Ritchie
- Artist:
- Bob Stevlic, Kevin O'Connor, Steve Anderson, Sergio Grisanti, Brian Rood, Jack E. Haeger, Greg Freres, Steven Martin
- Software:
- Dwight Sullivan, Corey Stup, Waison Cheng, Mike Kyzivat, Tanio Klyce, James T. Sullivan
- Music:
- Jerry Thompson
- Sound:
- Jerry Thompson
- Mechanics:
- Elliot Eismin, John Rotharmel, Rob Blakeman
- Dots/Animation:
- Danai Kittivathana, Zac Stark, Mark Galvez, Alex Borre
Documentation
- DownloadService and Operation Manual (no schematics)8 MB
