ALIEN (Standard Edition)

Manufacturer: Heighway Pinball, Ltd., of Merthyr Tydfil, Wales, UK (2014-2017)
Year: 2017
Date: February, 2017
Type: Solid State Electronic (SS)
Players: 4

About This Machine

The Alien pinball machine, released by Heighway Pinball, Ltd. in February 2017, is a widebody, licensed sci-fi title based on the Alien film franchise. Dennis Nordman did the initial playfield design, though Dave Sanders took over and reportedly changed it considerably before release, making him the credited designer.

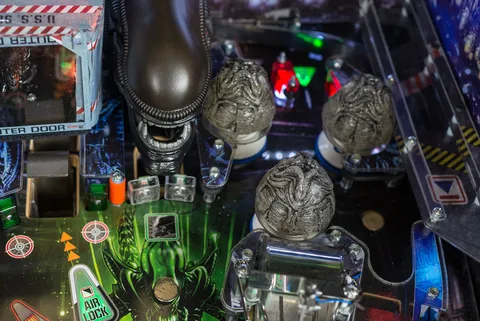

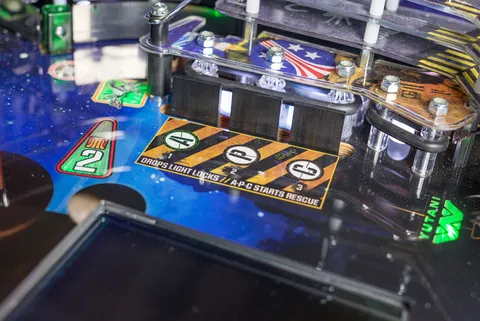

Alien's gameplay is characterized by an intense sci-fi experience with numerous unique features. Players interact with four flippers, three pop bumpers, two slingshots, two spinning targets, two magnets, and a magnetic ball-grabber that extends out of the Xenomorph's mouth at the top of the playfield. The machine also includes a 3-bank drop target, kick-out hole, scoop, and automatic plunger, along with multiball play.

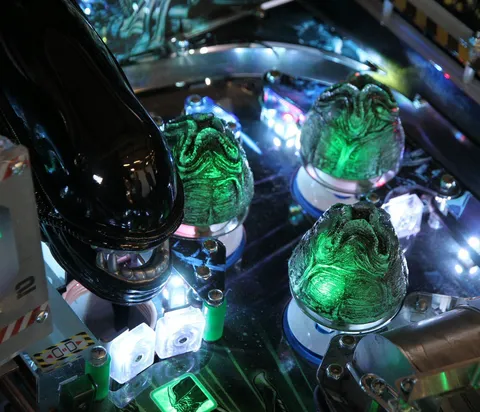

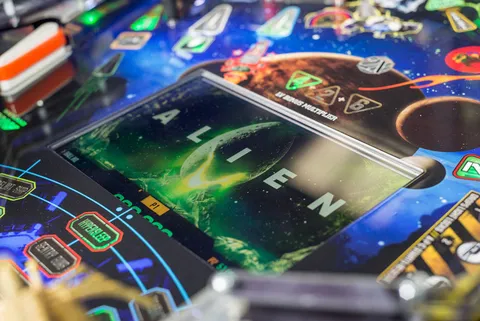

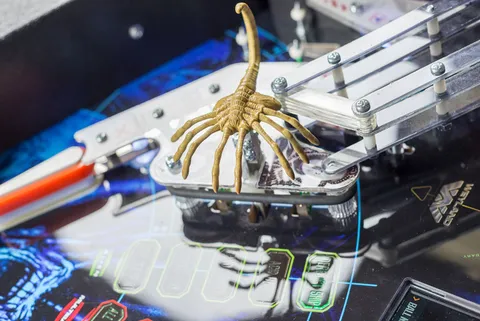

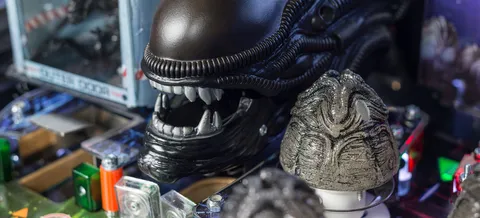

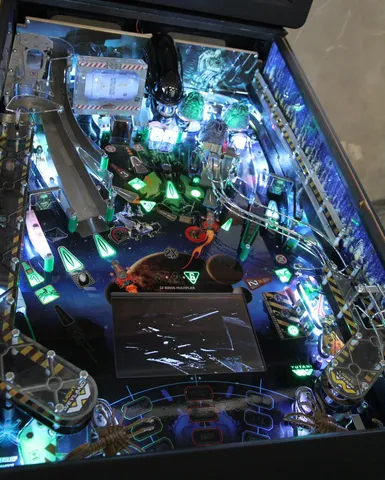

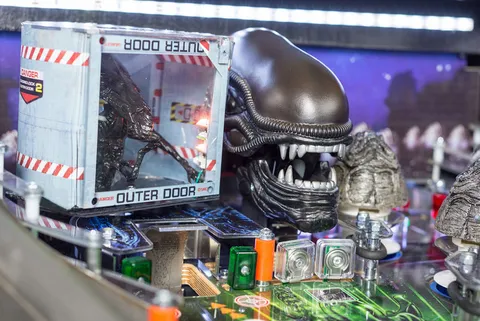

One of the most striking aspects of Alien is its elaborate design and art, bringing the movie's iconic creature to life on the playfield. A large LCD is set flush into the center playfield, with a smaller LCD mounted on the upper playfield, and the pop bumpers feature color-changing lamps. Playfield illumination is fully color-changing LED, with non-color-changing LEDs in the backbox and cabinet. Garret Popek designed, sculpted, and fabricated the Xenomorph and Facehugger toys, adding a tactile centerpiece to this widebody machine.

Images (26)

Technical Details

Theme:
Licensed Theme - Science Fiction
Model Number:
Standard
Toys:
Xenomorph he ad Facehuggers (2)
Notable Features:

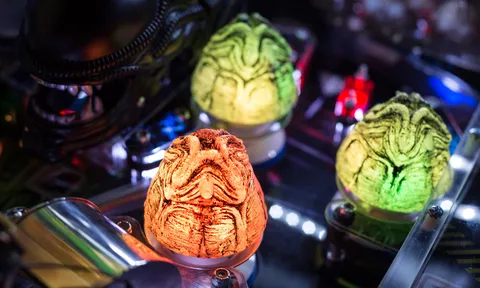

Flippers (4), Pop bumpers (3), Slingshots (2), Spinning targets (2), Magnets (2), 3-bank drop targets (1), Kick-out hole (1), Scoop (1), Multiball. A large LCD in center playfield is flush with playfield surface. A smaller LCD is vertically mounted on upper playfield. Pop bumpers have color-changing lamps. Magnetic ball-grabber extends out of Xenomorph's mouth at top of playfield. Illuminating cabinet side panels easily slide in and out by the operator. Playfield glass lifts out in its own metal frame. Playfield side walls have art. Automatic plunger. Has voice; an operator-selected Family Mode option removes profanity. Almost all playfield switches are inductive switches (not micro-switches) that are hidden below the top surface of the playfield. Factory-installed illumination: Backbox - all lamps are non-color-changing LEDs. Playfield - all lamps, including GI*, are individually addressable, fully color changing LEDs. Cabinet - side panels and front have all non-color-changing LEDs. *Prototype and early production games used GI lamp "towers" with 5 LED elements (one pointing in each cardinal direction, plus one pointing straight up). Later games switched back to regular single-element LED's for GI.

Credits

Designer:
Dave Sanders
Artist:
Aurich Lawson, Garret Popek
Software:
Brian Dominy, Joe Schober
Music:
David Thiel
Sound:
David Thiel
Mechanics:
James Aaron Rees
Dots/Animation:
Kelly Mazurowski

Other Files

  • hpa11.upd (compiled PC file and change log)
    10 MB
    Download
  • hpa12.upd (compiled PC file and change log)
    21 MB
    Download
  • hpa13.upd (compiled PC file and change log)
    1 MB
    Download
  • hpa14.upd (compiled PC file and change log)
    1 MB
    Download
  • Pre-Production Game Flyer
    2 MB
    Download
  • ROM Revision History
    14 KB
    Download
  • Rulesheet (Rev. 1.3 dated 2024-02-20)
    4 MB
    Download
