Alpine Club

Manufacturer: Williams Electronic Manufacturing Corporation (1958-1967) [Trade Name: Williams]
Year: 1965
Date: February, 1965
Type: Electro-mechanical (EM)
Players: 1
Production: 1,200 units (confirmed)

About This Machine

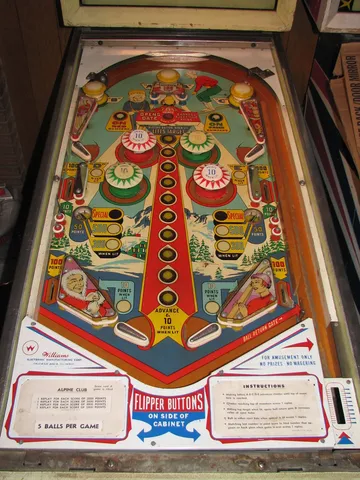

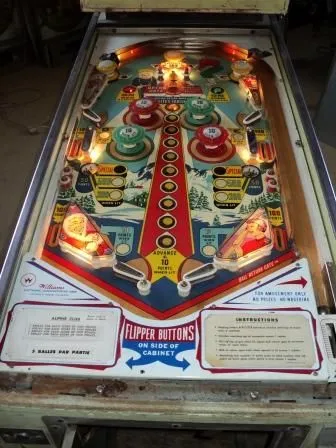

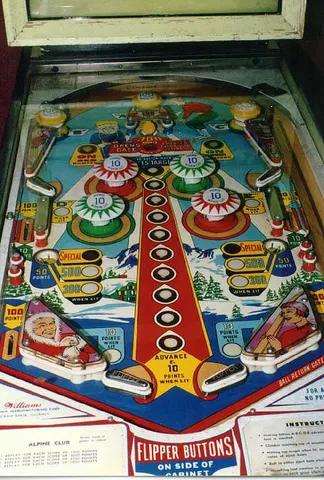

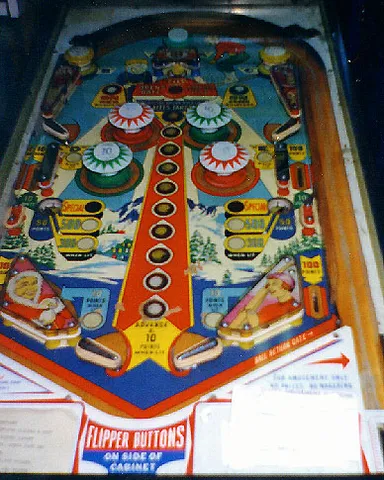

Alpine Club, designed by Steve Kordek with artwork by Art Stenholm, was released by Williams in February 1965, with a confirmed production run of 1,200 units. This single-player electro-mechanical game carries a snow skiing and vacationing theme, and it offers a well-appointed playfield: four flippers, four pop bumpers, three passive bumpers, two slingshots, twelve rollover buttons, two kick-out holes, a standup target, and a right outlane ball return gate.

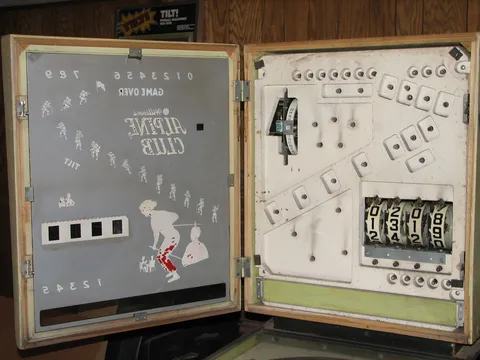

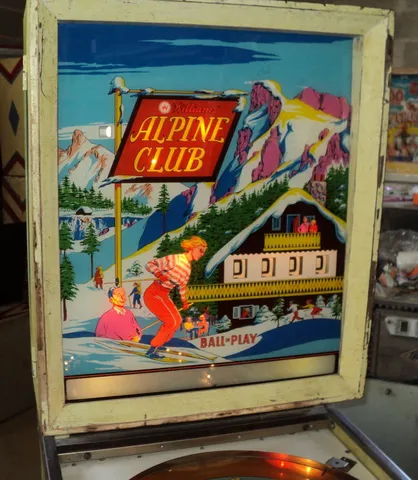

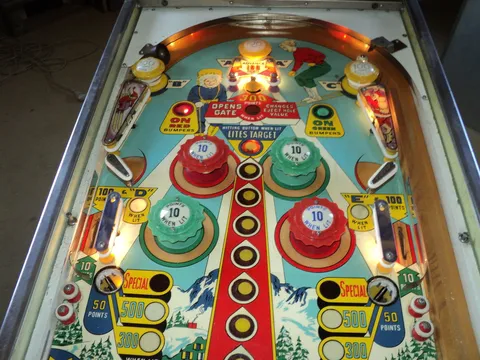

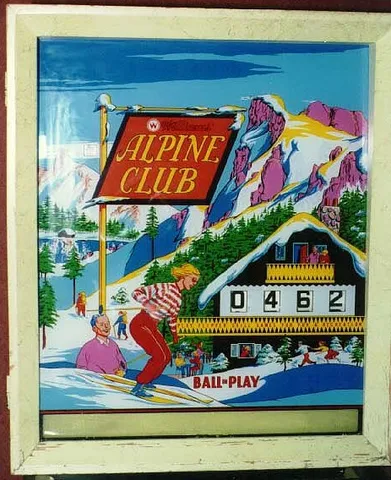

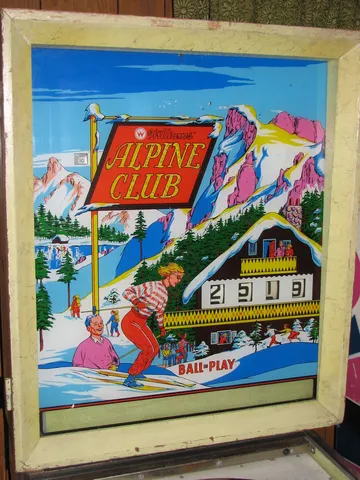

The game's signature feature is its backglass light animation of a mountain climber ascending a peak. Scoring the A-B-C-D-E sequence advances the climber up the mountain; when he nears the summit his lamp flashes, and reaching the top briefly lights a flag, scores a replay, and resets the climb. Notably, this progress carries over from game to game. The rollover buttons light one at a time from the bottom up — hitting a lit button lights the one above it, and completing the ladder lights a target that opens the gate, scores 300 points, and increases the kick-out hole value.

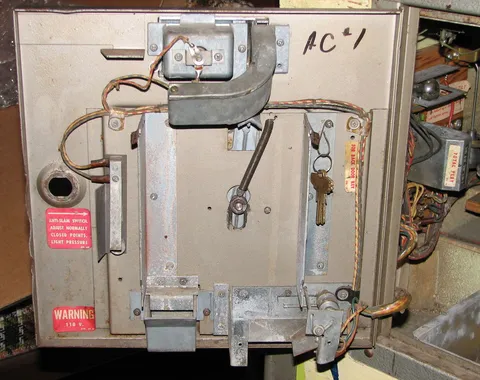

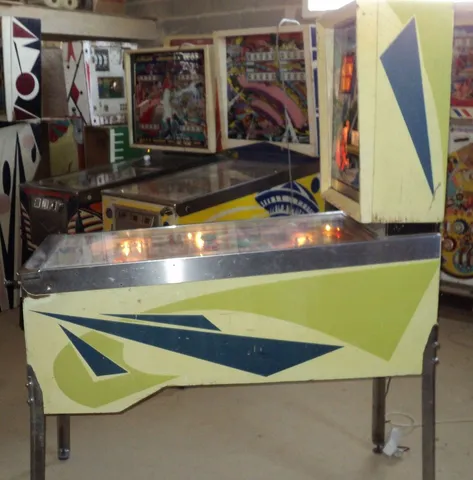

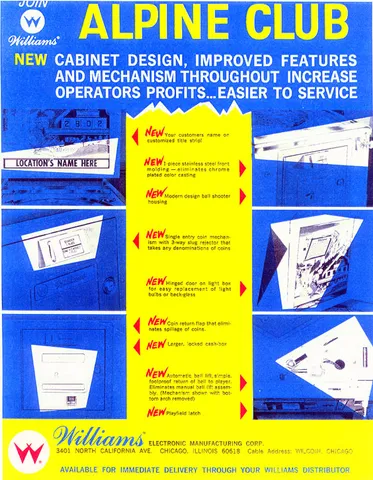

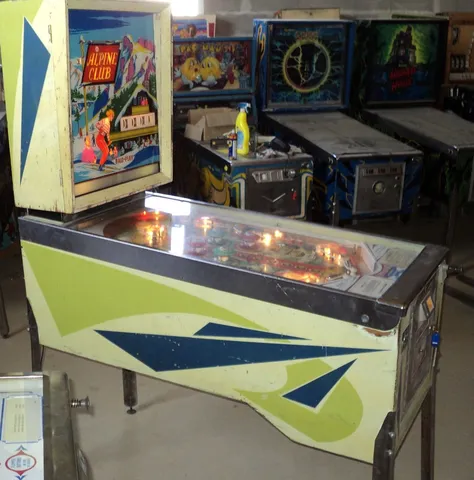

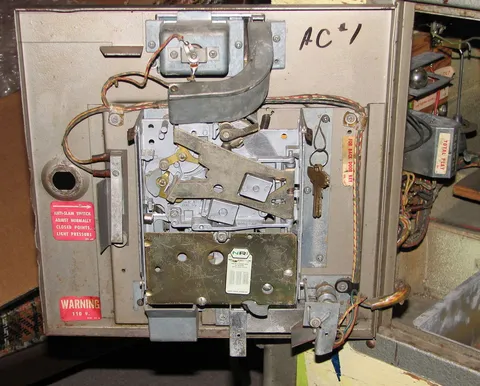

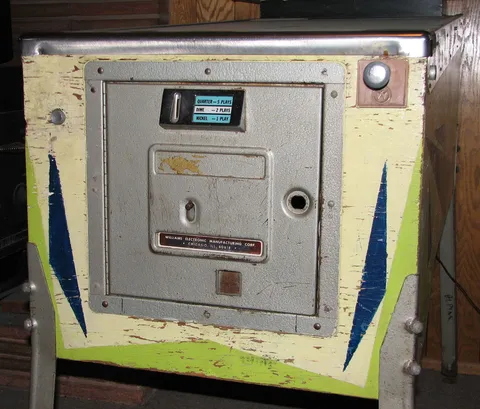

Alpine Club also holds a genuine place in Williams history as the first Williams game with several features that became standard: a hinged backbox door for easy backglass and bulb access, a backglass advertising marquee, an automatic ball lift, a one-piece lockdown bar, the familiar rectangular plastic ball shooter escutcheon, a coin return flap, and a new single-slot coin door accepting nickels, dimes, and quarters — a change that required the distinctive 'drop-down' cabinet front used on Williams games into mid-1966.

Images (26)

Technical Details

Theme:
Sports - Snow Skiing - Vacationing
Model Number:
310
Notable Features:
Flippers (4), Pop bumpers (4), Passive bumpers (3), Slingshots (2), Rollover buttons (12), Kick-out holes (2), Standup target (1), Right outlane ball return gate. Illuminated backglass marquee. Drop-down cabinet. Backglass light animation (mountain climber ascends mountain). Scoring A-B-C-D-E in sequence advances the climber up the mountain. When climber is almost at the summit, the climber lamp flashes. Climber reaching summit briefly lights a flag there, a replay is scored, and the animation resets to light the climber back to the beginning of the climb. This is a carryover feature from game to game. Rollover buttons light one-at-a-time starting at the bottom button. Hitting a lit button lights the one above it. Hitting the top rollover button when lit lights target. Hitting lit target opens gate, scores 300 points, and increases kick-out hole value. Maximum displayed point score is 9,999 points. Replay wheel maximum: 20 Sound: bell, knocker.

Credits

Designer:
Steve Kordek
Artist:
Art Stenholm

Documentation

  • Schematic Diagram (continuous, bleached)
    511 KB
    Download
  • Schematic Diagram (paginated, overlapping, damaged but complete)
    14 MB
    Download

Other Files

  • Adjustment Sheet
    70 KB
    Download
  • Coil Chart
    2 MB
    Download
  • Converting Slug Rejectors to 2 Coin Play or 1 Coin Play
    93 KB
    Download
  • Original Cabinet Artwork 1962-1965 (see page 24 for this game)
    7 MB
    Download
  • Post Adjustment Sheet
    82 KB
    Download

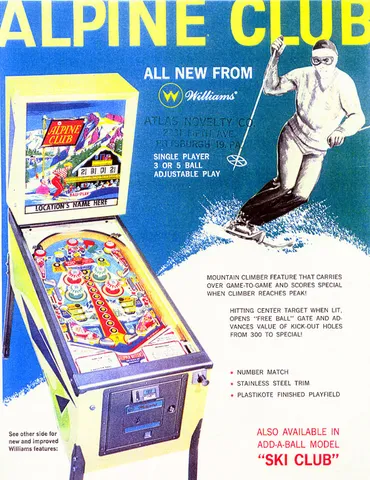

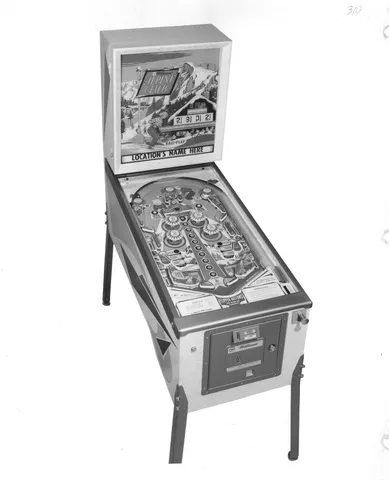

  • Promotional Photo - Large Size
    1010 KB
    Download
