The Wizard of Oz 75th Anniversary Edition
About This Machine
The Wizard of Oz 75th Anniversary Edition, designed by Joe Balcer and manufactured by Jersey Jack Pinball, is a significant addition to the world of pinball. Released in 2014, this machine marks a major milestone in the classic tale's history, celebrating its 75th anniversary with a unique blend of nostalgia and innovative gameplay.

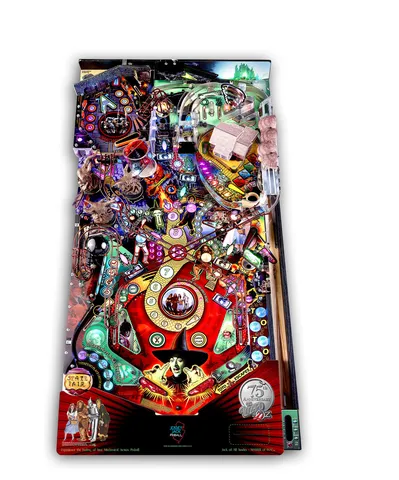

One of the standout features of The Wizard of Oz is its complex and dynamic playfield design, which incorporates five flippers, four pop bumpers, three slingshots, magnets, VUKs (Vertical Up-Kickers), a drop target, scoops, ball locks, spinning targets, rollovers, and a shaker motor. The machine's multiball capability adds an extra layer of excitement to the gameplay experience. A notable aspect of this game is its use of RGB-LED lighting, providing vibrant illumination to the playfield.

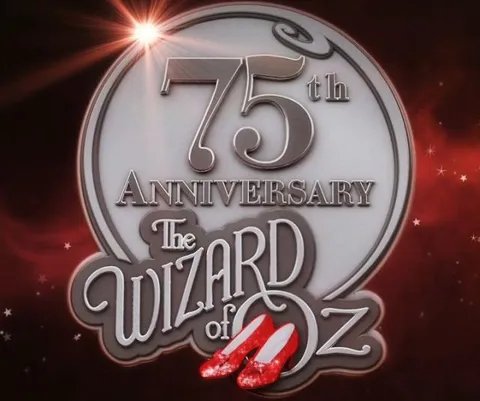

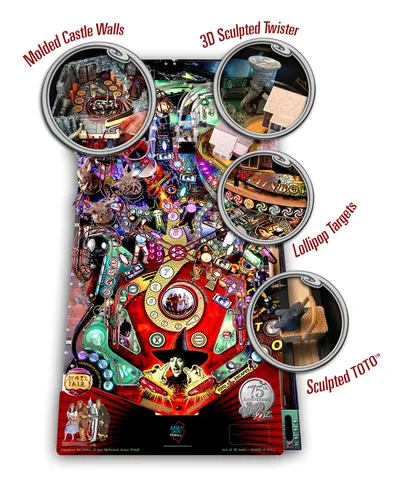

The Wizard of Oz also showcases impressive design and artistry, with intricate details such as molded castle walls, motorized doors, and a colorful Rainbow standup target array. The Winged Monkey moves along a diagonal track on the back wall of the playfield, delivering balls to the upper left mini-playfield, known as The Witch's Castle. This area features two motorized castlegates that open inward to reveal a scoop after repeated bashings from the ball in play. The machine's high-definition LCD display and 7-speaker digital audio system provide an immersive experience for players.
Images (22)
Technical Details
- Theme:
- Fantasy - Licensed Theme - Wizard/Magic
- Model Number:
- RR75LE
- MPU:
- Intel Celeron
- Toys:
- Melting wicked witch in plastic tube moves up and down. Dorothy's house spins. Sculpted Twister. Toto-in-a-basket.
- Notable Features:

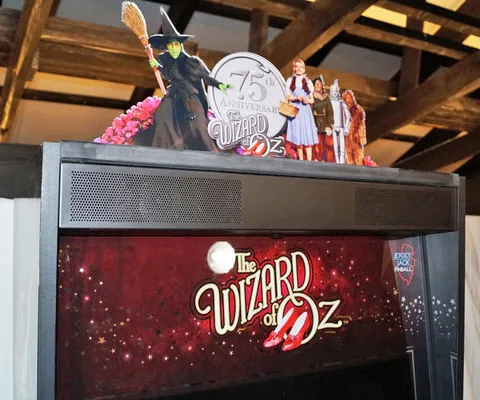

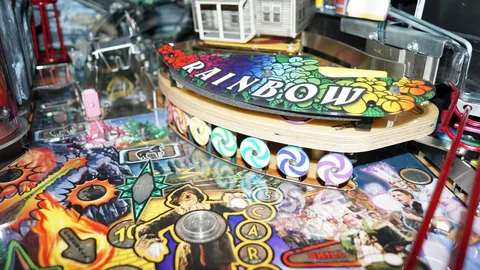

- Flippers (5), Pop bumpers (4), Slingshots (3), Magnets (5), VUKs (2), Drop target (1), Scoops (2), Ball locks (2), Spinning target (1), Rollovers (7), Shaker motor, Multiball. Winged Monkey moves along diagonal track on playfield back wall to deliver the ball to upper left mini-playfield. OLED crystal ball displays any of thirty or more "videos" not necessarily in concert with game play. Backbox has a 26-inch High Definition LCD display, a mirrored backglass, and a lighted topper. Clear coated playfield. The playfield illumination is provided by RGB-LEDs. Seven speaker 2.1 digital audio system. Cabinet advertised as 55 1/2 inches long, 28 3/4 inches wide, and 74 1/2 inches high. Legs, lockdown bar, and side rails are red in color. The Witch's Castle (upper left mini-playfield) has molded castle walls and three motorized doors. The first is the Winged Monkey ball lock which holds a ball until the game wants to release it. The other two are the "castle gates " which open inward to reveal a scoop after repeated bashings from the ball in play. The six Rainbow standup targets have swirled 'lollipop' colors. Front of game audio connection jack for headphone/ear bud. Component audio connection jack at rear of game.
Credits
- Designer:
- Joe Balcer
- Artist:
- Jerry Vanderstelt, Greg Freres, Matt Riesterer
- Software:
- Keith P. Johnson, Ted Estes, Alex Levy, Joe Katz, JT Harkey
- Music:
- Chris Granner, Rob Berry
- Sound:
- Chris Granner, Rob Berry
- Mechanics:
- Bryan Hansen
- Dots/Animation:
- Jean-Paul de Win
Other Files
- DownloadGame Announcement Flyer4 MB

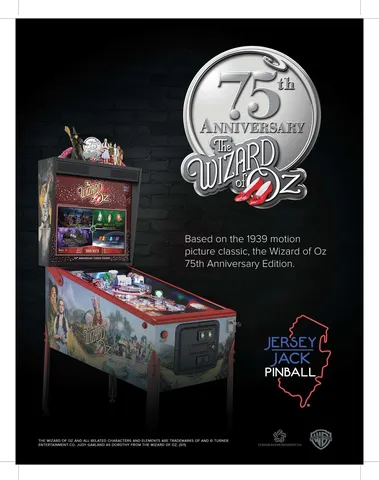

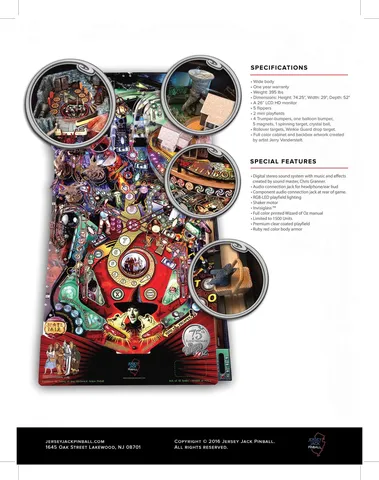

- DownloadGame Flyer - Black - Initial Version - No Price6 MB

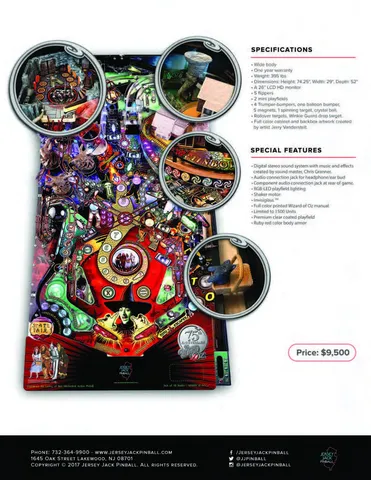

- DownloadGame Flyer - Black - Revised Version - Has Price1 MB

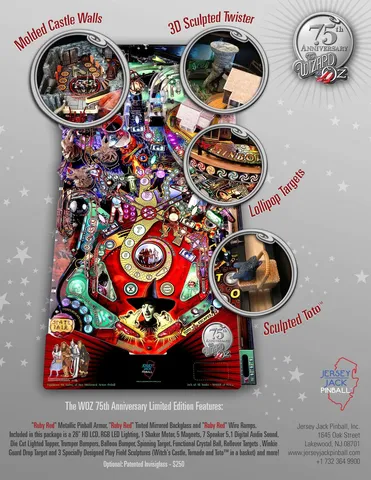

- DownloadGame Flyer - Silver - Initial Version - Has Production Run4 MB

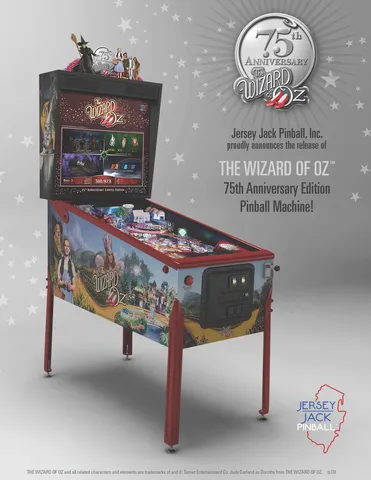

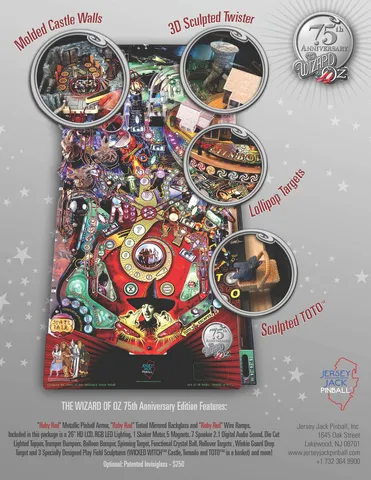

- DownloadGame Flyer - Silver - Revised Version - No Production Run4 MB
- DownloadMonitor Repair Flowchart426 KB
- DownloadRules Flowchart90 KB
