The Walking Dead (Limited Edition)
About This Machine
The Walking Dead (Limited Edition), released in November 2014 by Stern Pinball, is the premium version of the company's licensed pinball machine based on the AMC zombie-apocalypse TV series. Designed by John Borg, with sound by Brian Schmidt and software by Lyman F. Sheats Jr., this solid-state electronic machine features a unique blend of gameplay mechanics and special effects that set it apart from the Pro model.

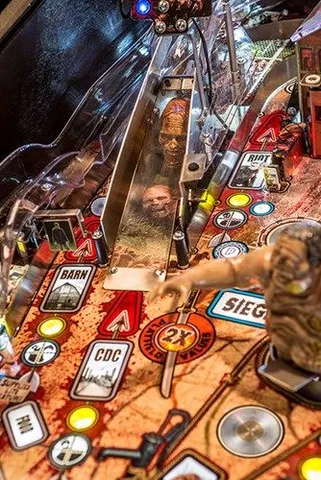

The Walking Dead's gameplay is intense and action-packed, with players navigating hordes of zombies via features including 3 pop bumpers, 2 slingshots, and 3 magnets that add complexity and challenge. Notable toys include an animated prison with a bashable zombie head, a "Well Walker" bash toy that rocks backward when hit to expose "guts," a "Bicycle Girl" bash toy, and three illuminated heads in the playfield back wall. A motorized mechanism below the flippers, activated by a button on the lockdown bar, pivots to shoot the ball onto the playfield — a distinctive touch for this edition. Multiball mode adds further chaos as players scramble to contain multiple balls.

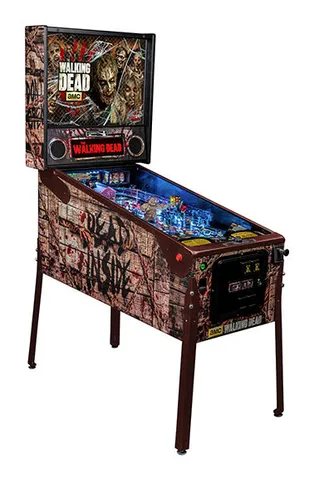

Visually, the Limited Edition is striking, with rust-colored powder-coated legs and armor providing a rugged, post-apocalyptic aesthetic, along with a mirrored backglass (rather than a translite) and full-spectrum RGB LED playfield inserts and star rollovers. This LE version came with a serialized number plate, a playfield signed by designer John Borg, and a Certificate of Authenticity signed by Gary Stern, carrying an MSRP of $8,595 and making it a sought-after collector's item among pinball enthusiasts.
Images (18)
Technical Details
- Theme:
- Licensed Theme - Supernatural - Zombies
- Model Number:
- PINBALL I-00F6
- MPU:
- Stern S.A.M. Board System
- Toys:

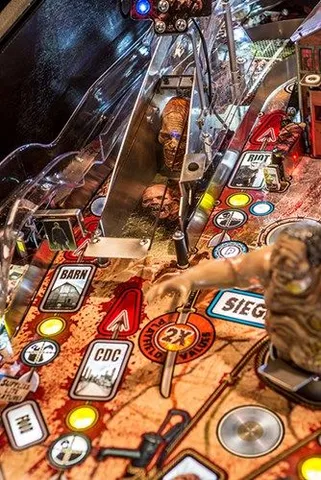

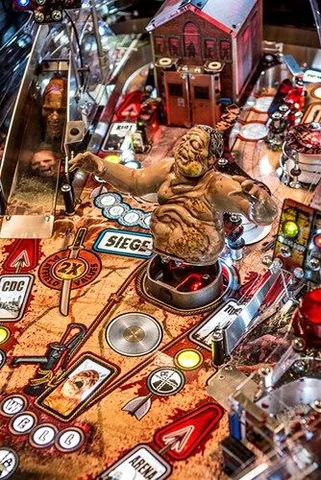

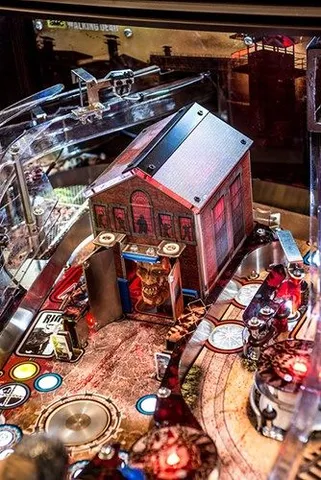

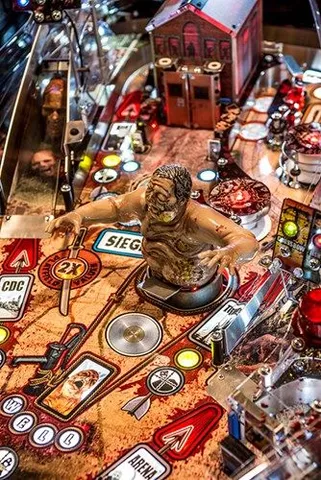

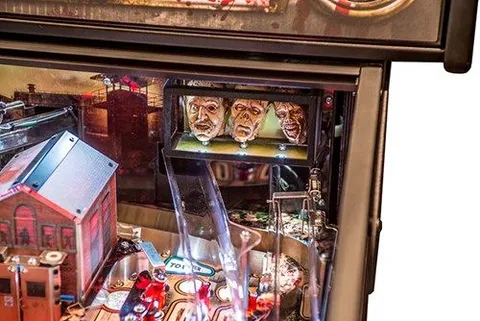

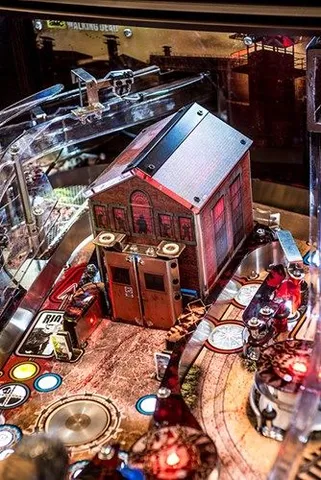

- Animated prison with bashable zombie he ad with magnet to capture ball. Well Walker bash toy that rocks backwards when hit, exposing "guts" with magnet to capture ball. "Bicycle Girl" bash toy Three illuminated he ads in playfield back wall
- Notable Features:

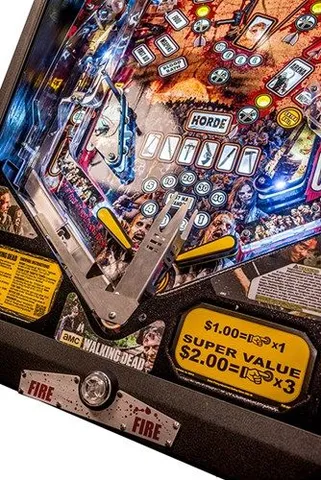

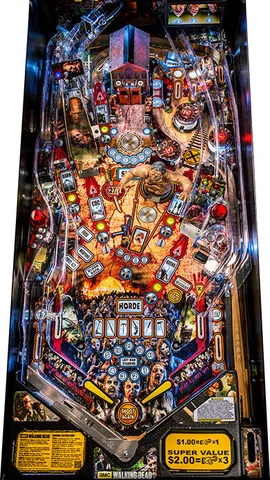

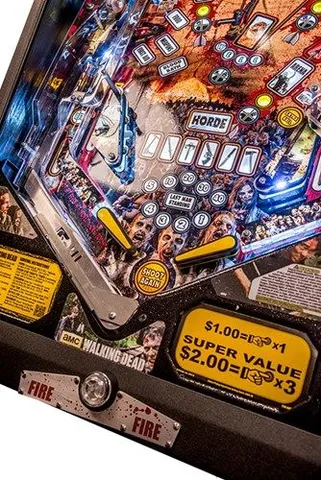

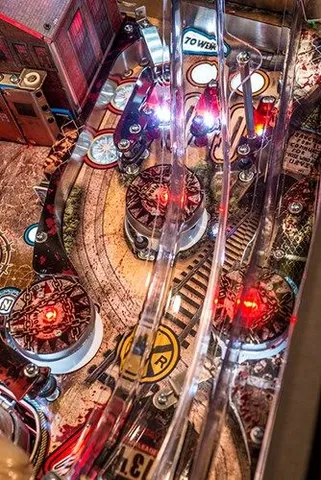

- Flippers (2), Pop bumpers (3), Slingshots (2), Magnets (3), Spinning targets (2), Star rollovers (2), Diverter (1), 3-bank drop targets (1), Rollover drop target (1) blocks entrance to Free Ball return lane. Entrance to left ramp elevates to allow access to bash toy target. Motorized mechanism below flippers pivots to shoot ball onto playfield, activated by button on lockdown bar. Multiball. Rust-colored powder-coated legs, armor with flipper button protector, hinges, front molding. Backbox has powder-coated steel. A mirrored backglass is used instead of a translite. Decal cabinet artwork. Factory illumination: Backbox: fluorescent tube. Playfield: multiple color LED general illumination (red, green, white). Full-spectrum smooth RGB LED playfield arrow inserts and star rollovers.
Credits
- Designer:
- John Borg
- Software:
- Lyman F. Sheats Jr.
- Sound:
- Brian Schmidt
Documentation
- DownloadPinball Game Service Manual (labeled as Pinball Service Game Manual)15 MB
