Birdland
About This Machine
J. H. Keeney and Company's 1961 "Birdland" is a distinctive piece of electro-mechanical pinball history from a manufacturer that was active in Chicago from 1934 to 1964 — placing this game late in Keeney's production run rather than among its earliest output. Birdland showcases an aviary and nautical theme, with artwork depicting birds and sailboats, and its cabinet side art matches that of Keeney's other 1961 release, "Startime."

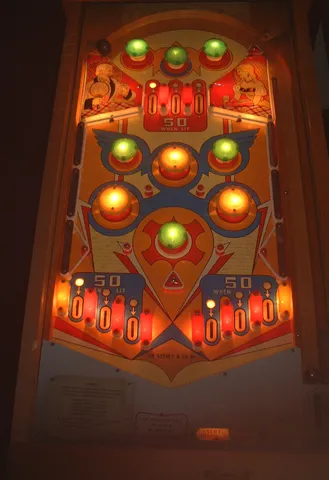

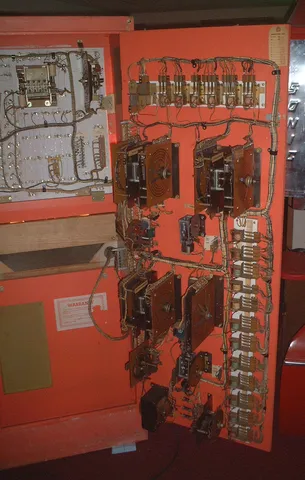

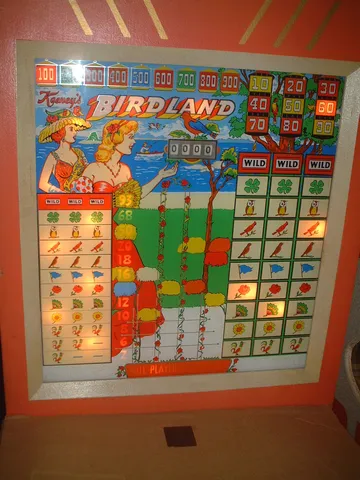

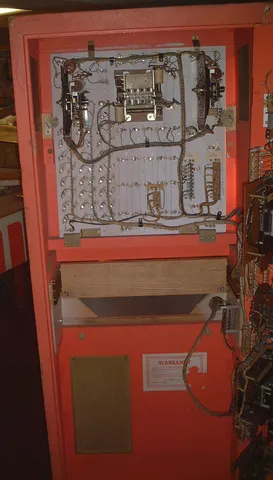

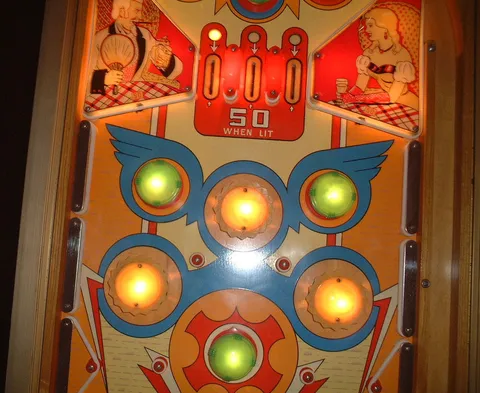

Gameplay offers either one or two balls per play, an operator-adjustable option, across a flipperless-style layout with three pop bumpers and six passive bumpers. A notable engineering quirk sets Birdland apart from similar Keeney machines of the period: rather than the backglass sliding out of the backbox, it's accessed by lowering an internal backboard, with both the playfield and playfield glass removed from the back of the cabinet. Birdland also uniquely features a 4-digit replay counter not found on comparable Keeney titles.

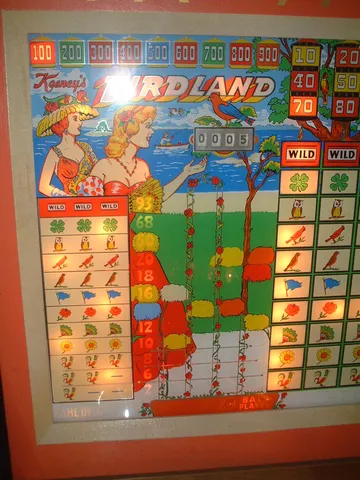

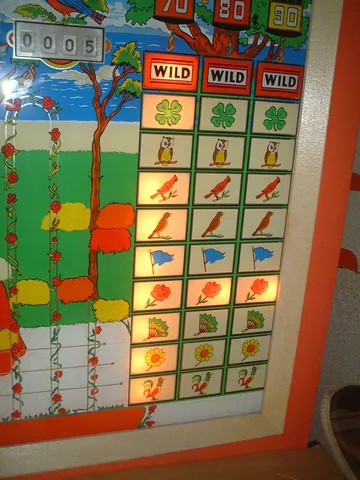

Machine notes suggest the (unconfirmed) backglass artist's style closely resembles that of noted Gottlieb artist Charles Leroy Parker, and interestingly, "Birdland" was also the name of a famous New York City jazz club (1949-1965) named for musician Charlie Parker — a possible naming coincidence, though not confirmed as intentional. Advertised as a reconditioned game as early as April 1962, Birdland remains a compact but mechanically distinctive entry in Keeney's catalog.
Images (30)
Technical Details
- Theme:
- Aviary - Birds - Boats - Sailing - Water
- Notable Features:
- 1 or 2 balls per play (operator option). Pop bumpers (3), Passive bumpers (6). The backglass does not slide out of the backbox like other similar Keeney games. It is accessed by lowering the backboard inside back of game. Both the playfield and playfield glass are removed from the back. Another difference from those other games is that this one has a 4-digit replay counter.
Credits
Documentation
- DownloadSchematic Diagram (continuous)3 MB
