Harley-DavidsonŽ (3rd Edition)

Manufacturer: Stern Pinball, Incorporated, of Chicago, Illinois, USA (1999-now) [Trade Name: Stern]
Type: Solid State Electronic (SS)

About This Machine

The Harley-DavidsonŽ (3rd Edition) pinball machine is a notable release from Stern Pinball, Inc., one of the leading manufacturers in the industry. As a licensed theme based on the iconic motorcycle brand, this game holds significance in pinball history as part of the Sports-Motorcycles category. The 3rd edition marks an evolution in the series, indicating that the design and gameplay have undergone revisions to improve player experience.

This solid-state electronic machine boasts a range of key features that set it apart from other games. Players engage with two flippers, four pop bumpers, two slingshots, and a variety of targets including 4-bank drop targets and stand-up targets. The spinning target and ramp offer additional challenges, while the cellar hole adds complexity to gameplay. A shaker motor is also present, introducing an element of unpredictability.

The design and art of the Harley-DavidsonŽ (3rd Edition) are characteristic of Stern Pinball's style during this period. With dimensions measuring 55 inches in length, 27 inches in width, and 75 1/2 inches in height, the machine stands out visually with its bold colors and graphics depicting iconic motorcycle imagery. Unfortunately, little additional information is known about this specific release, making it a fascinating mystery for pinball enthusiasts to uncover.

Images (17)

Technical Details

Theme:
Sports - Motorcycles - Licensed Theme
Model Number:
PINBALL I-0087
MPU:
Sega/Stern Whitestar
Toys:

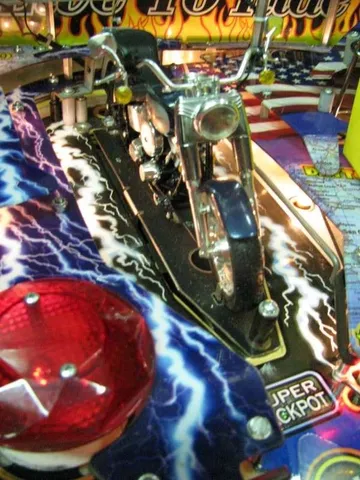

Traffic light. Three Harley motorcycles, one of which does a wheelie on the playfield when it raises to kick out balls from underneath.
Notable Features:
Flippers (2), Pop bumpers (4), Slingshots (2), 4-bank drop targets (2), Standup targets (4), Spinning target (1), Ramp (1), Cellar hole (1), Shaker motor, Up-post between flippers. The up-post is controlled by both the machine and the player. Cabinet advertised as 55 inches long, 27 inches wide, and 75 1/2 inches high; 260 lbs.

Credits

Designer:
John Borg, Lonnie D. Ropp
Artist:
Jerry Vanderstelt, Kevin O'Connor
Software:
Lonnie D. Ropp
Mechanics:
John Borg

Documentation

  • Pinball Game Service Manual
    14 MB
    Download
