Flying Aces
About This Machine
The Flying Aces pinball machine is a mysterious and intriguing piece of pinball history. Its exact release year is unknown, but its unique features and design elements suggest it was produced during the 1970s or early 1980s by Sentinel Inc. This solid-state electronic (SS) game is part of a lesser-documented era in pinball's evolution, making it all the more fascinating to collectors and enthusiasts.

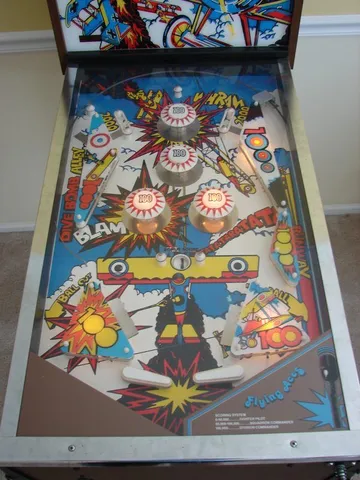

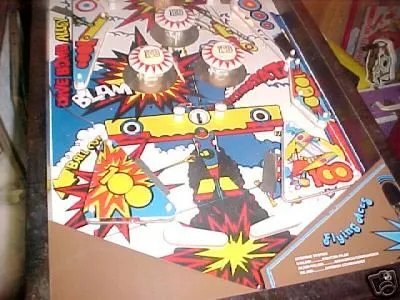

Gameplay on Flying Aces is characterized by its three-ball-per-play feature, where players can enjoy simultaneous action with two flippers that are interconnected and powered by the same solenoid. The machine also boasts four pop bumpers, two slingshots, and a kick-out hole, all of which contribute to an energetic and unpredictable experience. What's more, the ball's conductive properties allow for "switchless" operation in the pop bumpers, slingshots, and rollovers, reducing maintenance needs.

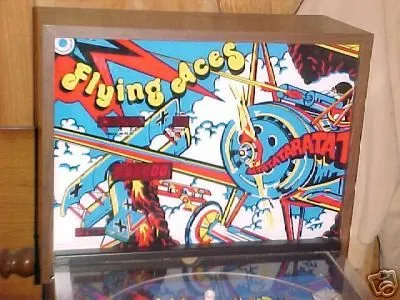

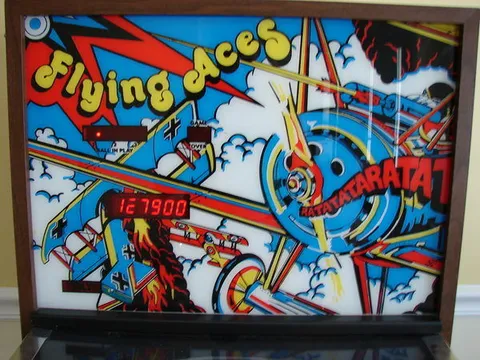

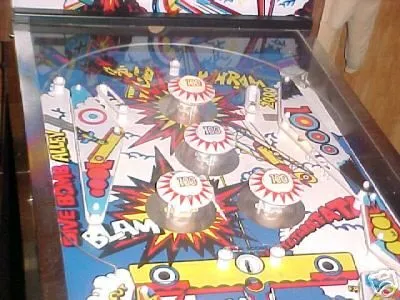

The game's design and art reflect its aviation theme, with a sleek and futuristic aesthetic that was likely ahead of its time. The pop bumper bodies, while not original to Sentinel, bear a notable resemblance to 1970s Bally units, adding an interesting layer of history to the machine's appearance. Interestingly, the slingshot "rubbers" are actually metal springs, providing a unique and tactile sensation for players. Overall, Flying Aces is an enigmatic and captivating addition to any pinball collection, offering a glimpse into the innovative designs and technologies of bygone eras.
Images (10)
Technical Details
- Theme:
- Aviation
- Model Number:
- PH7730WA01
- Notable Features:

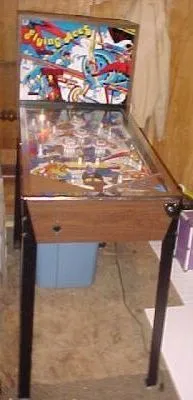

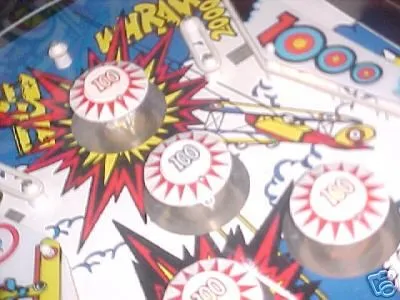

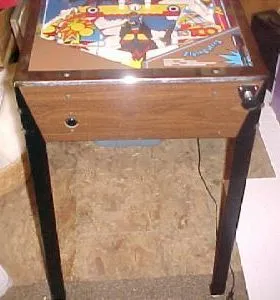

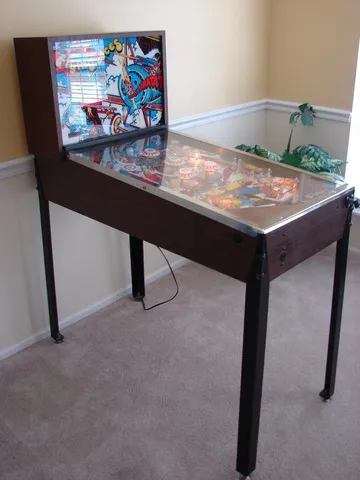

- 3 balls per play. Flippers (2), Pop bumpers (4), Slingshots (2), Kick-out hole (1). Plexiglas playfield cover. Pressing either flipper button operates both flippers simultaneously. Uses 1 steel ball. No adjustment for 5-ball play. Tilt penalty: ball in play. Game measures approximately 46 inches long by 20 1/2 inches wide. The backboard is 53 inches high and the front of the game is 35 inches high. Pop bumper bodies appear to be 70s Bally units with a "100" sticker added, using one solenoid per two bumpers. Pop bumpers, slingshots and rollovers are "switchless," using the conductive properties of the ball to connect two electrical contacts. While a slight bit clunky for response, this made for a very low maintenance machine. Slingshot " rubbers " are actually metal springs, which act as contacts. Flippers are interconnected (non-independent), and powered by the same solenoid. Flippers also appear 3" long, but their fulcrum point is further inward than typical, making their action similar to a 2" flipper. Factory angle of flippers was very shallow, making their action awkward. Nonadjustable tilt mechanism is a small metal bell on a ball-strand chain, suspended within a metal loop, similar in function to, but generally higher in sensitivity than a tilt-bob.
Credits
Documentation
- DownloadOwner's Manual4 MB
