Ripley's Believe It or Not!®

Manufacturer: Stern Pinball, Incorporated, of Chicago, Illinois, USA (1999-now) [Trade Name: Stern]
Year: 2004
Date: March 18, 2004
Type: Solid State Electronic (SS)
Players: 4

About This Machine

Ripley, released by Stern Pinball in March 2004, is based on the 'Ripley's Believe It or Not!' brand rather than the Alien film franchise, despite sharing a name with the Alien character. Designed by Pat Lawlor and Louis Koziarz, with art by John Youssi, the game invites players to explore a world of strange and amazing facts, all under the watchful gaze of a shrunken head mounted above the playfield.

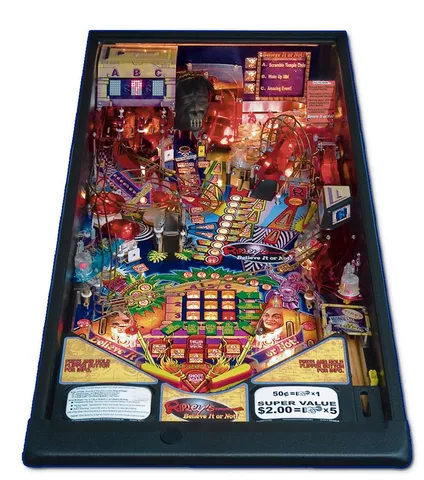

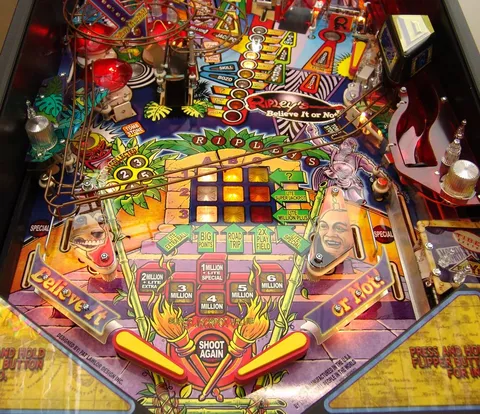

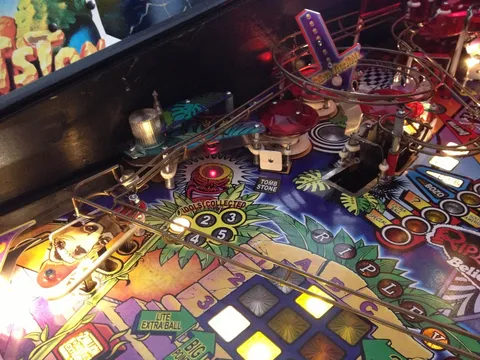

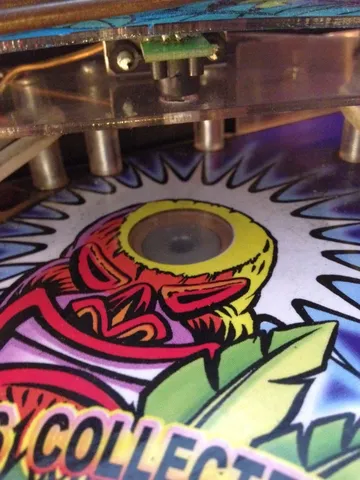

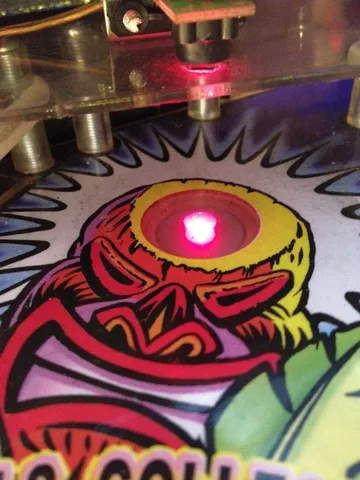

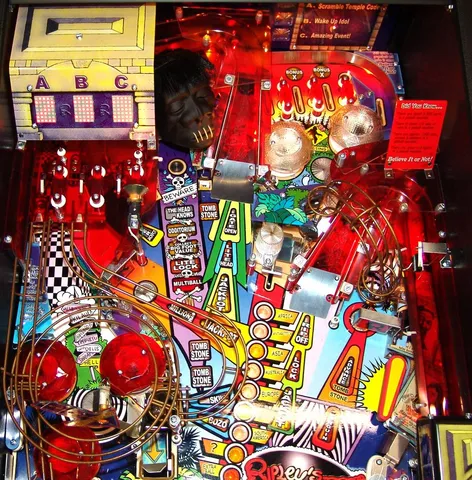

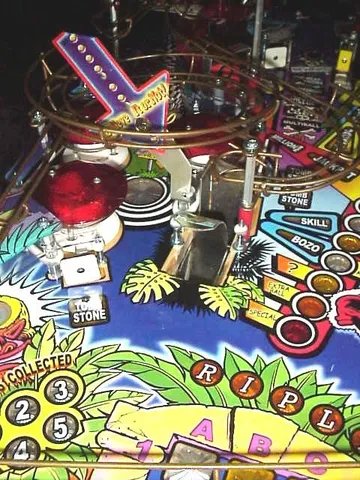

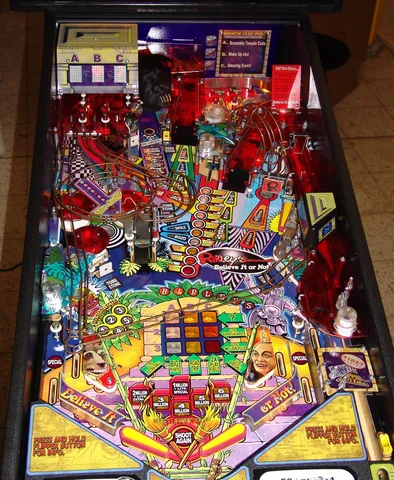

Key gameplay features include three flippers, six pop bumpers, two slingshots, and a variety of standup and spinning targets, along with two ramp diverters and two magnets. One magnet is positioned beneath the shrunken head, catching the ball briefly before either firing it toward the rear of the playfield or, in another mode, releasing it back to the lower playfield; the second magnet is used in the game's Idol feature. The 'Believe It or Not' rule set is built with multiple tiers, letting newer players achieve some goals quickly while giving skilled players room to extend their sessions. The game also supports 2-, 3-, and 4-ball multiball.

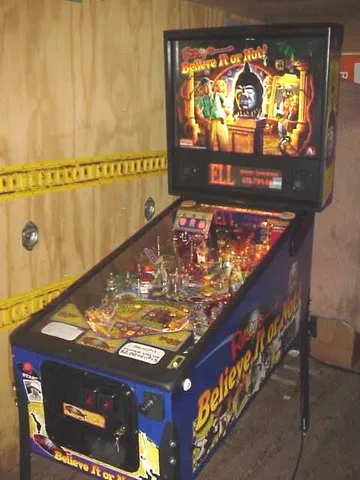

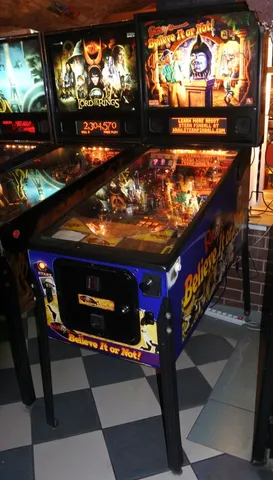

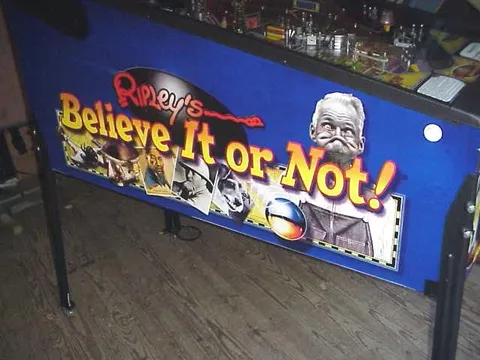

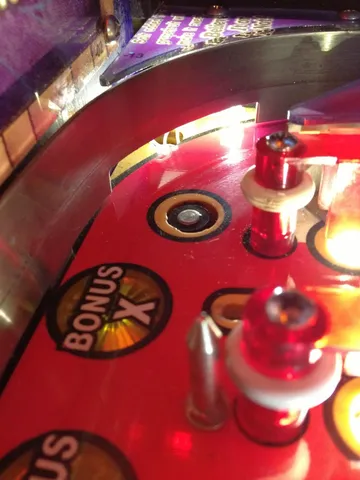

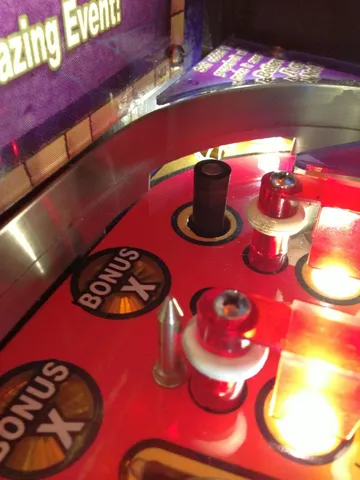

Ripley's cabinet is advertised at 55 inches long, 27 inches wide, and 75 1/2 inches high, weighing roughly 260 pounds (258 pounds as measured with legs installed). Games exported to the UK received three factory-installed 'skill posts' on the playfield, along with extra buttons beneath each flipper button to temporarily raise the outlane and center posts — a feature added to satisfy UK gaming regulations distinguishing games of skill from games of chance. Many operators reportedly disabled this feature for location play once the games cleared customs.

Images (33)

Technical Details

Theme:
Licensed Theme
Model Number:
I-0081
MPU:

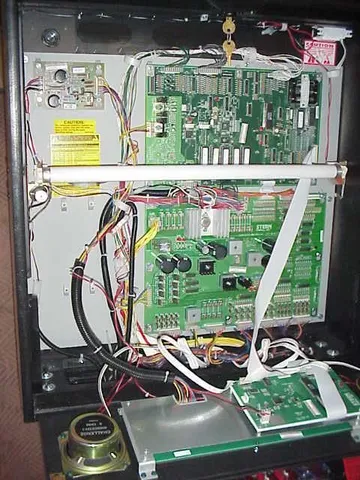

Stern Whitestar (modified)
Toys:

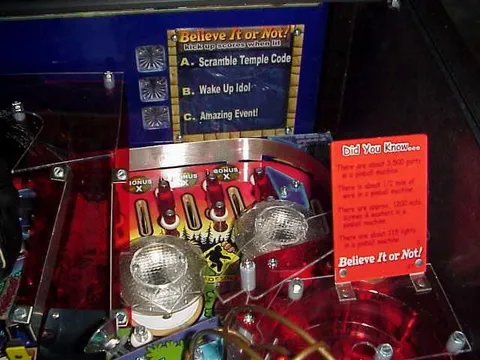

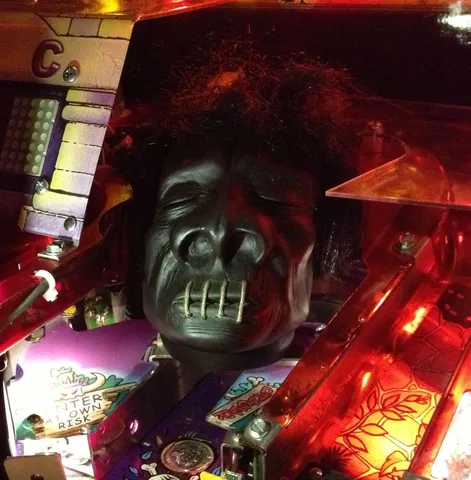

A shrunken he ad is installed over the playfield.
Notable Features:

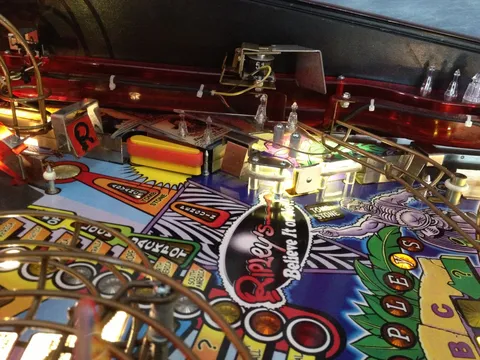

Flippers (3), Pop bumpers (6), Slingshots (2), Standup targets (6), Spinning targets (2), Magnets (2), Ramp diverters (2), Vari-target (1), Up-post (1). 2-, 3-, and 4-ball multiball. Cabinet advertised as 55 inches long, 27 inches wide, and 75 1/2 inches high; 260 lbs. 'Believe it or Not.'® feature: This multi-level rule enables the beginning player to achieve some of the game's goals early on, while it allows the more advanced player to extend their opportunities through better play. The magnet under the shrunken he ad cat ches the ball, holds it for a second, then shoots it to the rear. In another mode, the magnet stops the ball and immediately gives it back to the lower playfield. The other magnet is in the Idol feature. Actual measured weight: 258 lbs (includes legs).

Credits

Designer:
Pat Lawlor, Louis Koziarz
Artist:
John Youssi
Software:
Louis Koziarz, Greg Dunlap
Music:
Chris Granner
Sound:
Chris Granner
Mechanics:
John Krutsch
Dots/Animation:
Adam Rhine

ROM Files

  • English ROMs (release 3.20)
    4 MB
    Download
  • PinMAME Romset (3.02)
    4 MB
    Download
  • PinMAME Romset (3.02) France
    3 MB
    Download
  • PinMAME Romset (3.02) German
    3 MB
    Download
  • PinMAME Romset (3.02) Italy
    3 MB
    Download
  • PinMAME Romset (3.02) Spain
    3 MB
    Download
  • PinMAME Romset (3.10 cpu update)
    70 KB
    Download
  • PinMAME Romset (3.20 cpu update)
    71 KB
    Download

Documentation

  • English Manual
    17 MB
    Download

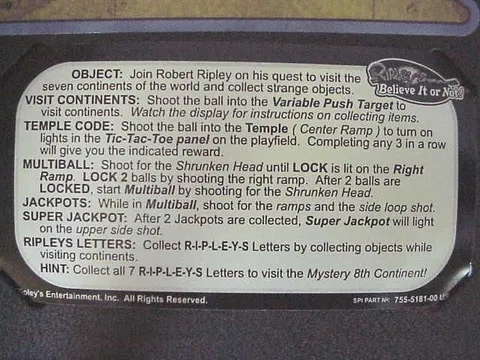

  • Instruction Cards (Multi Language)
    521 KB
    Download
  • Selected Manual Pages 4-7 (switch matrix, lamp matrix, coil chart, lamp chart)
    485 KB
    Download

Service Bulletins

  • Service Bulletin No. 149 (Potential Ball Trap by the Upper Left Pop Bumper)
    1 MB
    Download
  • Service Bulletin No. 153 - Pinball Software Update (December 15, 2004)
    923 KB
    Download

Other Files

  • Stern Website Announcement
    281 KB
    Download
