RollerCoaster Tycoon

Manufacturer: Stern Pinball, Incorporated, of Chicago, Illinois, USA (1999-now) [Trade Name: Stern]
Year: 2002
Date: August, 2002
Type: Solid State Electronic (SS)
Players: 4

About This Machine

RollerCoaster Tycoon, designed by Pat Lawlor with art by John Youssi, was released by Stern Pinball in August 2002, based on the top-selling PC-CD game of the same name. It's a strong example of Stern's Whitestar-era catalog of licensed themes, running on the Sega/Stern Whitestar platform.

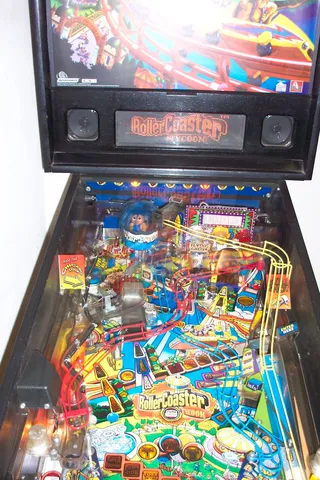

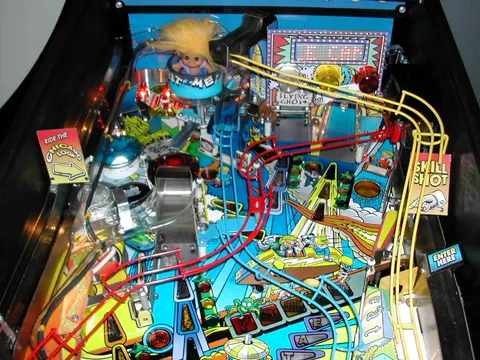

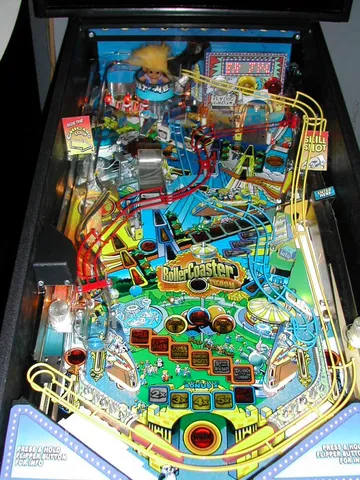

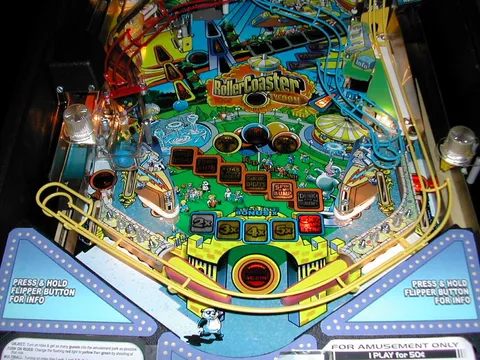

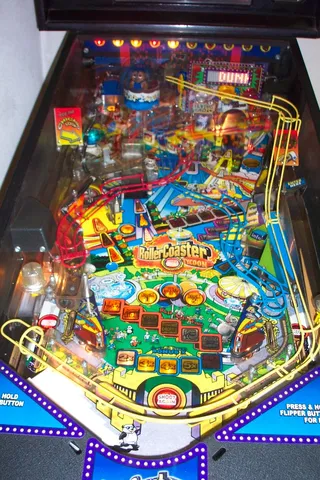

The machine combines classic pinball elements with theme-appropriate touches: four flippers, three pop bumpers, two slingshots, a 3-bank drop target, a solitary drop target, and a captive ball. Three colored ramps -- including one that loops over the lower flipper area and feeds the ball to the lock -- give the layout some flow, while a secondary red LED dot matrix display on the playfield adds a distinctive visual touch. One of the game's standout toys is "Dunk the Dummy," a solenoid-actuated troll doll that drops into a tank when its lit target is hit.

RollerCoaster Tycoon's design leans into its amusement-park theme, translating the thrill of coaster-building and riding into pinball shots and ramps. With contributions from a veteran Whitestar-era team -- including mechanics by John Krutsch, sound and music by Chris Granner, dot animation by Greg Dunlap, and software by Louis Koziarz -- it stands as a solid, if lesser-discussed, entry in Stern's early-2000s licensed-theme lineup.

Images (27)

Technical Details

Theme:
Rollercoasters - Licensed Theme
Model Number:
78
MPU:

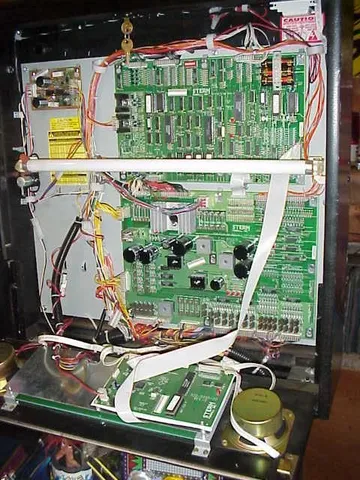

Sega/Stern Whitestar
Toys:
Dunk the dummy is a solenoid-actuated troll doll that drops into the "tank" when the lit target is hit.
Notable Features:
Flippers (4), Pop bumpers (3), Slingshots (2), 3-bank drop targets (1), Solitary drop target (1), Captive ball (1). Three colored ramps, including one ramp that loops over the lower flipper area and moves the ball to the lock area. Secondary red LED dot matrix display on playfield. Cabinet advertised as 55 inches long, 27 inches wide, and 75 1/2 inches high; 260 lbs.

Credits

Designer:
Pat Lawlor
Artist:
John Youssi
Software:
Louis Koziarz
Music:
Chris Granner
Sound:
Chris Granner
Mechanics:
John Krutsch
Dots/Animation:
Greg Dunlap
