Cabaret

Manufacturer: Williams Electronics, Incorporated (1967-1985) [Trade Name: Williams]
Year: 1968
Date: December, 1968
Type: Electro-mechanical (EM)
Players: 4
Production: 3,852 units (confirmed)

About This Machine

Cabaret, designed by Steve Kordek and manufactured by Williams Electronics in December 1968, is a four-player electro-mechanical game with a lively nightlife theme of dancing, music, and singing. With a confirmed production run of 3,852 units, it was a solid seller for Williams in the late EM era.

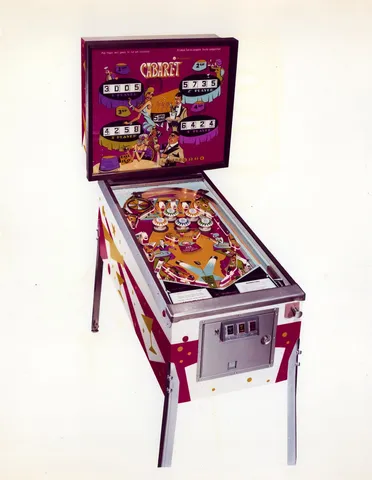

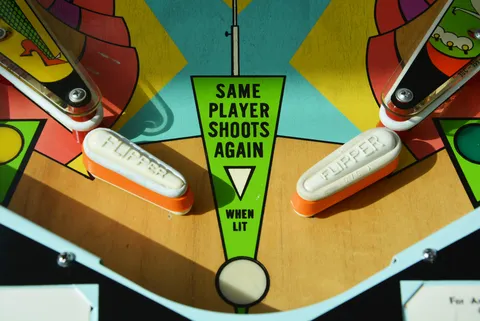

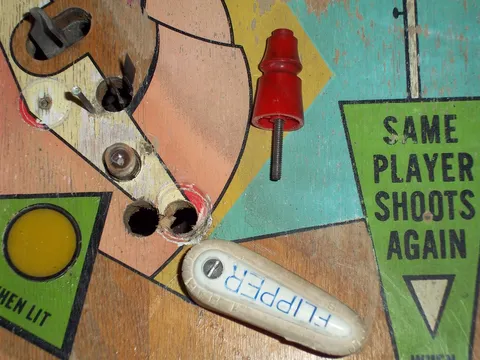

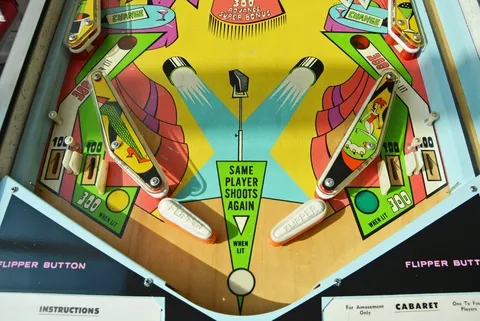

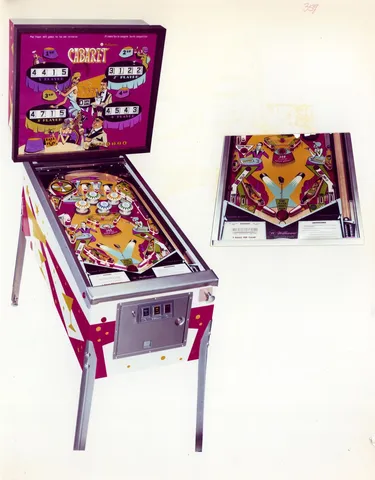

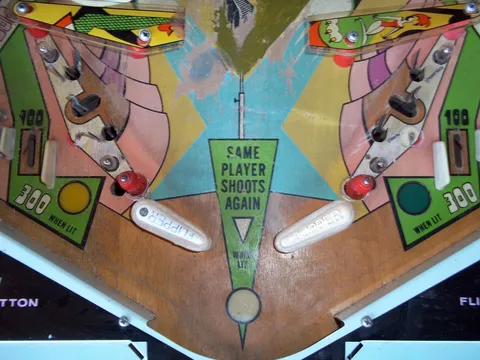

The game holds a genuine place in Williams history: it was the company's first machine to feature a round up-post between the flippers. Williams did not originate the device - Rally's 1967 'Play boy' had it first, and Chicago Coin was building games with the feature by April 1968 - but Williams patented its own vertically adjustable version, and the manufacturer's flyer put heavy emphasis on the up-post as a selling point. Curiously, of two known promotional photos, one shows the up-post and one does not, and surviving sample games exist without it.

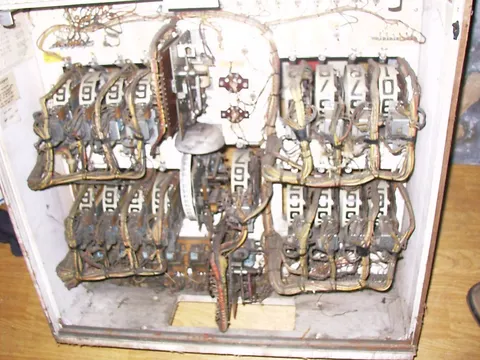

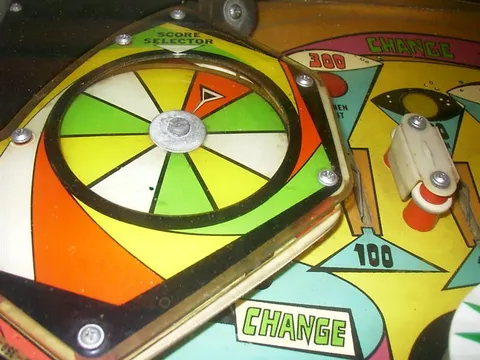

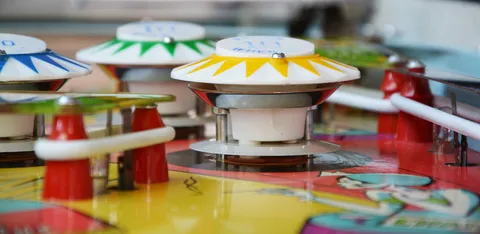

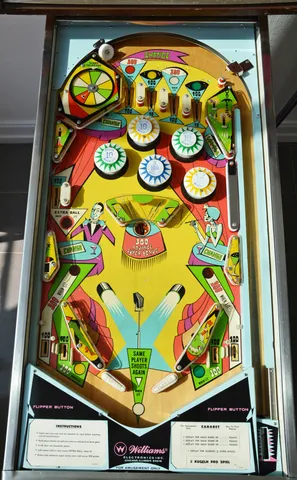

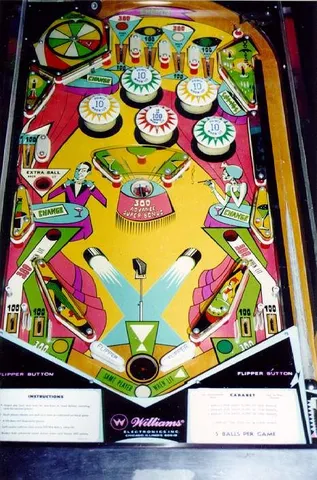

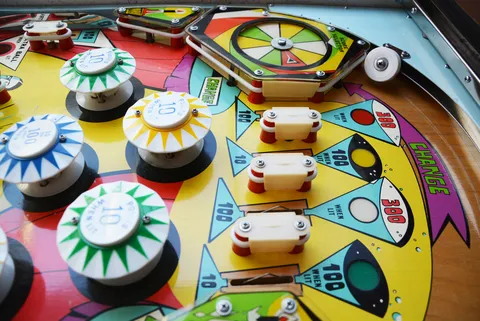

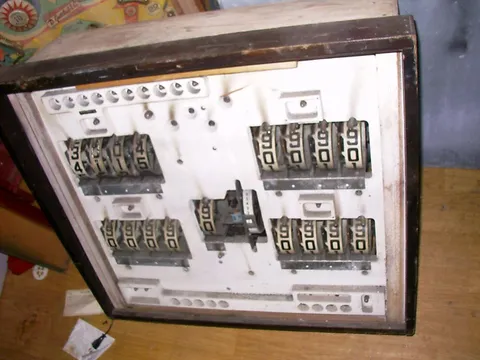

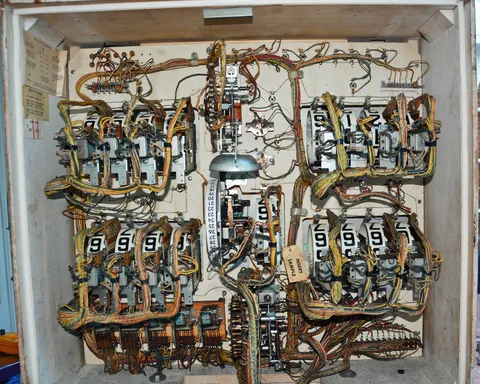

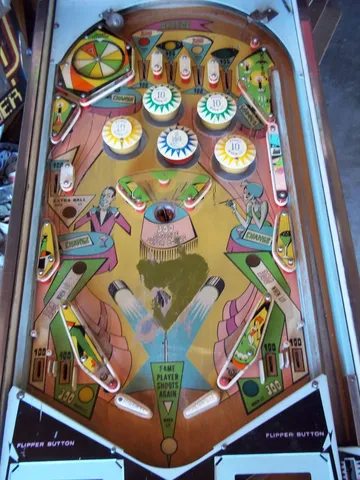

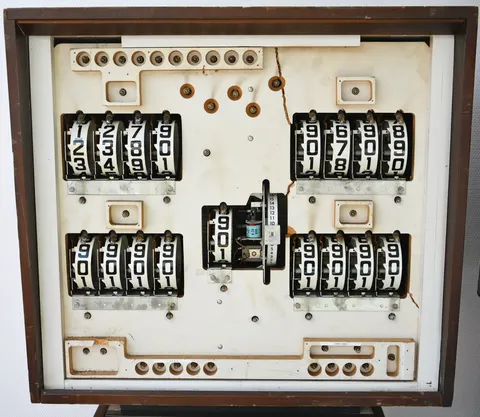

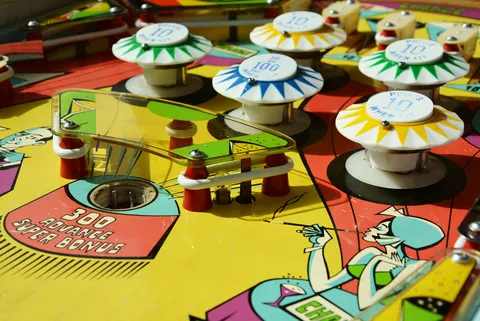

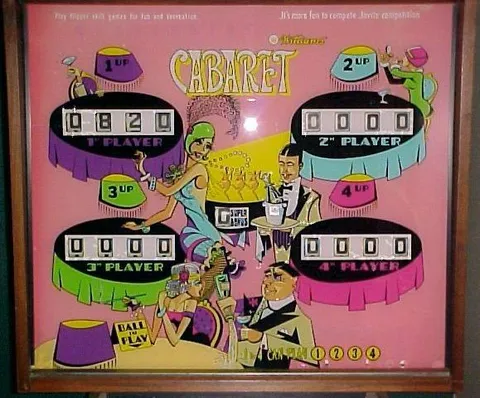

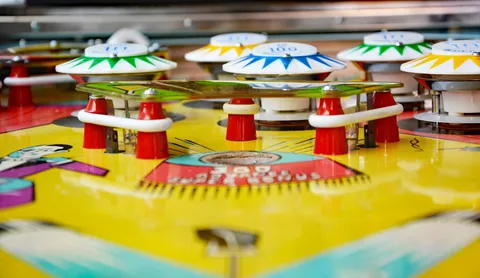

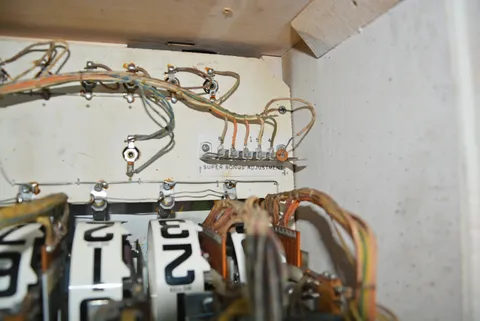

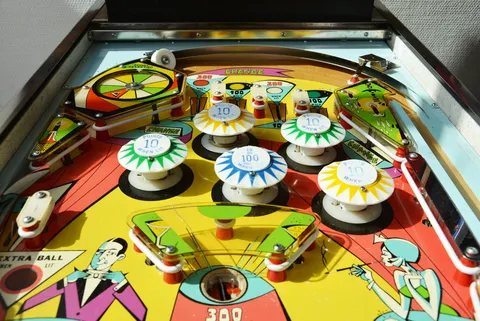

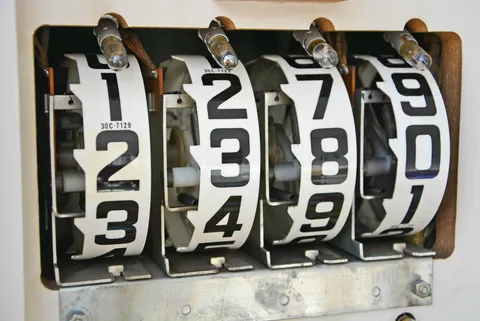

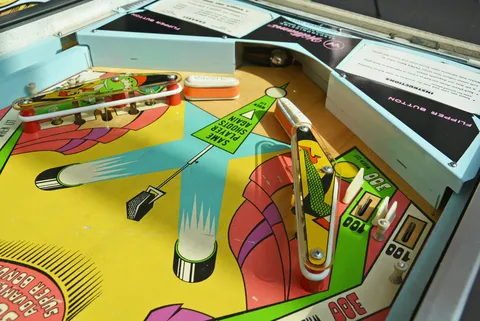

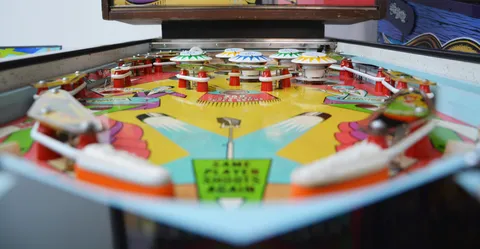

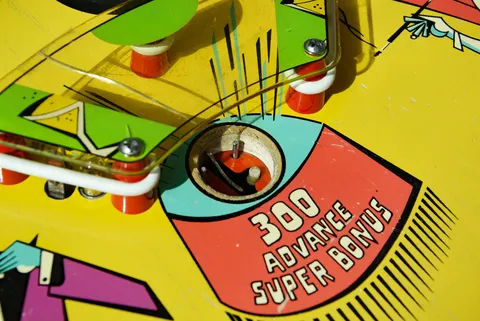

On the playfield, Cabaret offers two flippers, five pop bumpers, two slingshots, and a kick-out hole, with a Score Selector Disc in the upper left that changes scoring values across the entire playfield - a clever wrinkle that keeps players adjusting their strategy. The bonus is tracked by an extra score reel in the backbox rather than playfield inserts, and scoring tops out at 9,999 points per player, accompanied by the classic EM soundtrack of two bells and a knocker.

Images (94)

Technical Details

Theme:
Dancing - Happiness - Music - Nightlife - Singing
Model Number:
359
Notable Features:

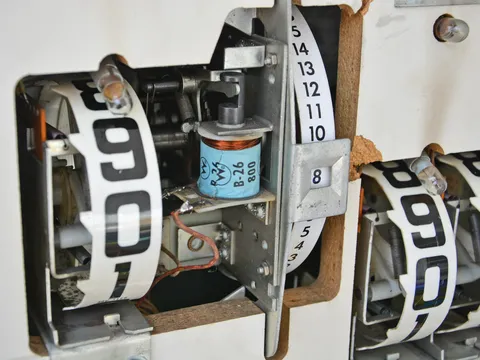

Flippers (2), Pop bumpers (5), Slingshots (2), Kick-out hole (1), Up-post between flippers. Score Selector Disc in upper left playfield changes values over entire playfield. Bonus score tracked by an extra score reel in backbox instead of via playfield inserts. Maximum displayed point score is 9,999 points per player. Replay wheel maximum: 37 Sound: 2 bells, knocker

Credits

Designer:
Steve Kordek

Documentation

  • Catalog Supplement "L" With New Parts & Units
    65 KB
    Download
  • Instruction Manual (no schematics)
    1 MB
    Download

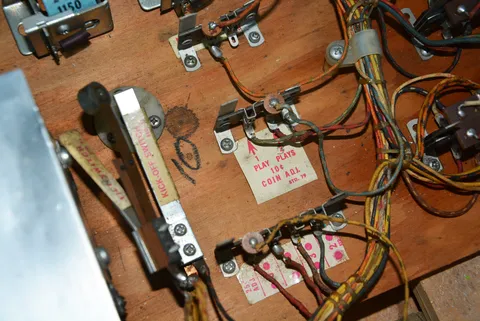

  • Sample Game Operator and Post Adjustments
    7 MB
    Download
  • Schematic Diagram (continuous)
    732 KB
    Download
  • Schematic Diagram (paginated)
    4 MB
    Download

Other Files

  • Bulletin dated November 14, 1968 advising of new Up-Post
    1 MB
    Download
  • Patent 3,578,802 [VERTICALLY ADJUSTABLE BUMPER FOR BALL ROLLING GAMES]
    168 KB
    Download
  • Sample Game Envelope and Contents
    40 MB
    Download

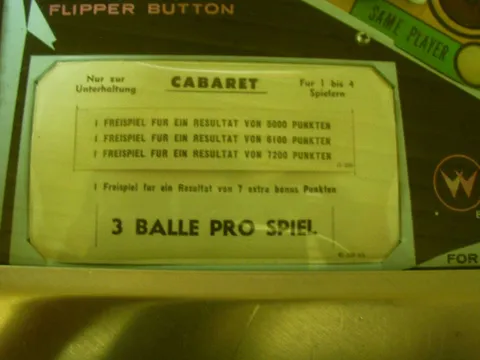

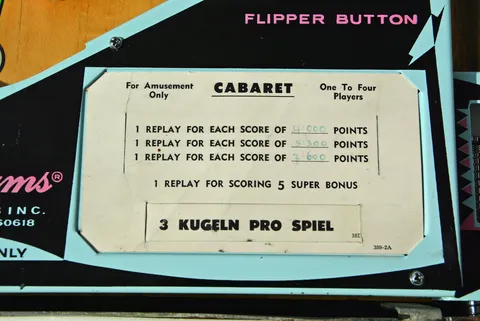

  • Sample Game Score Cards and Score Strips
    3 MB
    Download
