The X Files

Manufacturer: Sega Pinball, Incorporated, of Chicago, Illinois, USA (1994-1999) [Trade Name: Sega]
Year: 1997
Date: September 09, 1997
Type: Solid State Electronic (SS)
Players: 6

About This Machine

The X-Files pinball machine, designed by Rob Hurtado and released by Sega Pinball on September 9, 1997, is a licensed title based on the popular TV series, blending science fiction, mystery, and conspiracy themes. This solid-state electronic machine, built on the Sega/Stern Whitestar platform, features playfield and backglass art by Morgan Weistling and Marc Raneses, with music and sound by Brian Schmidt.

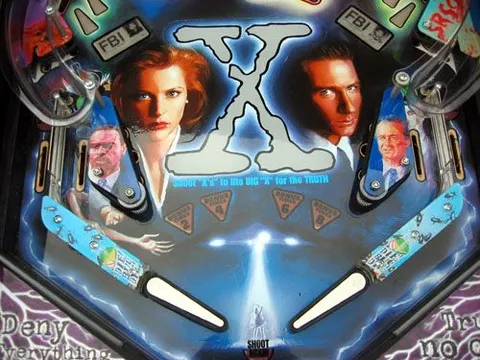

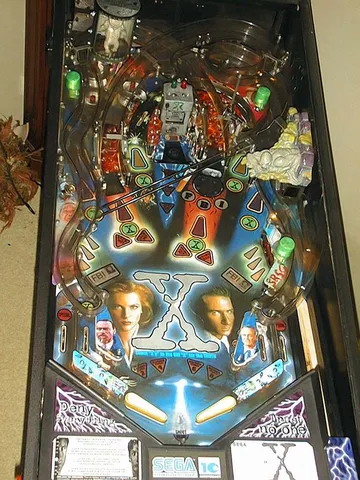

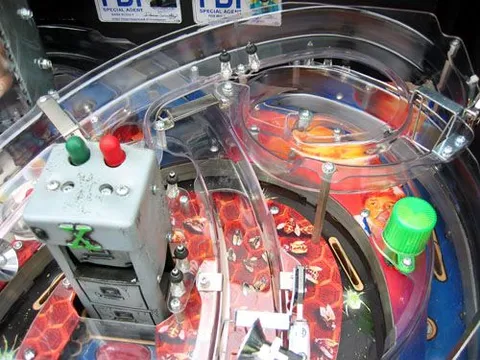

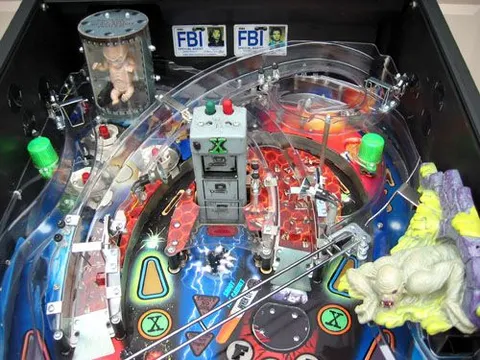

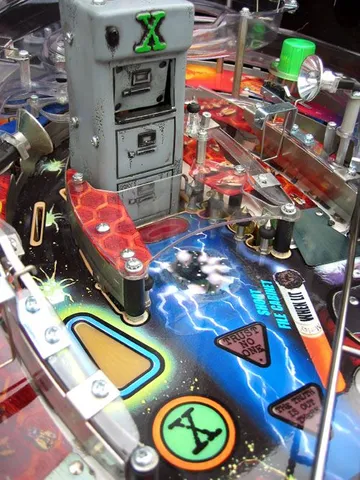

The game's centerpiece toy is a file cabinet that rises from the playfield to capture balls and start multiball, aided by a stop magnet positioned in front of it and a trap door that pops up to capture the ball. Other notable features include two flippers, three pop bumpers, two slingshots, six standup targets, a vertical up-kicker, a mini-post at the top of the playfield, a mini-loop horseshoe lane, an autoplunger, and an alien baby tube toy on the right ramp.

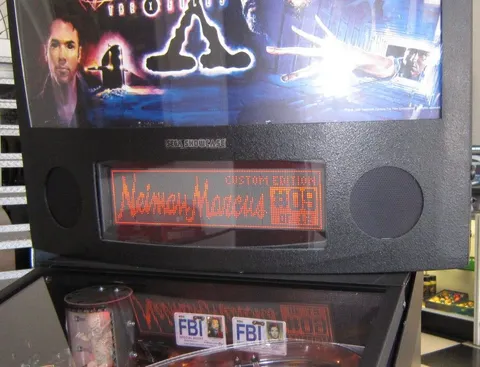

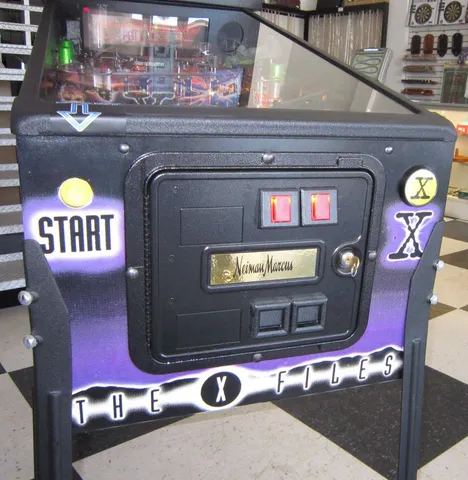

A particularly collectible variant is the 'Collector's Edition,' of which only twelve were produced, co-branded with Neiman Marcus and sold through their Christmas catalog for $6,500 each, complete with a certificate of authenticity signed by the design team and software marking its serial number (e.g., '1 of 12'). Neiman Marcus had previously offered a similar limited 'Collector's Edition' of Sega's Star Wars Trilogy pinball.

Images (33)

Technical Details

Theme:
Aliens - Conspiracy - Supernatural - Licensed
Model Number:
46
MPU:

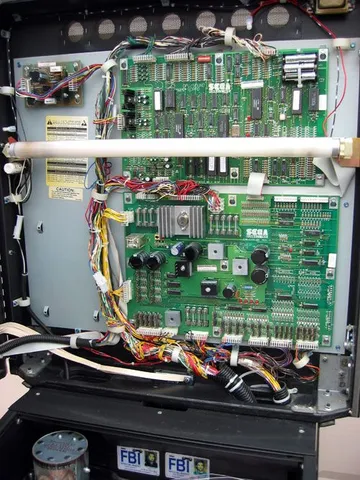

Sega/Stern Whitestar
Toys:
Alien baby tube on right ramp.
Notable Features:
Flippers (2), Pop bumpers (3), Slingshots (2), Standup targets (6), Vertical up-kicker (1), Mini-post (1) at top of playfield, Mini-loop horseshoe lane (1), File cabinet that raises from the playfield to capture balls for multiball, Stop magnet (1) in front of file cabinet, Tr ap door pops up on playfield to capture ball, Autoplunger.

Credits

Designer:
Rob Hurtado
Artist:
Morgan Weistling, Marc Raneses
Software:
Lonnie D. Ropp, Orin Day
Music:
Brian Schmidt
Sound:
Brian Schmidt

ROM Files

Documentation

Other Files

  • Instruction Card Multi-language
    226 KB
    Download
