Cue

Manufacturer: Stern Electronics, Incorporated, of Chicago, Illinois, USA (1977-1984) [Trade Name: Stern]
Year: 1982
Date: 1982
Type: Solid State Electronic (SS)
Players: 4
Production: 6 units (confirmed)

About This Machine

The Stern Electronics 'Cue' from 1982 is a solid-state pinball machine built around a billiards theme, conceived by veteran designer Harry Williams — one of the last games he worked on before his death — with Brian Poklacki handling design and mechanics. Only a handful of prototype units were built; six are confirmed to exist today, and the game never went into full production.

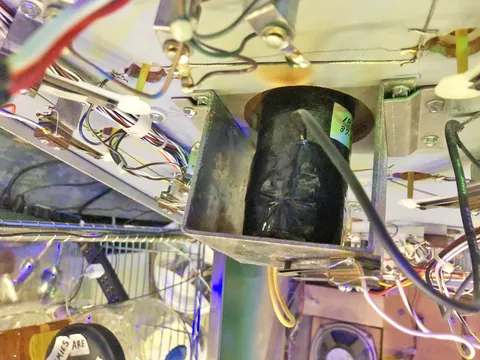

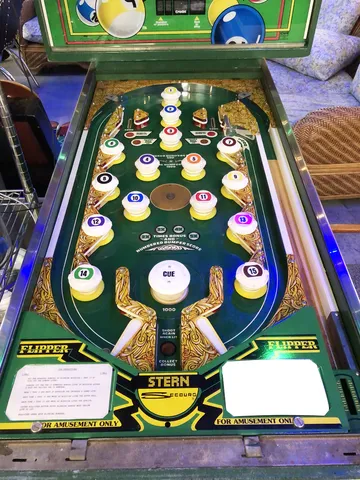

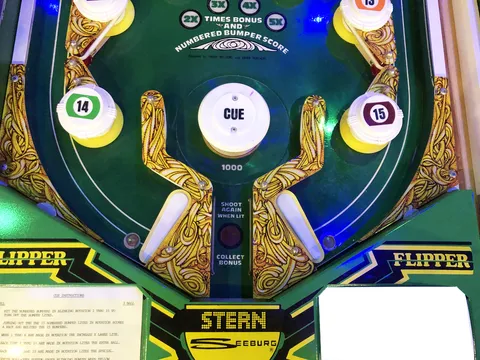

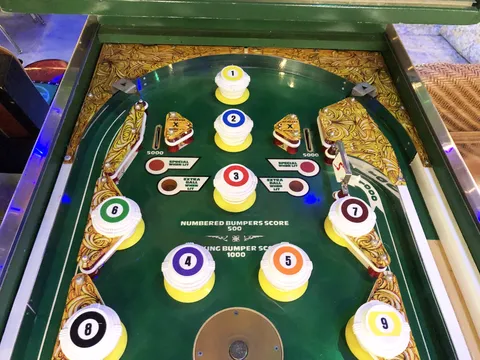

The standout feature of Cue is a large electromagnet fixed beneath the center playfield. It stays energized at all times except when the ball rolls over a surface switch, at which point it briefly disables, sending the ball flying off in an unpredictable direction. A single digital score display serves all four players, and the layout includes 15 passive bumpers, one pop bumper, and a spinning target. The game's only outlane is guarded by the pop bumper, while reversed flippers catch balls that stray into the side lanes — the left flipper returning the ball to the top of the playfield, and the right flipper sending it through the spinning target to the upper playfield.

As an unreleased prototype, Cue holds a unique place in Stern's catalog and in pinball history more broadly, both for its unusual sport theme and as one of Harry Williams' final design contributions to the industry.

Images (24)

Technical Details

Theme:
Billiards
MPU:
Stern M-200 MPU
Notable Features:
Flippers (2), Pop bumper (1), Passive bumpers (15), Spinning target (1), Electromagnet (1). A single digital score display serves all four players. A large magnet under the center playfield is always energized unless the ball rolls over its surface switch, momentarily disabling the magnet, causing the ball to fly off in an unpredictable direction. Only one outlane, and it is protected by the lone pop bumper at bottom of playfield. Reversed flippers ca tch the ball if it goes out a side lane. The ball will sit at the end of the flipper until the flipper button is pressed. The left flipper returns the ball to the very top of playfield. The right flipper sends the ball through the spinning target to the upper playfield area.

Credits

Designer:
Harry Williams, Brian Poklacki
Mechanics:
Brian Poklacki

ROM Files

Documentation

  • Instruction and Score Cards
    41 KB
    Download
