Pinball Magic

Manufacturer: Capcom Coin-Op, Incorporated (1995-1996) [Trade Name: Capcom]
Year: 1995
Date: October, 1995
Type: Solid State Electronic (SS)
Players: 4
Production: 1,200 units (confirmed)

About This Machine

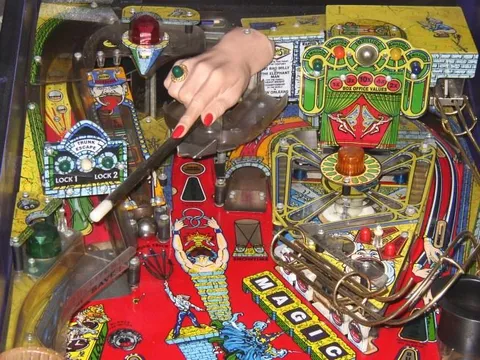

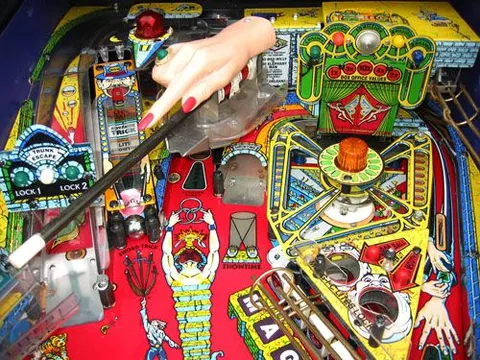

Pinball Magic, designed by Bryan Hansen and Rob Hurtado for Capcom Coin-Op, Incorporated, is a highly distinctive and innovative game that showcases the evolution of solid-state electronics in pinball machines. Released in October 1995, Pinball Magic stands out for its "Magic Wand," a magnetically charged rod that acts as a ball diverter, redirecting balls along its length to significantly impact gameplay dynamics.

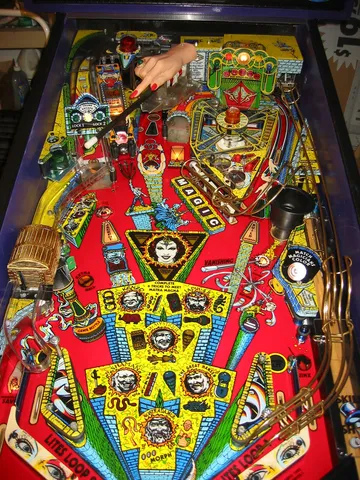

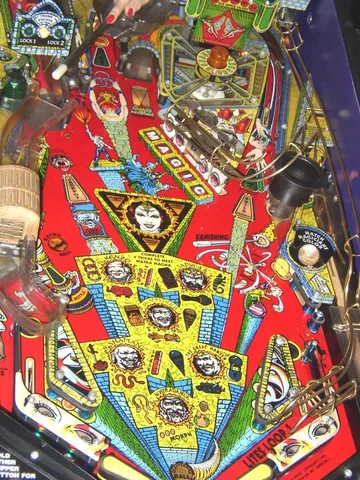

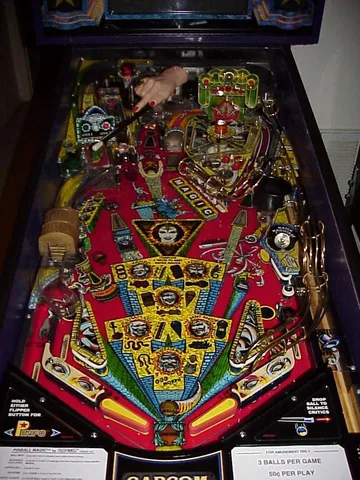

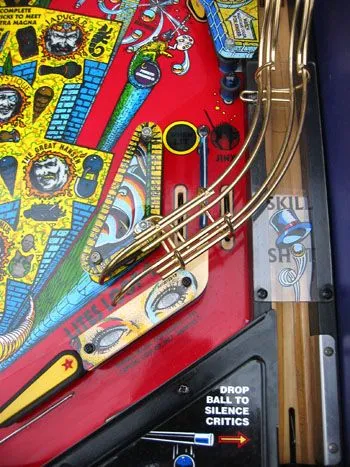

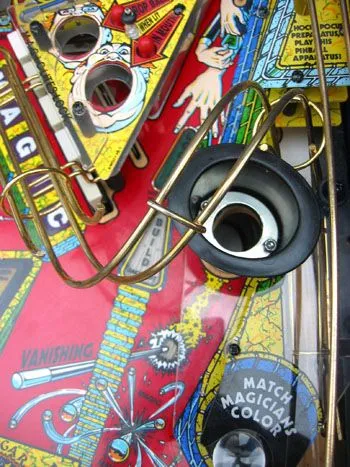

Gameplay-wise, Pinball Magic offers an array of unique features. The "Star Bumper" is cleverly embedded within an action ring, and the game boasts two flippers, a pop bumper, five stand-up targets, a 5-bank drop target, a captive ball, a scoop, a left outlane kickback, a ball diverter on a ramp, and a "Magic Hat" plunger skill shot into a drop hole. These elements come together to create a dynamic experience that rewards strategy and quick reflexes.

The game's theme is centered around stage magic, with a ball-levitating stage that reflects the whimsy of its design. The attention to detail in Pinball Magic's artwork and layout sets it apart as one of Capcom's more ambitious projects during this period. Unfortunately, there is limited additional information available on Pinball Magic beyond its specification sheet and gameplay features.

Images (55)

Technical Details

Theme:
Show Business - Magic

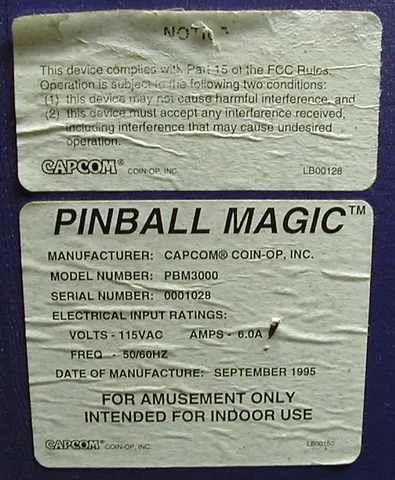

Model Number:
PBM3000

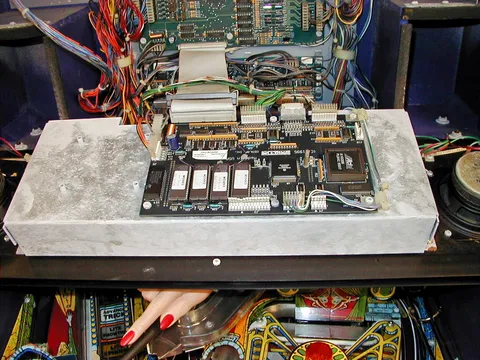

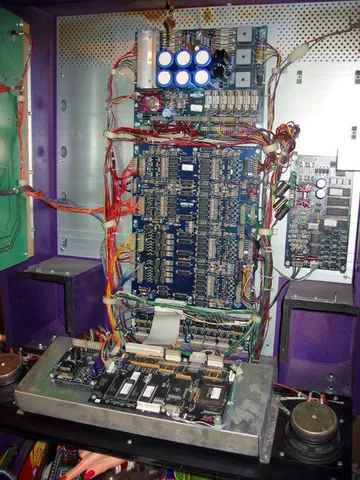

MPU:
Capcom A0015405
Notable Features:
Flippers (2), Pop bumper (1), Slingshots (2), Standup targets (5), 5-bank drop targets (1), Captive ball (1), Scoop (1), Left outlane kickback, Ball diverter on ramp. "Magic Hat" plunger skill shot into drop hole. The 'Star Bum per' is inside an action ring. Magic Wand acts as a diverter by magnetically carrying balls along its length to direct them to various locations. Ball-levitating Stage.

Credits

Designer:
Bryan Hansen, Rob Hurtado
Artist:
Hugh Van Zanten, Jeff Busch
Software:
Sammy Zehr
Music:
Chris Granner, Jeff Powell
Mechanics:
Michael Zhang, Rick Morgan
Dots/Animation:
Scott Pikulski

ROM Files

Documentation

  • Operators Manual (with schematics)
    17 MB
    Download

Service Bulletins

  • Technical Service Bulletin 95-017a [Blank Display In Diagnostic Mode]
    8 KB
    Download
  • Technical Service Bulletin 95-018a [Removal of Switch Resistors]
    5 KB
    Download
  • Technical Service Bulletin 95-021a [Replay Score Level]
    7 KB
    Download

Other Files

  • Engineering Prototype #2 - Image Portfolio
    14 MB
    Download
  • Engineering Prototype #7 - Image Portfolio
    9 MB
    Download
