Batman Forever

Manufacturer: Sega Pinball, Incorporated, of Chicago, Illinois, USA (1994-1999) [Trade Name: Sega]
Year: 1995
Date: July, 1995
Type: Solid State Electronic (SS)
Players: 6
Production: 2,500 units (approximate)

About This Machine

The Batman Forever pinball machine, designed by Paul Leslie and Joe Kaminkow for Sega Pinball, is a notable entry in the 1990s solid-state era. As one of the many licensed themes from popular franchises, it captures the essence of the 1995 film starring Val Kilmer as the Caped Crusader. Notably, this machine was released during the heyday of pinball's popularity, with Batman Forever being one of the most recognizable and beloved superhero films of its time.

The gameplay on this machine is fast-paced and action-packed, featuring three flippers, three ramps, and a variety of challenging modes, including multiball. The inclusion of an automatic plunger and Batwing Ball Cannon adds to the excitement, propelling players through a dynamic experience. A standout feature is the Pistol Grip ball shooter, which offers precise control over shot accuracy. The machine's graphics are driven by a powerful 68000 CPU, resulting in a crisp Dot Matrix Display that showcases intricate details at 192x64 pixels.

The Batman Forever pinball stands out for its unique blend of Hollywood glamour and superhero thrills. The design combines sleek lines with vibrant colors, perfectly capturing the essence of the film's darker tone. Interestingly, this machine was part of Sega's push into the pinball market during the mid-to-late 1990s, marking a significant expansion of their efforts beyond arcade games and home consoles. Weighing in at a substantial 266 pounds, including its sturdy legs, this machine is sure to be a showstopper in any serious collection or tournament setting.

Images (27)

Technical Details

Theme:
Celebrities - Fictional - Licensed Theme
Model Number:
38
MPU:
DataEast/Sega Version 3b
Toys:

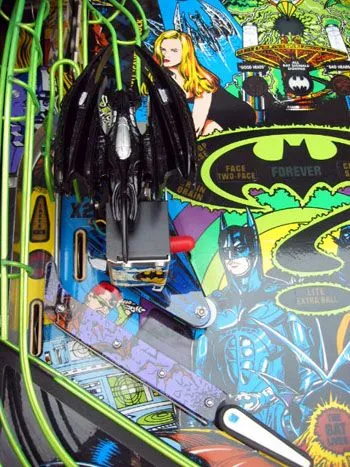

Batwing Ball Cannon, Bat Cave Ball Lock Area
Notable Features:
Flippers (3), Ramps (3), Multiball, Automatic Plunger, Batwing Ball Cannon. Pistol Grip ball shooter. Unlimited buy-in balls per player (operator option). Dot Matrix Display, at 192x64 pixels, is larger than standard, and is powered by a 68000 CPU. Actual measured weight: 266 lbs (includes legs).

Credits

Designer:
Paul Leslie, Joe Kaminkow
Artist:
Morgan Weistling, Jeff Busch, Marc Raneses
Software:
Brian Rudolph, John Carpenter
Music:
Brian Schmidt
Sound:
Brian Schmidt
Dots/Animation:
Kurt Andersen, Jack Liddon, Marc Raneses

ROM Files

Documentation

  • Manual (with schematics; duplicate pages 33-34, missing pages 143-144)
    26 MB
    Download
  • Playing Manual (Japanese)
    7 MB
    Download
  • Sample Game Manual (front cover states this manual is not complete)
    3 MB
    Download

Other Files

  • Instruction Card Multi-language
    193 KB
    Download
  • JEDEC files of PAL U15, U16 and U26 on Dotmatrix Controller
    3 KB
    Download
  • Logic Dump of PAL U15,U16, and U26 on Dotmatrix Controller
    8 KB
    Download
  • Tech Chart (switch matrix, lamp matrix, fuse list, coil list)
    3 MB
    Download
