Tahiti

Manufacturer: Bally Manufacturing Corporation (1931-1983) [Trade Name: Bally]
Type: Electro-mechanical (EM)
Players: 1

About This Machine

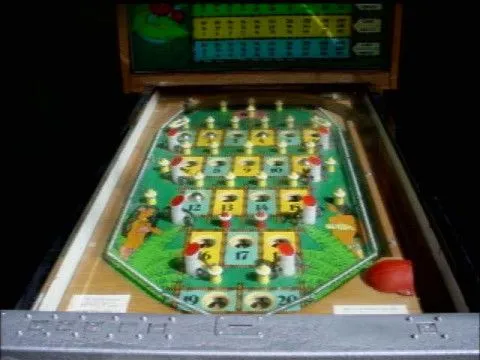

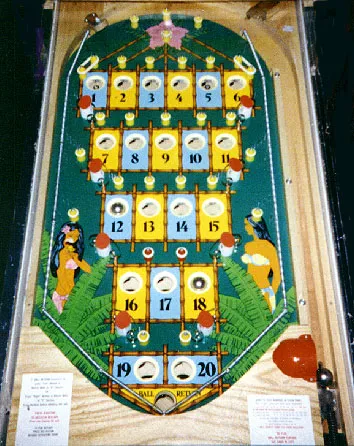

Tahiti, designed by Don Hooker and manufactured by Bally (model 1163, released to production October 1978), is an electro-mechanical Bingo machine with a World Places theme. The machine's gameplay is built around 20 trap holes, Mystic Lines, and a Ball Return Feature (elsewhere known as the Hold Feature), supporting up to a 40-coin maximum.

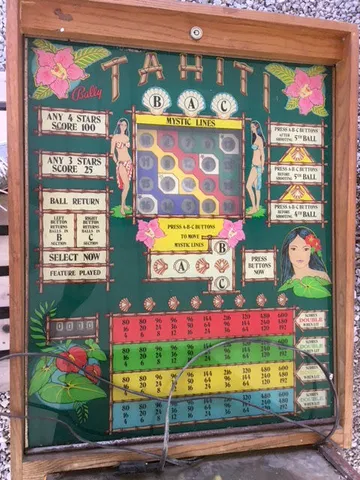

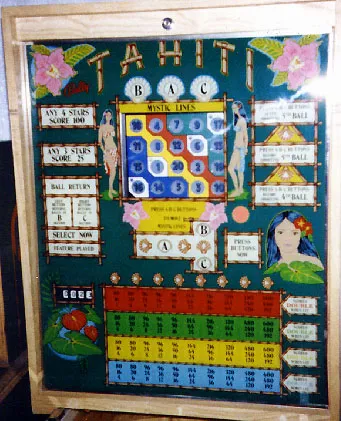

What sets Tahiti apart from other Bingo games is its ability to let players rearrange colored sections on the backglass card through a series of button presses, purchasable at specific moments -- before the 4th ball, before the 5th ball, or after the 5th ball. This flexibility adds a layer of strategy and replayability distinct from other EM Bingo games of the period.

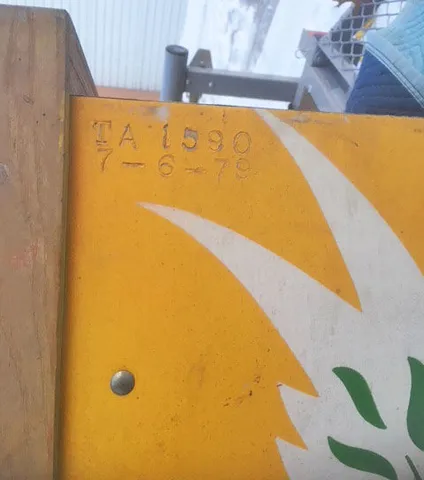

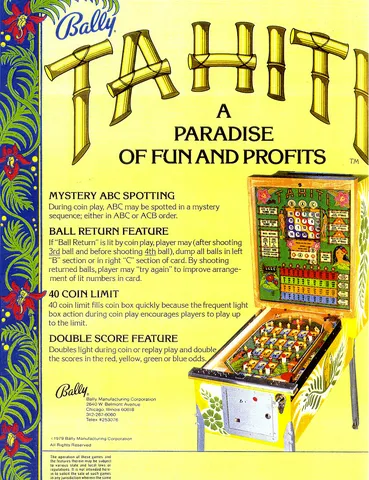

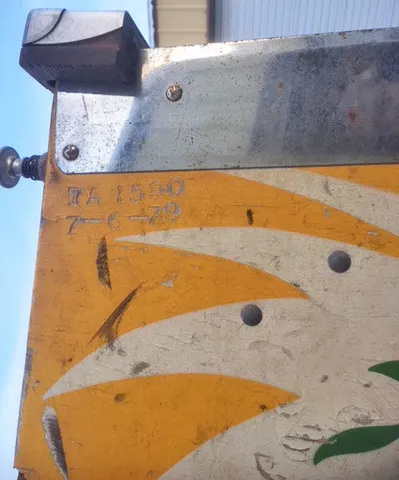

Bally's own documentation around Tahiti's exact production dates is unusually murky: while the release-to-production date is October 1978, surviving cabinets are consistently dated into 1979, and the game flyer bears a 1979 copyright. This is one of several Bally Bingo games named 'Tahiti' -- an earlier EM version was released in 1974, and a solid-state version followed in 1979 -- making careful dating important for collectors and historians alike.

Images (11)

Technical Details

Theme:
World Places
Model Number:
1163
Notable Features:
Trap holes (20), Mystic Lines, Ball Return Feature, 40 coin maximum. Player can press buttons to rearrange colored sections on card in backglass if these features are purchased: • Press buttons before shooting 4th ball. • Press buttons before shooting 5th ball. • Press buttons after shooting 5th ball.

Credits

Designer:
Don Hooker

Documentation

  • Schematic Diagram (continuous, W-826-70-1b, for Belgium)
    12 MB
    Download
  • Schematic Diagram (continuous, W-826-70d)
    4 MB
    Download
  • Service Manual (OCR searchable)
    13 MB
    Download
