SlugFest (First Model)

Manufacturer: Williams Electronics Games, Incorporated, a subsidiary of WMS Ind., Incorporated (1985-1999) [Trade Name: Williams]
Year: 1991
Date: March, 1991
Type: Solid State Electronic (SS)
Players: 2

About This Machine

SlugFest, released by Williams Electronics in March 1991 (model 60001), is a baseball-themed solid-state pinball machine notable for a genuinely unusual feature: a built-in trading card dispenser. Designed by Mark Ritchie, with art by Pat McMahon and Linda Deal and software by Bill Pfutzenreuter, SlugFest ran on Williams' WPC dot-matrix platform.

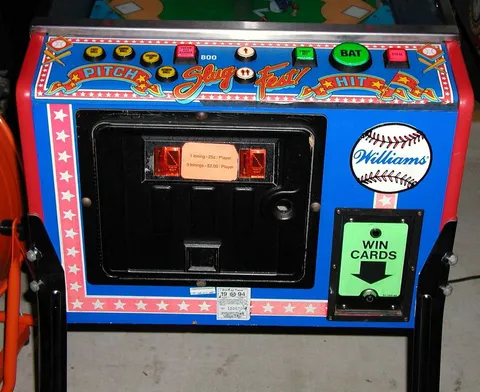

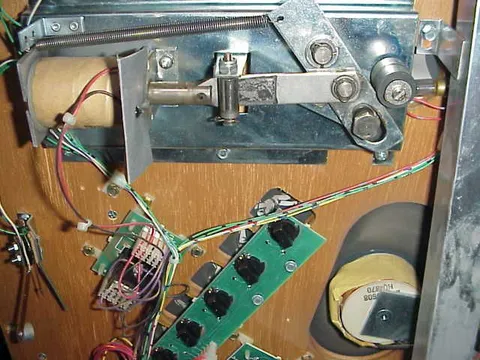

Gameplay centers on a magnet beneath the playfield that alters the path of pitched balls, adding an unpredictable, baseball-appropriate challenge to shots. This first-model version displays instructions on a red banner beneath the playfield glass rather than on the playfield itself, and its upper playfield "Double" inserts are blue rather than the orange used on the later Model 60021 ("SlugFest 2"). The card dispenser mechanism was eventually reworked after prototypes were built, adding an under-cabinet hopper so cards wouldn't spill onto the floor; production units shipped with either the card dispenser or a standard ticket dispenser.

The game's bold, baseball-themed artwork and playfield — complete with a diamond marked out in white on the lower playfield — captures the energy of America's pastime. Two related follow-up models, "SlugFest 2" and "SlugFest92," later reused most of the same hardware and parts. While the trading card dispenser gimmick did not become a common feature in later pinball, SlugFest remains a distinctive and collectible entry in Williams' early-1990s lineup.

Images (15)

Technical Details

Theme:
Sports - Baseball
Model Number:
60001
MPU:

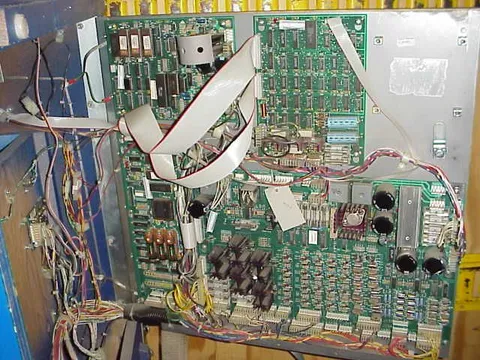

Williams WPC (Dot Matrix)
Notable Features:

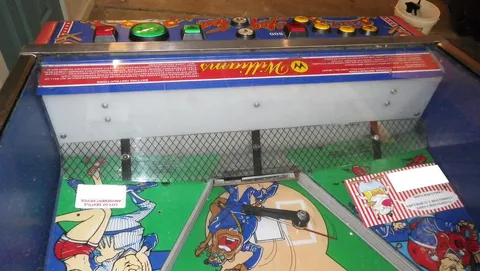

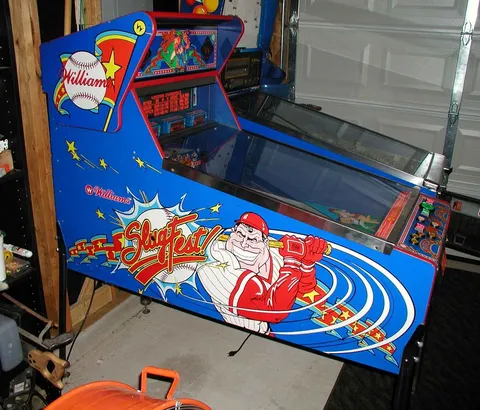

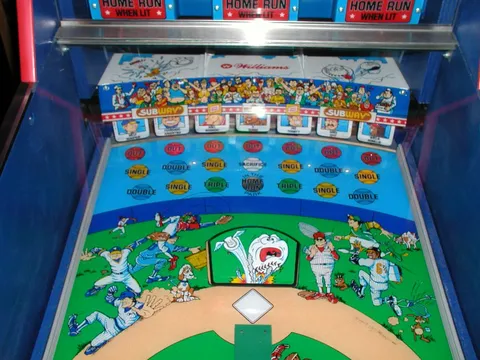

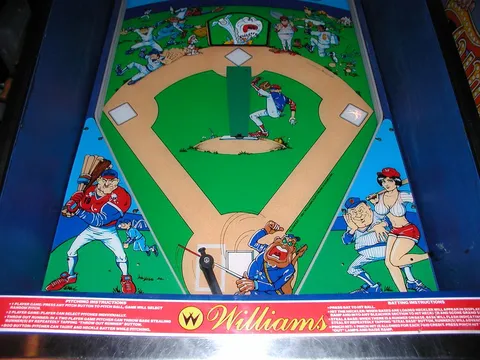

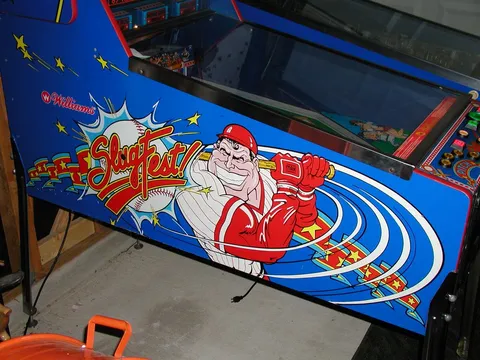

Magnet under playfield affects the path of the pitched balls. This Model 60001 differs from the later Model 60021 as follows: 1) The upper playfield "Double" inserts are blue, not orange. 2) The baseball diamond has white squares marking all three bases. 3) Instructions are displayed on a red banner under the playfield glass. 4) There are no instructions displayed on the playfield itself, although the lower playfield left and right plastics have holes for mounting metal holders for instruction and price cards. 5) Foul line to first base has text SLUGFEST - 1991 WILLIAMS ELECTRONICS GAMES INC. 6) The top edges of the cabinet are trimmed in red, not blue. 7) Has the original Card Dispenser Assembly, part number A-14471. Actual measured weight: 263 lbs (includes legs). The Model weighed was not identified. Weight differences between First, Second, and Third Models may be insignificant. Patent #5,137,278 [AMUSEMENT DEVICE WITH TRADING CARD DISPENSER] filed March 14, 1991. Granted August 11, 1992 to Joseph Joos, John Krutsch, Mark D. Ritchie, Winston H. Schilling. Assignee is Williams Electronic Games, Inc. Patent #5,149,093 [AMUSEMENT DEVICE WITH TRADING CARD DISPENSER] filed January 9, 1992. Granted September 22, 1992 to Joseph Joos, John Krutsch, Mark D. Ritchie, Winston H. Schilling. Assignee is Williams Electronic Games, Inc.

Credits

Designer:
Mark Ritchie
Artist:
Pat McMahon, Linda Deal (aka Doane)
Software:
Bill Pfutzenreuter
Music:
Paul Heitsch
Sound:
Paul Heitsch
Mechanics:
Bud Cosley, Jack Skalon, Win Schilling
Dots/Animation:
John Tobias

ROM Files

Documentation

  • Manual Amendments 1 through 4 (undated)
    80 KB
    Download
  • Operations Manual (April 1991, with paginated schematics)
    10 MB
    Download
  • Parts Catalog Supplement #16-9190-B (selected pages)
    2 MB
    Download
  • Parts List
    127 KB
    Download
