Baywatch

Manufacturer: Sega Pinball, Incorporated, of Chicago, Illinois, USA (1994-1999) [Trade Name: Sega]
Year: 1995
Date: February, 1995
Type: Solid State Electronic (SS)
Players: 6

About This Machine

The Baywatch pinball machine, released in 1995 by Sega Pinball, Incorporated, is a notable example of the growing trend of licensing popular television properties in pinball design during the mid-90s. The game's designers, Joe Kaminkow and Joe Balcer, crafted a unique experience that leverages the charm of the Baywatch franchise.

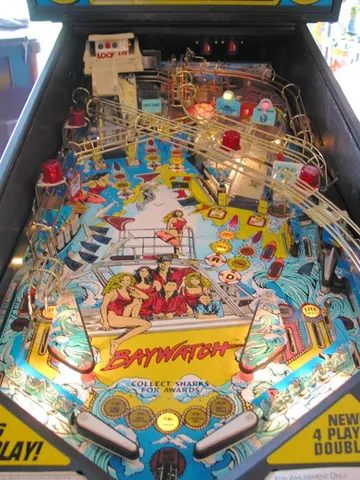

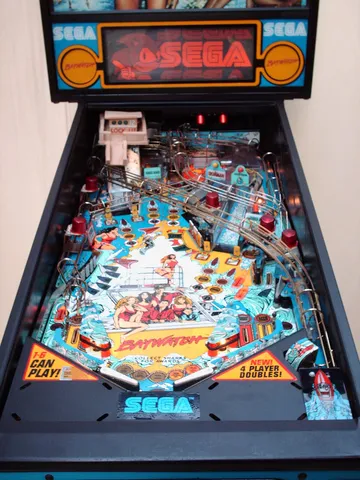

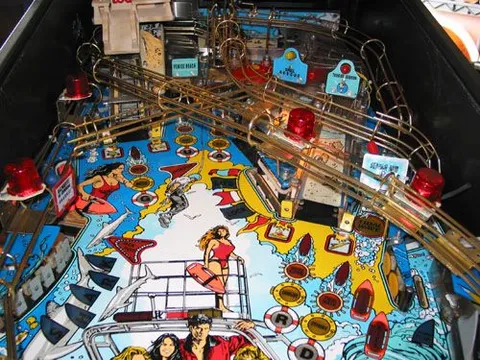

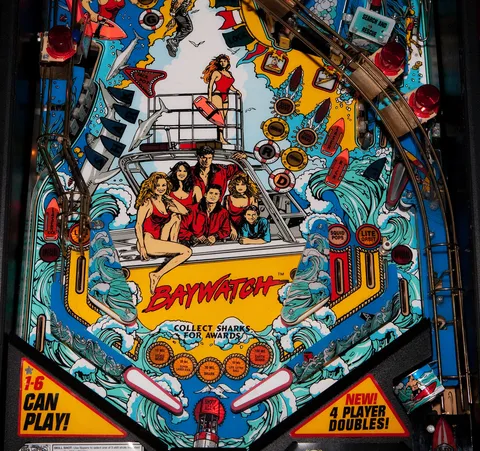

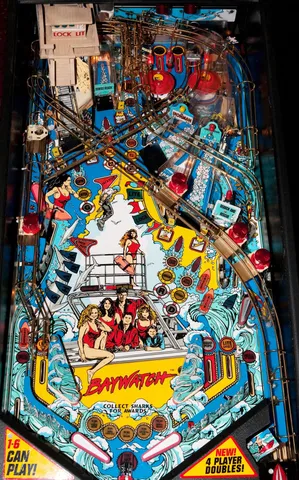

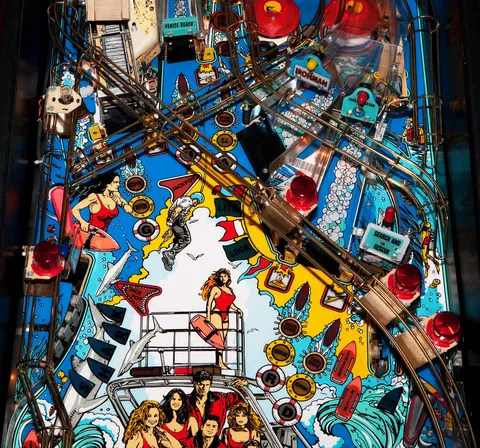

Gameplay is where Baywatch shines, with several innovative features that enhance player engagement. The "Shark Flips" mini-flipper, controlled by the game itself, adds an extra layer of challenge and strategy to the gameplay. The 5-ball multiball mode showcases the machine's ability to balance complexity and excitement. Other notable aspects include the pop bumpers, slingshots, standup targets, and vertical up-kicker, which all contribute to a dynamic and immersive experience, along with the "Baywatch Lock Tower" toy in the upper left corner of the playfield.

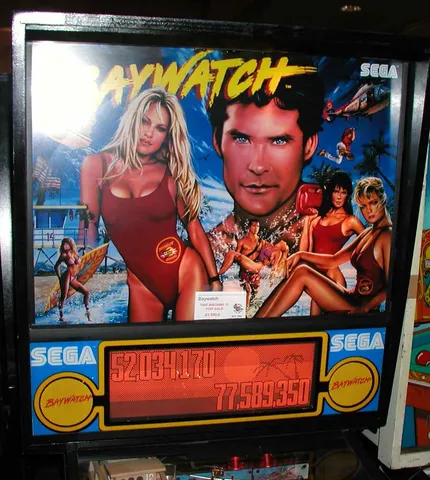

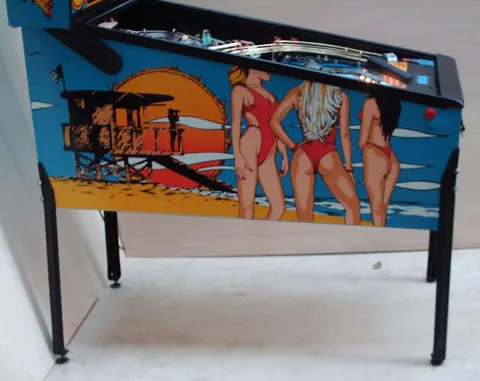

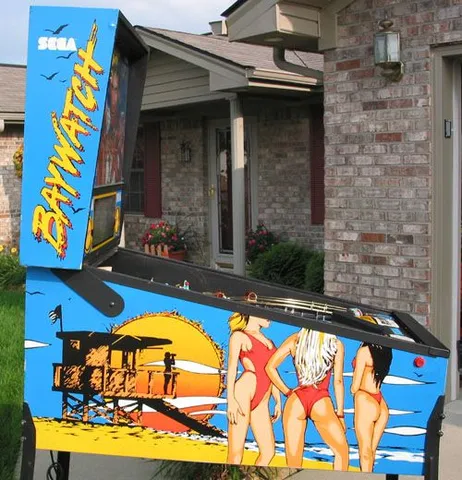

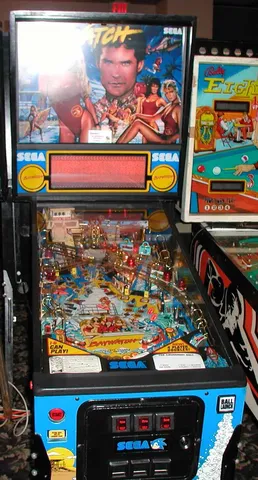

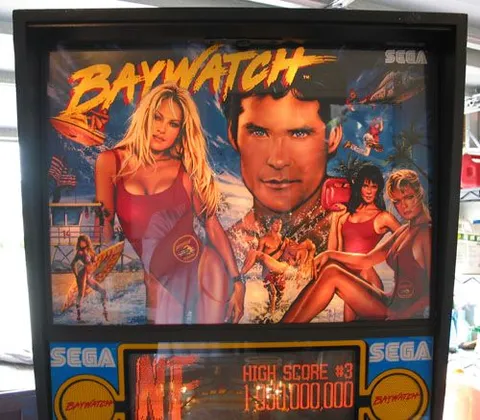

The machine's design is marked by its colorful and vibrant artwork by Markus Rothkranz and Jeff Busch, featuring iconic characters from the show. The large Dot Matrix Display in the backbox, at 192x64 pixels larger than the standard resolution, adds an extra visual dimension, providing real-time game information and animations that enhance the overall theme. Measuring 257 pounds with legs included, this solid-state electronic pinball machine offers a combination of unique gameplay features, licensed theme, and engaging design.

Images (29)

Technical Details

Theme:
Celebrities - Fictional - Licensed Theme
Model Number:
33
MPU:
DataEast/Sega Version 3b
Toys:

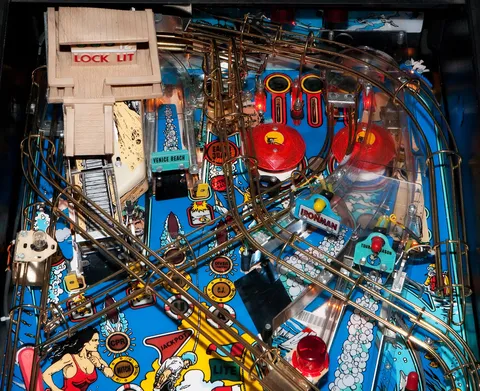

'Baywatch Lock Tower' in upper left corner of playfield.
Notable Features:

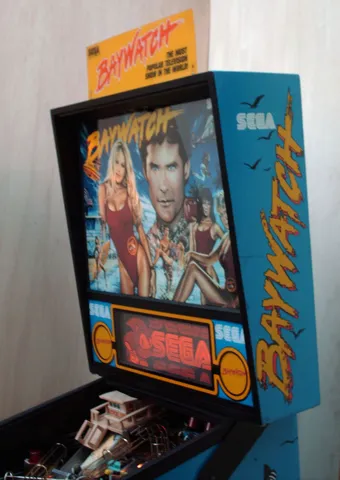

Flippers (4; 3 regular-sized, 1 "Shark Flips" game-controlled mini-flipper with plastic shark fin on top), Pop bumpers (3), Slingshots (2), Standup targets (12), 3-bank drop targets (1), Spinning targets (1), Scoop (1), Vertical up-kicker (1), Left outlane kickback, Right dual inlanes. Tr ap door on left plastic ramp. Autoplunger. 5-ball multiball. Backbox topper. Dot Matrix Display, at 192x64 pixels, is larger than standard, and is powered by a 68000 CPU. Actual measured weight: 257 lbs (includes legs).

Credits

Designer:
Joe Kaminkow, Joe Balcer
Artist:
Markus Rothkranz, Jeff Busch
Software:
Neil Falconer, Lonnie D. Ropp, John Carpenter, Orin Day
Music:
Brian Schmidt
Sound:
Brian Schmidt
Dots/Animation:
Jack Liddon, Kurt Andersen, Marc Raneses

ROM Files

Documentation

Service Bulletins

  • Service Bulletin #74 (April 28, 1995, Modification to Baywatch Early Production Games)
