Zip-A-Doo

Manufacturer: Bally Manufacturing Corporation (1931-1983) [Trade Name: Bally]
Year: 1970
Date: August, 1970
Type: Electro-mechanical (EM)
Players: 2
Production: 1,083 units (confirmed)

About This Machine

The Zip-A-Doo, manufactured by Bally in August 1970, is a two-player electro-mechanical pinball machine (model 874) with a "Happiness - Flower Power" theme reflecting the counterculture aesthetics of the era, designed by Ted Zale with artwork by Christian Marche.

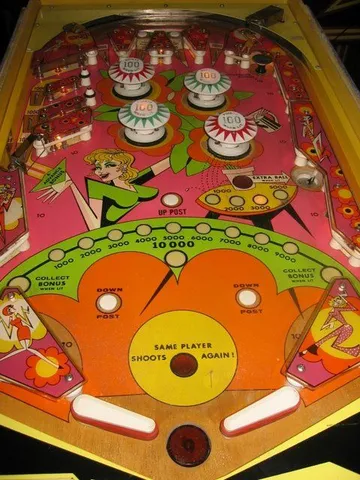

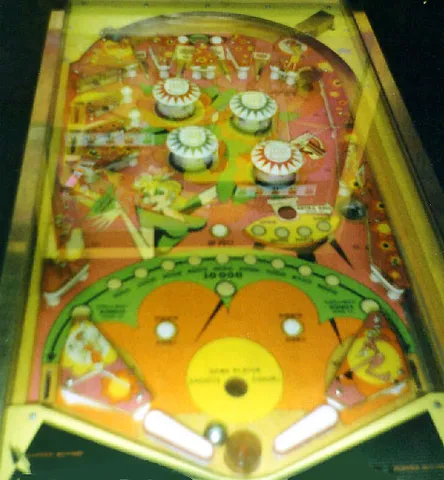

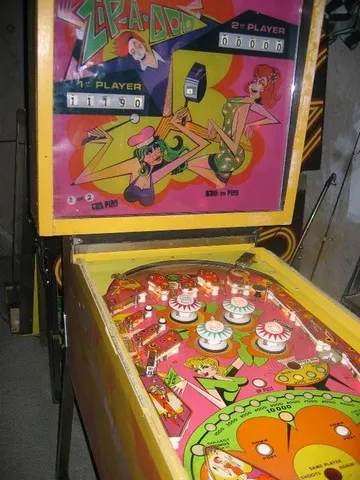

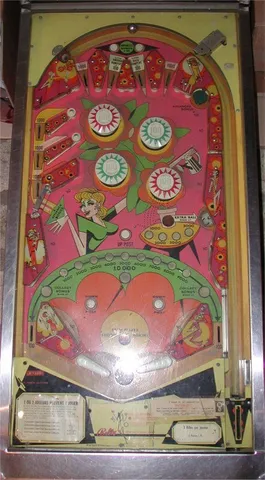

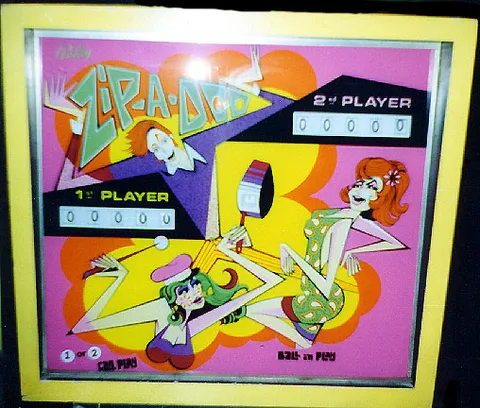

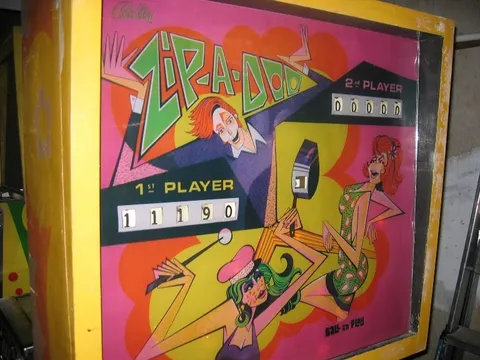

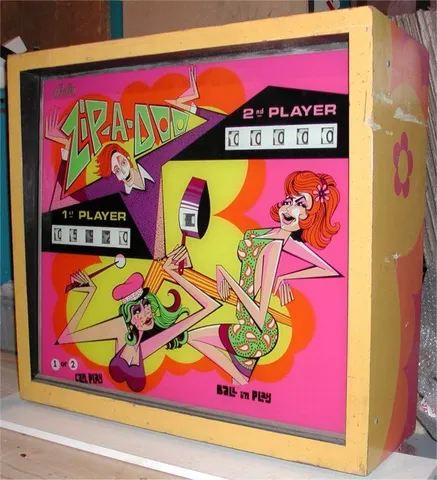

Zip-A-Doo's notable features include two flippers, four pop bumpers, one mushroom bumper, a kick-out hole, and a center up-post. The maximum displayed score is 99,990 points per player. Bally produced backglasses for this machine in both crystal glass and Plexiglas versions.

With 1,083 confirmed units produced, Zip-A-Doo's flower-power theme and vibrant graphics are characteristic of the late-1960s/early-1970s counterculture-influenced designs that a number of manufacturers embraced during this period. It remains an appealing and reasonably well-documented example of Bally's EM output from 1970.

Images (12)

Technical Details

Theme:
Happiness - Flower Power
Model Number:
874
Notable Features:
Flippers (2), Pop bumpers (4), Mushroom bumpers (1), Kick-out hole (1), Center Up-Post. Maximum displayed point score is 99,990 points per player. Actual measured weight: 232 lbs (includes legs).

Credits

Designer:
Ted Zale
Artist:
Christian Marche

Documentation

  • Playfield Chart from 1973 Parts Catalog
    433 KB
    Download
