Winner

Manufacturer: Universal Industries, Inc. (Chicago) A subsidiary of United Manufacturing Co. (1949-1951)
Year: 1950
Date: June, 1950
Type: Electro-mechanical (EM)
Players: 1

About This Machine

The Winner, manufactured by Universal Industries (a subsidiary of United Manufacturing Co.) in June 1950, is a single-player, one-ball electro-mechanical horse racing game. It was produced during a period of industry consolidation, as Universal operated as a United subsidiary from 1949 to 1951.

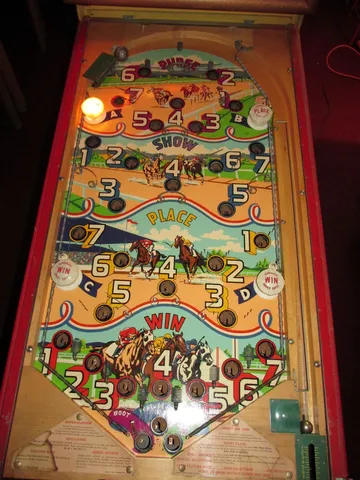

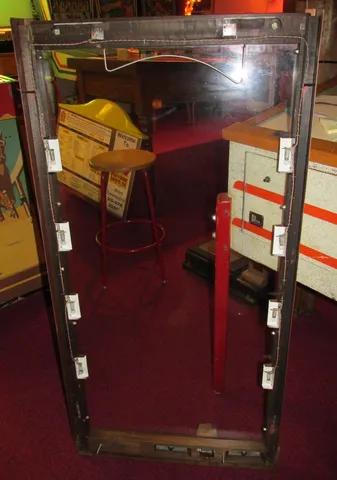

The playfield features 31 trap holes and a Skill Lane option intended for jurisdictions that restricted games to five balls. A notable engineering detail is the playfield glass, which has a built-in frame wired with eight lamps to illuminate the playfield; two copper strips at the top of the playfield make contact with the lamp circuit on the frame. Technicians have noted that the glass-and-frame assembly is heavy and awkward for one person to remove, particularly when the game is positioned between two other machines on location.

No designer is credited for the machine, and specific production numbers are not documented, but its illuminated playfield frame is one of the more distinctive engineering features among horse-racing-themed machines of its era.

Images (36)

Technical Details

Theme:
Horse Racing
Notable Features:
Trap holes (31). Skill Lane option for 5-ball jurisdictions. Playfield glass has a built-in frame which is wired with eight lamps to illuminate the playfield. Two copper strips at the very top of the playfield make contact with the lamp circuit on the frame.

Credits

Documentation

  • Schematic Diagram (continuous)
    9 MB
    Download
  • Service Manual And Parts Catalog (poor copy, barely readable)
    3 MB
    Download

Other Files

  • Inside Back Door (hand-drawing from Russ Jensen's files)
    381 KB
    Download
  • Relay Charts
    6 MB
    Download
  • Spinner Motor Switch Chart
    2 MB
    Download
