Winner

Manufacturer: Williams Electronics, Incorporated (1967-1985) [Trade Name: Williams]
Year: 1971
Date: August 09, 1971
Type: Electro-mechanical (EM)
Players: 2
Production: 2,100 units (confirmed)

About This Machine

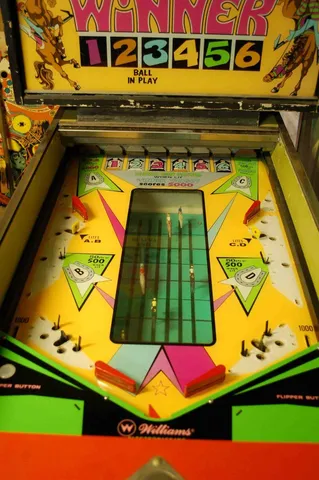

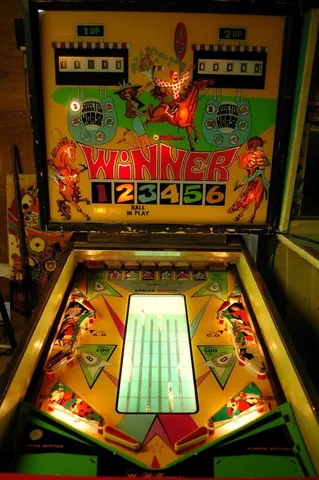

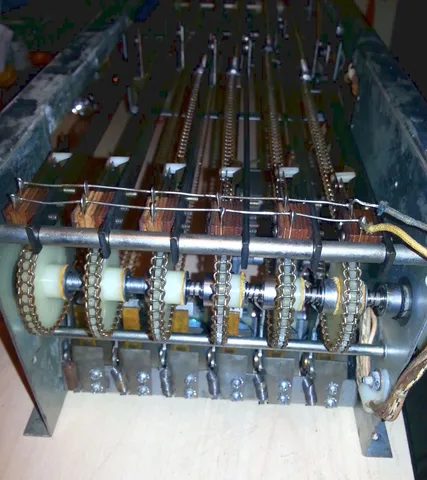

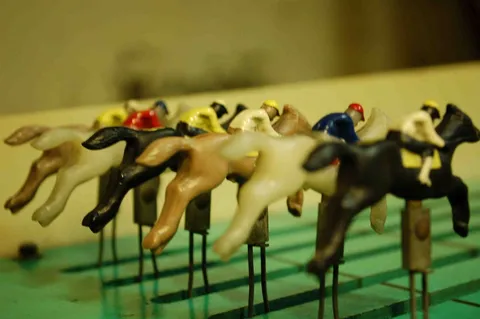

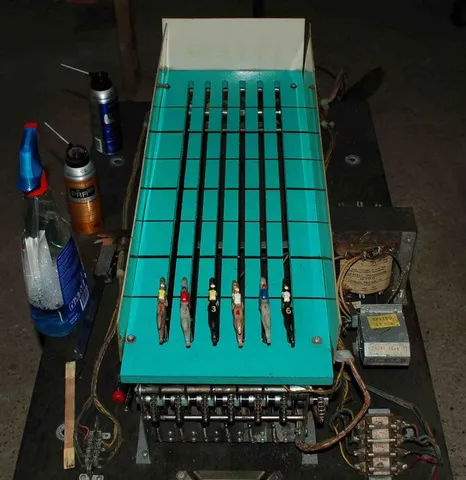

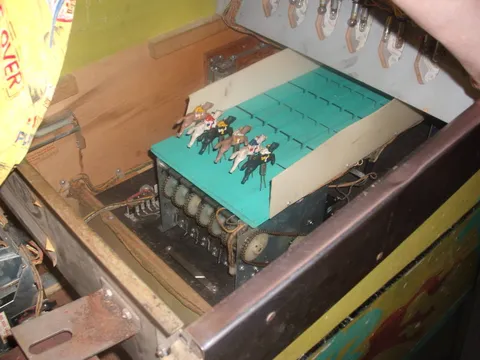

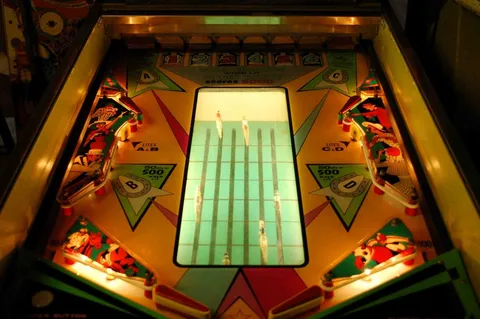

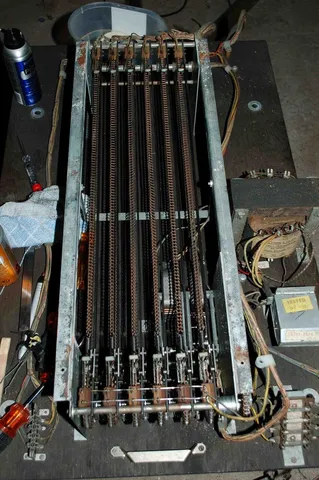

Winner, designed by Steve Kordek with art by Christian Marche, was manufactured by Williams Electronics in 1971, with 2,100 confirmed units produced. This widebody, horse racing-themed EM machine features a Revolving Center Ball Shooter - a turret shooter that sends the ball into play from between the lower flippers when the lockdown bar button is pressed - and a mechanical horse race animation under the playfield's Plexiglas.

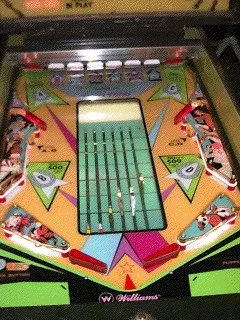

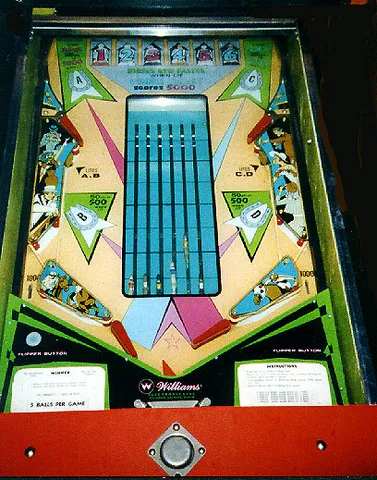

The machine offers 3-or-5-ball play, and at the start of each game it automatically assigns each player a horse. Players advance their assigned horse toward the finish line by hitting the corresponding targets, aiming to beat their opponent's horse without letting it finish first. Winner features four flippers, two slingshots, two standup targets, and eight hanging targets, with a maximum displayed score of 199,990 points per player and a replay wheel maximum of 37.

The mechanical horse-race animation under Plexiglas, combined with the turret-style Revolving Center Ball Shooter, makes Winner a distinctive and mechanically ambitious widebody release from Williams' early-1970s EM lineup.

Images (27)

Technical Details

Theme:
Sports - Horse Racing
Model Number:
388
Notable Features:
Flippers (4), Slingshots (2), Standup targets (2), Hanging targets (8). The Revolving Center Ball Shooter is a turret shooter and sends ball into play from between the lower flippers when the button is pressed on lockdown bar. Mechanical horserace animation under Plexiglas playfield. 3 or 5 ball play. The machine picks the horse for each player at start of game. Each player tries to advance their assigned horse to the finish line by hitting the corresponding targets without causing another horse to finish first. Maximum displayed point score is 199,990 points per player. Replay wheel maximum: 37

Credits

Designer:
Steve Kordek
Artist:
Christian Marche

Documentation

  • Catalog Supplement "M-M" With New Parts & Units (OCR-searchable)
    2 MB
    Download
  • Instruction and Score Cards
    44 KB
    Download
  • Instruction Manual
    14 MB
    Download
  • Instruction Manual (OCR-searchable)
    3 MB
    Download
  • Schematic Diagram (continuous)
    6 MB
    Download

Other Files

  • Extra Ball Feature - Envelope and Contents
    26 MB
    Download
