Stars

Manufacturer: Stern Electronics, Incorporated, of Chicago, Illinois, USA (1977-1984) [Trade Name: Stern]
Year: 1978
Date: March, 1978
Type: Solid State Electronic (SS)
Players: 4
Production: 5,127 units (confirmed)

About This Machine

'Stars' is a 1978 solid-state pinball machine from Stern Electronics, designed by Steve Kirk with artwork by Jorge Obregon. Released as the industry was well into its transition to solid-state electronics, Stars was a commercially successful title for Stern, with over 5,100 units produced.

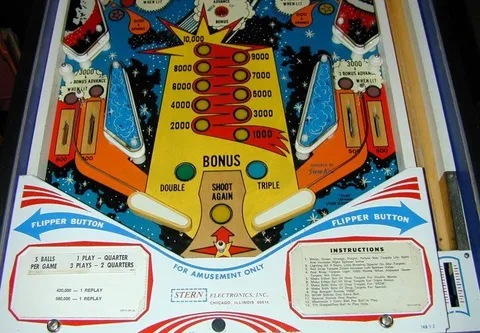

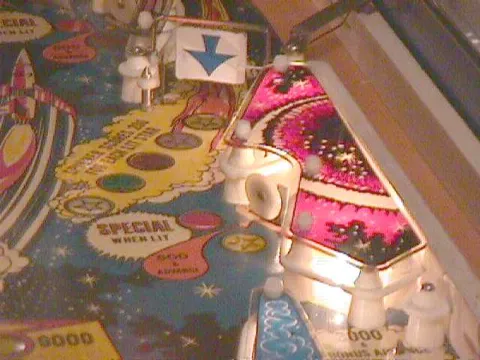

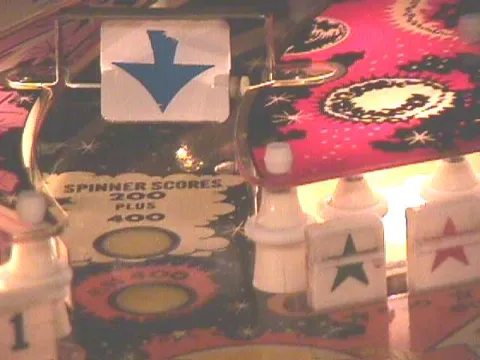

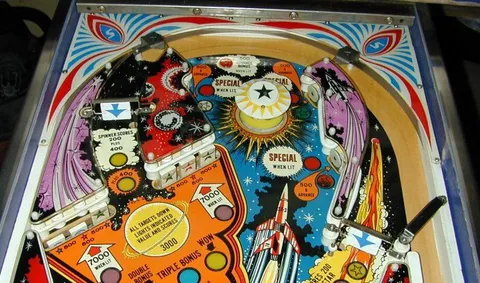

Gameplay on Stars is built around two flippers and an array of targets, including five standup targets, two 3-bank drop targets, and two spinning targets, plus one pop bumper and two slingshots. A distinctive 'Kirk Post' — a mini-post screw between the flippers named for designer Steve Kirk — adds an extra obstacle for players to navigate. Stars is also notable as one of only two four-player Stern games (along with Stingray) that could be switched to two-player operation via a CPU dip switch, a feature aimed at certain export markets.

The outer-space exploration theme is brought to life through bold, retro-futuristic artwork. As an early Stern Electronics title with strong sales and several documented design quirks, Stars remains a well-regarded piece of late-1970s solid-state pinball history.

Images (28)

Technical Details

Theme:
Outer Space - Space Exploration
Model Number:
103
MPU:

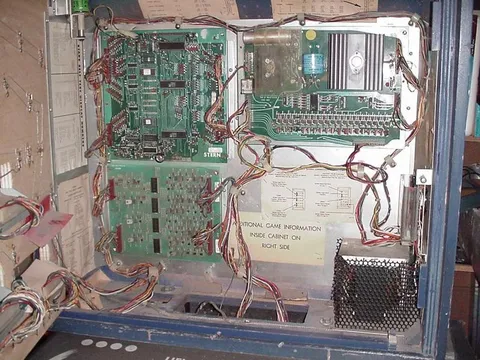

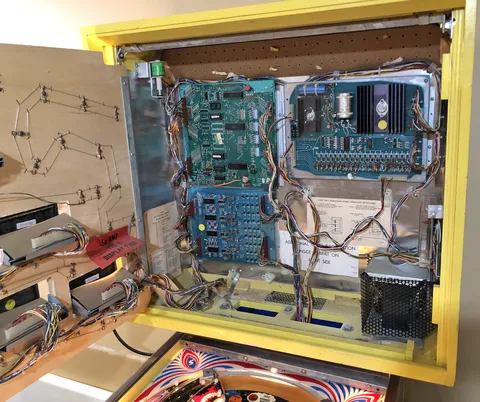

Stern M-100 MPU
Notable Features:
Flippers (2), Pop bumper (1), Slingshots (2), Standup targets (5), 3-bank drop targets (2), Spinning targets (2), Mini-post screw between flippers.

Credits

Designer:
Steve Kirk
Artist:
Jorge Obregon

ROM Files

Documentation

  • English Manual (with paginated schematics)
    2 MB
    Download
  • Playfield Parts Diagram
    180 KB
    Download

Service Bulletins

  • Service Bulletin #7 - R OM Sets (July 7, 1978)
    12 MB
    Download
  • Service Bulletin #8 - R OM Sets (October 16, 1978)
    11 MB
    Download

Other Files

  • Engineering Bulletin #9 - Momentary Coil Information Q1 to 14 & Q16 (undated)
    12 MB
    Download
