Star Explorer

Manufacturer: Sentinel Inc.
Year: 1977
Date: 1977
Type: Solid State Electronic (SS)
Players: 1

About This Machine

The Star Explorer, manufactured by Sentinel Inc. in 1977, is a single-player solid-state electronic pinball machine built for the home market, with a space fantasy theme. Its innovative use of conductive ball properties for switchless rollovers, slingshots, and pop bumpers, along with metal-spring slingshot contacts, reduced maintenance needs, though it made responses a bit clunky compared to conventional switches.

The game is played over 3 balls per turn, using a single steel ball. Its two flippers are interconnected and powered by a single solenoid, so pressing either flipper button fires both simultaneously; the flippers' inward fulcrum point and shallow factory angle give them an action similar to a shorter, less powerful flipper, and players must adapt to this quirk. The pop bumper bodies appear to be repurposed 1970s Bally units, each solenoid firing two bumpers, adding a touch of cross-manufacturer nostalgia to the machine's otherwise self-contained design.

Star Explorer shares its playfield layout with several other Sentinel Inc. titles, including Wonder Wizard CB Charlie, Wonder Wizard Demolition Derby, and Flying Aces, distinguished mainly by different artwork, and it was also sold under the Phillips Electronics name with a different model number. While its clunky switchless response may be an acquired taste, the machine remains a low-maintenance, historically interesting example of a home solid-state pinball design from the late 1970s.

Images (9)

Technical Details

Theme:
Outer Space - Space Fantasy
Model Number:
PH7730WA05
Notable Features:

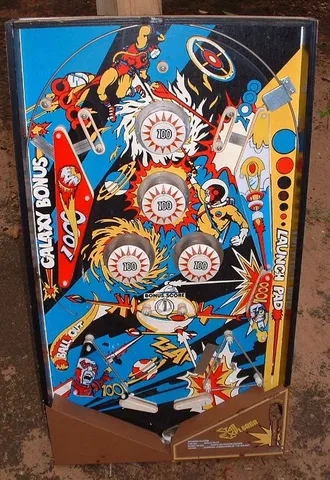

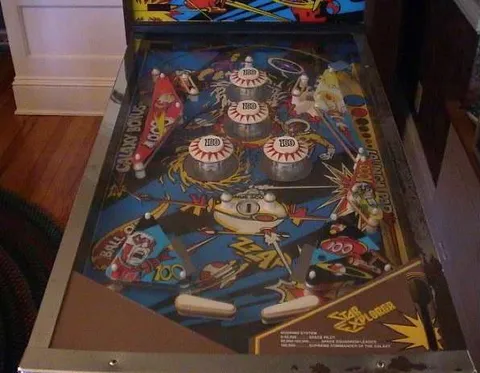

3 balls per play. Flippers (2), Pop bumpers (4), Slingshots (2), Kick-out hole (1). Plexiglas playfield cover. Pressing either flipper button operates both flippers simultaneously. Uses 1 steel ball. No adjustment for 5-ball play. Tilt penalty: ball in play. Pop bumper bodies appear to be 70s Bally units with a "100" sticker added, using one solenoid per two bumpers. Pop bumpers, slingshots and rollovers are "switchless," using the conductive properties of the ball to connect two electrical contacts. While a slight bit clunky for response, this made for a very low maintenance machine. Slingshot " rubbers " are actually metal springs, which act as contacts. Flippers are interconnected (non-independent), and powered by the same solenoid. Flippers also appear 3" long, but their fulcrum point is further inward than typical, making their action similar to a 2" flipper. Factory angle of flippers was very shallow, making their action awkward. Nonadjustable tilt mechanism is a small metal bell on a ball-strand chain, suspended within a metal loop, similar in function to, but generally higher in sensitivity than a tilt-bob.
