Sorcerer

Manufacturer: Williams Electronics, Incorporated (1967-1985) [Trade Name: Williams]
Year: 1985
Date: March, 1985
Type: Solid State Electronic (SS)
Players: 4
Production: 3,700 units (confirmed)

About This Machine

The Sorcerer, designed by Mark Ritchie and manufactured by Williams Electronics starting in March 1985, is a solid-state electronic pinball machine with a fantasy, wizard, and dragons theme. Released well into the solid-state era, it represents mature, mid-1980s Williams System 9 design.

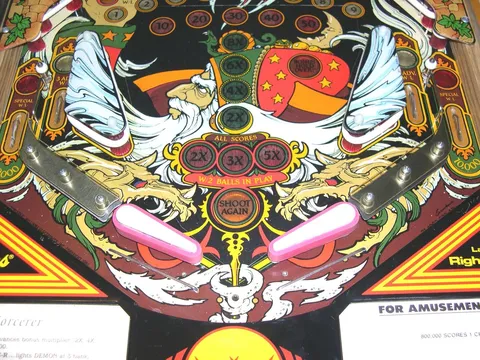

The Sorcerer's gameplay is characterized by fast-paced, high-scoring potential, thanks to features like three flippers, six standup targets, and two spinning targets. The machine also boasts a 2-ball multiball mode. Other notable features include speech and background sounds, adding an immersive audio experience to the game, plus a mini-post screw between the flippers for an added challenge.

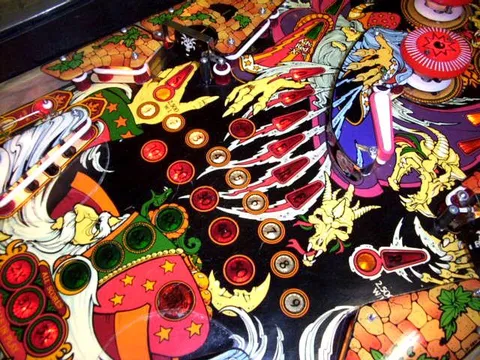

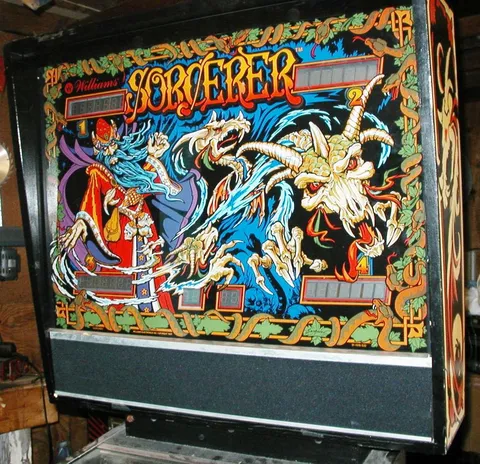

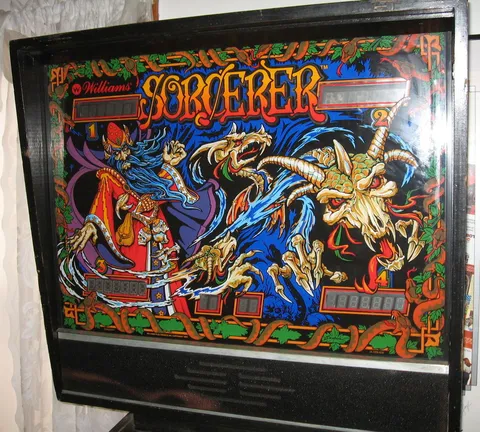

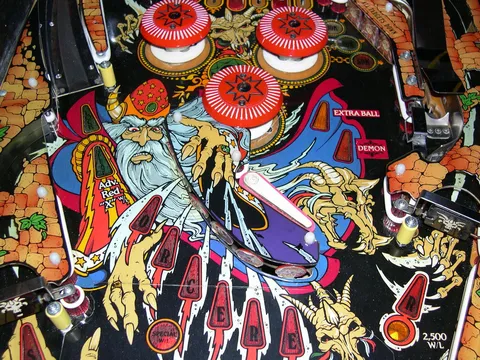

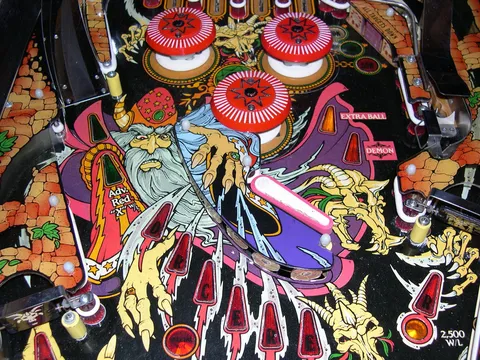

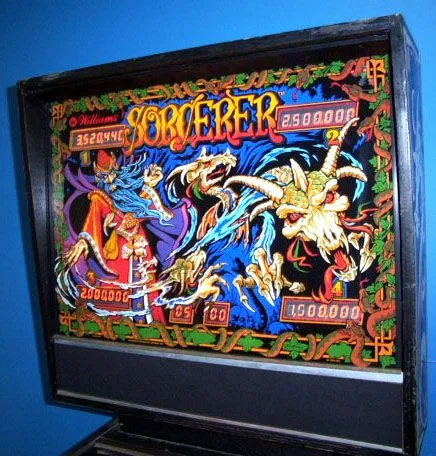

The Sorcerer's design and art, by Pam Erickson, are heavily influenced by fantasy and magic themes, with glowing/flashing eyes in the back panel and a Demon bonus lamp that lights up upon completion of spelling "Sorcerer." Completing the drop target bank at the top right of the playfield when the Demon is lit activates a bonus hold for the next ball, adding an extra layer of strategy to gameplay. With 3,700 units confirmed produced, the Sorcerer is a well-regarded example of Williams' mid-1980s solid-state output.

Images (32)

Technical Details

Theme:
Fantasy - Wizard - Magic - Dragons
Model Number:
532

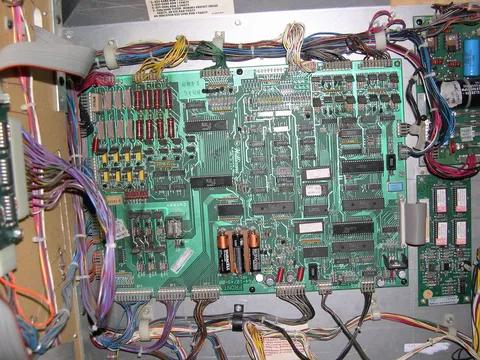

MPU:
Williams System 9
Notable Features:

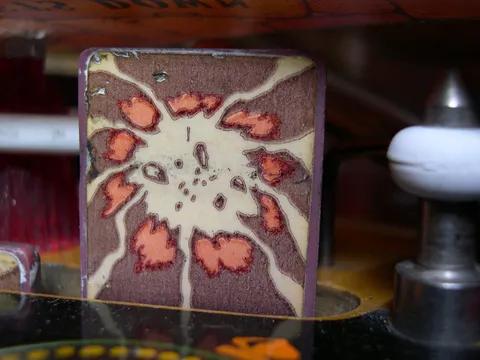

Flippers (3), Pop bumpers (3), Slingshots (2), Standup targets (6), Spinning targets (2), Kick-out hole (1), 3-bank drop targets (1), Ramp (1), 2-ball multiball, speech and background sounds, Mini-post screw between flippers. Glowing/flashing Sorcerer's eyes in back panel. The Demon bonus lamp lights upon completion of spelling 'Sorcerer'. Completing the drop target bank at the top right of the playfield when Demon is lit activates the bonus hold for the next ball.

Credits

Designer:
Mark Ritchie
Artist:
Pam Erickson
Software:
Dave Rzepka, Ed Suchocki

ROM Files

Documentation

  • Instruction Manual (with schematics)
    3 MB
    Download
