Secret Service

Manufacturer: Data East Pinball, Incorporated (1986-1994)
Year: 1988
Date: March, 1988
Type: Solid State Electronic (SS)
Players: 4
Production: 2,741 units (confirmed)

About This Machine

Secret Service, designed by Joe Kaminkow with artwork by Kevin O'Connor and Margaret Hudson, was manufactured by Data East Pinball beginning in March 1988. Built around a police/spy theme, it's a four-player solid-state machine featuring digitized stereo speech and music synchronized with light effects and alphanumeric displays — features that by 1988 had become well established across the industry rather than a first for the format.

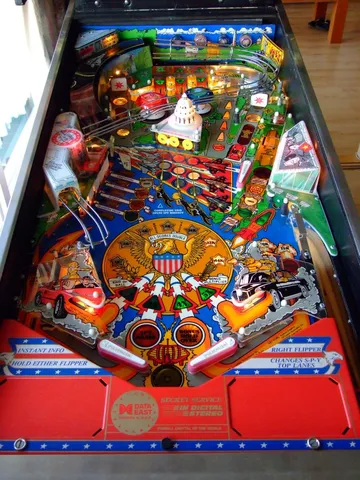

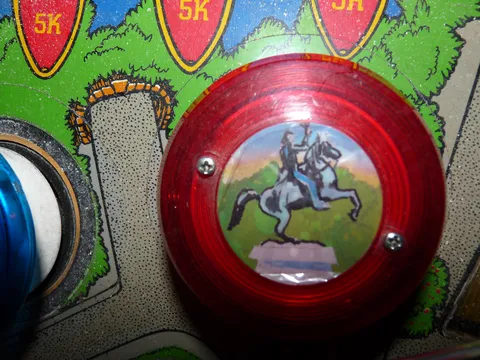

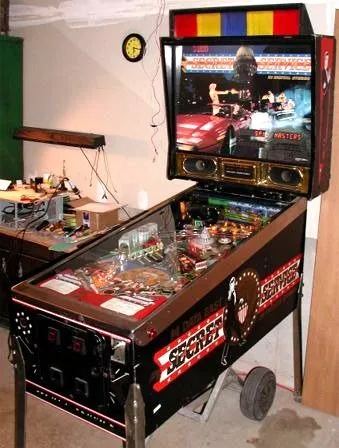

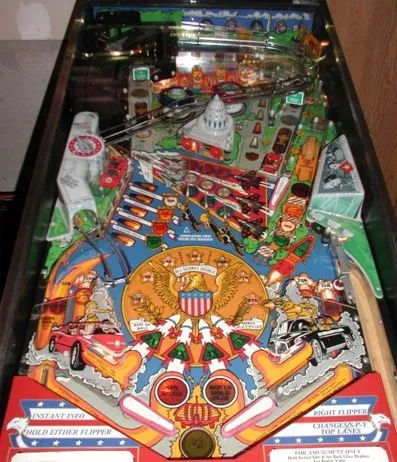

Key gameplay features include three flippers, three pop bumpers, two slingshots, two spinning targets, a Ball Eater target, and a 5-bank drop target. At center playfield sits a model of the U.S. Capitol building, with a White House model on the left featuring five drop targets underneath — toys that tie directly into the game's Washington, D.C. spy theme. A large flash-effect box atop the backbox adds to the machine's visual impact.

With 2,741 units produced, Secret Service is a distinctive entry in Data East's catalog, notable for its detailed government-building toys and immersive audiovisual presentation.

Images (23)

Technical Details

Theme:
Police/Spy
Model Number:
500-5502-01
MPU:
DataEast/Sega Version 2
Toys:

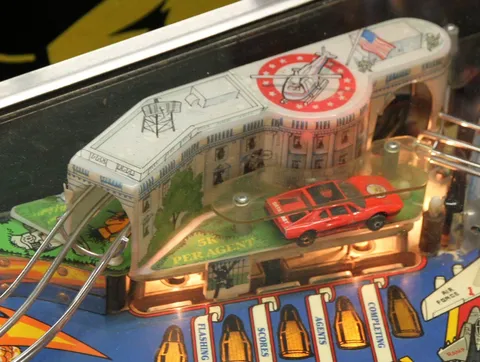

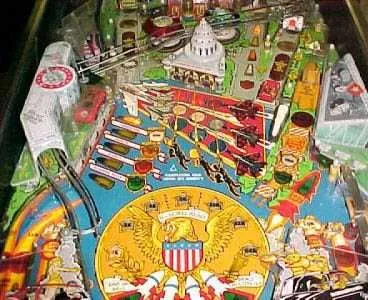

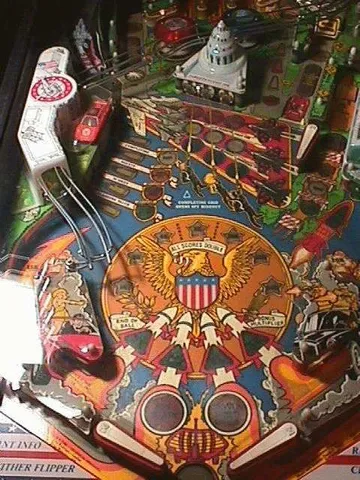

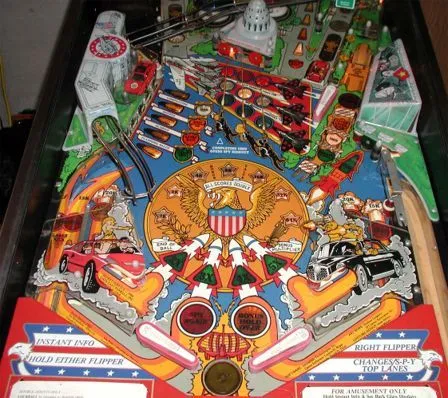

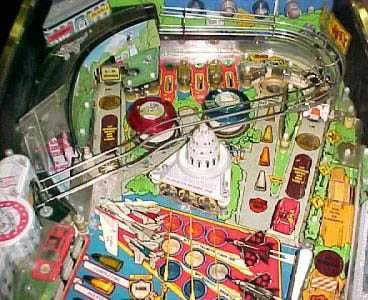

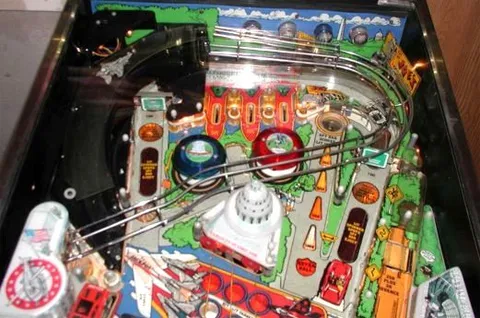

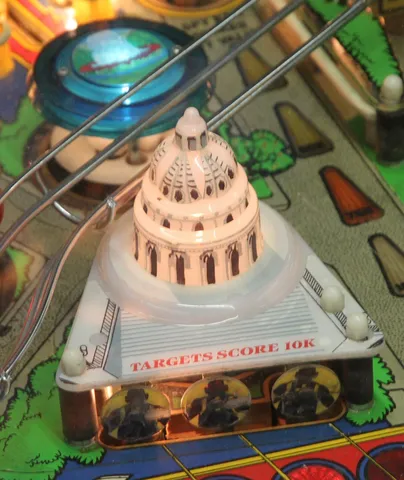

A model of the Capitol building is at center playfield, and a White House model is on the left. The White House has 5 drop targets underneath it.
Notable Features:
Flippers (3), Pop bumpers (3), Slingshots (2), Spinning targets (2), Ball Eater target (1), 5-bank drop targets (1), Kick-out hole (1), Up post between flippers. Large flash-effect box on top of backbox. Digital stereo speech and music, music and light-effects are synchronized, alphanumeric displays. Actual measured weight: 232 lbs (includes legs).

Credits

Designer:
Joe Kaminkow
Artist:
Kevin O'Connor, Margaret Hudson
Software:
Lonnie D. Ropp, Richard Ditton
Music:
David Thiel
Sound:
Kyle Johnson, David Thiel

ROM Files

Documentation

  • English Manual
    5 MB
    Download
  • Preliminary Instruction Manual (with schematics, missing page 20)
    14 MB
    Download

Service Bulletins

  • Service Bulletin #010 (June 15, 1988, Improper Operation of the Ball Eater Mechanism)
    134 KB
    Download
