Scorpion

Manufacturer: Williams Electronics, Incorporated (1967-1985) [Trade Name: Williams]
Year: 1980
Date: July, 1980
Type: Solid State Electronic (SS)
Players: 4
Production: 2,000 units (confirmed)

About This Machine

The Scorpion, designed by Barry Oursler and manufactured by Williams Electronics in 1980, is a widebody, four-player Solid State machine built on Williams' System 6 platform, with art by Constantino Mitchell and Tony Ramunni and sound/software by Larry DeMar. It carries a fantasy theme and was produced in a confirmed run of 2,000 units.

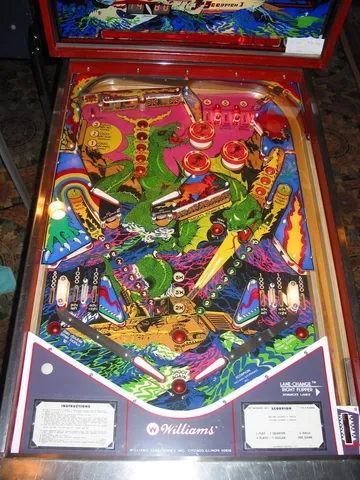

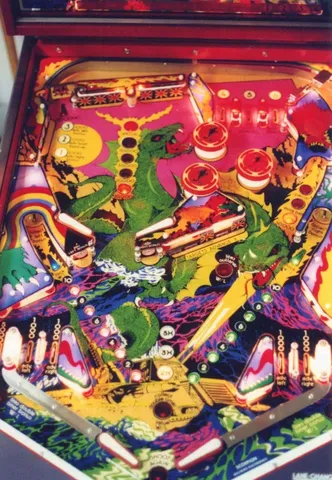

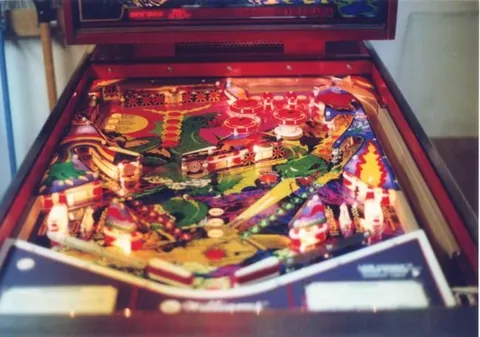

The Scorpion's layout features four flippers and an extensive array of targets, including five stand-up targets, a 5-bank and two 3-bank drop-target banks, three pop bumpers, and dual inlanes on the left and right sides, giving players varied strategic shot-making opportunities. Its standout feature is a 2-ball multiball: a ball locked in one kick-out hole carries over to the next player, while locking a second ball in the other kick-out hole starts multiball play. During multiball, the ball-in-play display becomes a timer counting the seconds of play, with operator-adjustable thresholds that light awards of 50,000 points, an extra ball, and a special.

While specific information on the game's creation is limited, Scorpion stands as a solid example of Williams' widebody System 6-era output, blending fantasy-themed art with an innovative timed-multiball mechanic that remains interesting to enthusiasts today.

Images (16)

Technical Details

Theme:
Fantasy
Model Number:
494
MPU:
Williams System 6
Notable Features:
Flippers (4), Pop bumpers (3), 5-bank drop targets (1), 3-bank drop targets (2), Standup targets (5), Kick-out holes (2), Left and right dual inlanes, 2-ball multiball. A ball locked in one kick-out hole will carry-over to the next player. Locking a second ball in the other kick-out hole will start multiball. The ball-in-play display turns into a timer during multiball, incrementing to count the seconds of multiball play. The timer has operator-adjustable threshholds to light awards of 50,000 points, extra ball, and special.

Credits

Designer:
Barry Oursler
Artist:
Constantino Mitchell, Tony Ramunni
Software:
Larry DeMar
Sound:
Larry DeMar

ROM Files

Other Files

  • Instruction Booklet (August 1980)
    1 MB
    Download
  • Special Features Explanation (16P-494-106, undated)
    978 KB
    Download
