Bazaar

Manufacturer: Bally Manufacturing Corporation (1931-1983) [Trade Name: Bally]
Year: 1966
Date: October, 1966
Type: Electro-mechanical (EM)
Players: 1
Production: 2,925 units (confirmed)

About This Machine

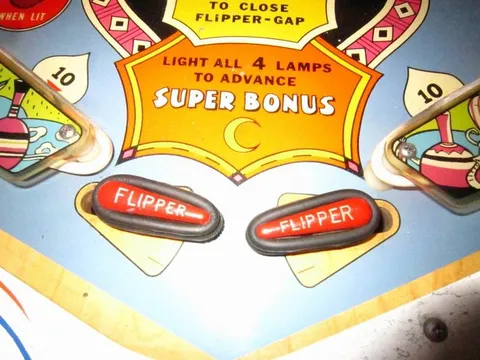

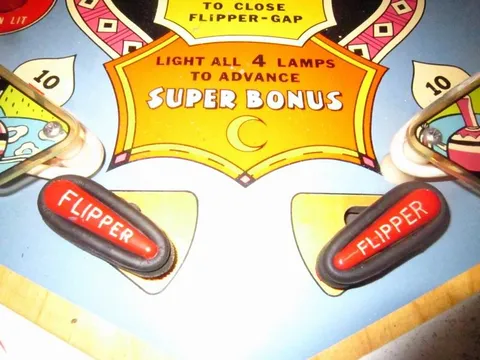

Bazaar, designed by Ted Zale with artwork by George Molentin and released by Bally Manufacturing Corporation in October 1966, holds a genuine place in pinball history: it was the first game to use zipper flippers, the ingenious mechanism (invented by Joe Lally, Ted Zale, and Terry Reedy) that closes the gap between the flippers to prevent the ball from draining. The feature was patented in 1966 and would become a signature of Ted Zale's Bally designs. The game debuted at the Chicago MOA show in late October 1966, and 2,925 units were produced.

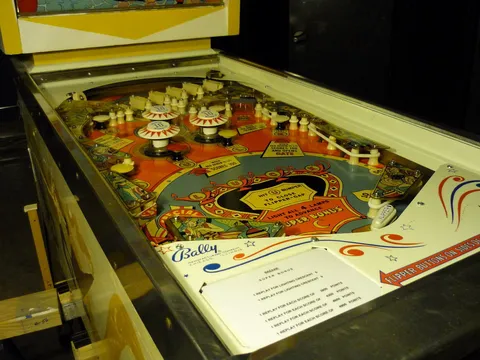

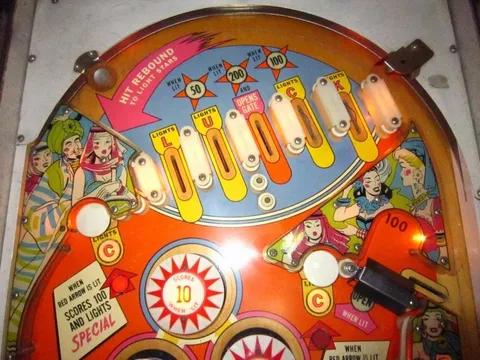

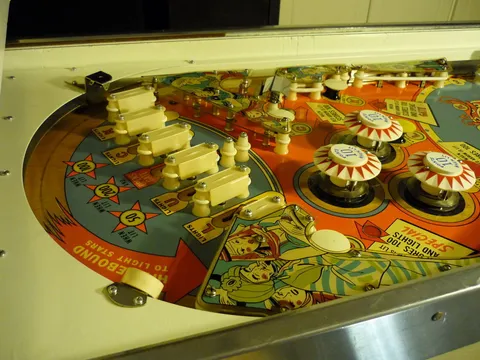

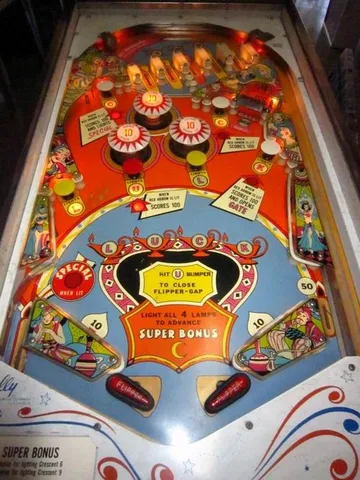

Beyond its landmark flippers, Bazaar boasts an array of features that made it stand out from its contemporaries: three pop bumpers, six of Zale's characteristic mushroom bumpers, two slingshots, an upper ball return gate, and a skill shot from the shooter lane. The maximum displayed point score is 9,999 points, making for a tight, score-chasing challenge even today.

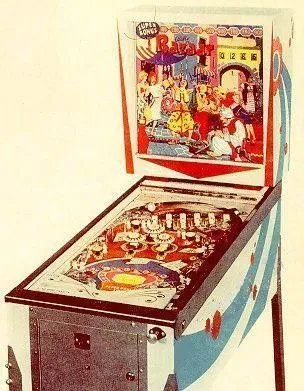

Bazaar wears a world-places theme, and it was also produced in an add-a-ball version for export to Italy; early add-a-ball examples are known with cabinet graphics borrowed from Bally's 1965 Blue Ribbon. As the birthplace of the zipper flipper, Bazaar is a fascinating machine for collectors and historians of 1960s Bally.

Images (29)

Technical Details

Theme:
World Places
Model Number:
792
Notable Features:
Zipper flippers (2), Pop bumpers (3), Mushroom bumpers (6), Slingshots (2), Upper ball return gate, Skill shot from shooter lane. Maximum displayed point score is 9,999 points. Replay wheel maximum: 25 Sound: 1 bell, knocker

Credits

Designer:
Ted Zale
Artist:
George Molentin

Documentation

  • Operator Replay Adjustments
    249 KB
    Download
  • Schematic Diagram (continuous)
    4 MB
    Download

Other Files

  • Engineering Drawing - Effective Adjustments For Moveable Flipper Assembly
    330 KB
    Download
  • New Lift-Out Mounting Board - Instructions
    338 KB
    Download
  • Post Adjustment Chart
    103 KB
    Download
  • Replay Score Adjustments
    240 KB
    Download
  • Score Motor Unit Switch Chart
    753 KB
    Download
  • Zipper Flippers Patent 3,404,888
    610 KB
    Download
