Rollergames

Manufacturer: Williams Electronics Games, Incorporated, a subsidiary of WMS Ind., Incorporated (1985-1999) [Trade Name: Williams]
Year: 1990
Date: April 04, 1990
Type: Solid State Electronic (SS)
Players: 4
Production: 5,000 units (approximate)

About This Machine

Rollergames, designed by Steve Ritchie and released in 1990 by Williams Electronics Games, brings the high-energy sport of roller derby -- based on the short-lived TV show of the same name -- to the table, complete with lights, sound effects from Dan Forden, and a ball-catching magnet near the upper flipper.

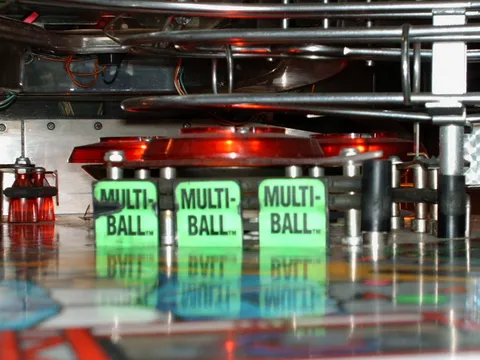

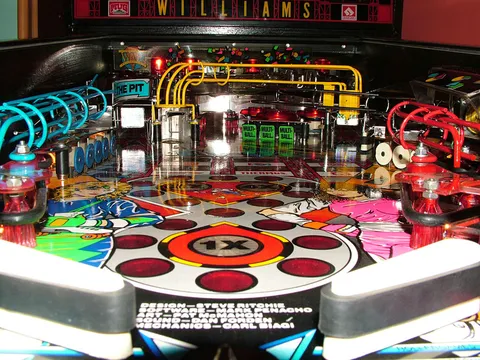

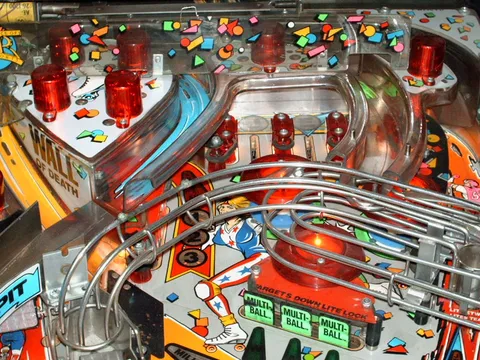

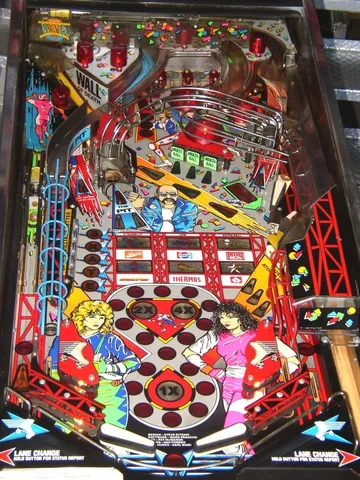

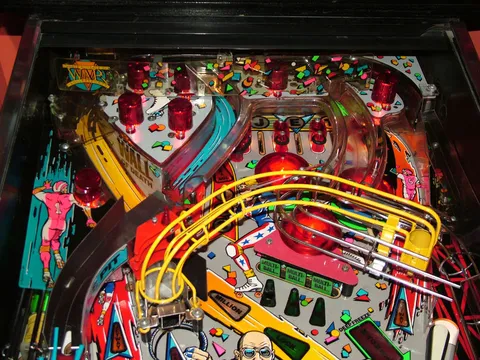

The machine features three flippers and a multiball mode, along with a two-stage kickback in the left outlane that shoots the ball up a ramp and around the orbit to the upper right flipper. A signature shot uses the magnet: when lit, the game calls out "Don't Flip!" as a VUK fires the ball onto the magnet in front of the flipper, then "Flip!" sends it up the ramp. Locking balls in the wall ramp shot builds toward multiball, and the game features distinct background music for its various modes.

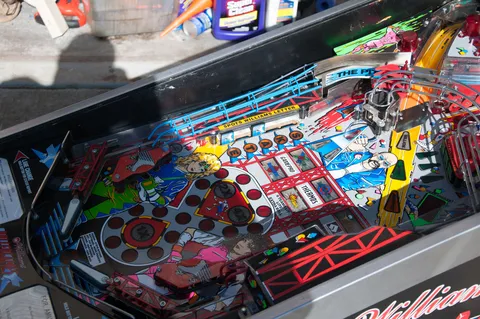

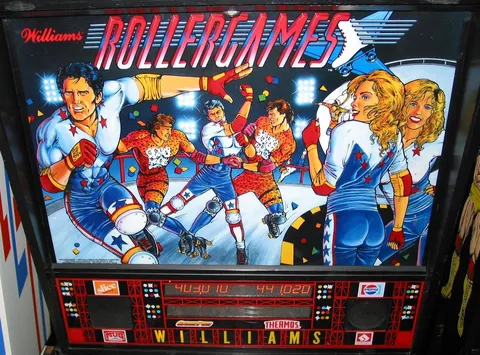

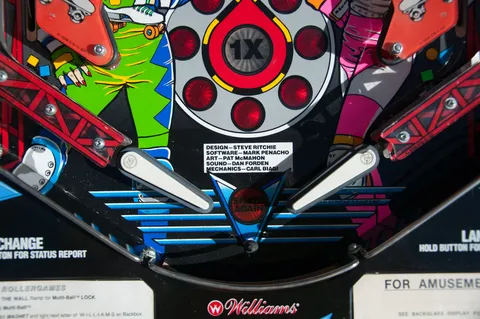

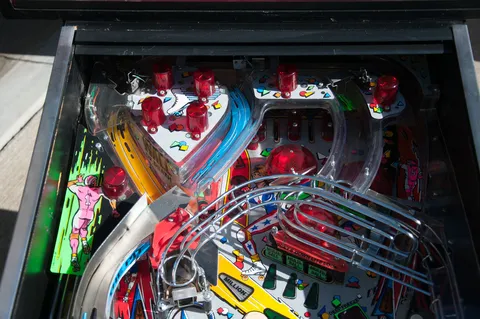

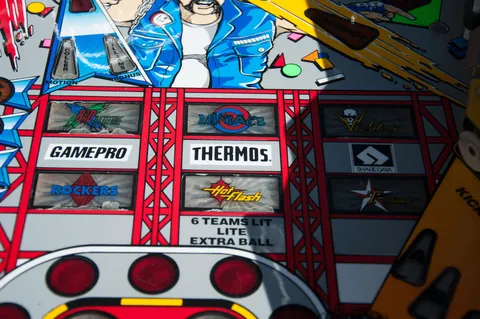

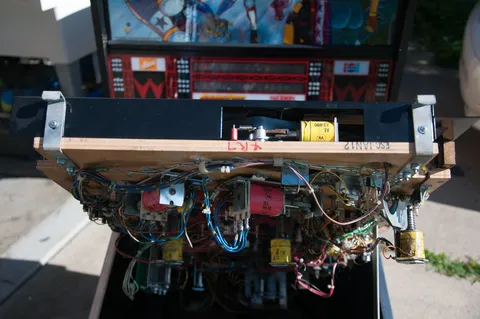

Artwork was handled by Pat McMahon (playfield and backglass) and Linda Deal (backbox), with mechanics by Carl Biagi and software by Mark Penacho. Approximately 5,000 units were produced between April and October 1990. Some early prototype units used drop targets instead of the standup targets found on the rest of the production run, making them a notable variant for collectors.

Images (37)

Technical Details

Theme:
Sports - Roller Derby - Roller Skating - Licensed Theme
Model Number:
576

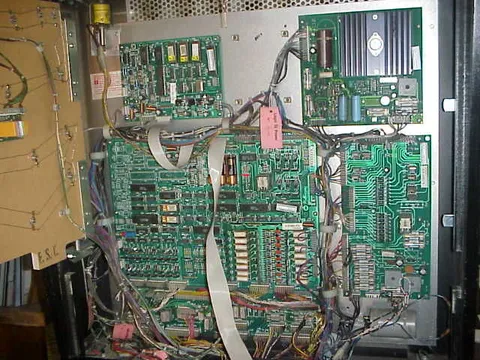

MPU:
Williams System 11C
Notable Features:
Flippers (3), Multiball, ball-catching magnet near upper flipper, two-stage kickback in left outlane (shoots the ball straight up a little ramp, onto another kicker that is not otherwise in play, and finally around the orbit to the upper right flipper).

Credits

Designer:
Steve Ritchie
Artist:
Pat McMahon, Linda Deal (aka Doane)
Software:
Mark Penacho
Music:
Dan Forden
Sound:
Dan Forden
Mechanics:
Carl Biagi

ROM Files

  • Complete Romset (European Prototype 1)
    241 KB
    Download
  • Complete Romset (Prototype US ROMS, CPU + Sound PA1, Speech PA2)
    236 KB
    Download

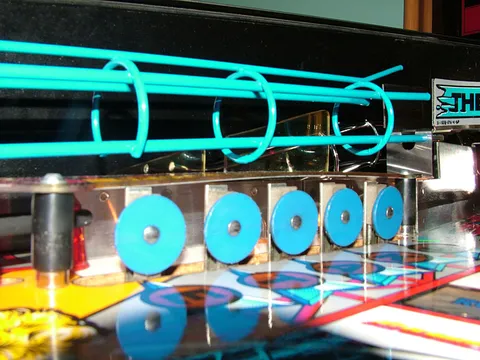

  • Game ROM AD2 (for games with SKATE drop targets)
    36 KB
    Download
  • Game ROM L-2
    262 KB
    Download
  • Game ROMS (EA-3)
    82 KB
    Download
  • Game ROMS French Level 2
    36 KB
    Download
  • Game ROMS French Level 3
    36 KB
    Download
  • Game ROMS German Level 3 CPU
    36 KB
    Download
  • Game ROMS LA2 CPU (see Service Bulletin dated 23 May 1990)
    36 KB
    Download
  • Switch 15 Causing Test Report in Early Game ROMs
    61 KB
    Download

Documentation

  • English Manual
    5 MB
    Download
  • Manual Addendum (dated April 1990 and stapled to page 59 of Manual)
    529 KB
    Download

Service Bulletins

  • Service Bulletin SS63 (dated 15 May 1990 - "Deep Freeze" Magnet Performance Adju
    2 MB
    Download
  • WMS Service Bulletin SS64 (dated 15 May 1990 - Upper Diverter Assembly Improveme
    2 MB
    Download
  • WMS Service Bulletin Unnumbered (dated 23 May 1990 - Diverter Gate Spring Breaka
    710 KB
    Download
