The Addams Family
About This Machine
The Addams Family pinball machine, designed by Pat Lawlor and Larry DeMar and manufactured in 1992 by Midway (under the Bally trade name), is a seminal title that earned its place at the very top of pinball history: it broke all previous sales records for flipper games and, with a confirmed 20,270 units produced, became the best-selling flipper pinball machine of all time. Based on the beloved Addams Family franchise, released alongside the hit 1991 feature film, the game's success can be attributed to its clever blend of humor, gameplay, and innovative engineering, with artwork by John Youssi and music and sound by Chris Granner.

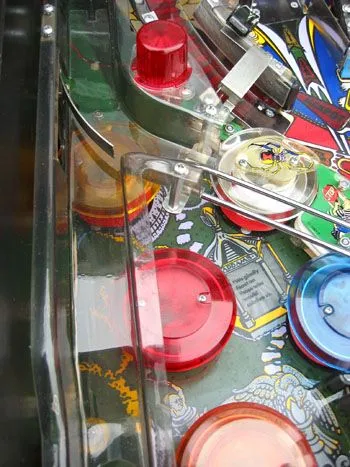

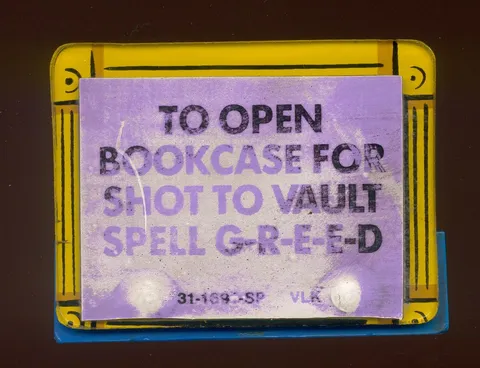

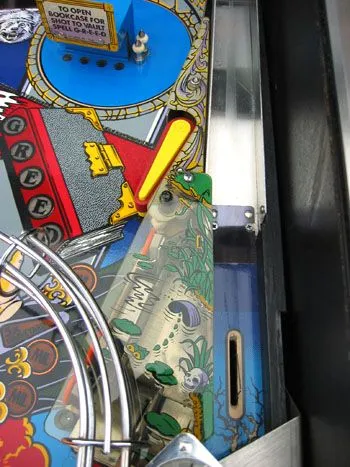

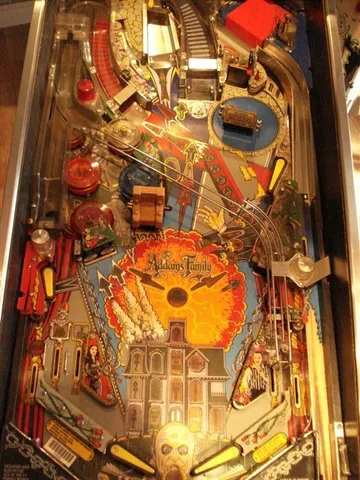

One of the key features that set this machine apart is the bookcase, home to the first-ever optical target bank, which rotates when active to reveal a lock hole. The game boasts four flippers - one of which doubles as a game-controlled mini-flipper that the software fires at certain points in play - plus five pop bumpers, two slingshots, two ramps, two kick-out holes, and dual left inlanes. Magnets beneath the playfield activate as 'The Power', an earned feature that seizes and flings the ball in unpredictable ways, and the game offers 2- or 3-ball multiball.

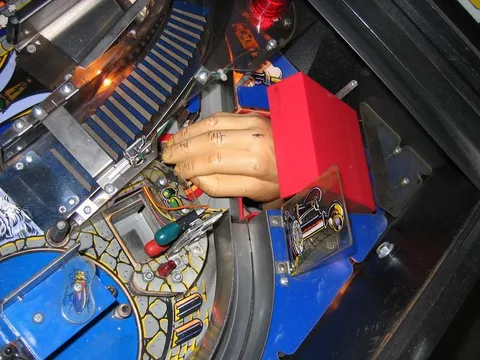

The machine's most memorable toy is 'Thing', a large plastic hand that emerges from its box in the upper right playfield to magnetically pick up the ball and carry it below the playfield, joined by the electric chair kick-out. The game's record-breaking success was later commemorated with gold-cabinet machines - including a special 1994 'Gold Edition' run with gold ramps, legs, lettering, and a signed certificate from the design team. Weighing a measured 255 pounds, The Addams Family is a testament to the craftsmanship of its design team and remains the benchmark against which blockbuster pinball machines are judged.
Images (55)
Technical Details
- Theme:
- Celebrities - Fictional - Licensed Theme

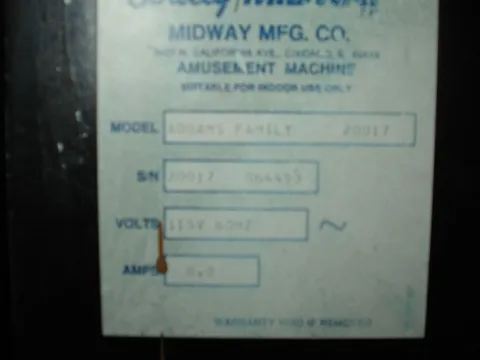

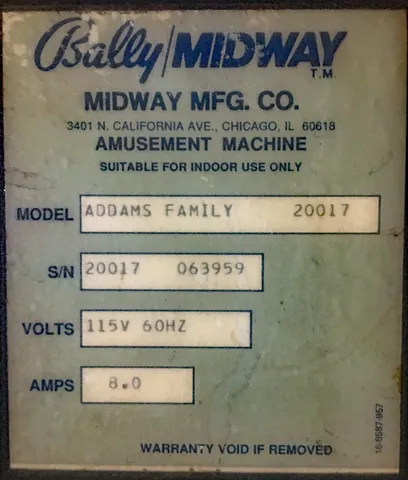

- Model Number:
- 20017
- MPU:

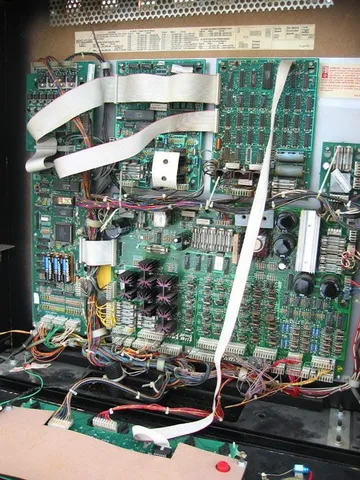

- Williams WPC (Fliptronics 1)
- Toys:
- 'Thing' hand - ball capture device. 'Electric chair'
- Notable Features:

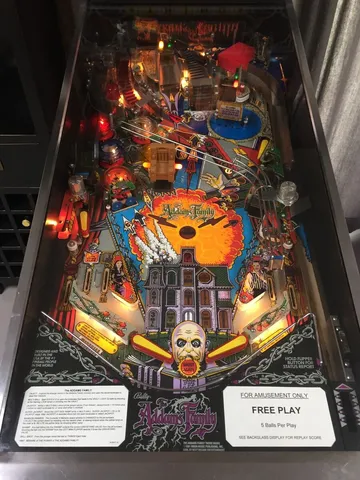

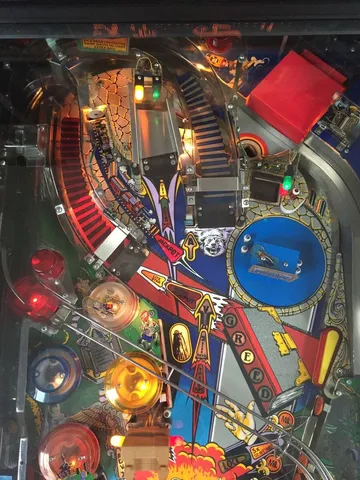

- Flippers (4), Pop bumpers (5), Slingshots (2), Ramps (2), Kick-out holes (2), Dual left inlanes. One of the four flippers doubles as a game-controlled mini-flipper. First ever optical target bank (in the bookcase). Bookcase, when active, rotates to reveal a lock hole. Magnets under the lower playfield activate as "The Power", an earned feature during play to affect ball movement. 2- or 3-ball multiball. Upper right playfield has "Thing", a large plastic hand that comes out if its box to magnetically pick up the ball and take it below the playfield. Actual measured weight: 255 lbs (includes legs).
Credits
- Designer:
- Larry DeMar, Pat Lawlor
- Artist:
- John Youssi
- Software:
- Larry DeMar, Mike Boon
- Music:
- Chris Granner
- Sound:
- Chris Granner
- Mechanics:
- John Krutsch
- Dots/Animation:
- Scott Slomiany
ROM Files
- DownloadRevision H-4 Game ROM204 KB
- DownloadRevision L-1 Game ROM193 KB
- DownloadRevision L-1 Sound ROM481 KB
- DownloadRevision L-2 Game ROM195 KB
- DownloadRevision L-3 Game ROM194 KB
- DownloadRevision L-4 Game ROM194 KB
- DownloadRevision L-5 Game ROM212 KB
- DownloadRevision L-6 Game ROM209 KB
- DownloadRevision L-7 Game ROM207 KB
- DownloadRevision P-2 Game ROM187 KB
- DownloadRevision P-2 Sound ROM481 KB
Documentation
- DownloadGame ROM History4 KB
- DownloadInstructions Manual (French, undated)10 MB
- DownloadOperations Manual (January 1992, includes schematics, OCR searchable)11 MB
- DownloadOperator's Handbook (January 1991, OCR searchable, has lamp and switch matrices)1 MB
- DownloadParts List198 KB
- DownloadSetting and Operating Instructions (German, undated, OCR searchable, pages 1&3 state this is add'l info to original manual)2 MB
- DownloadWPC Schematic Manual (January 1992, OCR searchable)3 MB
