Rancho

Manufacturer: D. Gottlieb & Company (1931-1977) [Trade Name: Gottlieb]
Year: 1966
Date: August, 1966
Type: Electro-mechanical (EM)
Players: 1
Production: 1,500 units (confirmed)

About This Machine

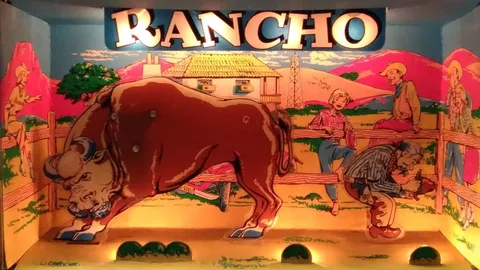

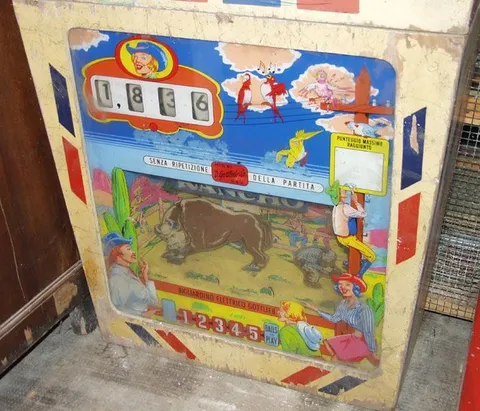

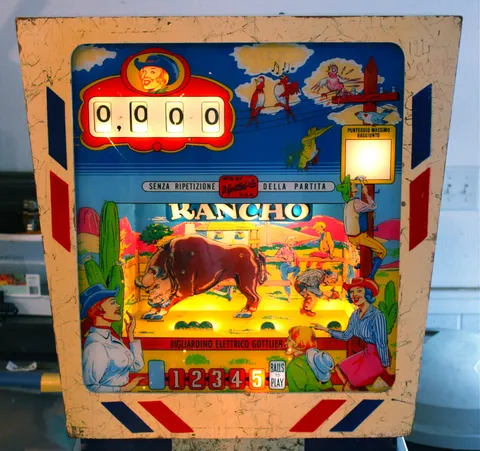

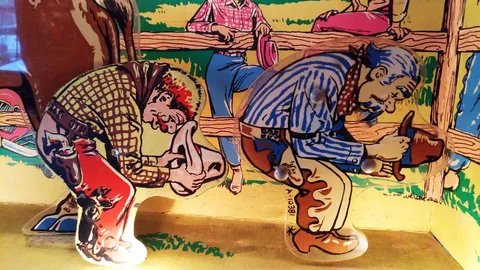

Rancho is a 1966 electro-mechanical, Add-A-Ball pinball machine designed by Wayne Neyens for D. Gottlieb & Company, with artwork by Roy Parker. Notably, Rancho is not an entirely original design -- it's an export version, made for the Italian market, of Gottlieb's 1965 title 'Cow Poke,' sharing the same American West theme and playfield layout. In the mechanical backbox animation, the kicking horse from Cow Poke was replaced with a bull, and the metal cowboy figure was swapped for a plastic one.

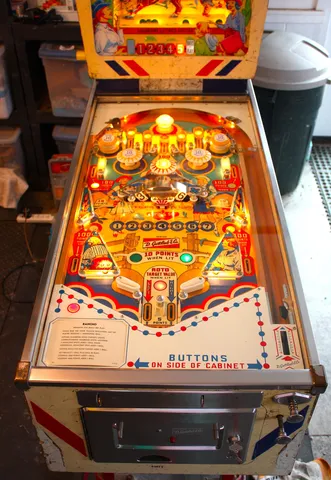

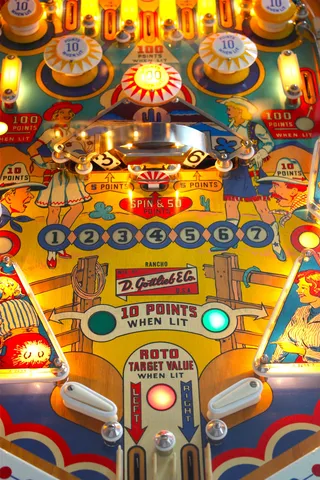

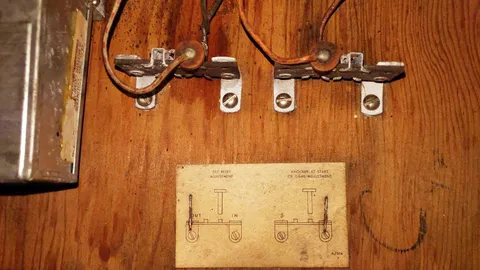

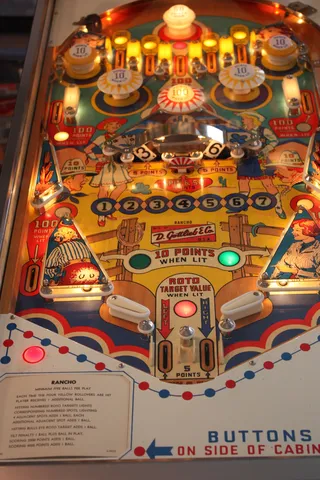

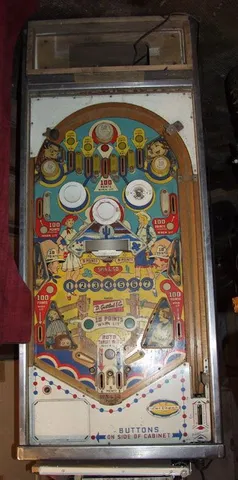

Gameplay features two flippers, three pop bumpers, three passive bumpers, two slingshots, two roto-targets, a standup target, and a stationary post between the flippers. The backbox animation -- a bull kicking a cowboy -- triggers during game reset, with the knocker sounding either once or five times (an operator-adjustable option), adding a playful touch to each new game. Tilt penalty could also be set by the operator to either end the ball in play or end the game entirely.

With 1,500 confirmed units produced, Rancho remains a scarce find today, of particular interest to collectors for its rarity and its unusual status as an Italian-market variant of a better-known Gottlieb title.

Images (20)

Technical Details

Theme:
American West
Model Number:

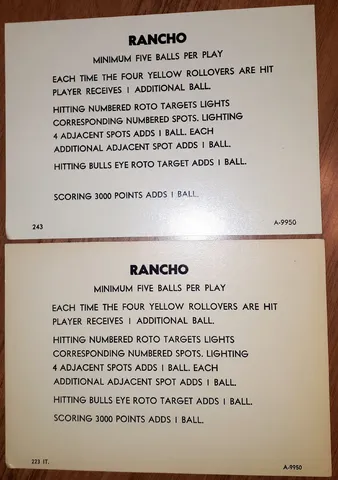

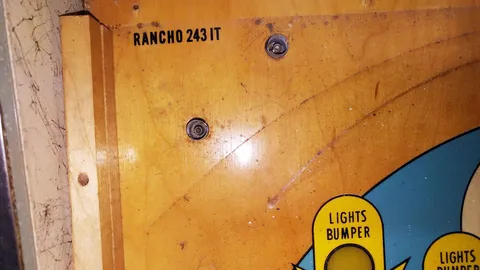

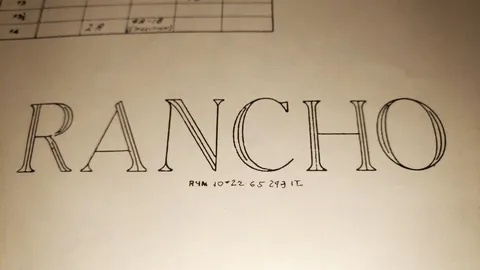

243 IT
Notable Features:

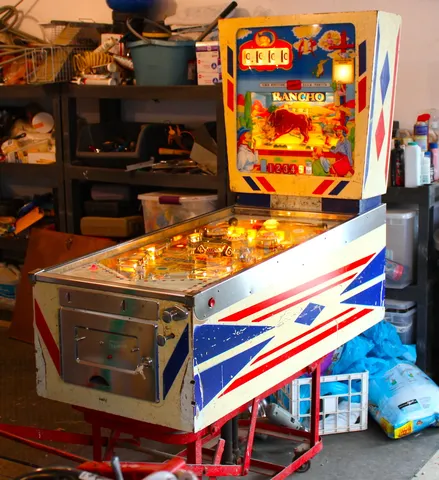

Flippers (2), Pop bumpers (3), Passive bumpers (3), Slingshots (2), Roto-targets (2), Standup target (1), Stationary post between flippers. Mechanical backbox animation (bull kicks cowboy). During game reset at start of game, the knocker sounds either 1 or 5 times and the bull kicks the cowboy either 1 or 5 times (operator option). End-of-ball bonus scores 50 points and spins roto-targets. Wedge head. Maximum displayed point score is 9,999 points. Tilt penalty: ball in play or game over (operator option).

Credits

Designer:
Wayne Neyens
Artist:
Roy Parker
