Pretty Baby

Manufacturer: Williams Electronic Manufacturing Corporation (1958-1967) [Trade Name: Williams]
Year: 1965
Date: January 27, 1965
Type: Electro-mechanical (EM)
Players: 2
Production: 1,300 units (confirmed)

About This Machine

Pretty Baby, designed by Steve Kordek and manufactured by Williams in 1965, is a solid example of mid-1960s electro-mechanical (EM) pinball design. Its two flippers give players control and challenge typical of the era, in a game built around Williams' well-honed EM mechanics.

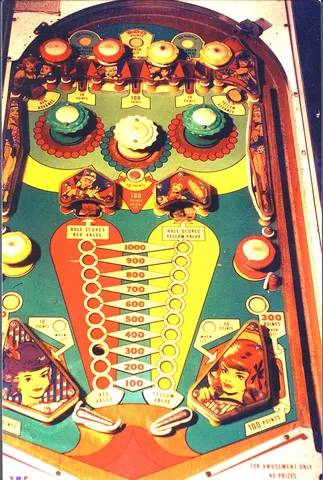

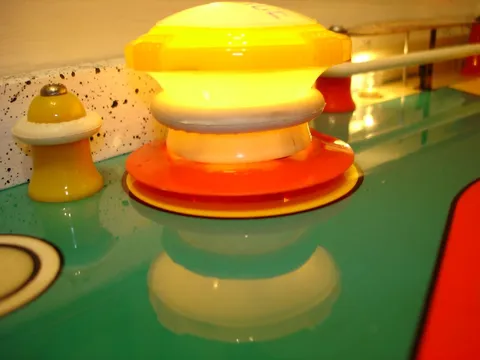

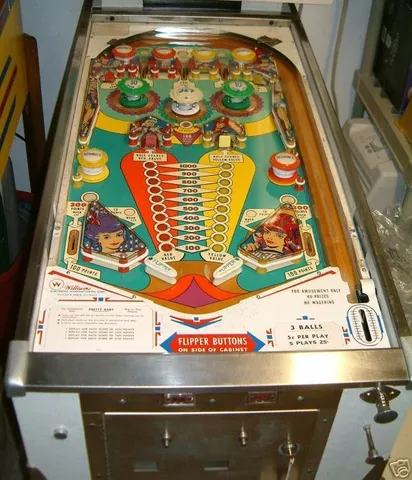

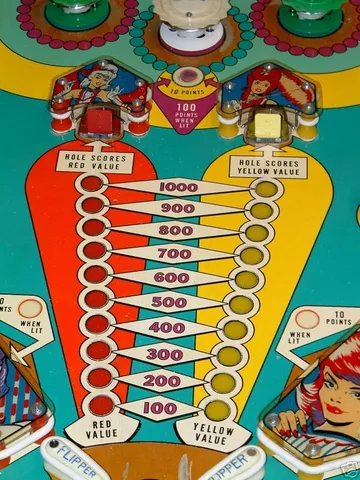

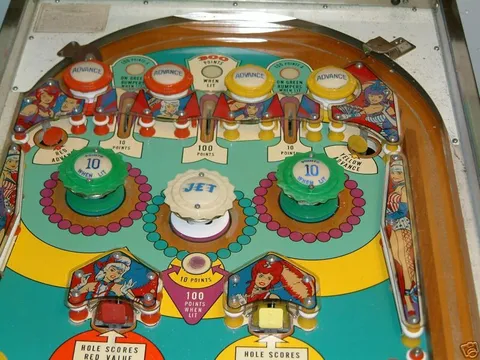

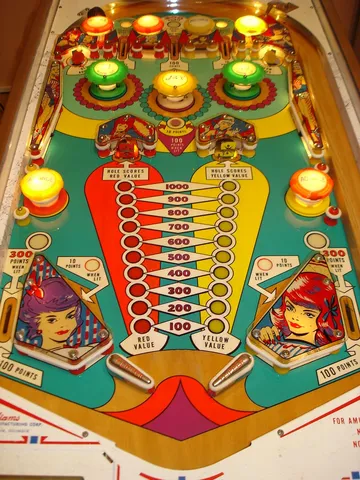

Notable features include three pop bumpers, six passive bumpers, two slingshots, kick-out holes, drop targets, standup targets, and a rollover button. Each kick-out hole is protected by a drop target, and the machine's replay system allows for operator-configured double match awards of 2, 5, or 10 replays.

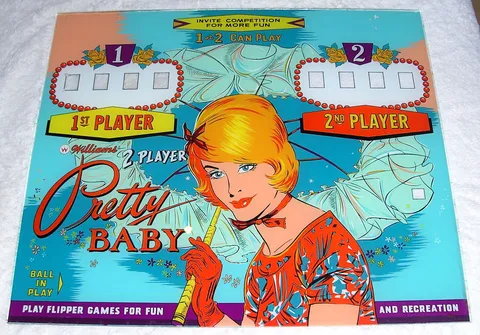

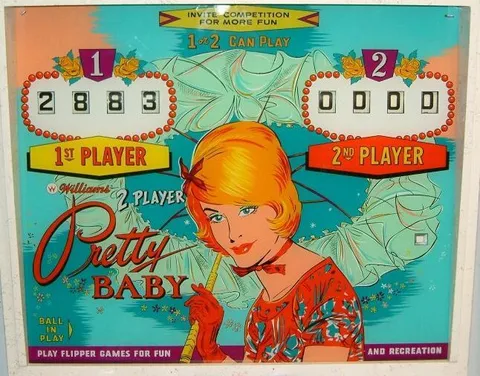

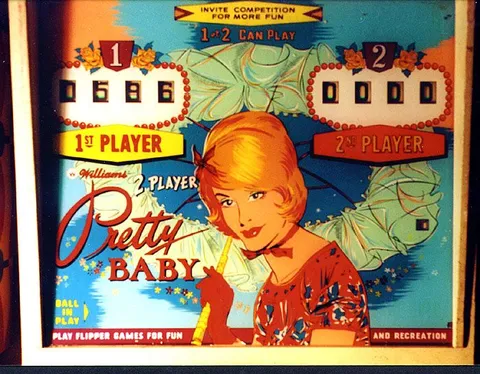

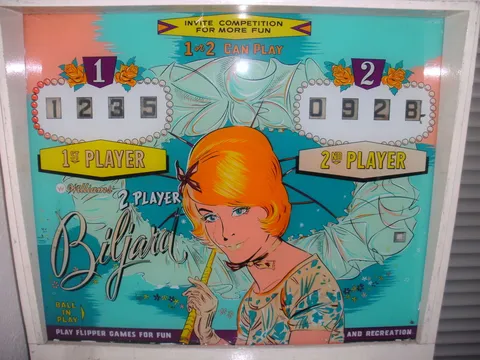

Pretty Baby's design and art are quintessential of its era, with a focus on feminine themes that were common in pinball at the time. Interestingly, one surviving example carries a modified backglass labeled 'Biljard' (Swedish for 'billiards'), with the 'Pretty Baby' name removed and the area filled in -- an unexplained conversion whose origin remains a mystery. Although detailed information about Kordek's specific design decisions is scarce, Pretty Baby remains a solid piece of pinball history with a distinctive story and enduring appeal to collectors.

Images (17)

Technical Details

Theme:
Girls - Women
Model Number:
305
Notable Features:
Flippers (2), Pop bumpers (3), Passive bumpers (6), Slingshots (2), Kick-out holes (2), Drop targets (2), Standup targets (2), Rollover button (1). Each kick-out hole is protected by a drop target. Double match award can be set for 2, 5, or 10 replays (operator's option). Maximum displayed point score is 9,999 points per player.

Credits

Designer:
Steve Kordek

Documentation

  • Schematic Diagram (continuous)
    7 MB
    Download

Other Files

  • Adjustment Sheet
    329 KB
    Download
  • Coil Chart
    1 MB
    Download
  • Original Cabinet Artwork 1962-1965 (see page 19 for this game)
    7 MB
    Download
