Nip-It

Manufacturer: Bally Manufacturing Corporation (1931-1983) [Trade Name: Bally]
Year: 1973
Date: July, 1973
Type: Electro-mechanical (EM)
Players: 4
Production: 4,580 units (confirmed)

About This Machine

Nip-It, designed by Ted Zale with artwork by Dick White, was manufactured by Bally in July 1973 as a four-player electro-mechanical machine with a fishing/alligator/swamp theme. With 4,580 confirmed units produced, it was a solidly successful release for Bally, and it holds a specific place in pinball history as the last EM game to feature zipper flippers — Bally would only use the mechanism once more, in the 1981 solid-state game Medusa.

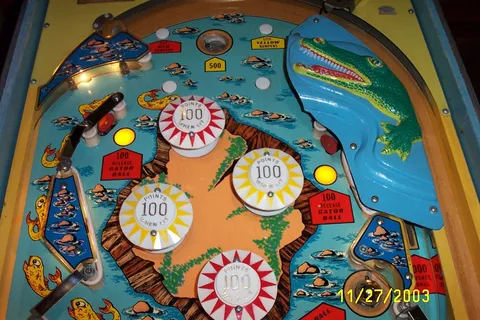

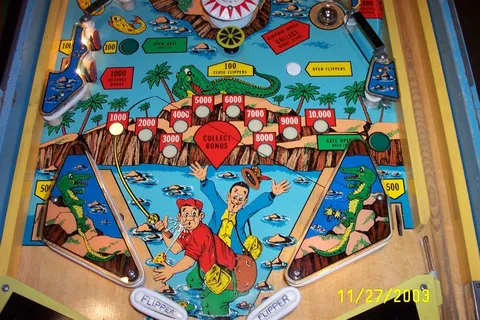

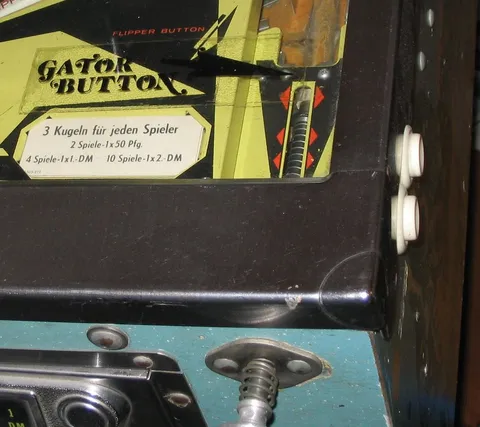

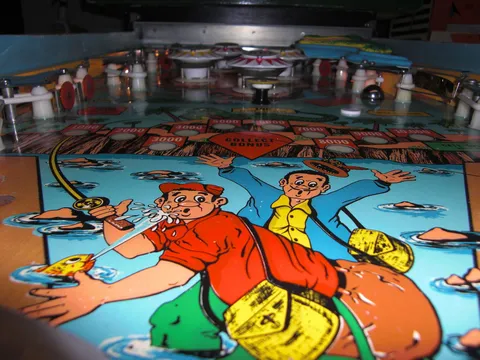

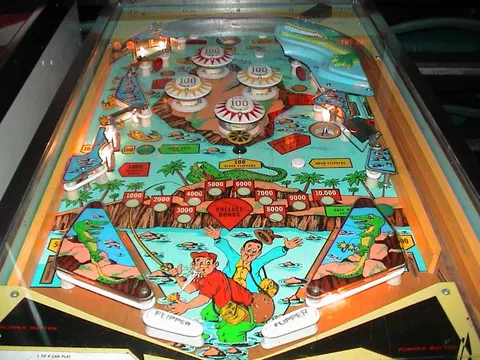

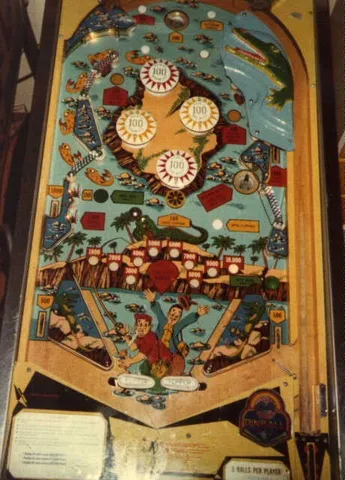

Gameplay centers on the zipper flippers alongside four pop bumpers, a mushroom bumper, two slingshots, four standup targets, two kick-out holes, and two-ball multiball. The signature feature is the 'Balligator,' a ball-grabbing device in the upper-right playfield activated by a dedicated 'Gator' button next to the right flipper, pulling the ball into a high-scoring lane.

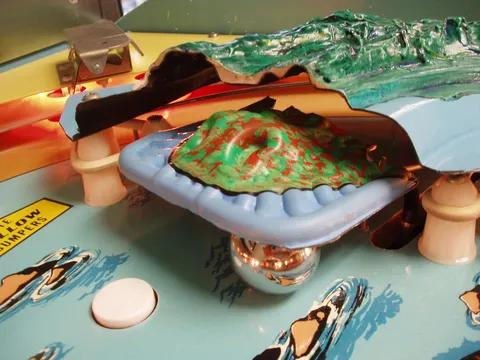

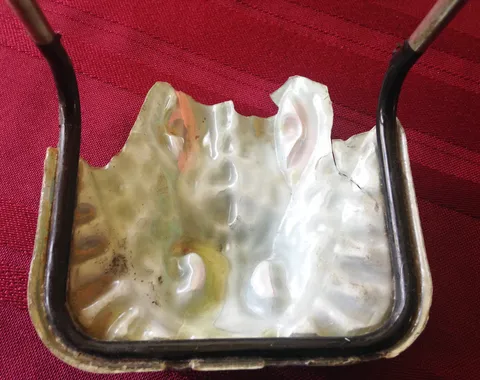

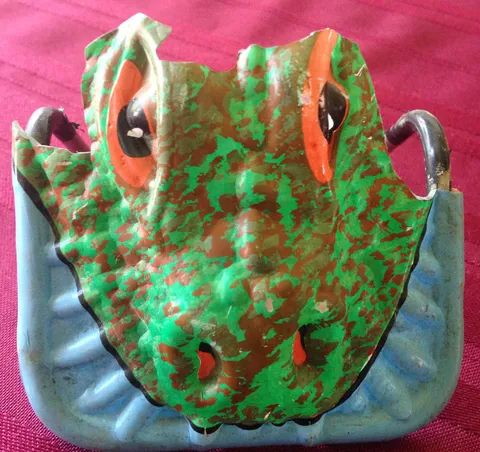

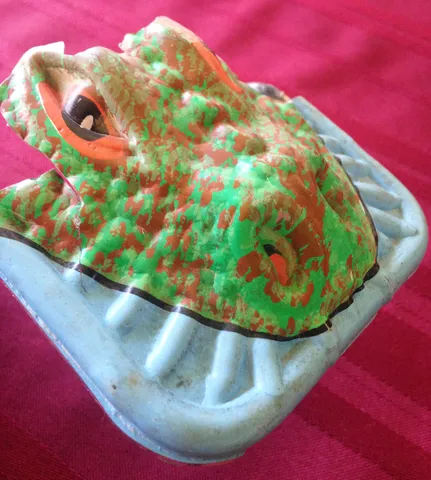

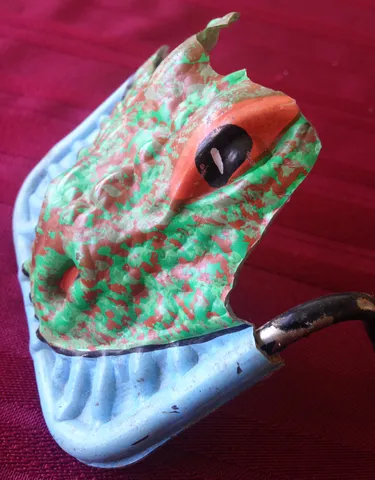

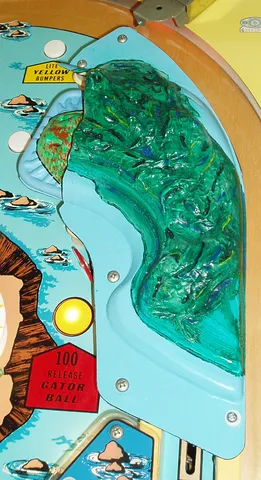

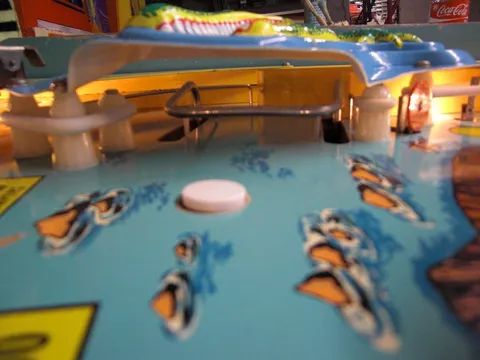

Early production units used a molded plastic alligator that would jump out from the swamp reeds to grab the ball, but the plastic kept breaking on location, so Bally switched early in the run to a simple metal bar, redesigning the reed-lane plastic to depict the alligator instead. Only a minority of surviving games have the original molded-alligator version, making those examples especially prized by collectors today.

Images (38)

Technical Details

Theme:
Sports - Fishing - Alligators - Water
Model Number:
940
Notable Features:

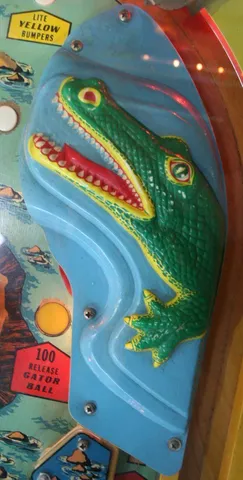

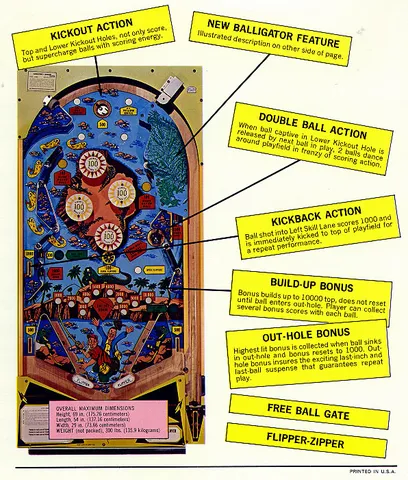

Zipper flippers (2), Pop bumpers (4), Mushroom bumper (1), Slingshots (2), Standup targets (4), Kick-out holes (2), Multiball (2), Left kicker lane, Right outlane ball return gate. End-of-ball bonus. Maximum displayed point score is 99,990 points per player. Tilt penalty: game over, per player. Replay wheel maximum: 25 A ball-grabbing device in the upper right playfield, called a 'Balligator', is activated by a 'Gator' button, located next to the right flipper button, to pull the ball into a special high-scoring lane. As the flyer illustrates, the game was initially produced using a molded alligator to jump out from under the swamp reeds to capture a nearby ball. However, the plastic alligator kept breaking on location, so this design was changed early in production to instead use a bare metal bar to grab the ball, while the swamp reeds lane plastic was redesigned to show the alligator. Only a minority of games produced have the original Balligator design.

Credits

Designer:
Ted Zale
Artist:
Dick White

Documentation

  • Playfield Chart from 1976 Parts Catalog
    636 KB
    Download
  • Schematic Diagram (continuous, dated 7-2-73)
    13 MB
    Download
  • Schematic Diagram (in two halves, dated 10-10-72)
    14 MB
    Download

Other Files

  • Installation And General Game Operation Instructions
    5 MB
    Download
