Monte Carlo

Manufacturer: Bally Manufacturing Corporation (1931-1983) [Trade Name: Bally]
Year: 1973
Date: March, 1973
Type: Electro-mechanical (EM)
Players: 4
Production: 5,254 units (confirmed)

About This Machine

Monte Carlo, designed by Jim Patla with art by Dave Christensen, was manufactured by Bally in March 1973. This four-player electro-mechanical machine carries a cards-and-gambling theme, continuing a lineage of casino-themed Bally tables that stretched back at least to the company's earlier Monte Carlo (1964). A one-player version of this 1973 game was also released as Bally's Odds & Evens.

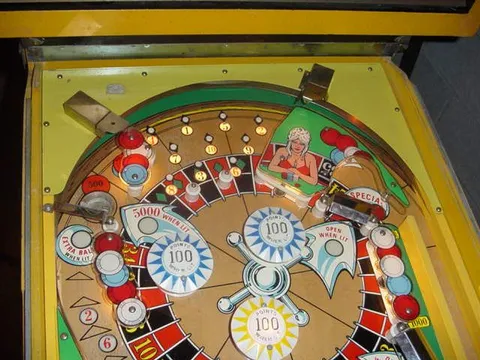

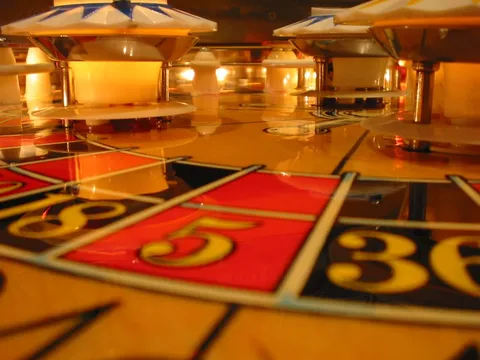

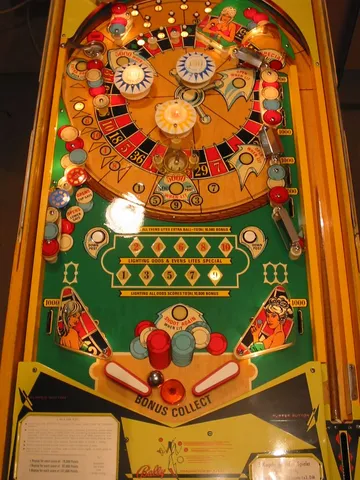

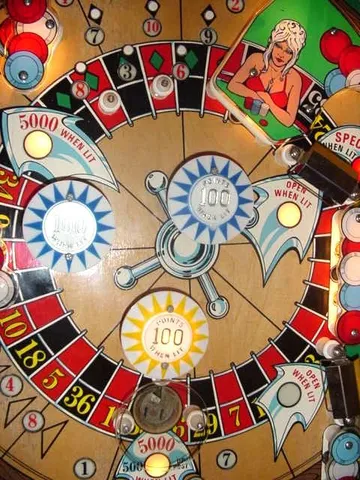

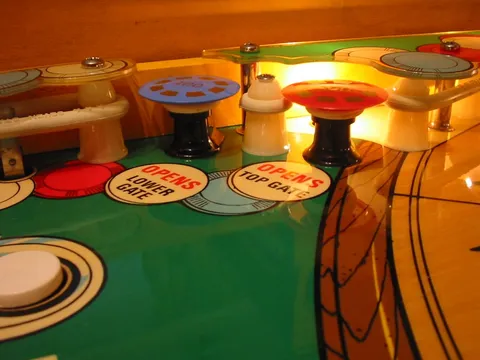

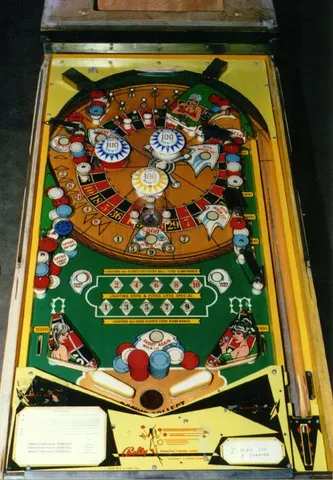

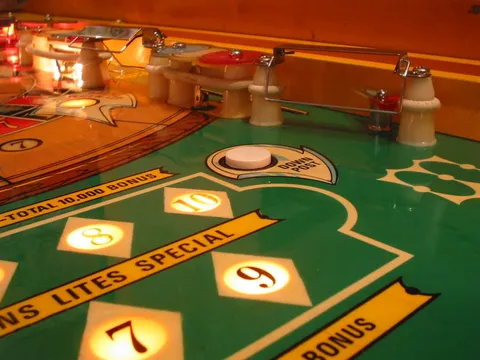

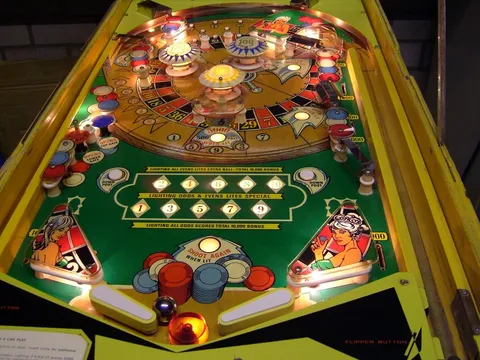

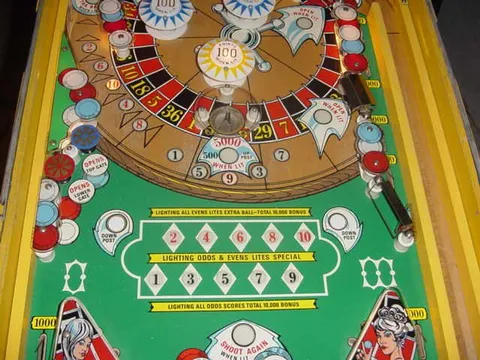

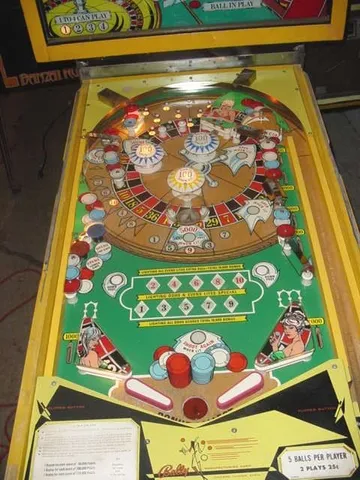

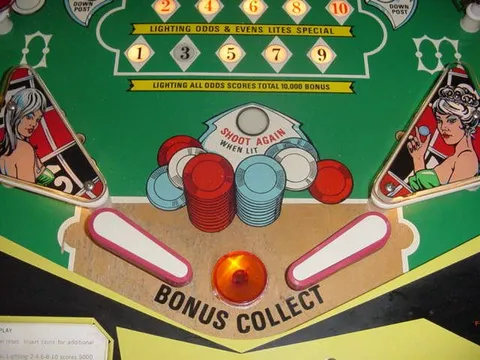

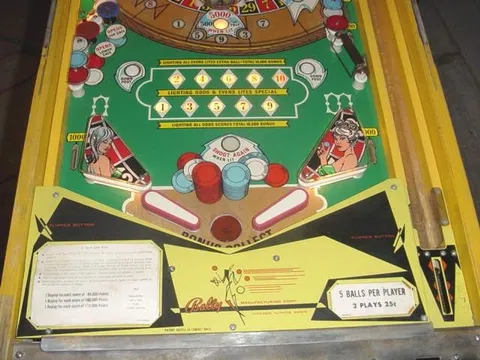

Gameplay features two flippers, three pop bumpers, two mushroom bumpers, two slingshots, ten mini-rollover buttons, two kick-out holes, an upper and lower gate, and an up-post between the flippers, along with an end-of-ball bonus. The game supports 3 or 5 ball play and can display up to 199,990 points per player, with a replay wheel that maxes out at 25 replays.

With its polished 1970s styling and busy target layout, this Monte Carlo represents Bally's mature electro-mechanical design work just before the industry's shift to solid-state electronics later in the decade.

Images (48)

Technical Details

Theme:
Cards/Gambling
Model Number:
964
Notable Features:
Flippers (2), Pop bumpers (3), Mushroom bumpers (2), Slingshots (2), Mini-rollover buttons (10), Kick-out holes (2), Upper gate, Lower gate, Up-post between flippers. End-of-ball bonus. 3 or 5 ball play. Maximum displayed point score is 199,990 points per player. Replay wheel maximum: 25 Sounds: 3 chimes, knocker. Tilt penalty: ball in play.

Credits

Designer:
Jim Patla
Artist:
Dave Christensen

Documentation

  • Bally Coin Chute Schematics
    2 MB
    Download
  • Playfield Chart from 1976 Parts Catalog
    630 KB
    Download
  • Schematic Diagram (continous)
    3 MB
    Download

Other Files

  • Installation and General Game Operating Instructions (OCR searchable)
    2 MB
    Download
