Meteor

Manufacturer: Stern Electronics, Incorporated, of Chicago, Illinois, USA (1977-1984) [Trade Name: Stern]
Year: 1979
Date: September, 1979
Type: Solid State Electronic (SS)
Players: 4
Production: 7,939 units (confirmed)

About This Machine

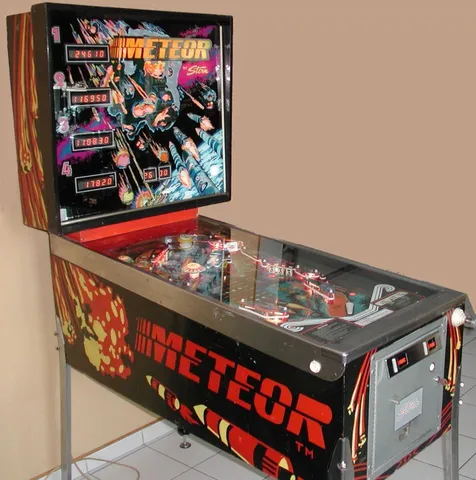

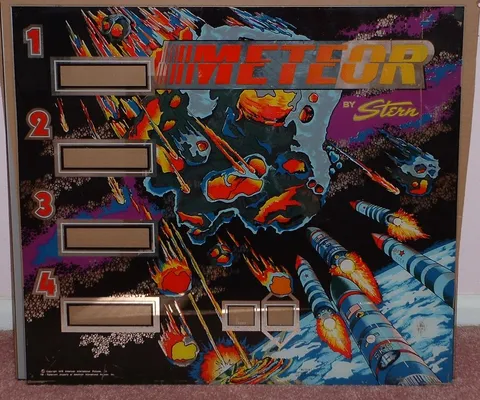

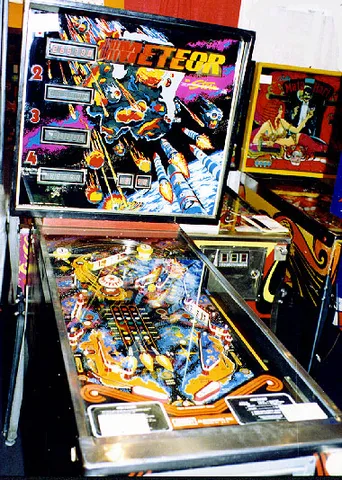

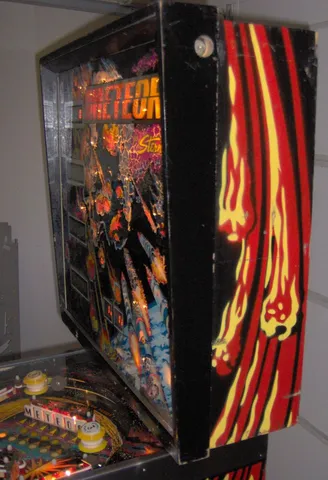

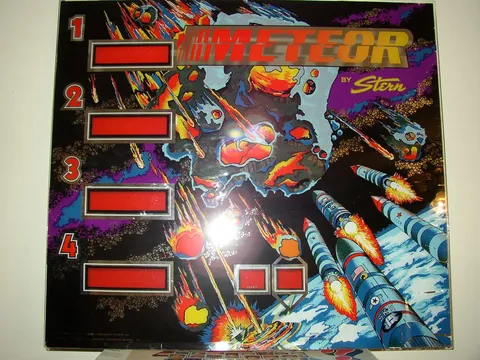

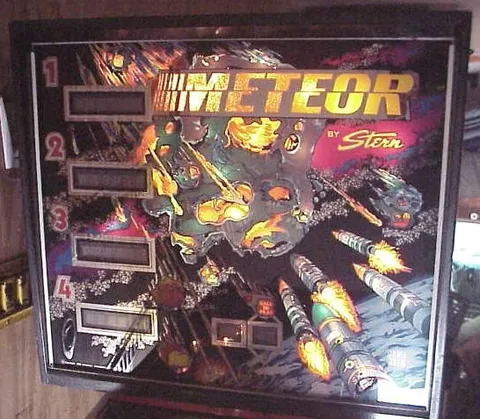

The Meteor, designed by Steve Kirk and manufactured by Stern Electronics in 1979, is a standout example of early solid-state electronic pinball. Its outer-space theme and backglass artwork were licensed from the 1979 movie 'Meteor', derived from an advertising poster painted by space artist Robert McCall. The game was also the first to use Stern's SB-300 sound board.

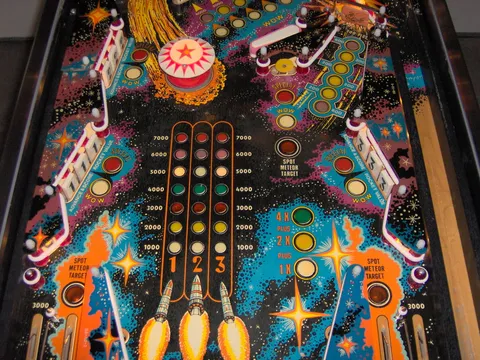

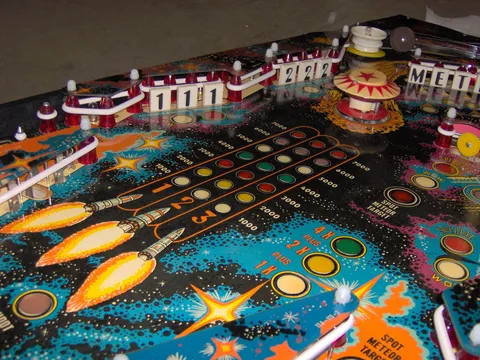

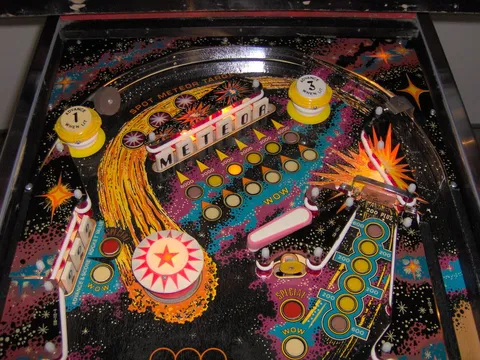

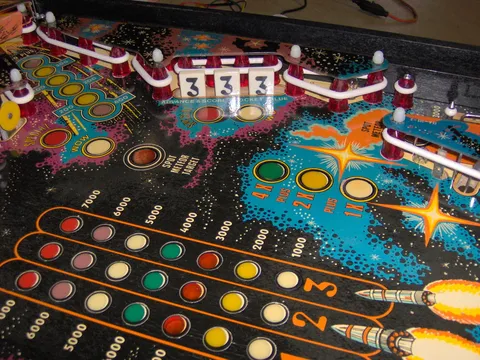

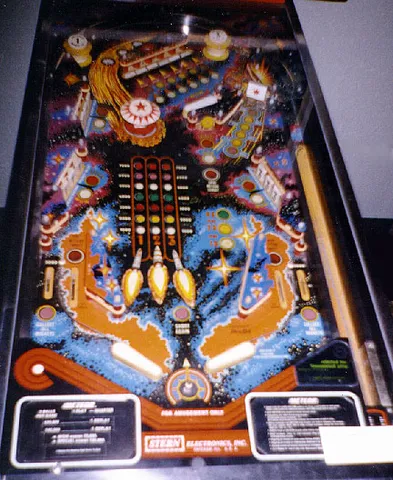

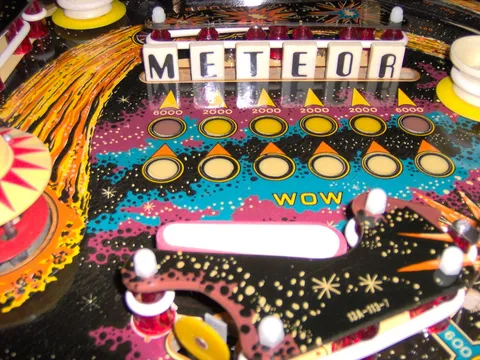

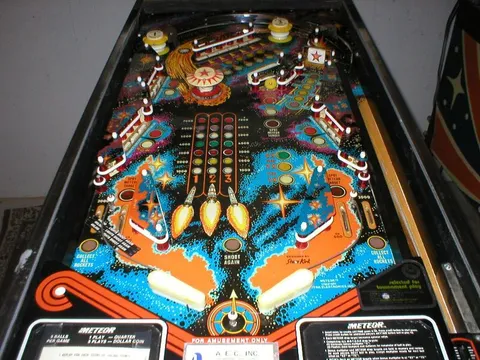

One of the key gameplay features that makes the Meteor stand out is its comprehensive array of targets and bumpers. Players can interact with three flippers, one pop bumper, two passive bumpers, and two slingshots, as well as multiple star rollovers, drop targets, and spinning targets. The game's standout feature is its six-bank memory drop target, the only bank on the playfield with memory, adding a layer of strategy to the gameplay experience. A mini-post screw between the flippers, nicknamed the "Kirk Post" after designer Steve Kirk, is another notable detail.

With nearly 7,939 units produced (plus additional knock-down units built under license in Australia by LAI), the Meteor was a commercially significant title for Stern and remains a recognizable entry from the early solid-state era.

Images (45)

Technical Details

Theme:
Outer Space - Licensed Theme
Model Number:
113
MPU:

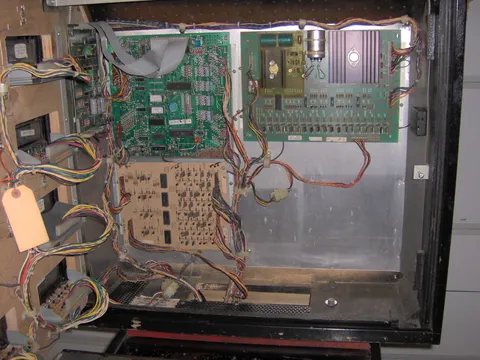

Stern M-200 MPU
Notable Features:

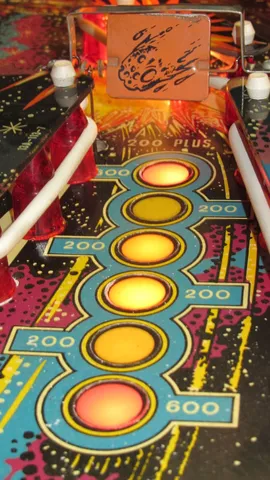

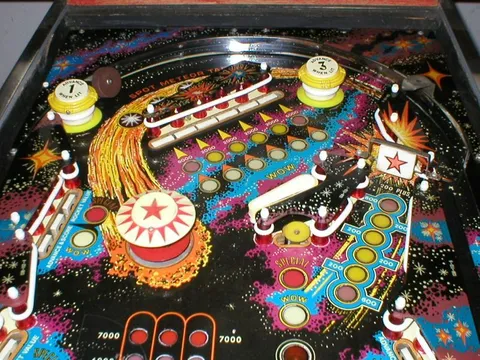

Flippers (3), Pop bumper (1), Passive bumpers (2), Slingshots (2), Star rollovers (3), 3-bank drop targets (3), 6-bank memory drop targets (1), Spinning target (1), Standup target (1). Mini-post screw between flippers. Only the 6-bank of drop targets has memory. Actual measured weight: 225 lbs (includes legs).

Credits

Designer:
Steve Kirk
Artist:
Leslie Kaip, Jorge Obregon
Software:
Alan McNeil

ROM Files

  • Factory-Modified ROMs (has bug-fixed U1a)
    7 KB
    Download
  • Factory-Original ROMs (has bugs in U1)
    7 KB
    Download
  • Manufacturer Invoice for ROM (dated 12-17-79, with part number)
    287 KB
    Download
  • PinMAME Romset
    6 KB
    Download
  • PinMAME Romset (7-digit bootleg)
    5 KB
    Download

Documentation

  • Manual (possibly early version, some pages typewritten, no schematics)
    11 MB
    Download
  • Manual (with paginated schematics, pages split into halves)
    3 MB
    Download
  • Schematic Diagrams (paginated, pages split into halves)
    829 KB
    Download

Other Files

  • An Open Letter to the Coin Machine Industry from Gary Stern, President (undated)
    2 MB
    Download
  • Game Leveler Adjustment Sheet
    385 KB
    Download
  • Meteor Drop-Target Font
    22 KB
    Download
  • Self Test Display Numbers
    705 KB
    Download
